Description

THE NERDY DETAILS

  • 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
  • A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
  • 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable scratch resistant
  • 100% Polyester UV and abrasion resistant powder coat
  • IP68 | Dust & Particle tight + Water-proof up to 3 meters
  • Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
  • Environmentally Sealed Deutsch® DTP-2 connector
  • EMI & RFI Suppression circuitry – We guarantee it.
  • Each TYPE-X Sport comprises of 36 OSRAMs OSLON LEDs, selected for its high luminous flux and perfectly matches optical properties.
  • Four wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
  • 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)



TECH SPECS

LED 36 x Osram Oslon SSL
RAW LUMENS 20,780 (Pair)
TESTED LUMENS 14,950 (Pair)
AMP DRAW 9.8A @ 13.2v (each)
POWER DRAW 129W
CANDELA 1,102,500cd
BEAM PATTERN 4 x Spread 32 x Spot Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5700K
VOLTAGE COMPATIBILITY 12v & 24v
LUMEN MAINTENANCE 50,000 LM-80
WEIGHT 3.35kg (each)
OPERATING TEMP -40°C - 60°C
PHOTOMETRIC DATA
10 m 11,025 Lx
50 m 441 Lx
200 m 27 Lx
300 m 12 Lx
400 m 6 Lx
1,000 m 1.1 Lx
1,050 m 1 Lx





WHAT'S INCLUDED

  • 2 x STEDI TYPE-X Sport
  • 2 x STEDI Black Out Covers
  • 1 x Easy Fit High Beam Wiring with DTP-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
  • 3 Series Stainless Steel Nuts and Bolts
  • Rubber Shock Dampener
  • Wiring Instructions

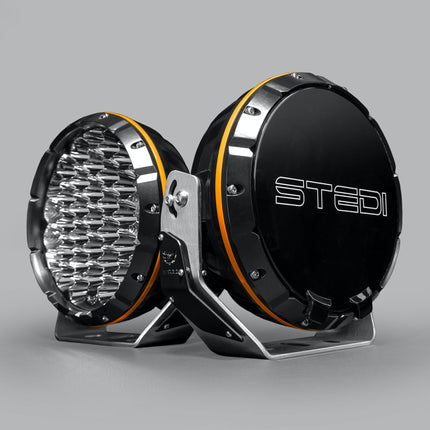

8.5" Type-X™ Sport

Product form
Vendor STEDI

SKU LEDTYPE-X-SRT

$479 incl. GST

Free local pick up at AutoSpec 4x4

    Get An Install Quote

    We offer installation on all our products! Contact us for an install quote today on 1800 288 649 or through our contact form found here.
