Description

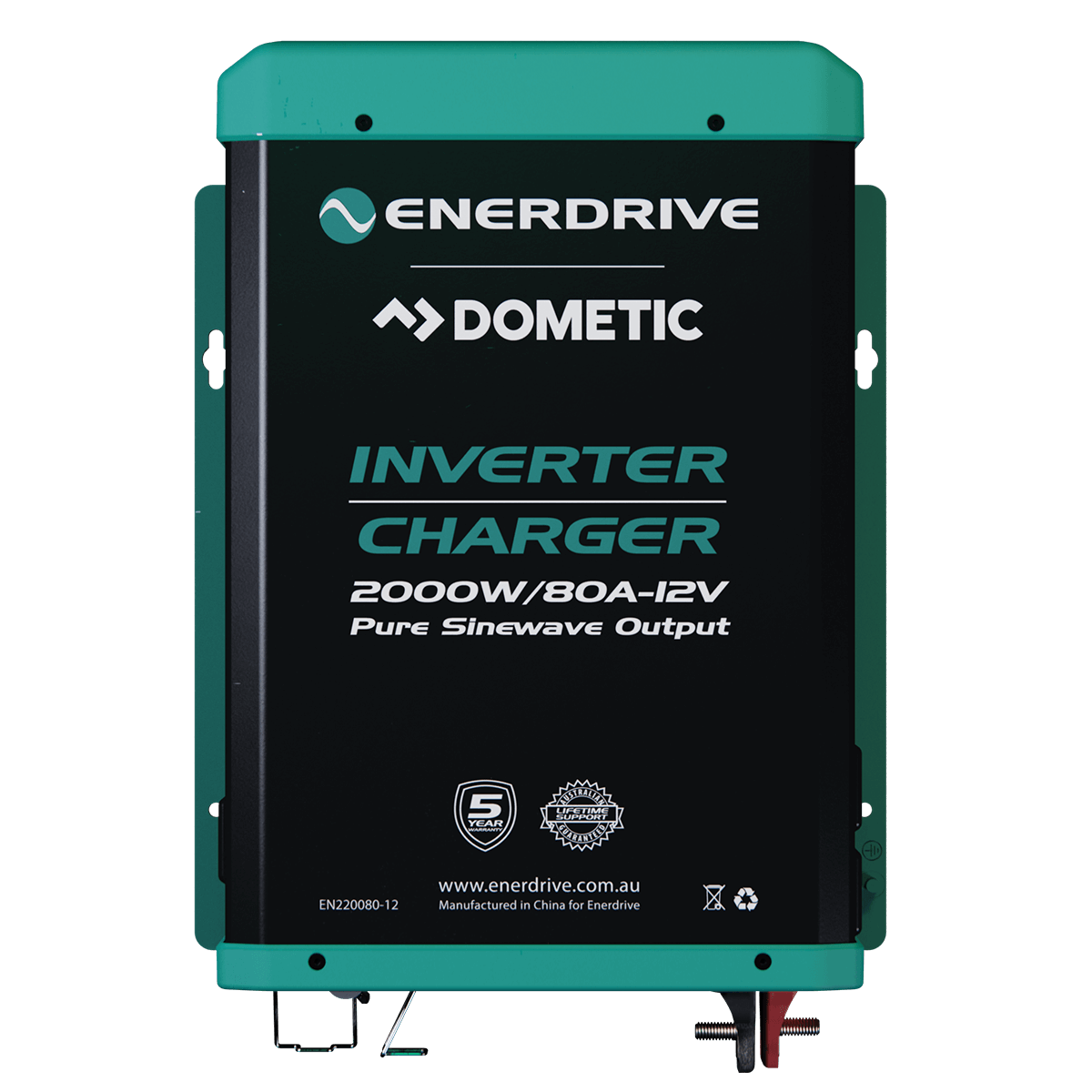

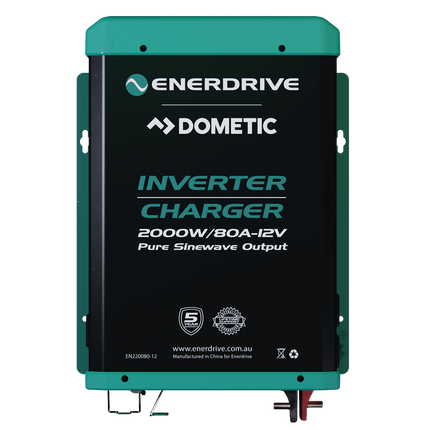

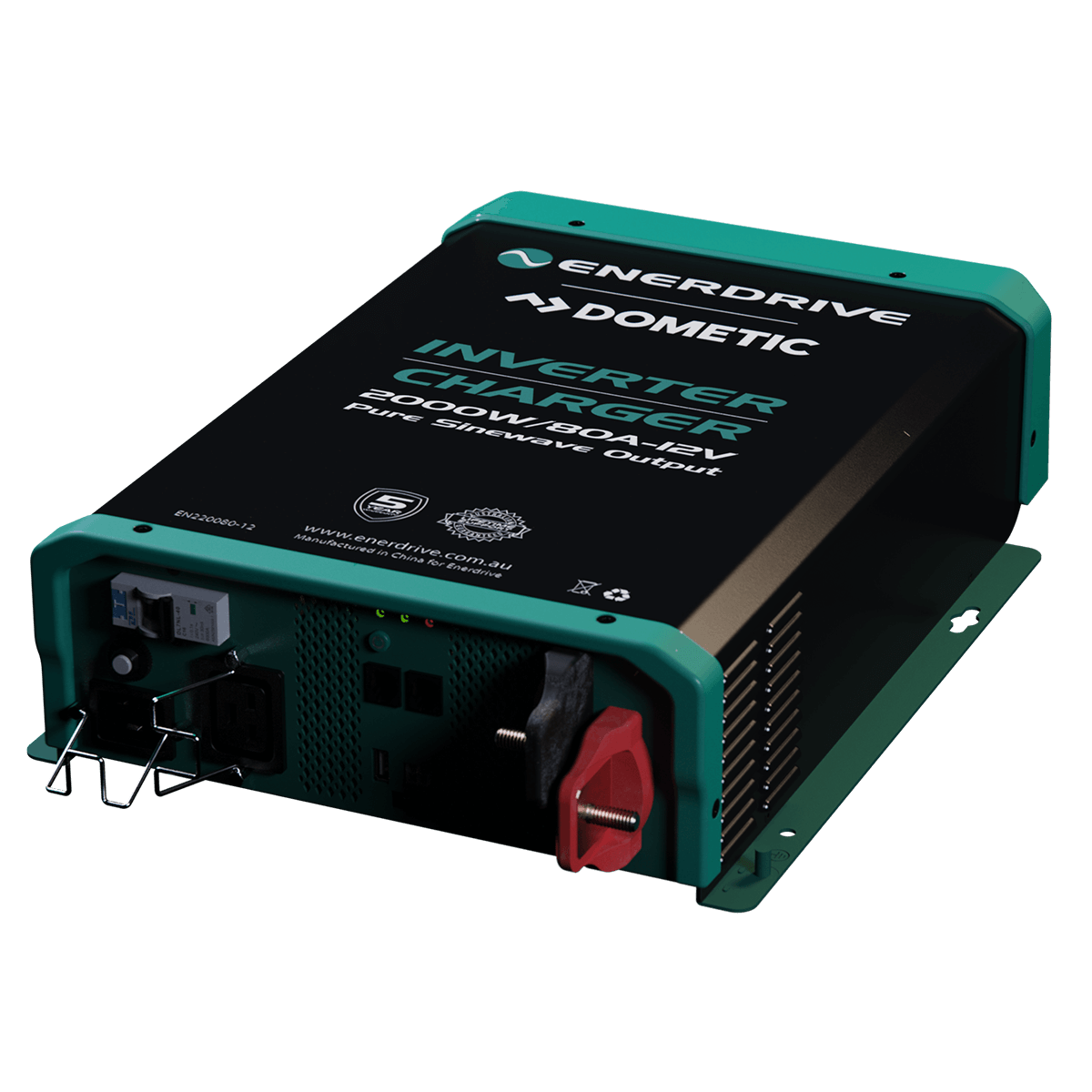

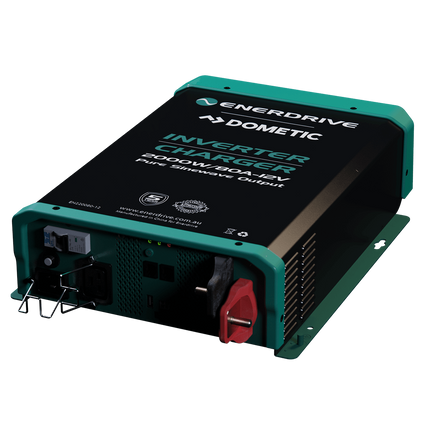

12V 2000W/80A Inverter-Charger
Constructed with cutting-edge design, this product provides reliable True Sinewave AC power for your RV, Marine, 4WD, and off-grid power needs. The Sinewave Inverter-Charger can support multiple 240V AC-powered devices and automatically recharge your battery when 240V AC is accessible.
Its multi-stage battery charger offers various charging profiles for different battery types. Additionally, the built-in transfer switch effortlessly switches between 240V mains supply and battery power. The unit also includes a RCD Safety Switch that swiftly detects and shuts off power in case of potential safety hazards.
The 12V 2000W/80A Inverter-Charger is perfect for powering appliances up to 2000W, such as induction cooktops, microwaves, and coffee machines. All ENERDRIVE | DOMETIC branded products come with a comprehensive 5-year warranty.
12V 2000W/80A Inverter-Charger Features:
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button
- Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Quiet Operation
- Compact Size for Easy Installation
- Variable settings offered for Gel, Flooded, AGM, and Lithium battery compatibility.
- Multi-stage charging ensures batteries are charged to their manufacturer’s recommendations.
- Lightweight compact design
- Built-in load sense to minimize battery drain
| Model – Description |
EN220080-12 |
EN230100-12 |
| Charger Output Current (Maximum) |
80A |
100A |
| AC Output Power |
2000W |
3000W |
| AC Output Current |
8.7A |
13.0A |
| AC Output Voltage |
230VAC |
| AC Output Waveform |
True Sinewave (<3% THD) |
| Nominal DC Input Voltage |
12.5Vdc |
| DC Input Voltage operating range |
10.5 – 16.5 VDC |
| Under Voltage Alarm |
11.0 / 12.5 VDC |
| Under Voltage Shutdown |
10.5 / 12.0 VDC |
| Over Voltage Shutdown |
16.5 VDC |
| AC Transfer Switch |
| Transfer Time |
<30ms |
| Transfer Relay Rating |
16A |
| AC Input socket IEC-C20 |
16A Heavy Duty Connector |
| AC Output socket IEC-C19 |
16A Heavy Duty Connector |
| Safety and Environmental |
| Conformance |
LVD: EN/IEC 62040-1, IEC 61558-2-16 |
| Agency Markings |
CE |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-20°C to 60°C |
| Relative Humidity |
5 - 90% non-condensing |
| Operating Altitude |
Up to 3000m above sea level |
| Weights and Dimensions |
| Weight |
8kg |
10.4kg |
| Dimensions (W x H x D) |
440.7W x 307H x 108Dmm |
307W x 533H x 108Dmm |
| Warranty |
5 Years |
