Description

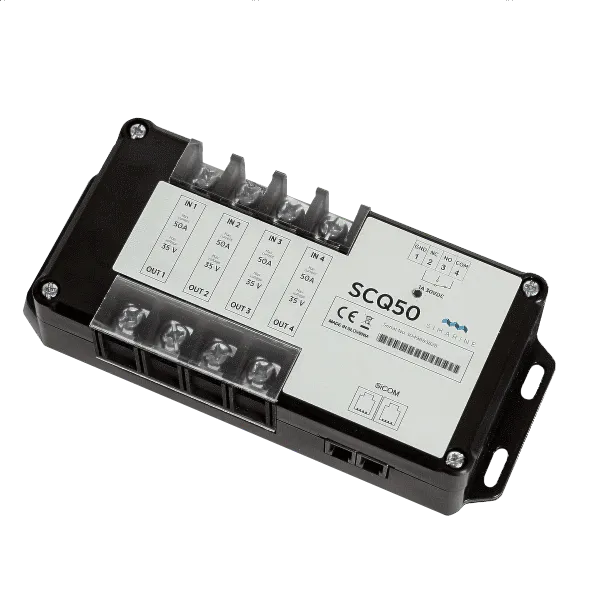

Active shunt for PICO battery monitor with 4x current sensors up to 50A each. For 12V and 24V systems.
Operating
- Power source voltage range 6 – 35 V
- Temperature range -20 – +70 °C
- Power consumption at 12 V
- Operating 3,5 mA
- Current measuring channels 4
- Relay (monostable)
- Maximum Operating Current 1 A
- Maximum Common Input Voltage 6 – 30V
Voltage inputs
- Per channel 0,01 – 50 A
- Resolution 0,01 A
- Accuracy ± 0,6 %
- Sampling rate 100 ms
Maximal current
- Continuous 50 A
- Peak current (<1 min) 60 A
- Peak current (<5 sec) 60 A
- Voltage drop at 50 A 35 mV
- Maximum voltage on connections 35 V
Connectivity Up to
- Current sensors 4
- Relay Common Input (COM) 1
- Relay Output Normaly Open (NO) 1
- Relay Output Normaly Closed (NC) 1
- SiCOM RJ9 Sockets 2
Installation and Dimension
- Dimensions (length x width x depth) 182 x 80 x 37 mm
- Weight 230 g
