Description
Enerdrives 100W Fixed Solar Panels are 43+VDC open circuit and are well suited to 12/24v installations (or 48v by series connections of panels).
PLEASE NOTE: SP-EN100W-24V are suitable for Charging 24V Battery System when using a PWM Solar Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Panel Size: 1010 x 676 x 35mm
Specifications
|

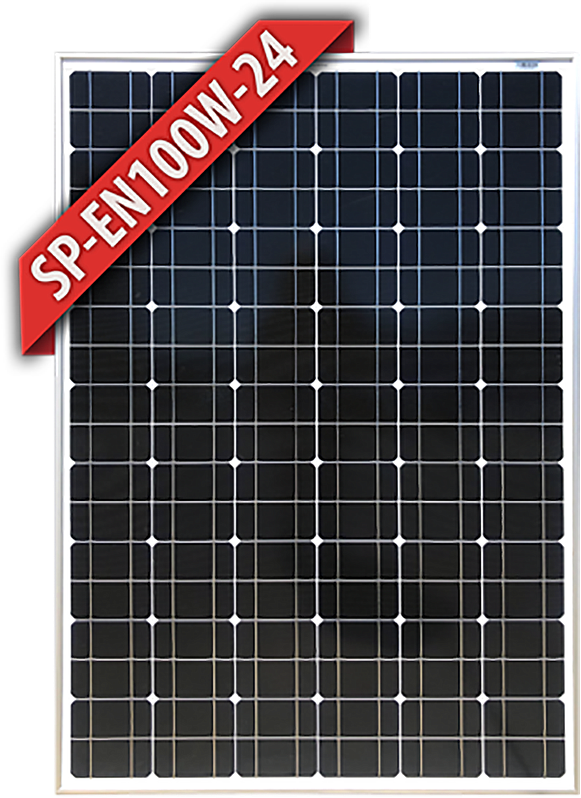

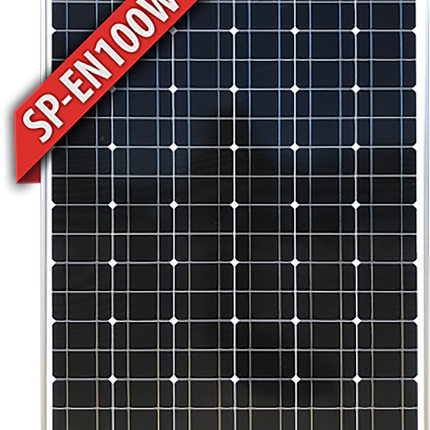

100W-24V Fixed Mono Solar Panel, Available in Silver or Black Frame |
| SKU |
SP-EN100W-24 (Silver Frmae)
SP-EN100W-B-24V (Black Frame) |
| Max Power Pm(W) |
100 |
| Power Tolerance % |
– 1% ∼ + 3% |
| Max Power Voltage Vm(V) |
36 |
| Max Power Current Im(A) |
2.78 |
| Open Circuit Voltage Voc(V) |
43.40 |
| Short Circuit Current Isc(A) |
3.09 |
| Max System Voltage (VDC) |
1000 |
| Dimensions (mm) |
1010 x 676 x 35 |
| Weight (kg) |
8.1 |
| Test Conditions |
1000W/m² , AM1.5 , 25°C |
| Note: Specifications subject to change without notice. |
