Description
Weight: 5.00 KGS
Width: 140.00 (cm)
Height: 11.00 (cm)
Depth: 10.00 (cm)

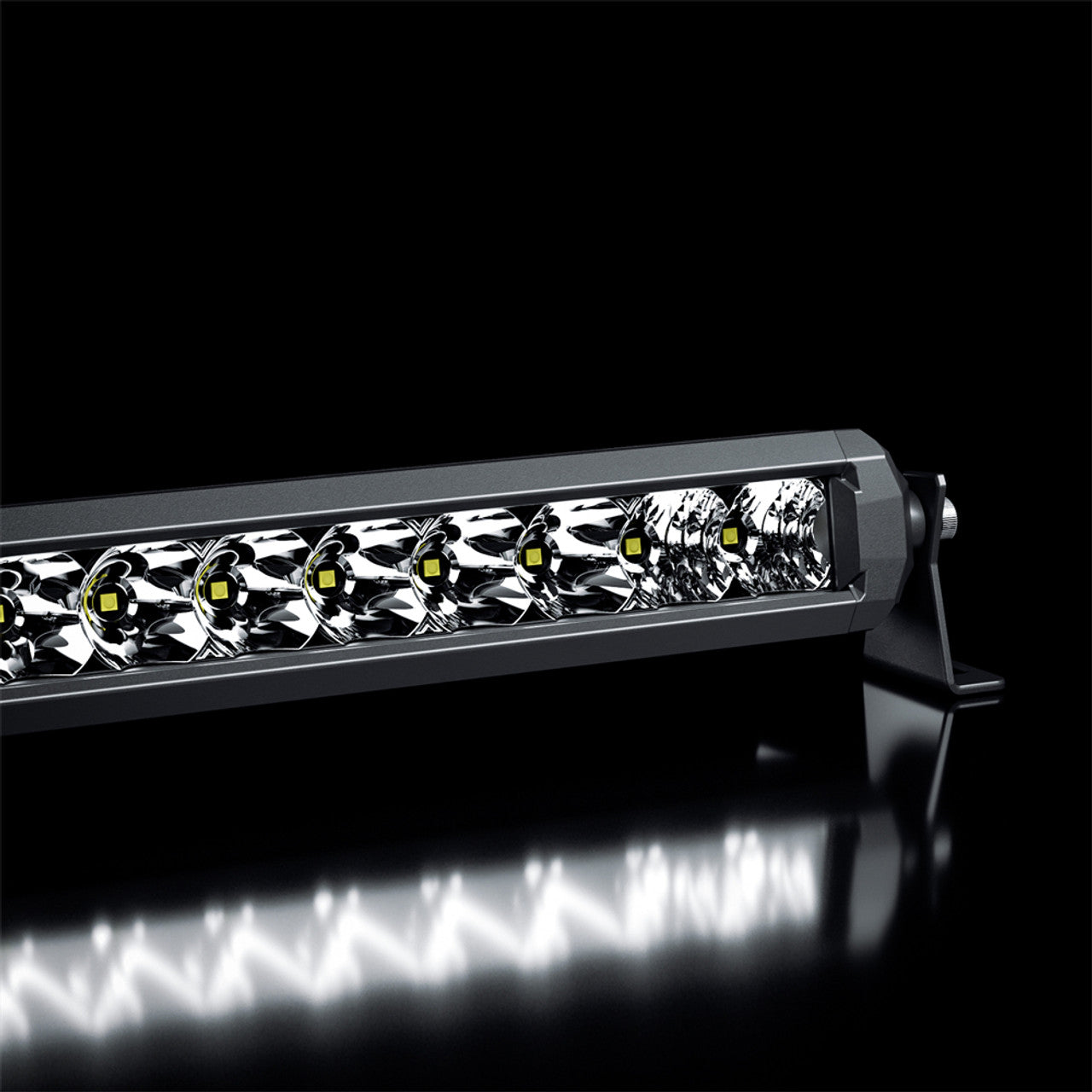

Offroad Animal is pleased to present this powerful 52-inch single row LED light bar. Light-up the entire horizon with this awesome piece of gear. Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore® PolyVents for ultimate housing ventilation. Encased in high-grade aluminium and protected by impact-resistant Lexan® Polycarbonate lenses, their rugged construction will last for years to come.
-
Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
IP68 for term long submersion and total dust ingress.
IP69K for stream jet cleaning.
-
Ventilation: Gore® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
-

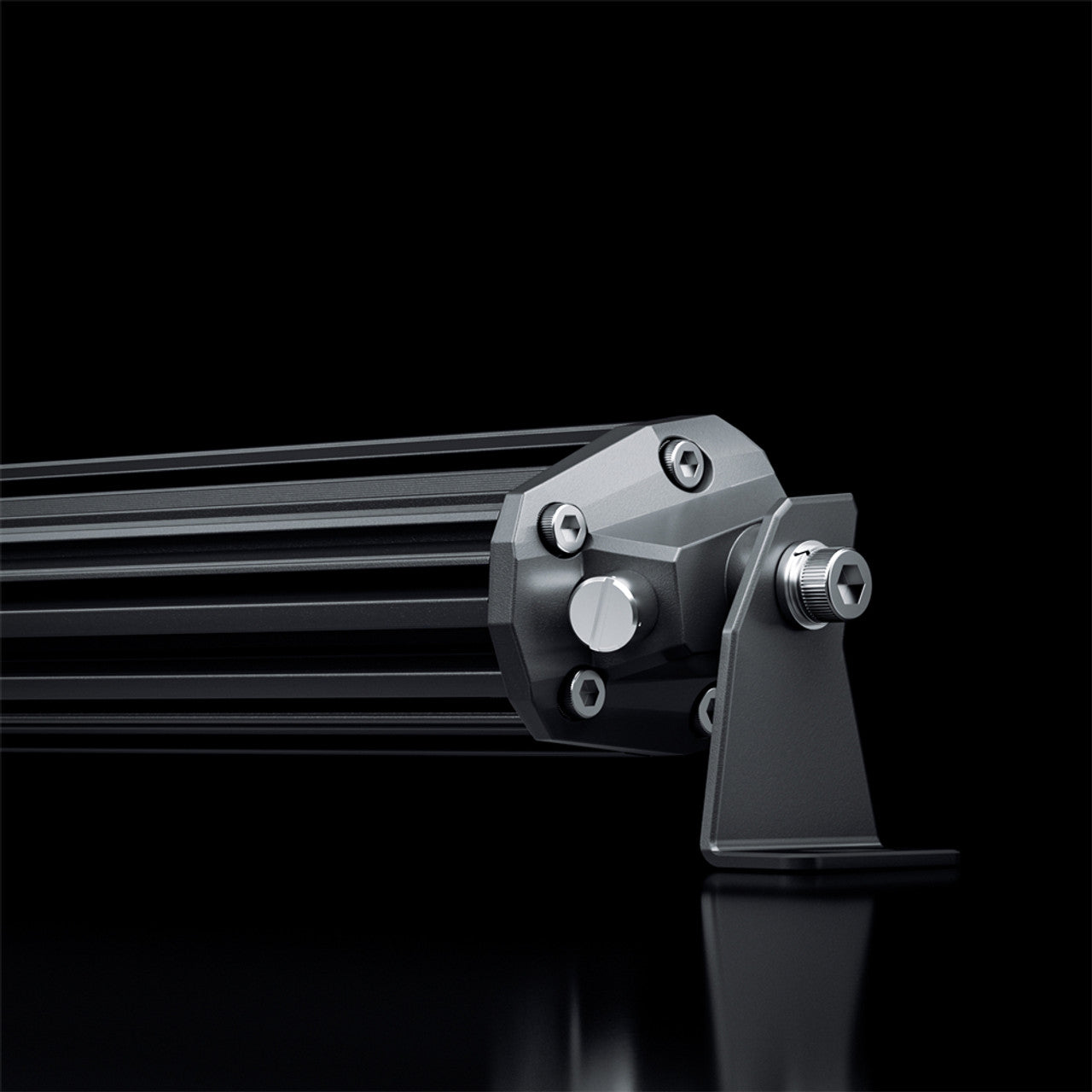

Housing: 6063 grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont® coating.
-
Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
-
Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
-
Technology: Grade A Osram 5W LED chips & sealed DT connectors.
Specifications:
-
Input Power: 9-36V
-
Beam Pattern: Flood & Spot Combination
-
Beam Spread: 8° Spot & 20° Flood
-
Power: 218W
-
Current Draw: 16.5A @ 13.2V
-
Raw Lumen: 23,800 lm
-
Effective Lumen: 10,854 lm
-

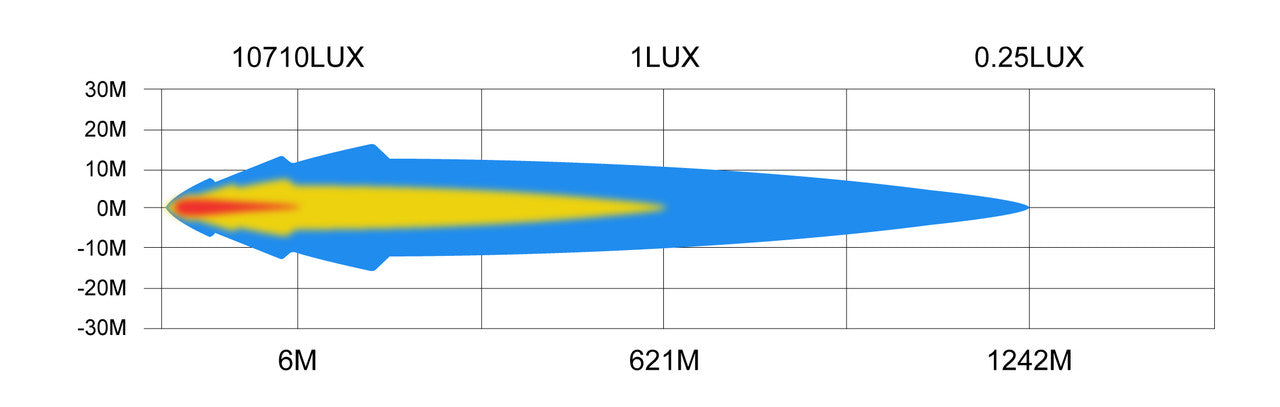

Beam @ 1 Lux: 625m
-
LED Chips: Osram 5W
-
Colour Temp: 6000-6500K
-
Housing Material: 6063 Aluminium
-
Housing Coating: DuPont®
-
Lens Material: GE Lexan® Polycarbonate
-
IP Rating: IP68 / IP69K
-
Ventilation: Gore® PolyVent
-
Weight: 3.36Kg
-
Body Dimensions: (L)1320 x (H)46 x (W)49mm
-
Lens Dimensions: 50" (1270mm)
-
Connector Type: DT Sealed
-
Operating Temp: -40ºC - 145ºC
-
Certification: CE, RoHS, RCM
- Color Ranger 6500K
- Pass CE, RoHS, UV, Vibration, Anti-interference, Salt, Fog, High &Low Temperature, Drop ball impact tests
What's in the Box:
1x Light
1x Wiring harness
1x bolt kit
1x Pair Mounting Bracket Powder-coated Steel
