Description

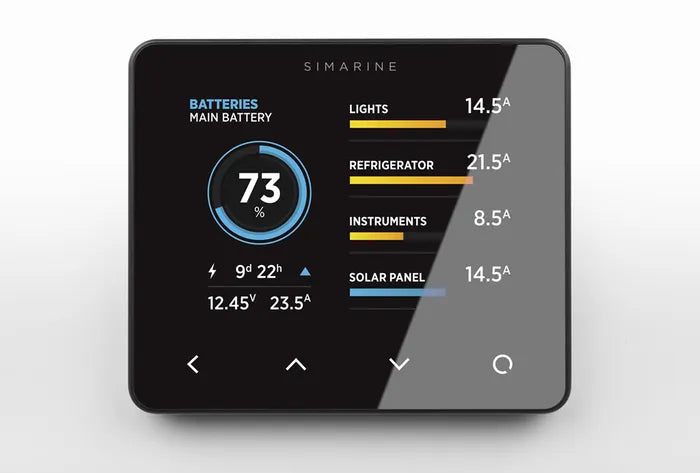

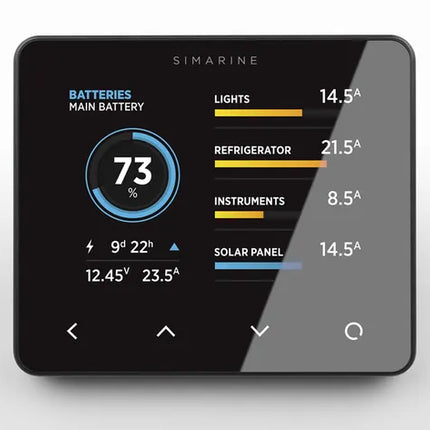

SIMARINE's advanced battery monitor for most demanding users. For up to 6 battery banks, 6 additional battery voltages, 14 tank level and 20 consumer or power generation readings. Compatible with all SIMARINE shunts and modules.
Operating
- Power source voltage range 6 - 35 V
- Temperature range -20 – +70 °C
- Power consumption at 12 V
- Operating, WiFi On, 100% illumination 90 mA
- Operating, WiFi Off, 70% illumination 35 mA
- Operating, WiFi Off, 0% illumination 18 mA
- Power Off, logger still active 5 mA
Resolution
- Current (A) ±0,01 A
- Voltage (V) ±0,01 A
- Amp hours (Ah) ±0,1 A
- SOC - Stat of Charge ( 0 - 100%) ±0,01 A
- Temperature ±0,1 °C / °F
- Voltage inputs
- Range 0 – 75 V
WIFI
- Radio Frequency Band 2,4 GHz
Dimensions (without connector)
- Standalone 89 x 84 x 10 mm
- Panel 108,5 x 94 x 10 mm
Connectivity Up to
- Batteries 6
- Shunts 24
- Temperature sensors 10
- Tank level sensors 14
- Inclinometer sensors 2
- Smartphone application 1
Logger Capacity
