Description

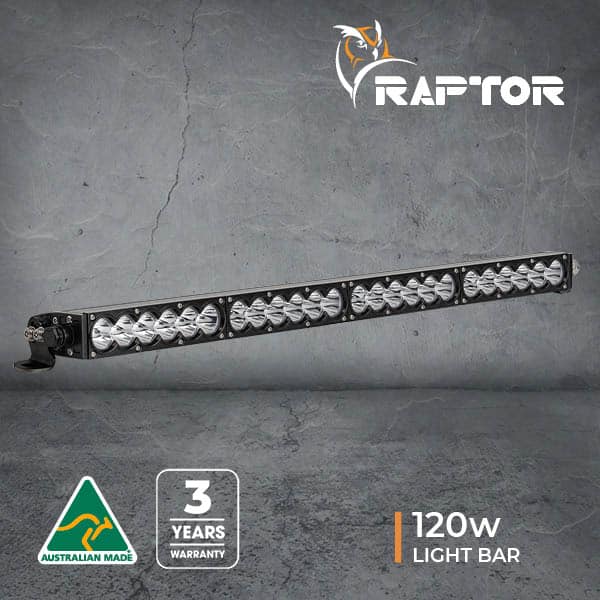

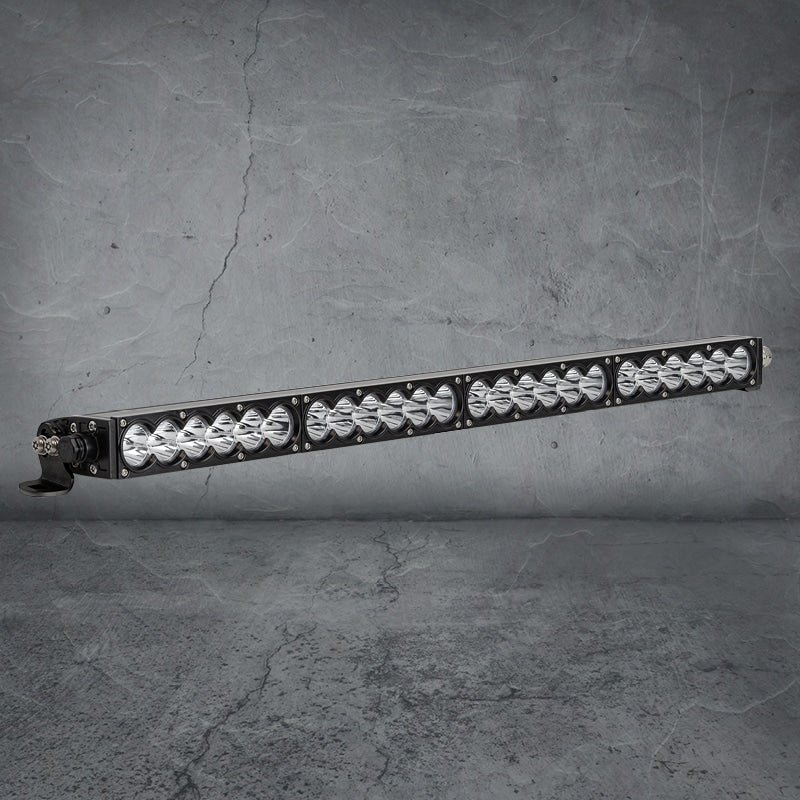

120W LED Light Bar

The RAPTOR LED Light Bars are constructed with high-pressure extruded aluminum, providing a strong yet lightweight body. Paired with a high-impact polycarbonate lens, these light bars are incredibly durable. The open-optic reflector delivers a combination beam with a wide peripheral range of 100°.

For optimal driver comfort, the light bars are offered with a choice of 4000k or 5700k Color Temperature. All RAPTOR lamps come equipped with sturdy stainless steel pivot mounting brackets and fixtures.

As with all Raptor products, these light bars are proudly made in Australia and backed by a 3-year warranty for complete peace of mind.

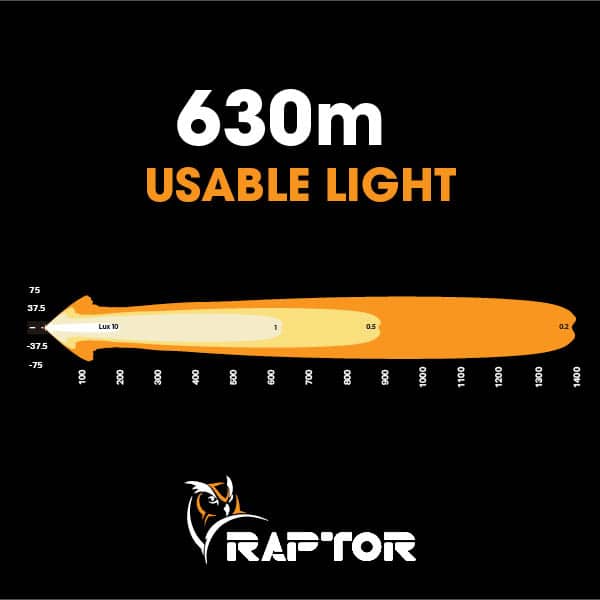

Beam Pattern

Beam PatternProduct Specification

120W Raptor Light Bar Specifications
Wattage 120 Watts
Light Source 24 x 5w LED's
Light Output – Raw 14,400 Lumens
Light Output – Effective 11,500 Lumens
Voltage 9-36V
Current Draw 8.9A @ 13.5V
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plug 2 Pin Heavy Duty Deutsch
Housing Aluminium
Outer Lens Construction Polycarbonate
Bracket Stainless Steel
Colour Temperature 4000K or 5700K
Lifespan 50,000 Hours

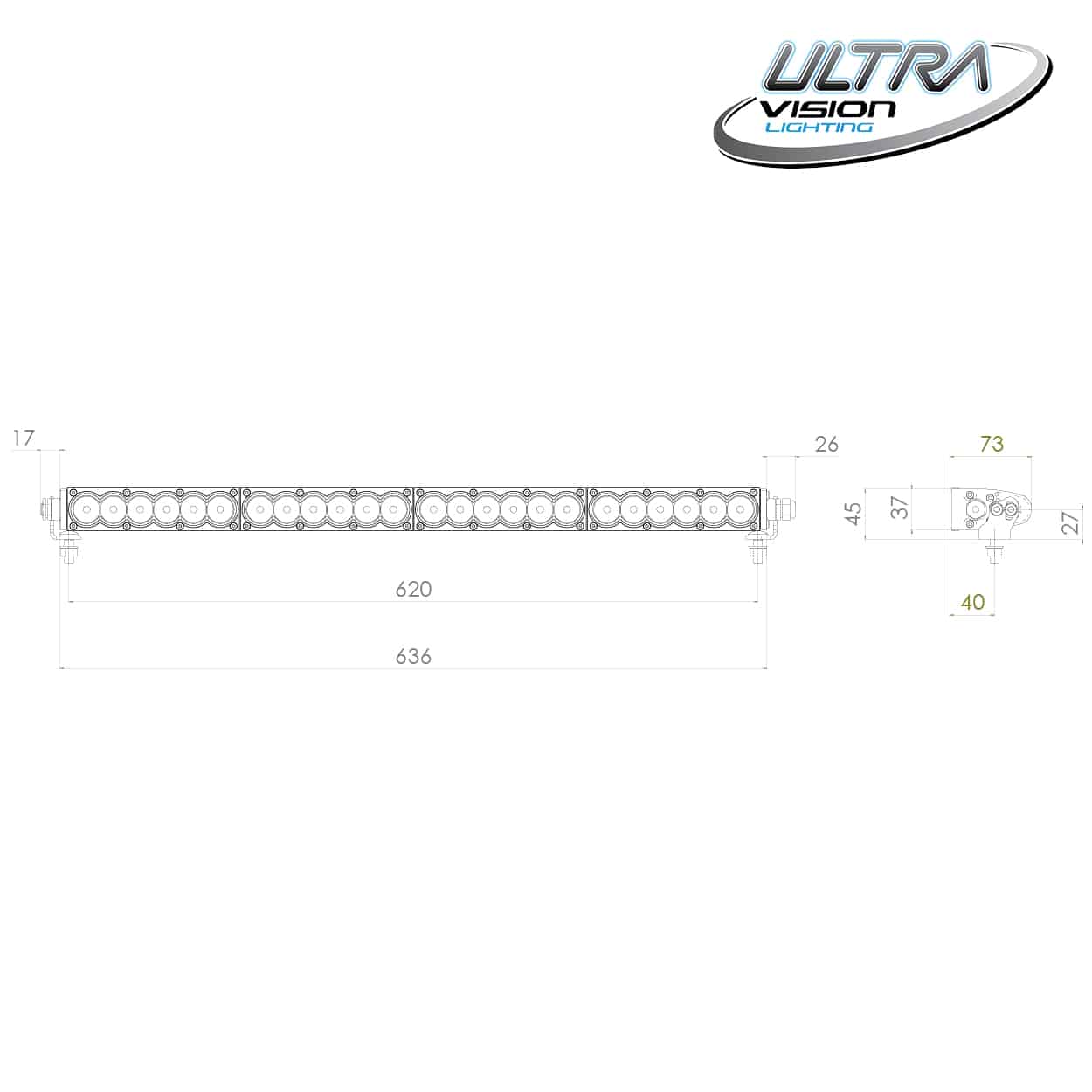

Dimensions 679 x 45 x 73mm
Net Weight 2.3kg
Mounting Suitable Side Mounts
Beams Available Combo or Spread
Warranty 3 Years

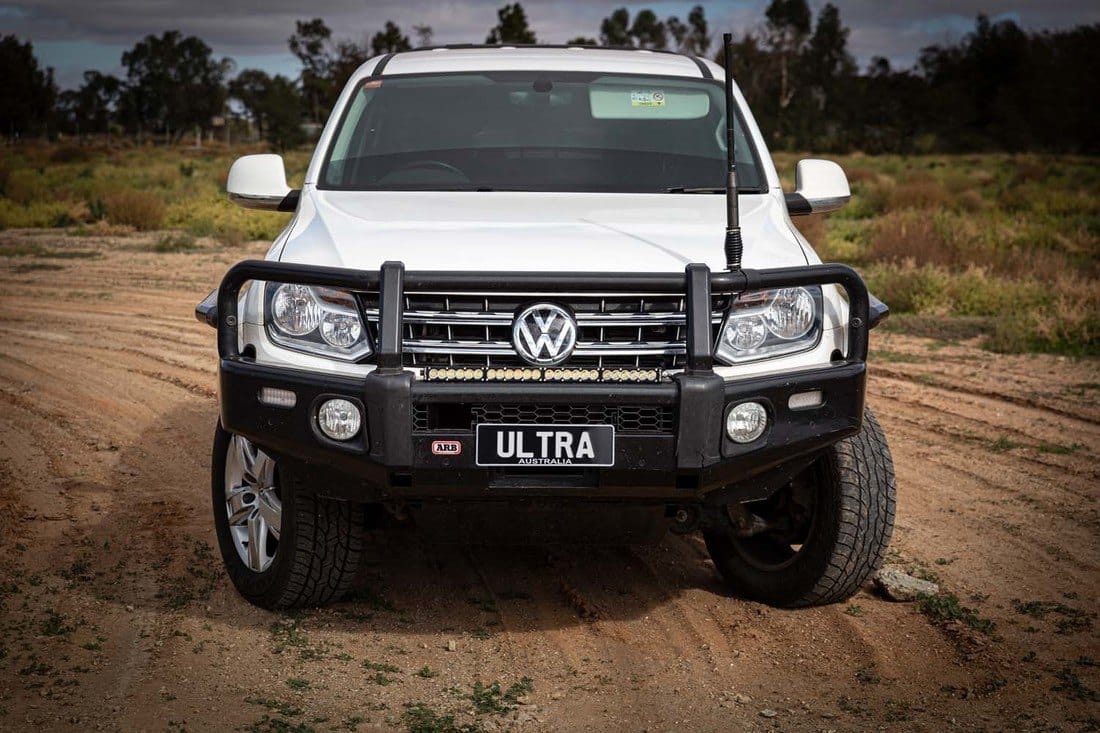

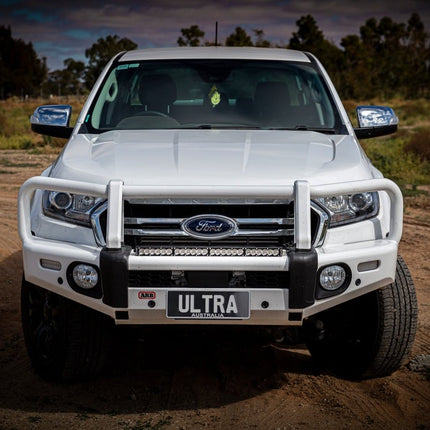

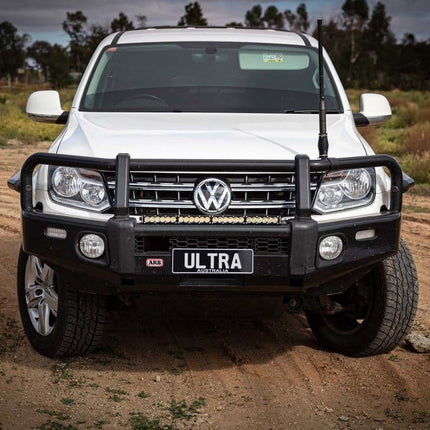

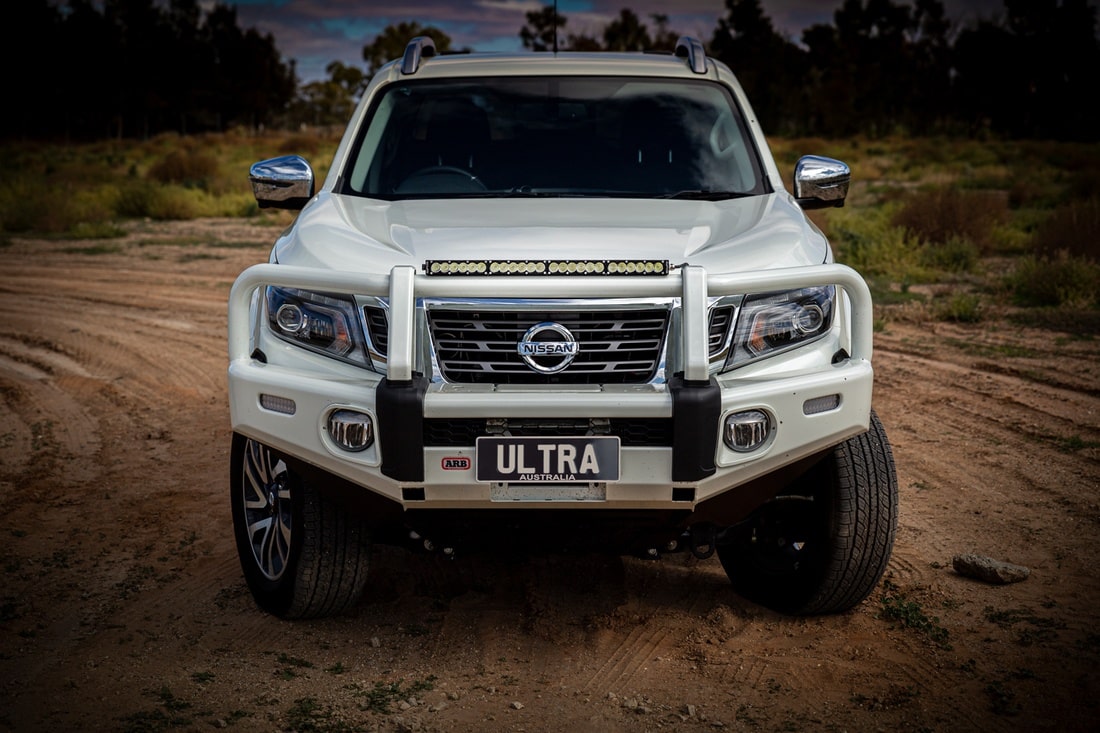

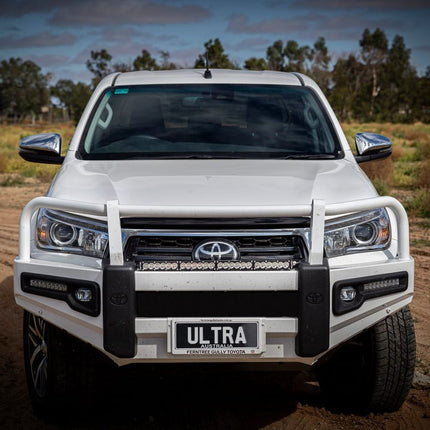

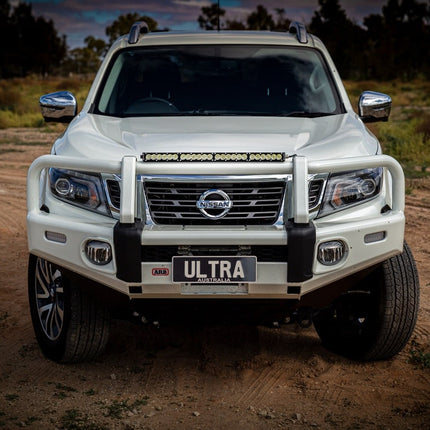

Raptor 120 LED 26.5″ Light Bar - Black Rim

Product form
Vendor Ultra Vision

SKU RAP120LBv2

$509 incl. GST

Free local pick up at AutoSpec 4x4

    Get An Install Quote

    We offer installation on all our products! Contact us for an install quote today on 1800 288 649 or through our contact form found here.
