Description

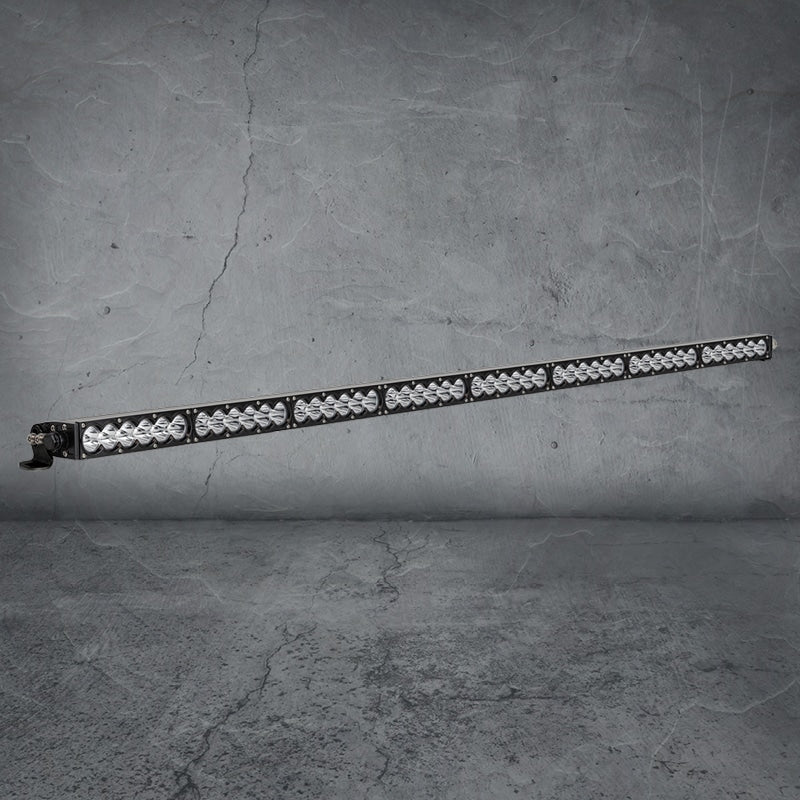

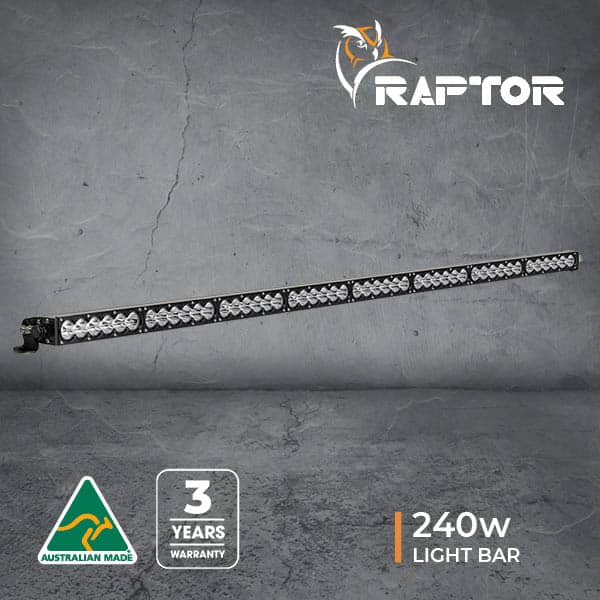

240W LED Light Bar

The RAPTOR light bars are crafted with high pressure extruded aluminium for a strong, lightweight body.

The durable polycarbonate lens adds to their toughness, while the open-optic reflector delivers a combination beam with over 100° of peripheral width. Choose between 4000k or 5700k Colour Temperature for maximum driver comfort.

Complete with stainless steel pivot mounting brackets, fixings, and a 3-metre lead for easy installation on roof rack systems, the RAPTOR 240 light bar is proudly made in Australia and backed by a 3-year warranty. Invest in quality and peace of mind with Raptor.

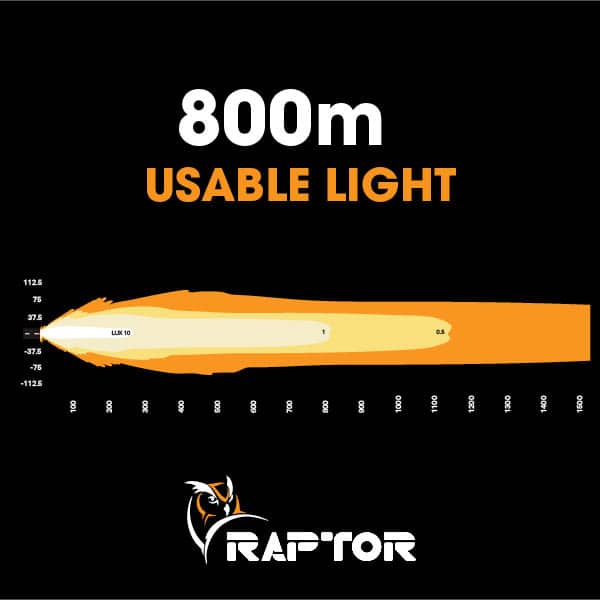

Beam Pattern

240W Raptor Light Bar Specifications
Combo 5700K RAP240LBRRv2
Combo 4000K RAP240LBRR4v2
Spread 5700K RAP240LBRRSv2
Spread 4000K RAP240LBRRS4v2
Wattage 240 Watts
Light Source 48 x 5w LED's
Light Output – Raw 28,850 Lumens
Light Output – Effective 23,070 Lumens
Voltage 9-36V
Current Draw 19A
Operating Temperature 40degC to +80degC
Waterproof Rating IP67
Connector Type Plug 2 Pin Heavy Duty Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Brackets Stainless Steel
Colour Temperature 4000K or 5700K
Lifespan 50,000 Hours

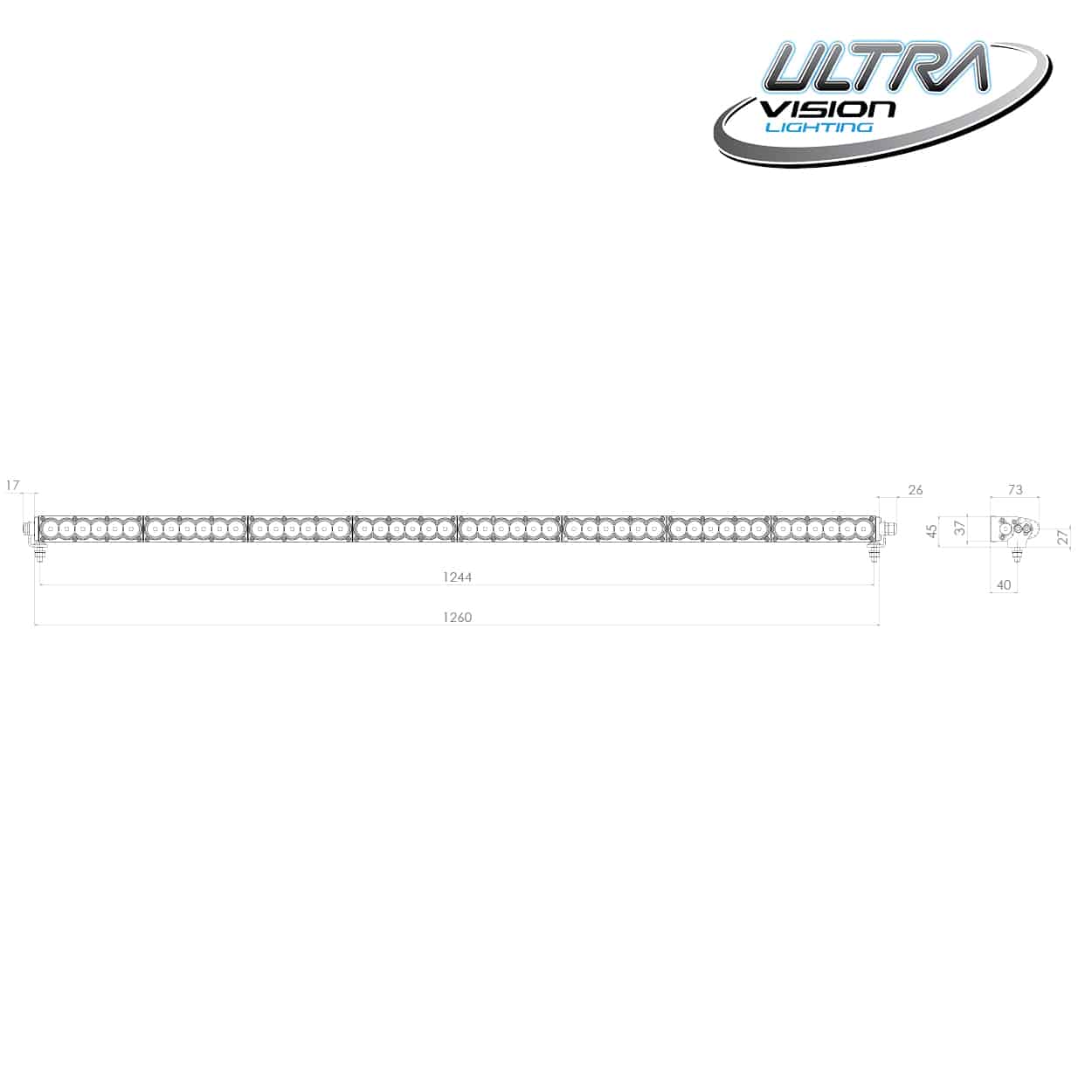

Dimensions 1303 x 45 x 73mm
Net Weight 3.7kg
Mounting Suitable Base Mounts
Beam Types Combo or Spread
Warranty 3 Years

Raptor 240 LED 51″ Light Bar - Black Rim 3M Lead

Product form
Vendor Ultra Vision

SKU RAP240LBRRv2

$899 incl. GST

Free local pick up at AutoSpec 4x4

    Get An Install Quote

    We offer installation on all our products! Contact us for an install quote today on 1800 288 649 or through our contact form found here.

    Description

    240W LED Light Bar

    The RAPTOR light bars are crafted with high pressure extruded aluminium for a strong, lightweight body.

    The durable polycarbonate lens adds to their toughness, while the open-optic reflector delivers a combination beam with over 100° of peripheral width. Choose between 4000k or 5700k Colour Temperature for maximum driver comfort.

    Complete with stainless steel pivot mounting brackets, fixings, and a 3-metre lead for easy installation on roof rack systems, the RAPTOR 240 light bar is proudly made in Australia and backed by a 3-year warranty. Invest in quality and peace of mind with Raptor.

    Beam Pattern

    240W Raptor Light Bar Specifications
    Combo 5700K RAP240LBRRv2
    Combo 4000K RAP240LBRR4v2
    Spread 5700K RAP240LBRRSv2
    Spread 4000K RAP240LBRRS4v2
    Wattage 240 Watts
    Light Source 48 x 5w LED's
    Light Output – Raw 28,850 Lumens
    Light Output – Effective 23,070 Lumens
    Voltage 9-36V
    Current Draw 19A
    Operating Temperature 40degC to +80degC
    Waterproof Rating IP67
    Connector Type Plug 2 Pin Heavy Duty Deutsch
    Housing Aluminium
    Lens Construction Polycarbonate
    Brackets Stainless Steel
    Colour Temperature 4000K or 5700K
    Lifespan 50,000 Hours
    Dimensions 1303 x 45 x 73mm
    Net Weight 3.7kg
    Mounting Suitable Base Mounts
    Beam Types Combo or Spread
    Warranty 3 Years
