Description

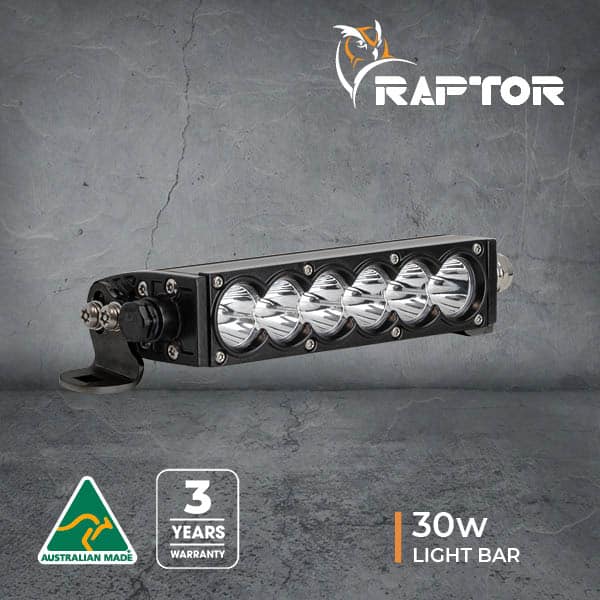

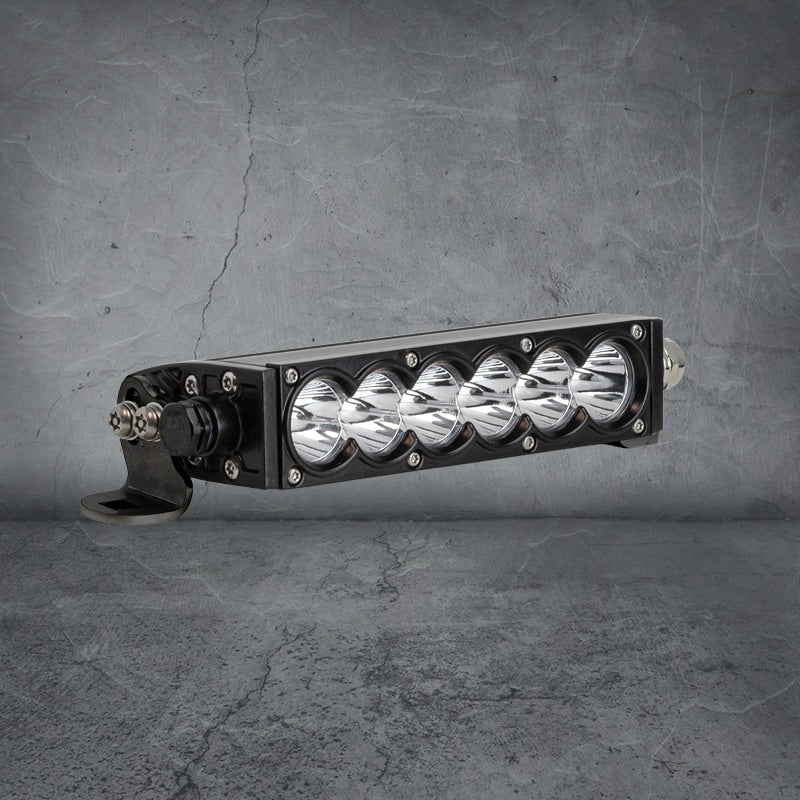

8.5-inch LED Light Bar

The RAPTOR LED Light Bars are crafted from high pressure extruded aluminum, producing a durable yet lightweight body. The combination of a high impact polycarbonate lens and Raptor light bars results in exceptional durability. The advanced open-optic reflector creates a dual beam that effectively covers long distances while providing a wide peripheral span of 100° from a single lamp type.



Experience maximum driver comfort with a variety of available 4000k or 5700k Colour Temperature options for our light bars. Each RAPTOR lamp includes durable stainless steel pivot mounting brackets and fixings. Made in Australia with a 3-year warranty, you can trust in our products for total peace of mind.

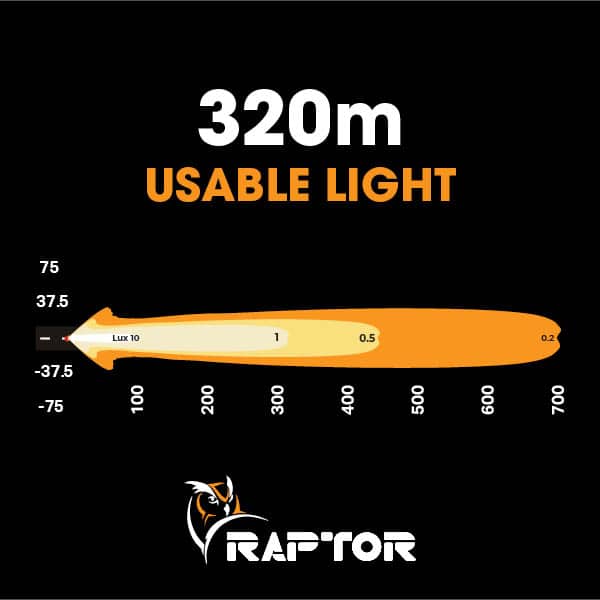

Beam Pattern

30W Raptor Light Bar Specifications
Wattage 30 Watts
Light Source 6 x 5w LEDs
Light Output – Raw 3,600 Lumens
Light Output – Effective 2,895 Lumens
Voltage 9-36V
Current Draw 2.2A @ 13.5
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plugs 2 Pin Heavy Duty Deutsch
Housing Aluminium
Outer Lens Construction Polycarbonate
Bracket Stainless Steel
Colour Temperature 4000K or 5700K
Lifespan 50,000 Hours

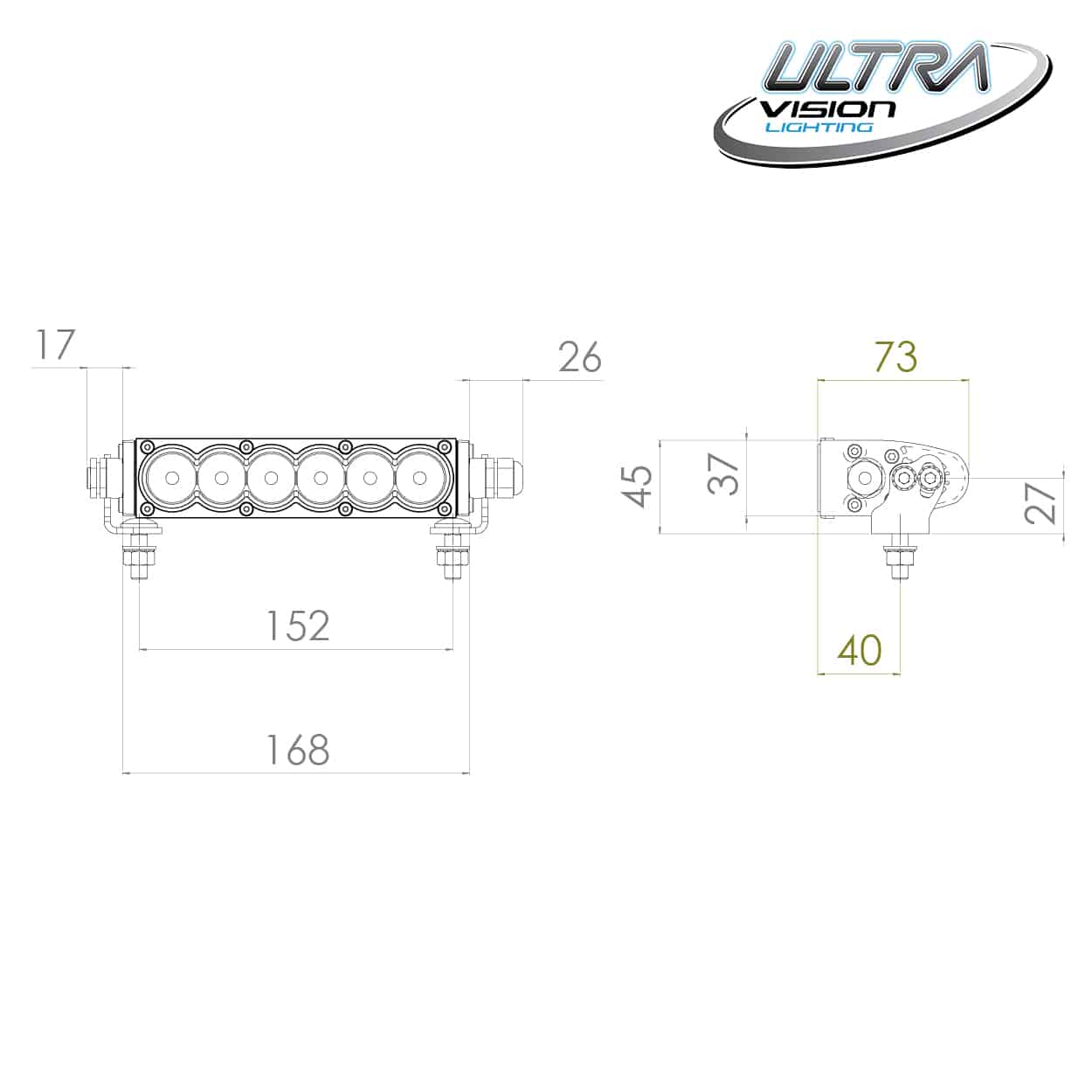

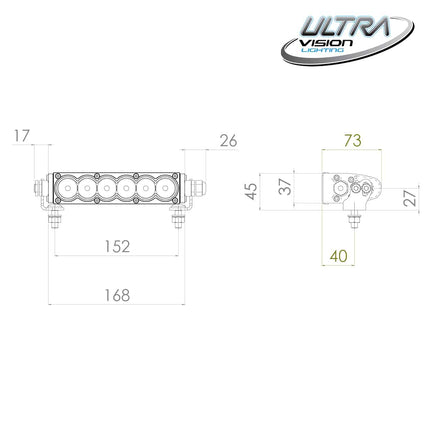

Dimensions 213 x 45 x 73mm
Net Weight 640g
Mounting Suitable Side Mount
Beam Type Spread or Combo
Warranty 3 Years
Harness Harness not included, purchased separately. Harness to suit: DV12H
Part Number
Combo, 5700K RAP030LBv2
Spread, 5700K RAP030LBSv2
Combo, 4000K RAP030LB4v2
Spread, 4000K RAP030LB4Sv2

Raptor 30 LED 8.5″ Light Bar - Black Rim

Product form
Vendor Ultra Vision

SKU RAP030LB4Sv2

$199 incl. GST
