Description

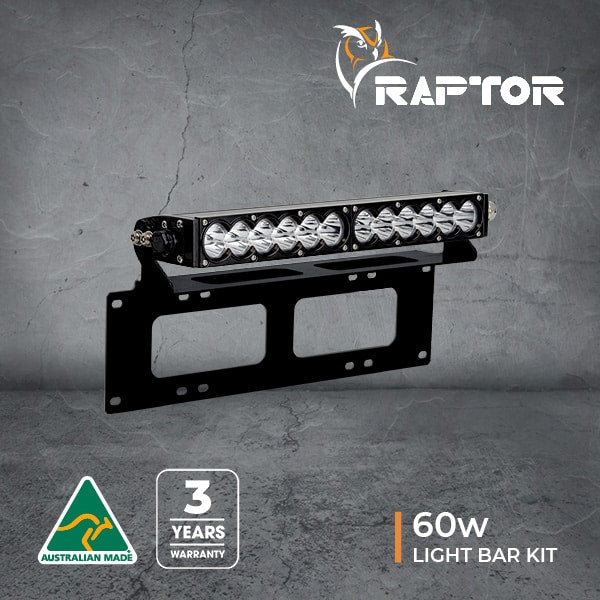

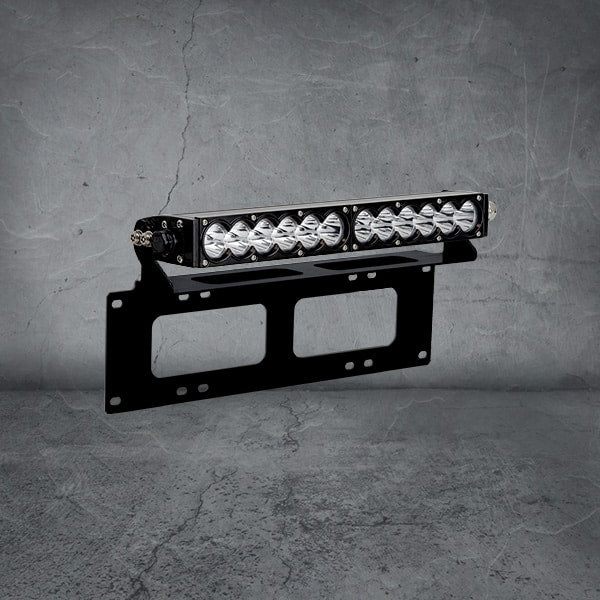

Light Bar Number Plate Kit

Experience the ultimate in off-road lighting with the Raptor 60 LED 14.5" Light Bar Number Plate Kit - complete with a durable Raptor Light Bar, wiring harness, and number plate bracket.

Crafted from high pressure extruded aluminium and equipped with a high impact polycarbonate lens, the Raptor light bar is built to withstand even the toughest terrain. Its open-optic reflector provides a powerful combination beam with a wide peripheral width of 100°. Upgrade your vehicle now with the Raptor light bar - the perfect blend of strength and performance!

This light bar kit offers optimal driver comfort, with the option of 4000k or 5700k Colour Temperature. Featuring durable stainless steel pivot mounting brackets and fixings, all RAPTOR lamps are made in Australia and backed by a 3-year warranty for total satisfaction.

The Raptor number plate mount is strong and sturdy and allows simple fitment of a great output light bar for vehicles that have no bull bar or nudge bar.  Simply remove the number plate, position the mount and screw back into place. Wiring up is the same as for any light bar or driving light set.

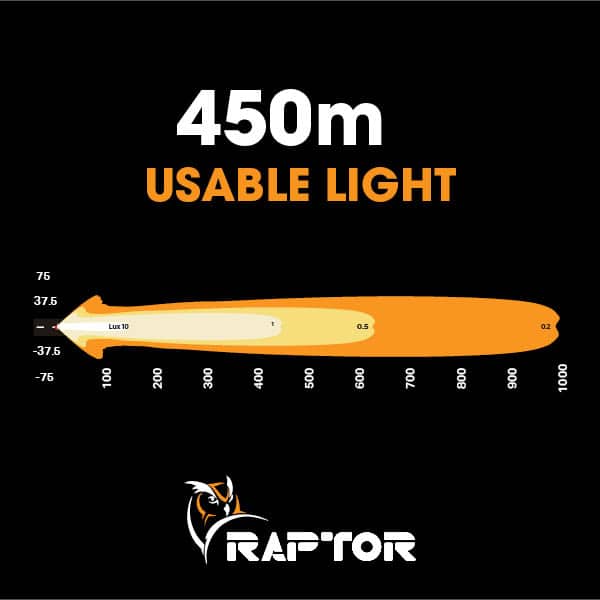

Beam Pattern

Beam Pattern

60W Raptor Light Bar Specifications
Wattage 60 Watts
Light Source 12 x 5w LED's
Light Output – Raw 7,200 Lumens
Light Output – Effective 6,088 Lumens
Voltage 9-36V
Current Draw 4.5A @ 13.5V
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plug 2 Pin Heavy Duty Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour Temperature 4000K or 5700K
Lifespan 50,000 Hours

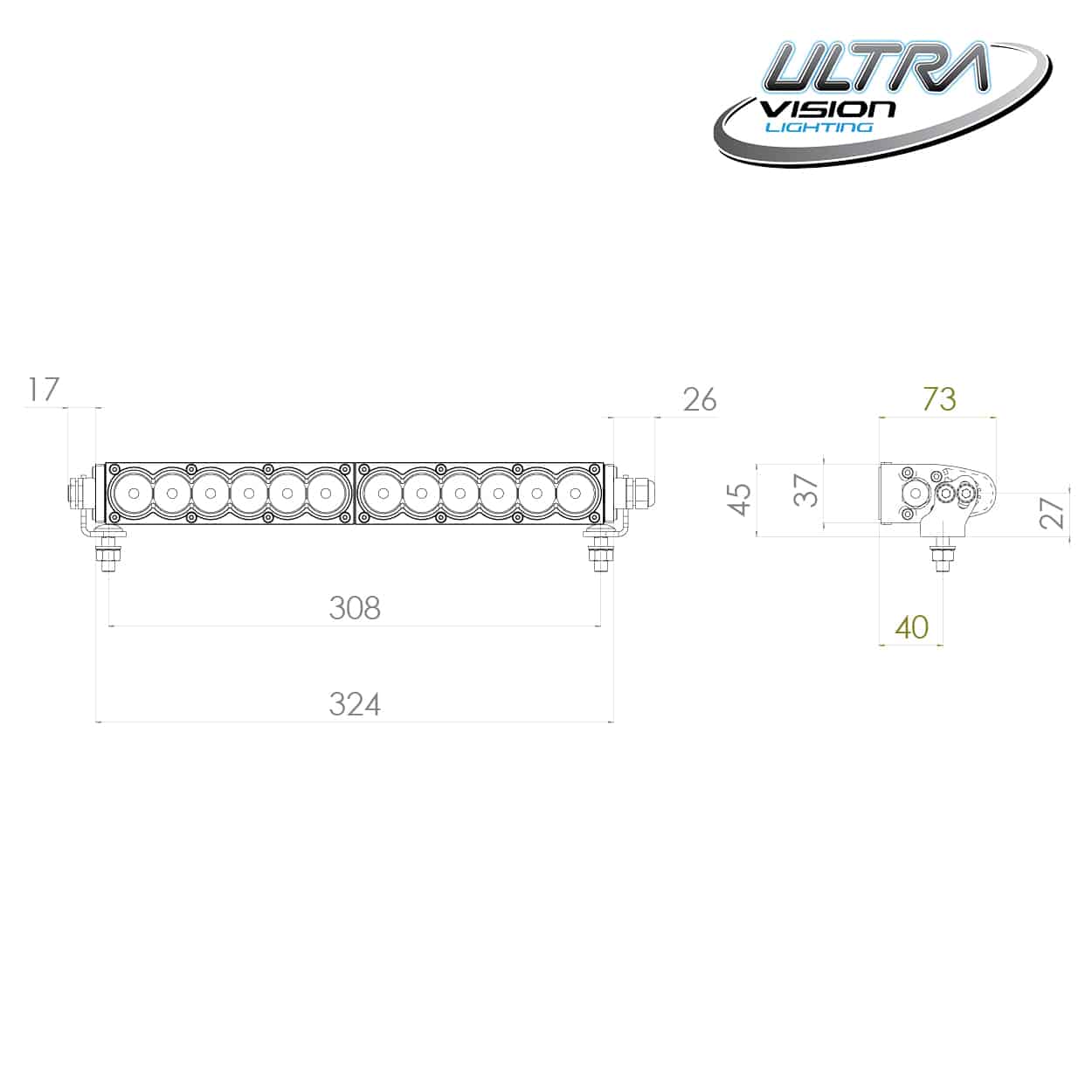

Dimensions 367 x 45 x 73mm
Net Weight 1.3kg
Mounting Suitable Side Mounts
Warranty 3 Years

Raptor 60 LED 14.5″ Light Bar Number Plate Kit - Includes Wiring Harness and Hardware (Black)

Product form
Vendor Ultra Vision

SKU RAP060NPKITv2/B

$409 incl. GST

Free local pick up at AutoSpec 4x4

    Get An Install Quote

    We offer installation on all our products! Contact us for an install quote today on 1800 288 649 or through our contact form found here.
