Description

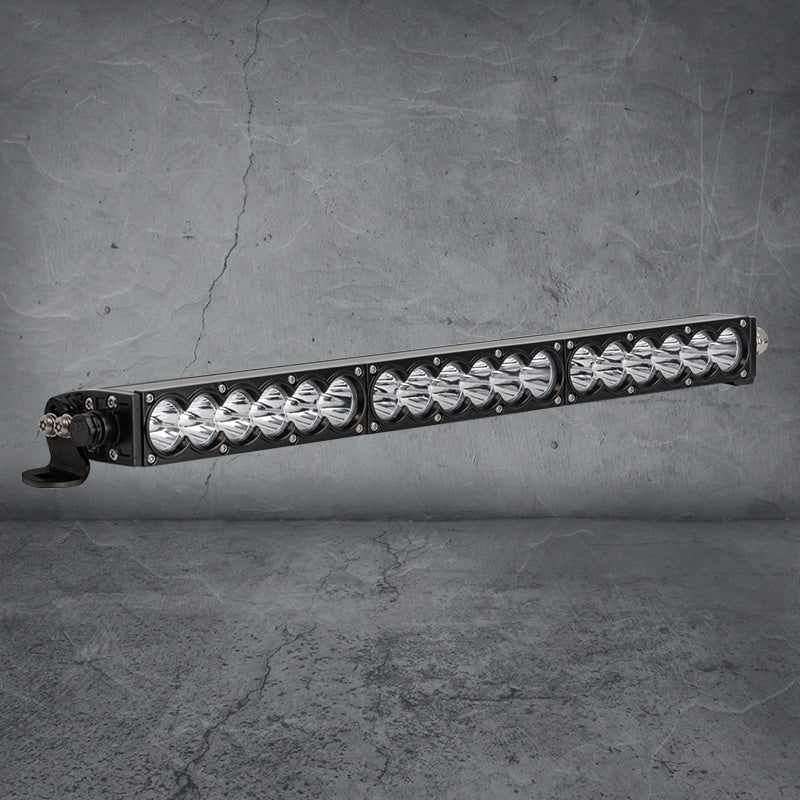

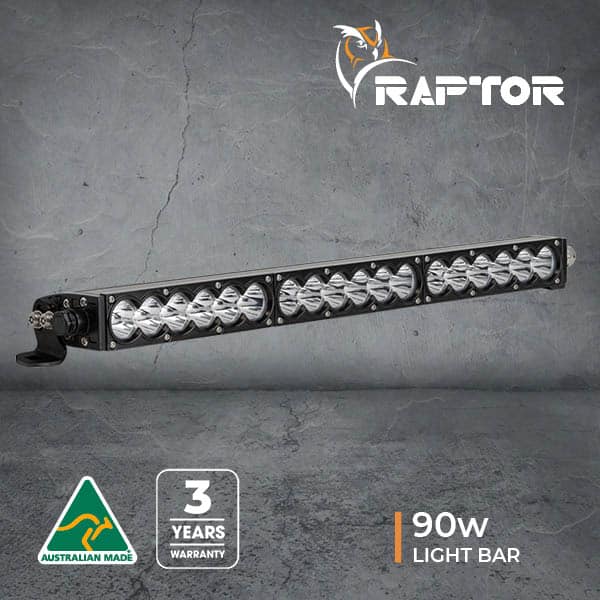

90W LED Light Bar



Crafted from extruded aluminium with high pressure, the RAPTOR LED Light Bars boast a sturdy yet lightweight body. Additionally, the high impact polycarbonate lens adds to their durability. With an open-optic reflector, the light bars offer a combination beam that covers an impressive distance of 100°, providing optimal visibility.
Drivers can choose between a 4000k or 5700k Colour Temperature for maximum comfort. Stainless steel pivot mounting brackets and fixings ensure a secure fit.
Made in Australia, Raptor offers a 3-year warranty for complete peace of mind.

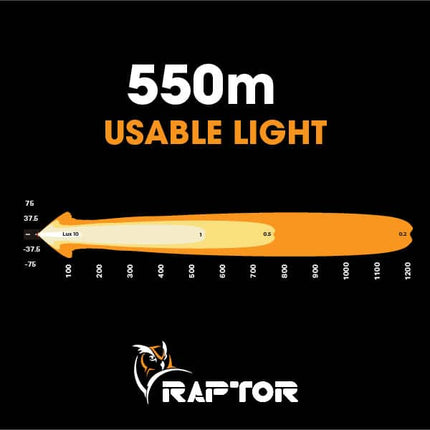

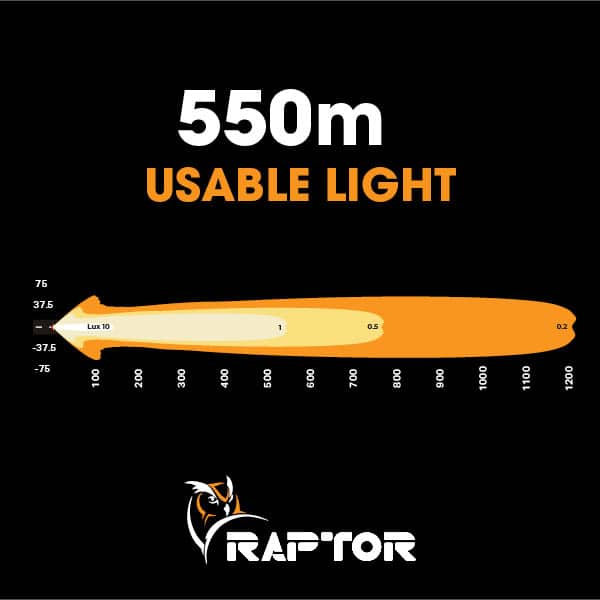

Light Bar Beam Pattern

90W Raptor Light Bar Specifications
Wattage 90 Watts
Light Source 18 x 5w LED's
Light Output – Raw 10,800 Lumens
Light Output – Effective 8,650 Lumens
Voltage 9-36V
Current Draw 6.7A @ 13.5V
Operating Temp. -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plugs 2 Pin Heavy Duty Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour Temperature 4000K or 5700K
Lifespan 50,000 Hours

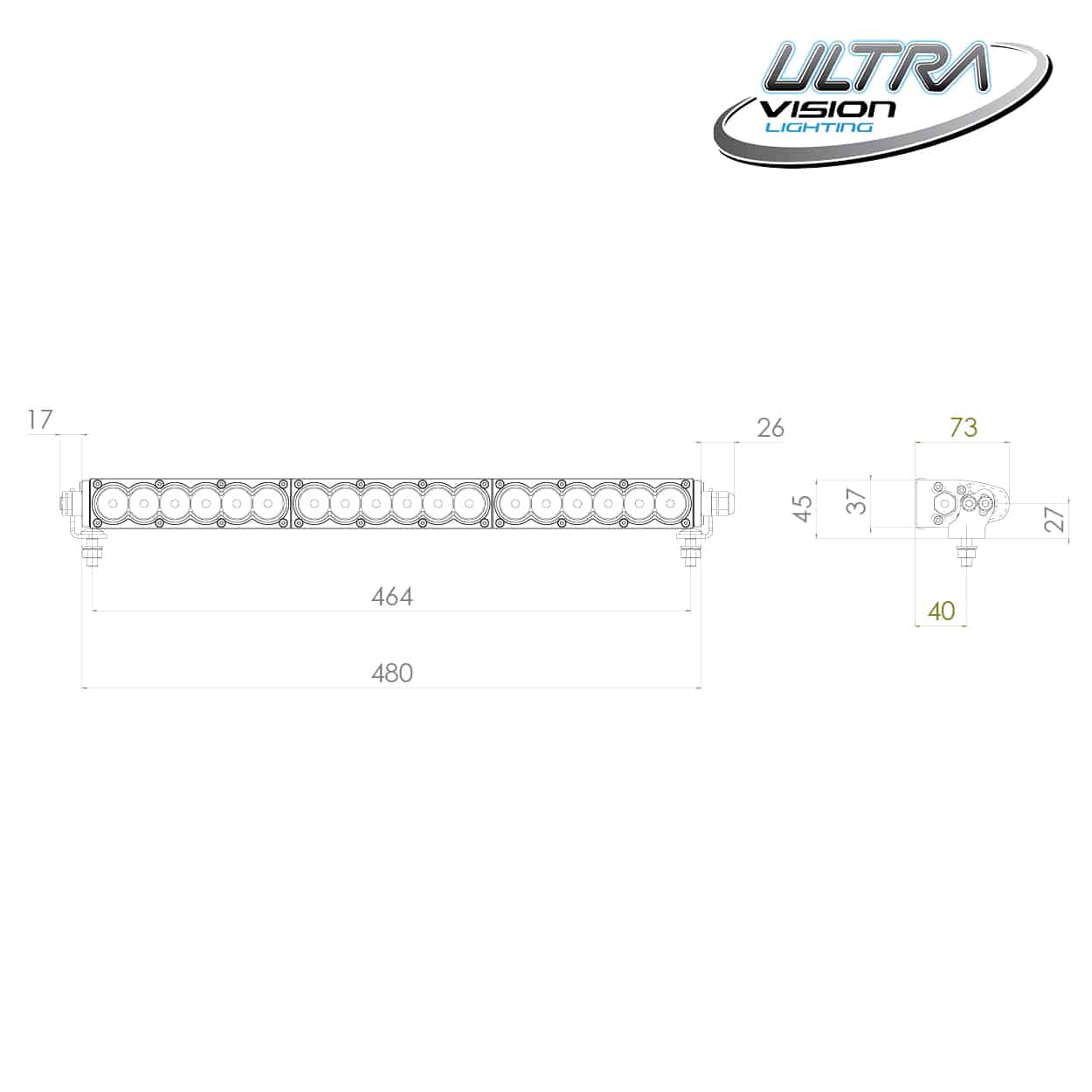

Dimensions 523 x 45 x 73mm
Net Weight 1.7kg
Mounting Suitable Side Mounts
Beams Type Combo or Spread
Warranty 3 Years

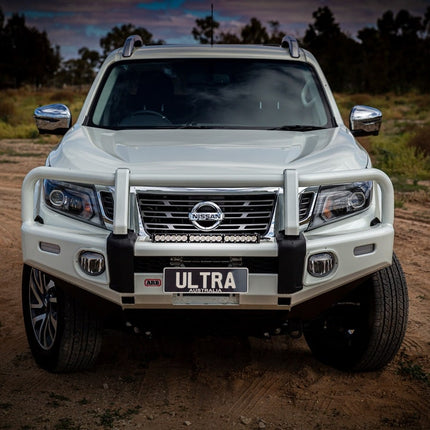

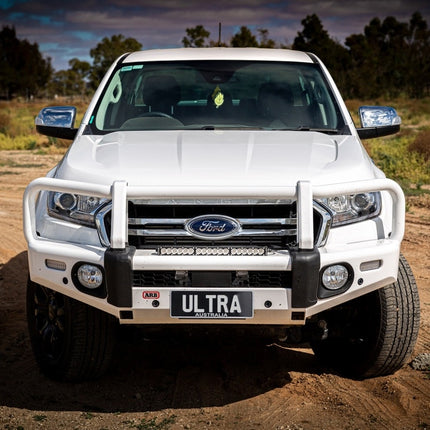

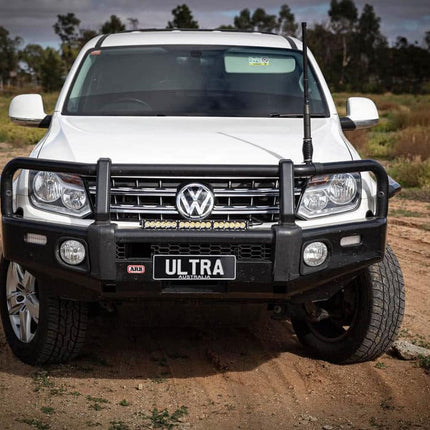

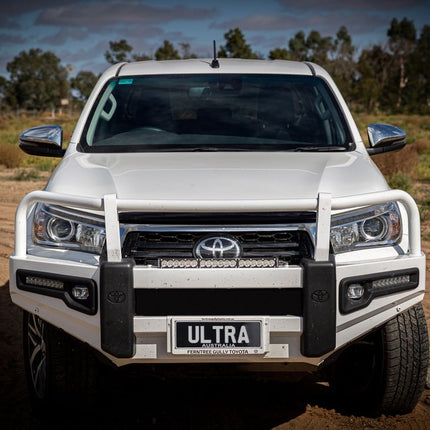

Raptor 90 LED 20.5″ Light Bar - Black Rim

Product form
Vendor Ultra Vision

SKU RAP090LBv2

$409 incl. GST

Free local pick up at AutoSpec 4x4

    Get An Install Quote

    We offer installation on all our products! Contact us for an install quote today on 1800 288 649 or through our contact form found here.
