Description

20.5 Inch LED Light Bar Kit

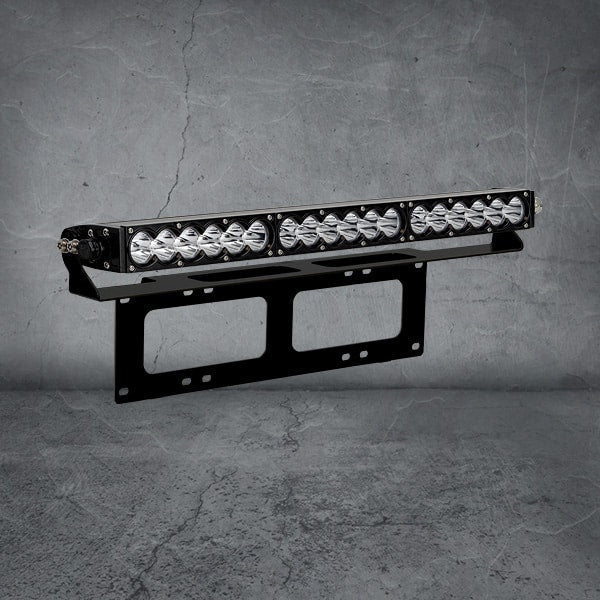

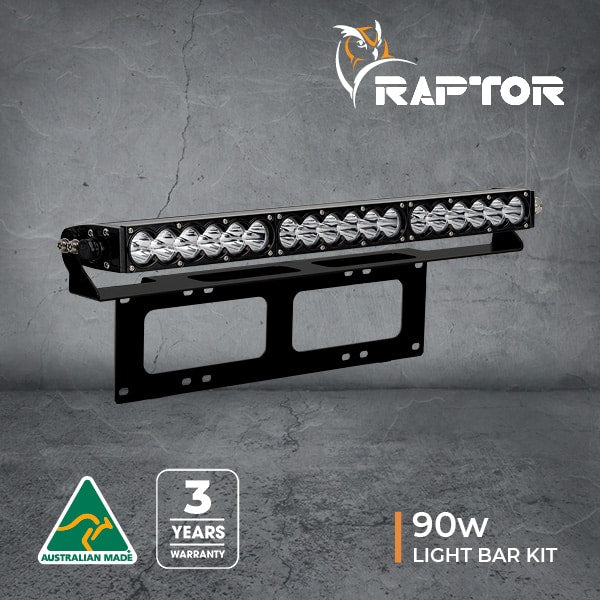

The Raptor 90 LED 20.5" Light Bar number plate kit includes a high-strength but lightweight Raptor Light Bar, along with a wiring harness and number plate mount.

Made from high pressure-extruded aluminum and featuring a durable polycarbonate lens, the Raptor light bar is built to withstand tough conditions. Its open-optic reflector design produces a combination beam with an impressive 100-degree peripheral width and range.
The Raptor 90 LED 20.5" Light Bar Number Plate Kit offers a choice between 4000k or 5700k Colour Temperature to ensure maximum driver comfort.

Its stainless steel pivot mounting brackets and fixings, along with its 3-year warranty and Australian manufacturing, provide a durable and secure option for adding a powerful light bar to vehicles without a bull bar or nudge bar. Simply remove the number plate, attach the mount, and reattach the plate for easy installation. Wiring follows the same process as any light bar or driving light set.

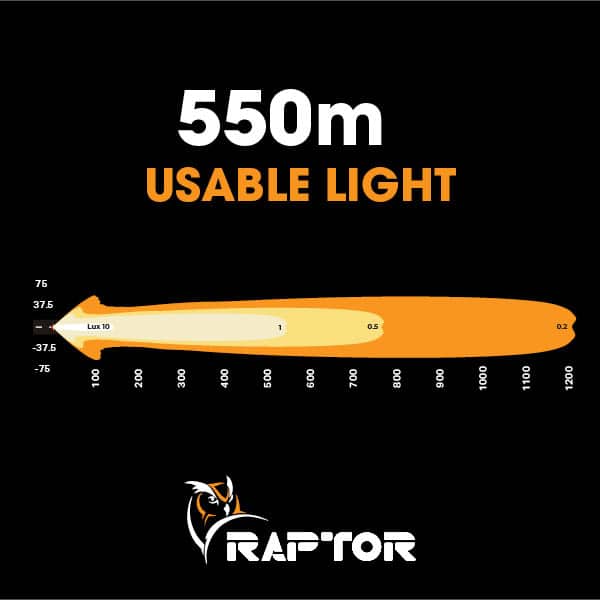

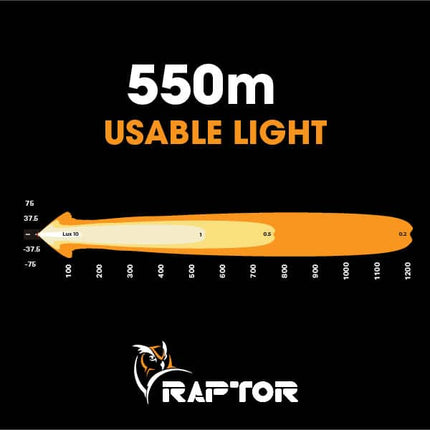

Beam Pattern


90W Raptor Light Bar Specifications
Wattage 90 Watts
Light Source 18 x 5w LED's
Light Output – Raw 10,800 Lumens
Light Output – Effective 8,650 Lumens
Voltage 9-36V
Current Draw 6.7A @ 13.5V
Operating Temp. -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plugs 2 Pin Heavy Duty Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour Temperature 4000K or 5700K
Lifespan 50,000 Hours

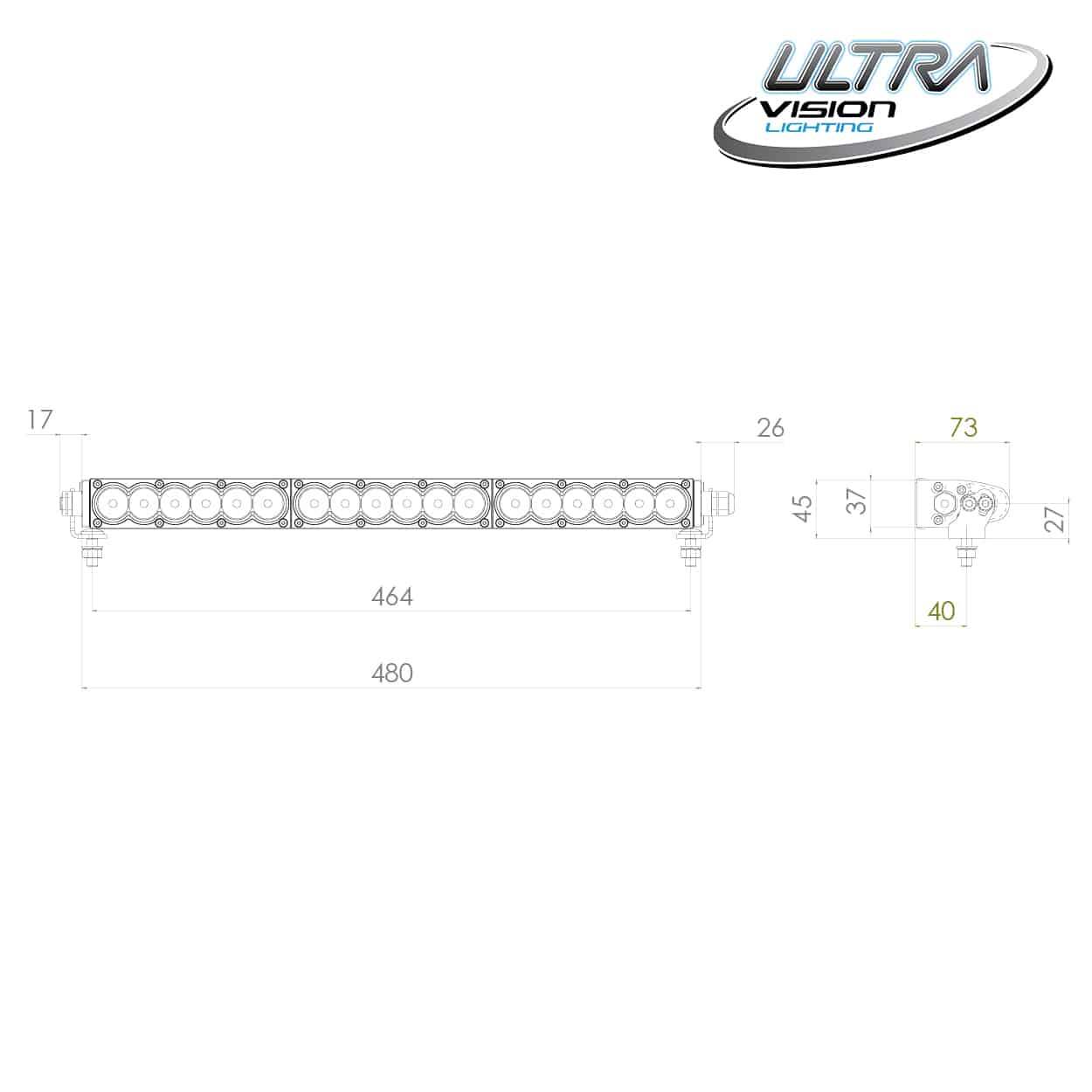

Dimensions 523 x 45 x 73mm
Net Weight 1.7kg
Mounting Suitable Side Mounts
Warranty 3 Years

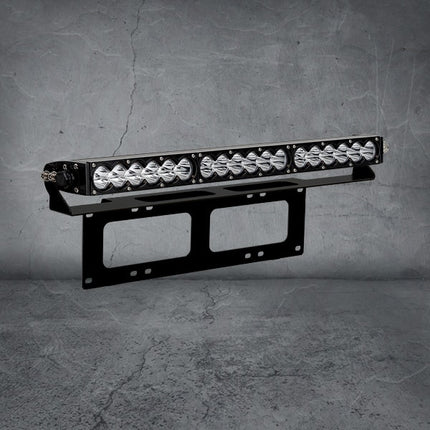

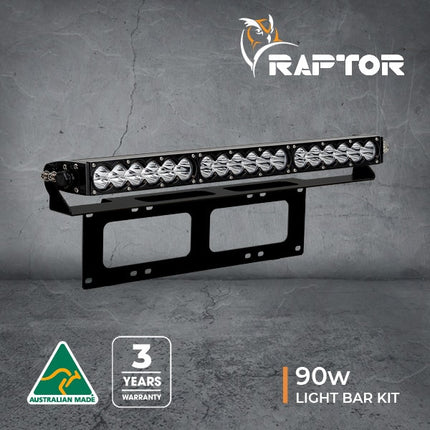

Raptor 90 LED 20.5″ Light Bar Number Plate Kit - Includes Wiring Harness and Hardware (Black)

Product form
Vendor Ultra Vision

SKU RAP090NPKITv2/B

$539 incl. GST

Free local pick up at AutoSpec 4x4

    Get An Install Quote

    We offer installation on all our products! Contact us for an install quote today on 1800 288 649 or through our contact form found here.
