Description
The REGO 12V 60A DC-DC Battery Charger utilizes exclusive bidirectional charging technology to efficiently charge house batteries from the starter battery while also maintaining the starter battery's charge when the house batteries are full. This versatile charger is compatible with popular 12V alternators and batteries, and features a 4-stage charging system for reliable and effective battery charging. It is ideal for a variety of vehicles, including RVs, commercial vehicles, boats, yachts, and vans, that require a stable power source while on the go.
Exclusive Bidirectional Charging
This battery charger can charge your house batteries from the starter battery when driving and recharge your starter battery when the house batteries are full. Keep your house batteries and starter battery at peak performance on the go.

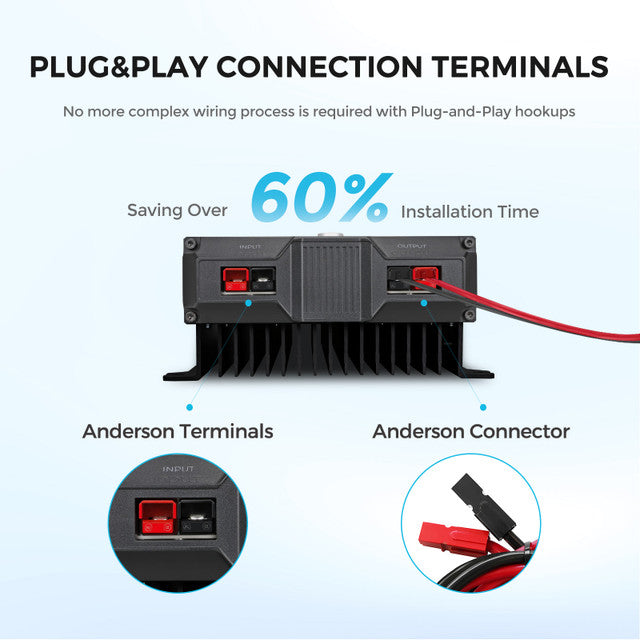

Easy Installation and Operation

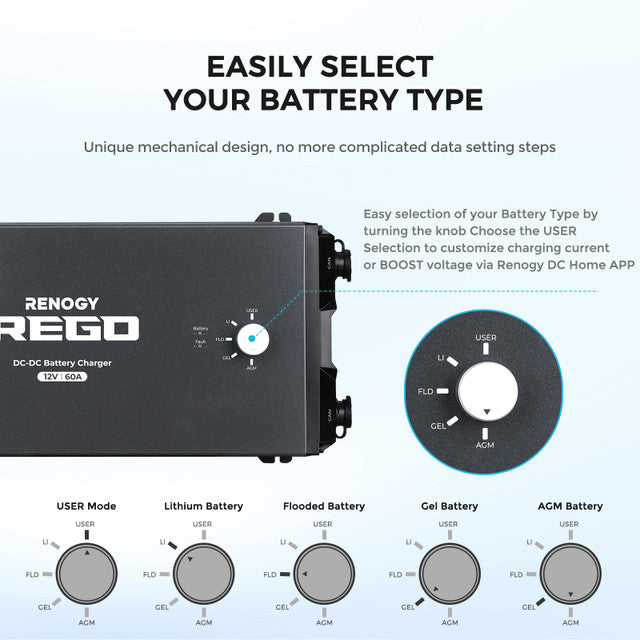

REGO DC-DC battery chargers use Anderson terminals instead of ring terminals for a simple, easy connection that reduces installation time by 60%! REGO’s simple design eliminates tedious data settings and lets you switch between batteries by just turning a knob.
High-Efficiency Charging
4-stage charging technology (Bulk, Float, Absorption and Equalize) maximize charging efficiency and optimizes battery levels for a longer lifespan.
Compatible with Most Batteries and Alternators
The REGO DC-DC battery charger is compatible with multiple types of batteries: AGM, SLD, Flooded, Gel, and Lithium, providing a powerful solution for different occasions. Moreover, it can interoperate with both traditional and smart alternators.
Integrated Safety Features
REGO chargers offer Overvoltage Protection, Overtemperature Protection, and Reverse Polarity Protection on both inputs and outputs to ensure operation safety. They have reverse polarity protection and multiple safety certifications including FCC-ID, CE-RED, MIC, etc.
Compatible with Renogy ONE M1 & Core
This battery charger is compatible with Renogy ONE M1 & Core.
Specifications
| System Voltage?12 V |
Rated Max Charge Current?60A |
| Rated Max Charge Power?800 W |
Battery Types?SLD/AGM;FLD;GEL;USER;LI |
| Self-Consumption??50 mA |
Max.Alternator Input Current?70A |
| Charge Efficiency?Up to 94% |
Max.Alternator Input Power?800W |
| Max.Alternator Input Voltage?16V |
Battery Operating Range?10 -16V |
Alternator Input Voltage?Traditional Alternator: 13.5-16VDC
Smart Alternator (Euro 6): 12.5-16VDC |
Power Limiting Protection?Up to 800W/12V |
|
Operating Temperature Range?-20 ? - 60? / -4 ? - 140?
|
Grounding Type?Common Negative Lug |
| Storage Temperature Range?-35 ? - 65?/ -31? - 149? |
Communication?Modebus ; RV-C |
| Humidity?0%-95%, No Condensation |
Dimensions (L x W x D)?13.91 x 8.37 x 4.02 in / 353.53 X 212.75 X 102.21mm |
Temperature Compensation?-3mV / ? / 2V (Non-Lithium)
'0mV / ? / 2V; no compensation (Lithium) |
Weight?7 lbs/ 3.12kg |
| Terminal Size?Anderson PP75 |
Terminal Range?8AWG - 6AWG |
| Certifications? |
|
| CB |
YES |
| FCC |
YES |
| CE |
YES |
| UKCA |
YES |
| MIC |
YES |
