Description

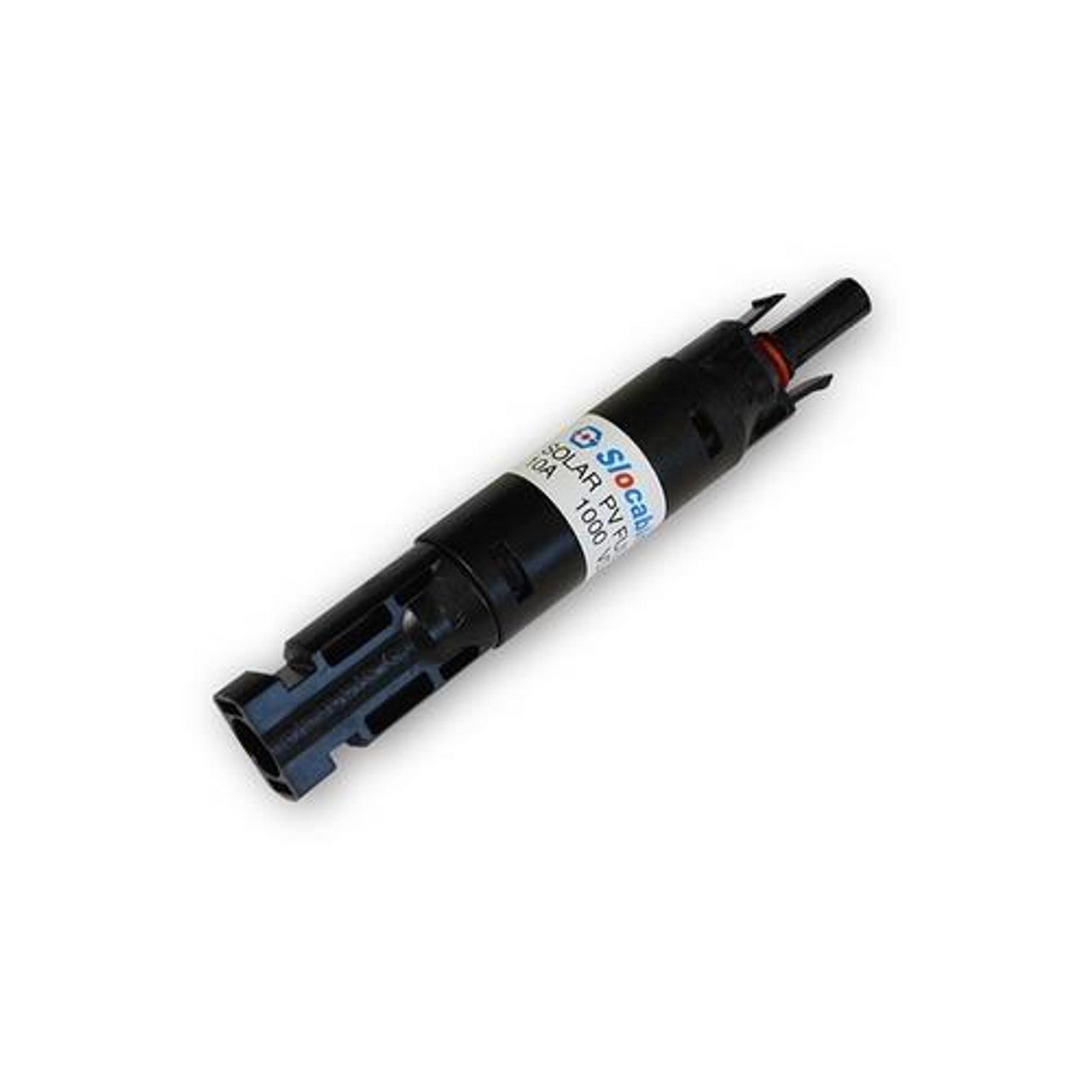

The Renogy 10A MC4 Waterproof In-line Fuse Holder with Fuse is designed to provide comprehensive single circuit protection for your solar power array.
With a 10A fuse embedded in a waterproof holder, this product features solar connector leads on each end, making it compatible with an Adaptor Kit and solar panel leads. Protect your system from large currents and purchase this product for added security.
Key Features
Ease of Use
- Compatible with PV cables with different insulation diameters.
- Designed for a wide range of DC applications.
- Simple plug-and-play.
- Auto-lock equipment of male and female points render connections easy and reliable.
Safe
- Waterproof - IP67 Class Protection.
- Insulation material PPO.
- High current-carrying capacity
- Protection Class II
- Connector adopts touch and insertion of reed with inner-knob type
Package Includes
|
Solar Connector Waterproof In-Line Fuse Holder w/ Fuse
1 x
|
Specification
| Renogy 10A Solar In-Line Fuse Holder Waterproof w/ Fuse |
|
| Rated Current: 10A |
Degree of Protection: IP2*/IP67 |
| Rated Voltage: 1000 V DC |
Flame Class: UL94-V0 |
| Test Voltage: 6000V (50Hz,1 min) |
Safety Class: II |
| Overvoltage Category: CATIII |
Suitable Connector: Solar Connector |
| Contact Resistance of Plug Connector:1mΩ |
Insertion Force / Withdrawal Force: ≤50N / ≥50N |
| Contact Material: Copper, Silver Plated |
Fuse Can Replace |
| Insulation Material: PPO |
Temperature Range: -40 to +125°C |
Warranty Information
| Accessories |
1-year material warranty |
