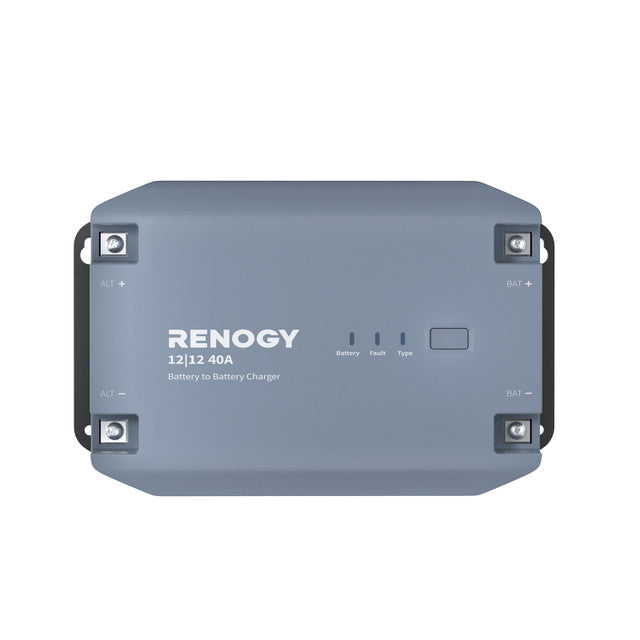

Designed to withstand harsh marine environments, this compact and corrosion-proof charger is the perfect choice for efficiently powering small boat cabins.
GENERAL DATA
Terminal Range: 8AWG - 6AWG
Grounding: Common Negative
Communication Protocol: RS485 Communication
Operating Temperature Range: -4℉ -122℉ /-25 ℃ - 60℃
Storage Temperature Range: -4℉ -122℉ /-40 ℃ - 85℃
Humidity: 0%-95%, No Condensation
Maximum Operating Altitude: 3000m
Enclosure Rating: 0%- 95% ,no condensation
Dimensions: 9.31 in (236.5 mm)x6.00 in (152.5 mm)x2.36 in(60.5 mm)
Weight: 4.41 lb / 1.88 kg
Certification: CE/RoHS/FCC
Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection
ELECTRICAL DATA
System Voltage: 12V-12V
Alternator Input Voltage: "Traditional Alternator: 13.2-16.0VDC Smart Alternator (Euro 6): 12-16.0VDC"
Maximum Output Current Rating: 40A
Output Power: 584W
Battery Types: AGM, Gel, Flooded, Lithium-iron Phosphate, User
Input Fuse Rating: 60A
Output Fuse Rating: 50A
Charging Efficiency: 94%
Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium), 0mV / ℃ / 2V; no compensation (Lithium)
Idle Power Consumption: ＜15mA
PACKAGE INCLUDES
The First Option: battery charger x1, temperature sensor x1, IGN Signal Wire x1, User Manual x1, Terminal Ring x4
opc:
WARRANTY INFORMATION
Accessories: 2-year material warranty
