Description
The Renogy 12V 60A DC-DC Battery Charger is the ideal solution for charging secondary batteries from the starter battery. This charger is compatible with various types of alternators and provides accurate charging for AGM, Flooded, Gel, and Lithium deep cycle batteries.
With a 3-stage charging process and multiple electronic protections, users can trust that their batteries are being charged effectively and automatically. Additionally, the charger isolates input and output to prevent incorrect voltage transmission for added safety. Its compact size and sturdy construction make it easy to install in a variety of applications, including RVs, commercial vehicles, boats, and yachts.
Empower Your Journey on the Go
Maximize charging efficiency on the go with enhanced versatility.
Protect Your Starter Battery
Renogy's DC-DC battery charger works seamlessly with traditional and smart alternators. The included D+ Ignition cable identifies generator starts, safeguarding the starting battery from over-discharge and protecting the generator. (Recommended: 18-16AWG copper cable. D+ Ignition Cable not included.)
Smart Charging Protection
The DC-DC battery charger's LC wire automatically adjusts the charging current, safeguarding the house battery from potential damage due to excessive charging. (Recommended: 18-16AWG copper cable. LC cable not included.)
Smart 3-Stage Charging
Efficiently charge your house batteries from the starter battery with Bulk, Boost, and Float stages, ensuring automatic and optimal charging up to 100%.
Prolong Battery Lifespan
Automatically adapts charging modes to match battery voltages, while the temperature sensor provides -3mV/°C/2V compensation, ensuring optimal charging in varying temperatures. (Please note that the temperature sensor is not included. If the lithium battery has a built-in BMS, an external temperature sensor is unnecessary.)
Specifications
-
Nominal Voltage: 12V
-
Rated Charge Current: 60A
-
Output: 750W
-
Idle Power Consumption: <0.4A
-
Input Voltage Range: 8V-16V
-
Equalization Voltage: N/A
-
Float Voltage: 13.2-13.8v
-
Boost Voltage: 14.1-14.7v
-
Operating Temperature: -20°C to +50°C
-

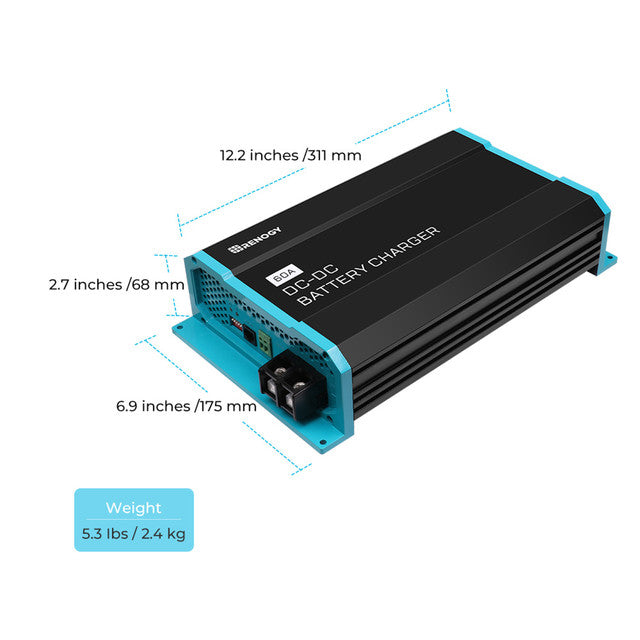

Dimensions: 12.24 x 6.89 x 2.68 inches / 31.1 x 17.5 x 6.8 cm
-
Weight: 5.29lbs / 2.4kg
-
Certifications: CE, ROHS
