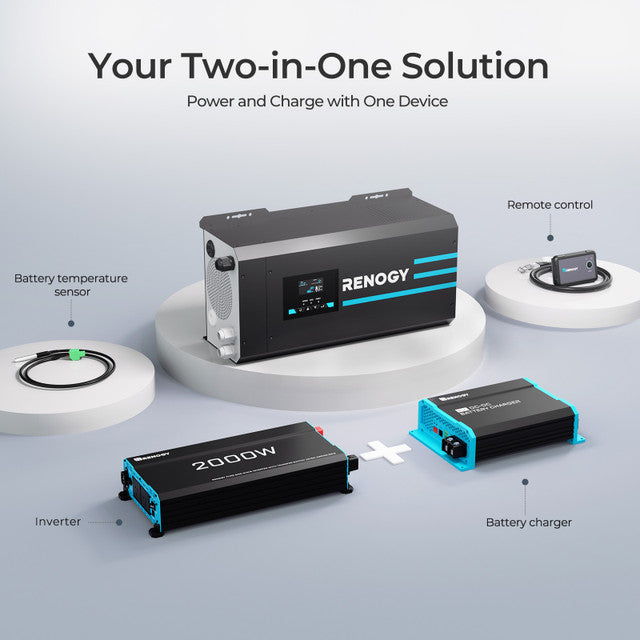

Combine the power of Renogy solar panels, charge controllers, and batteries with the versatile output of the pure sine wave inverter. Enjoy reliable and efficient off-grid power with this ultimate one-stop solution.
ELECTRICAL SPECIFICATIONS

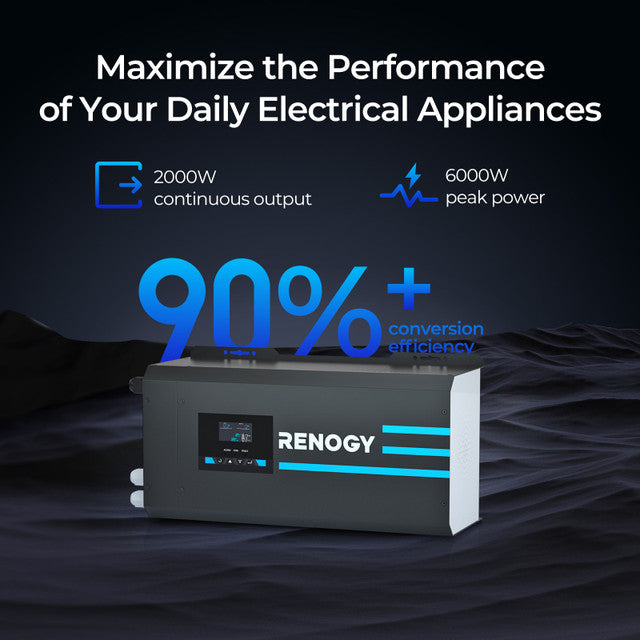

Rated Output Power: 2000W
Surge Power (Peak Power): 6000W
Nominal Output Voltage RMS: 230VAC (200~240VAC, 10V interval)
Output Frequency (Nominal): 50 Hz
Input Voltage Range: 10-16Vdc

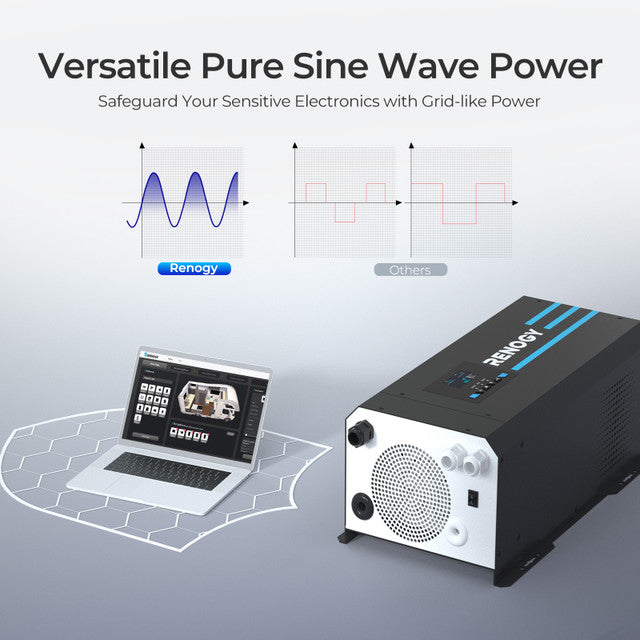

Output Wave Form: Pure Sine Wave
Nominal Efficiency: 90% Peak
No Load Power Consumption: Normal: <20W; Power Saving: <15W
Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER
Operating Temperature: 0 ~ 40°C / 32 ~ 104°F

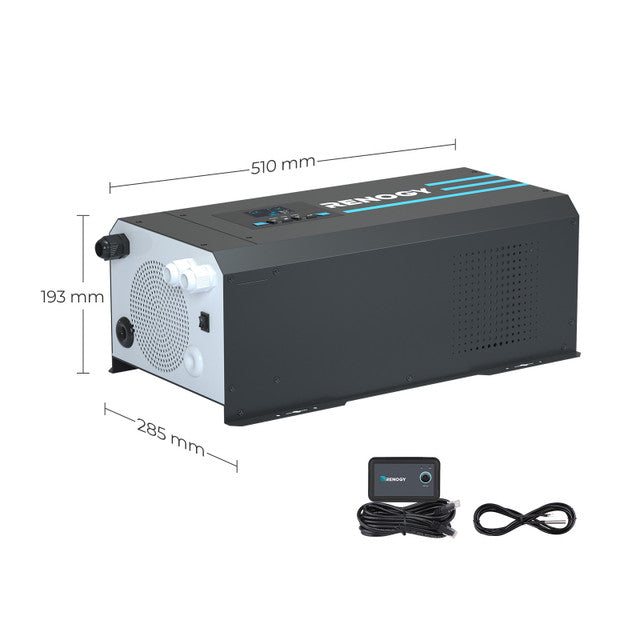

Dimensions: 510 x 285 x 193 mm / 20.1 x 11.2 x 7.6 in
Weight: 23.2 Kg / 51.1 lbs
Output Current: 5-65A; configurable, 5A intervals
Optimal Efficiency: >85%C

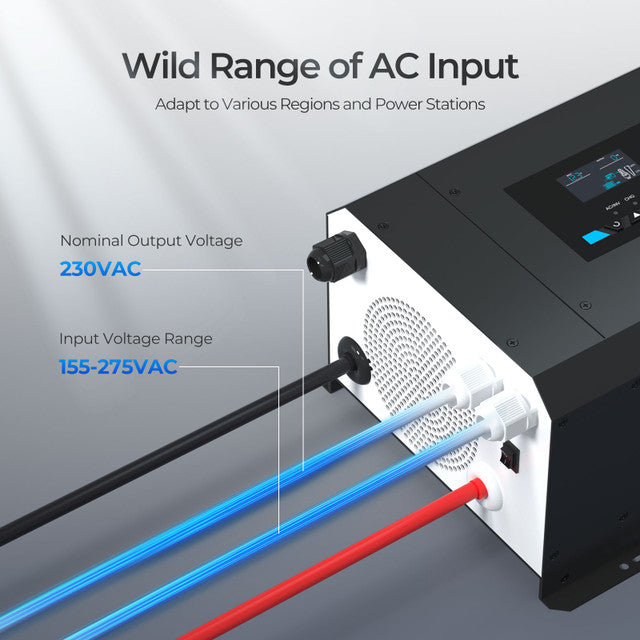

Nominal Input Voltage: 230 VAC
Input Voltage Range: 155-275 VAC
Input Frenquency Range: 40Hz - 70Hz
Input Wave Form: Pure Sine Wave (Utility or Generator)
Transfer Time: ~ 10ms
Transfer Relay Rating: 20A
Certifications: CE
Package Includes

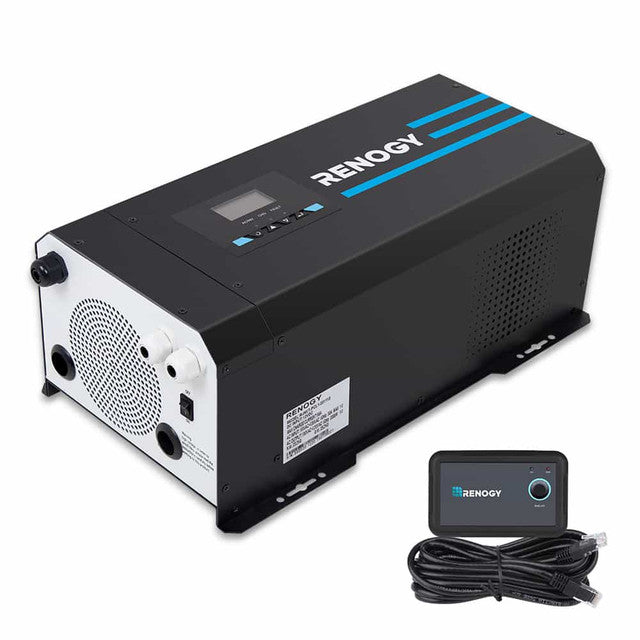

The First Option: inverter charger x1, remote control x 1
Material and Workmanship Warranty
Warranty Period: 1-year
