Description

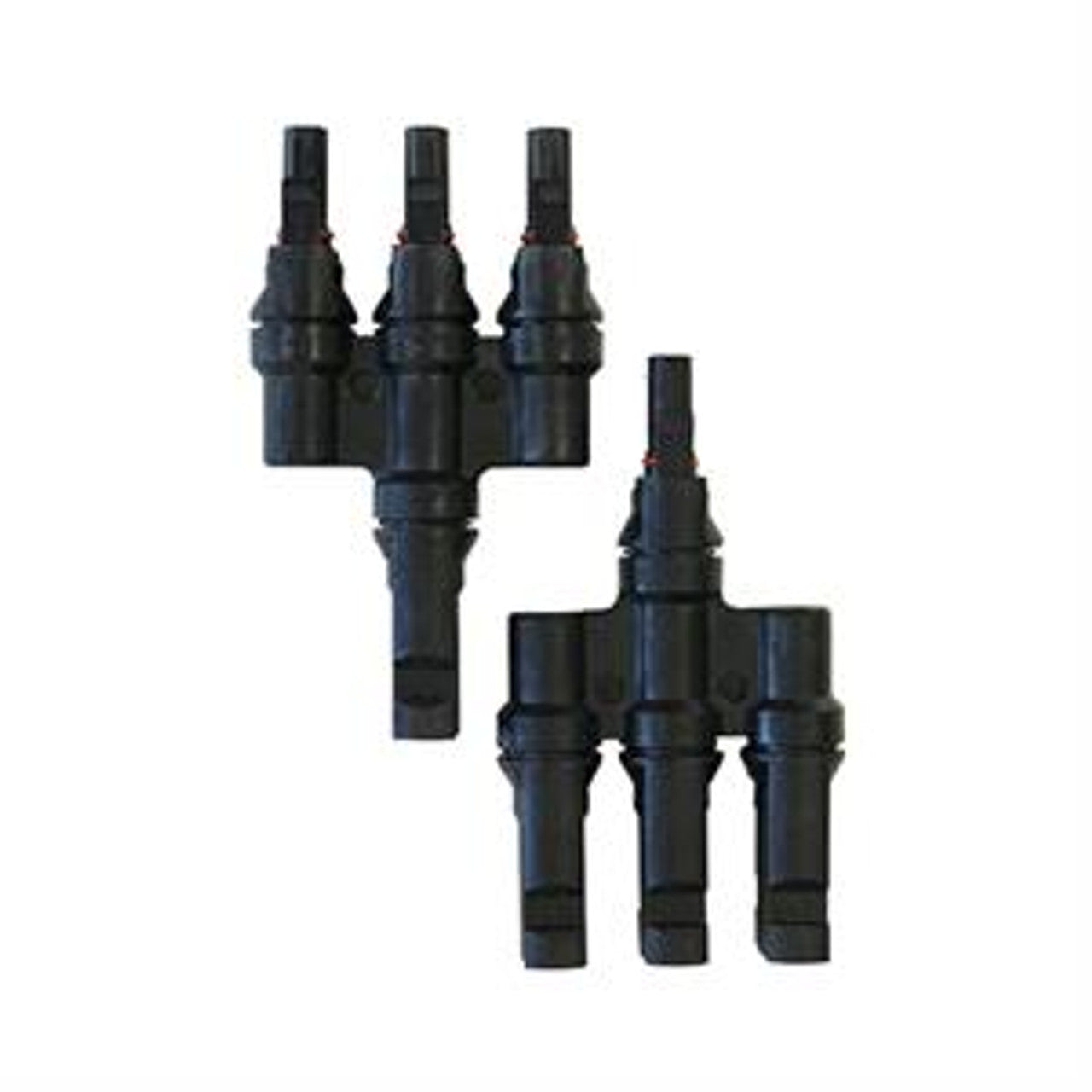

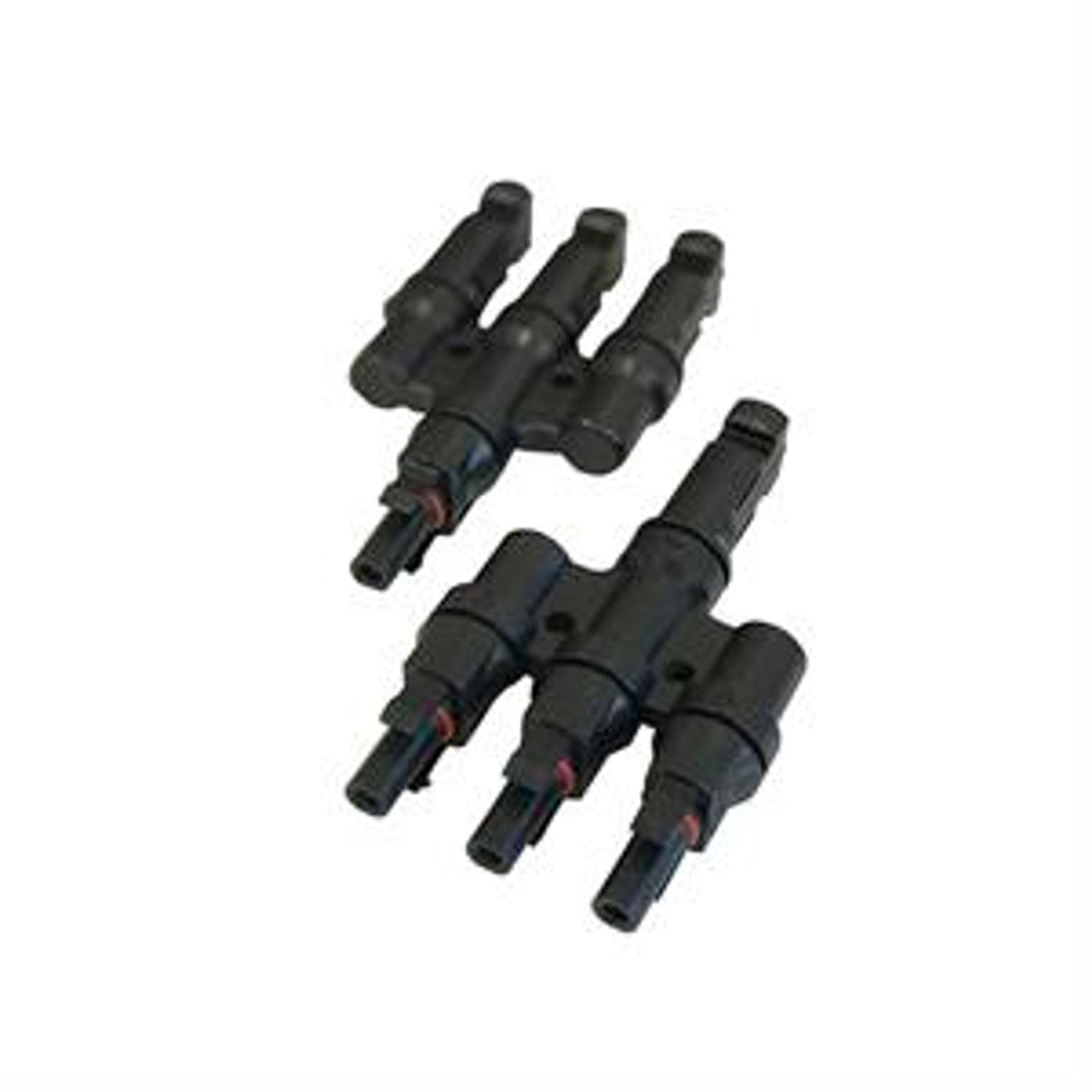

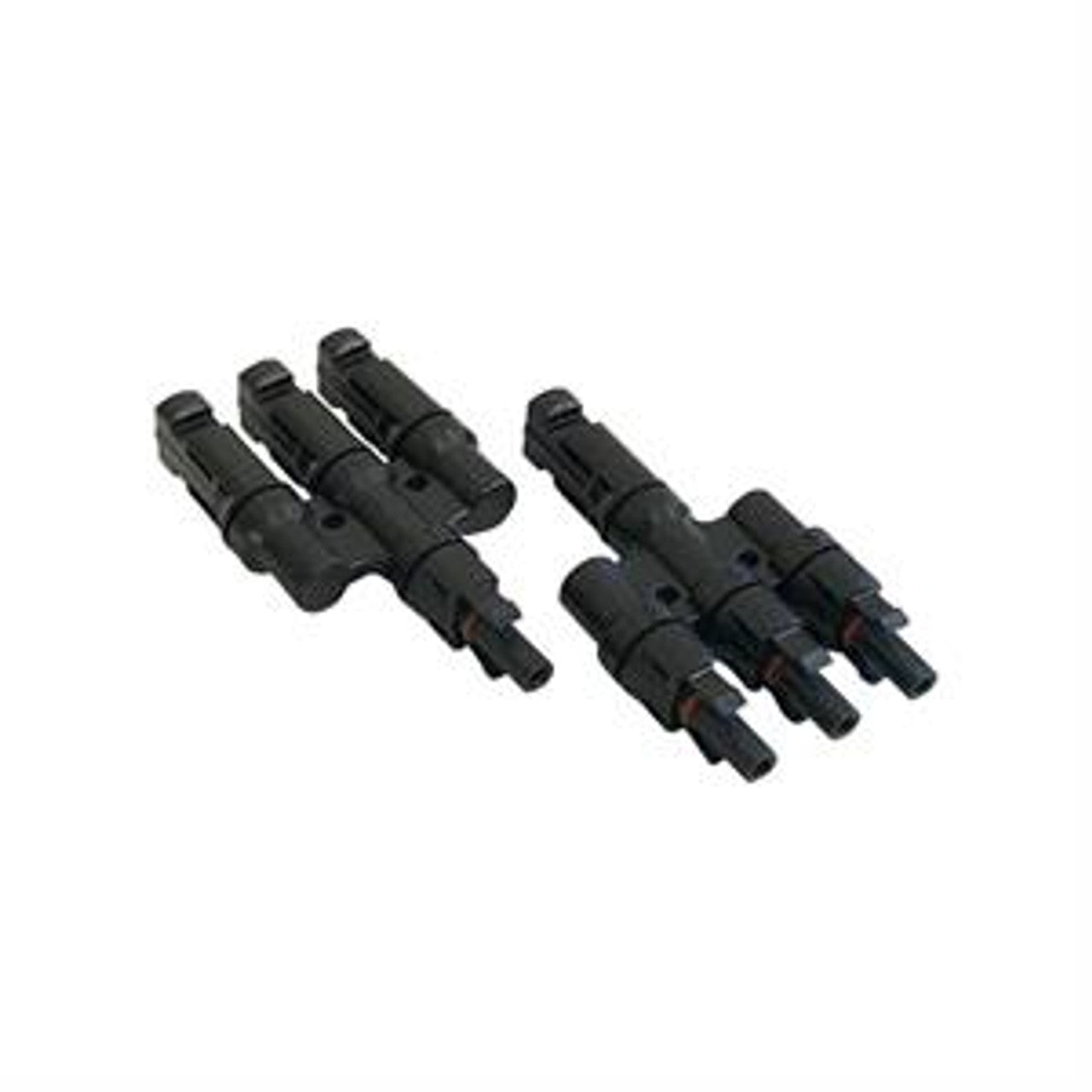

The Renogy 3 to 1 Solar Branch Connectors MMMF+FFFM Pair is an optimal choice for linking three solar panels in parallel.
These connectors possess strong weather-proof qualities due to their high resistance to aging and UV rays, making them suitable for rugged environments. A rivet and lock mechanism allow for secure cable connection without the need for additional tools during plug assembly or disassembly.
Key Features
- Rated Current: 50A
- Insertion Force: < 50N
- Maximum working voltage: DC1000V
Package Includes
|
3 to 1 Solar Branch Connectors MMMF+FFFM Pair
1 x
|
Specification
| 3 to 1 Solar Branch Connectors MMMF+FFFM Pair |
|
| Maximum working voltage: DC1000V |
Rated Current : 50A |
| Flame class: UL94-V0 |
Pollution degree: 2 |
| Contact resistance: ≤5mmΩ |
Shell Protection degree: IP65 |
| Ambient temperature range: -40°C to +85°C |
Safety Level: class ‖ |
| Insertion force: ≤50N |
Withdrawal force: ≥50N |
Warranty Information
| Panels |
25-year transferable power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate
5-year material and workmanship warranty
|
| Accessories |
1-year material warranty |
Certification
