ELECTRICAL SPECIFICATIONS
Rated Output Power: 3000W

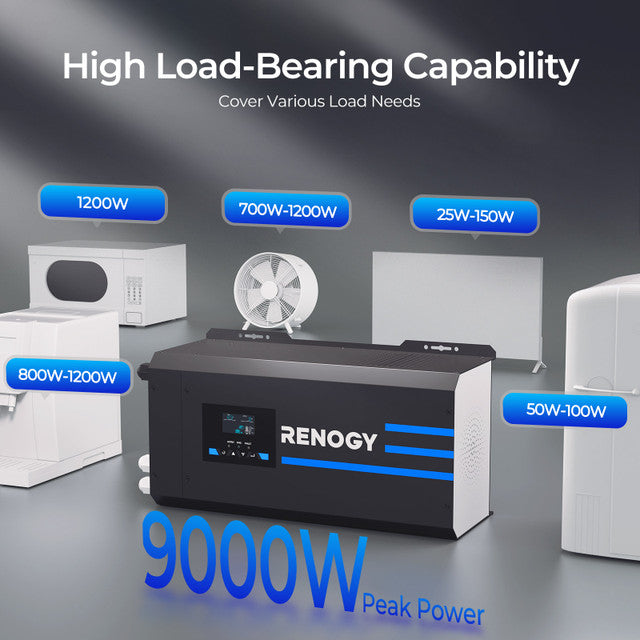

Surge Power (Peak Power): 9000W
Nominal Output Voltage RMS: 230VAC (200~240VAC, 10V interval)
Output Frequency (Nominal): 50 Hz
Input Voltage Range: 10-16Vdc

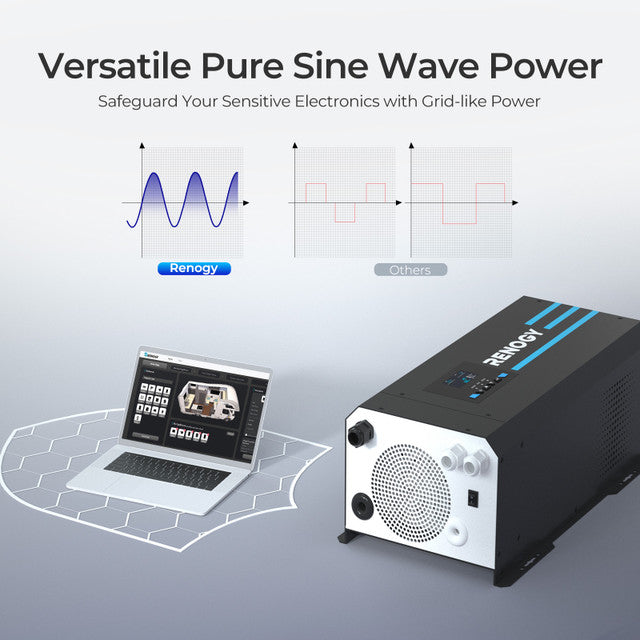

Output Wave Form: Pure Sine Wave
Nominal Efficiency: 90% Peak
No Load Power Consumption: Normal: <30W; Power Saving: <15W
Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER
Operating Temperature: 0 ~ 40°C / 32 ~ 104°F

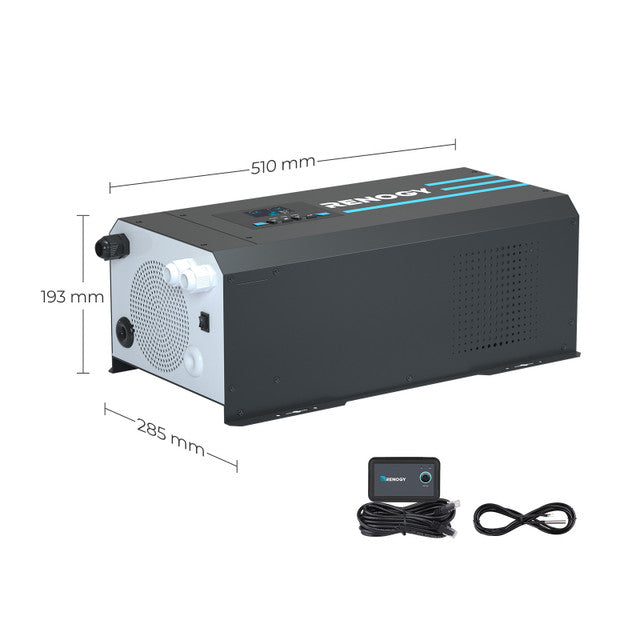

Dimensions: 510 x 285 x 193 mm / 20.1 x 11.2 x 7.6 in
Weight: 28.8 Kg / 63.5 lbs
Output Current: 5-75A; configurable, 5A intervals
Optimal Efficiency: >85%C

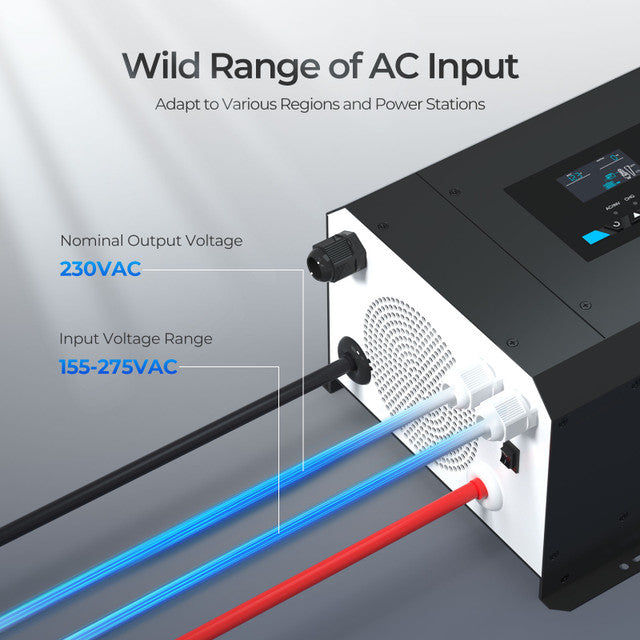

Nominal Input Voltage: 230 VAC
Input Voltage Range: 155-275 VAC
Input Frenquency Range: 40Hz - 70Hz
Input Wave Form: Pure Sine Wave (Utility or Generator)
Transfer Time: ~ 10ms
Transfer Relay Rating: 30A
Certifications: CE
Package Includes

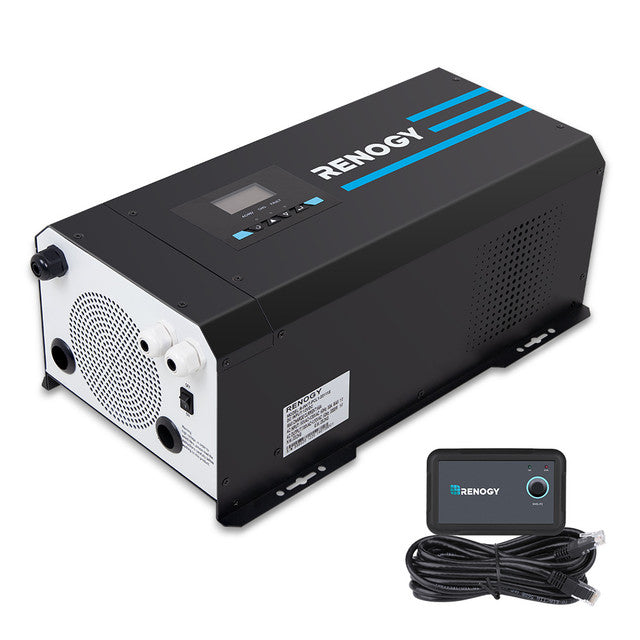

The First Option: inverter charger x1, remote control x 1
Material and Workmanship Warranty
Warranty Period: 1-year
