Description

Effortlessly monitor and control your Renogy ONE/DC Home App with remote access. This device is compatible with multiple types of batteries such as Lead Acid, LFP, Li-ion, and Ni-MH. It accurately displays the State of Charge, temperature, and starter battery voltage. Keep track of historical data and receive alerts through the DC Home app for maximum efficiency and convenience.

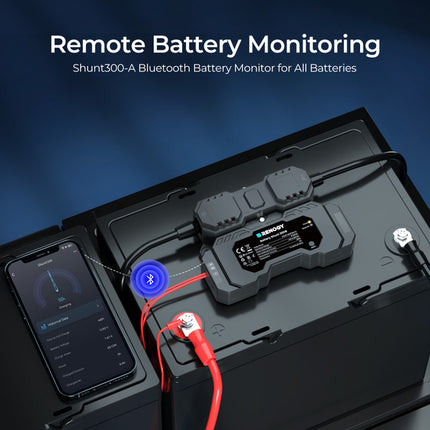

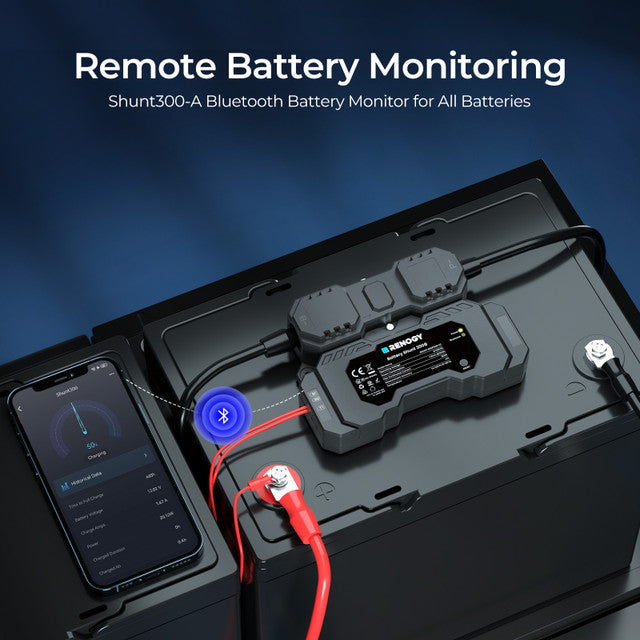

Check Your Battery Charging Level Anytime Anywhere

Provides accurate battery monitoring through the use of the Renogy ONE Core and DC Home App.

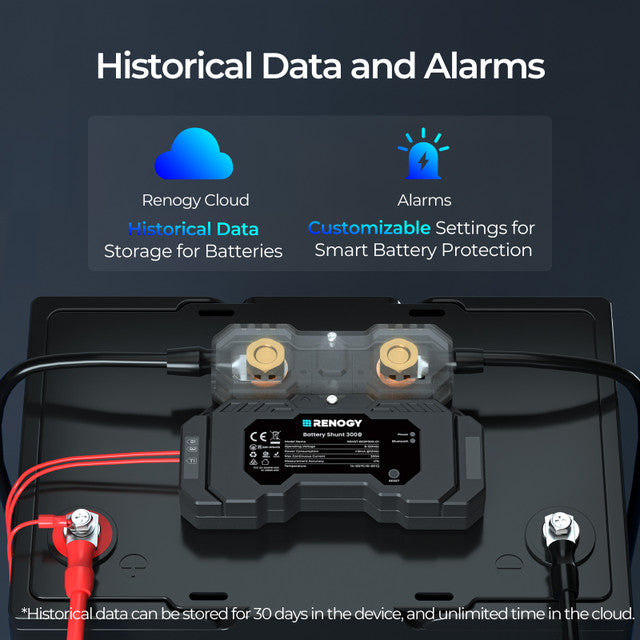

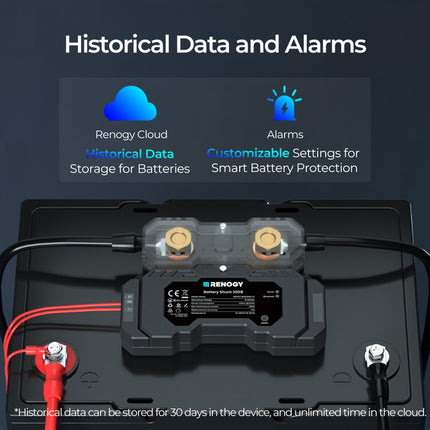

Track Battery Data Performance Over Time.

The Shunt 300 is designed to accurately record historical data through Renogy ONE Core and DC Home App, providing valuable insights and monitoring capabilities.

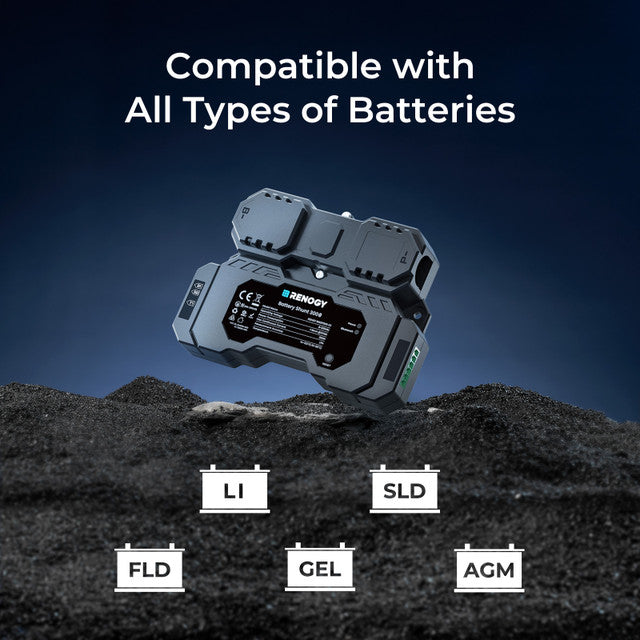

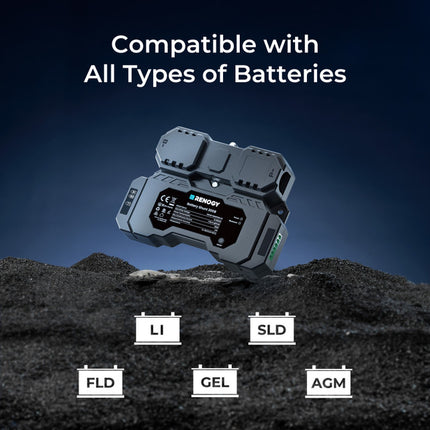

Compatible With All Types of Batteries

The Renogy 300A Battery Shunt with Bluetooth is universally compatible with both starter and main batteries.

Certified Performance

The Shunt 300 has undergone rigorous testing, exceeding industry standards for excellence.

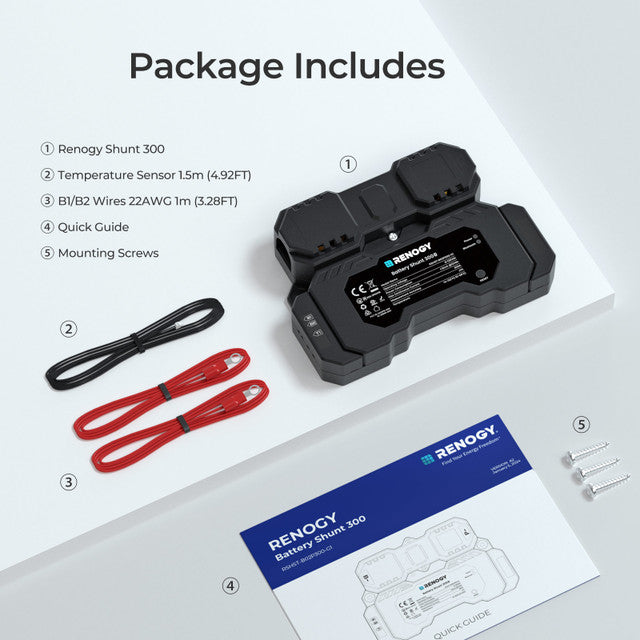

Battery Temperature Sensor

The included temperature sensor allows for detection of battery temperature.

Effortless Installation in 5 Minutes

Easily mountable on top of a battery or securely on a wall using screws, this battery shunt features connection points with protective covers to prevent loosening caused by movement.

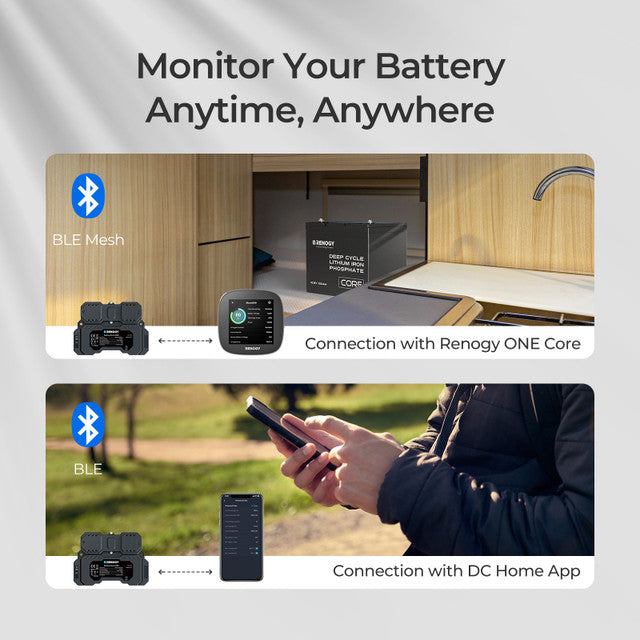

Fast Connection in 4 Steps

When used in conjunction with Renogy ONE Core and DC Home, the Shunt 300 offers a seamless experience of real-time data display.

Quick Setup Involves Simple Operations to Get Started

The initial setup process is user-friendly and uncomplicated, allowing for easy and efficient use by all users.


ELECTRICAL DATA

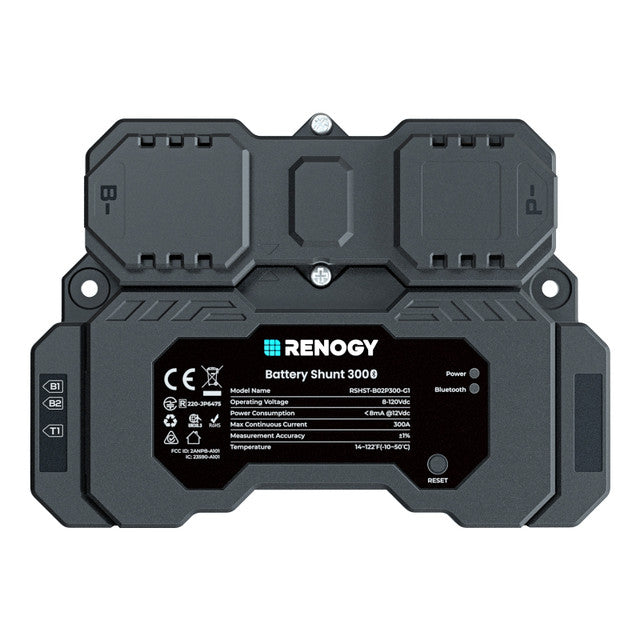

Product Name: Smart Shunt 300

Model Name: RSHST-B02P300-G1

Power Supply: 8 - 120 VDC

Power Consumption: <0.1 W

Communication: Bluetooth LE and BLE Mesh

Max continuous current: 300A

Max peak current: 500A(<10s)

Current accuracy: ±1%

Current Resolution: 0.01 A

Battery Capacity: 1 - 6500Ah

Voltage Input Range: 8 - 60V

Voltage input resolution: 10 mV

Temperature sensor range: -20~80℃

Temperature sensor accuracy: ±1%

Operating Temperature: -4℉~122℉(-20 ℃ to 50 ℃)

Operating Humidity: 0% to 95% RH

Operating Altitude: Less than 2000m above sea level

Installation: mounted on the wall

Battery connection: M10 bolts

Weight: 0.57lb (260g )

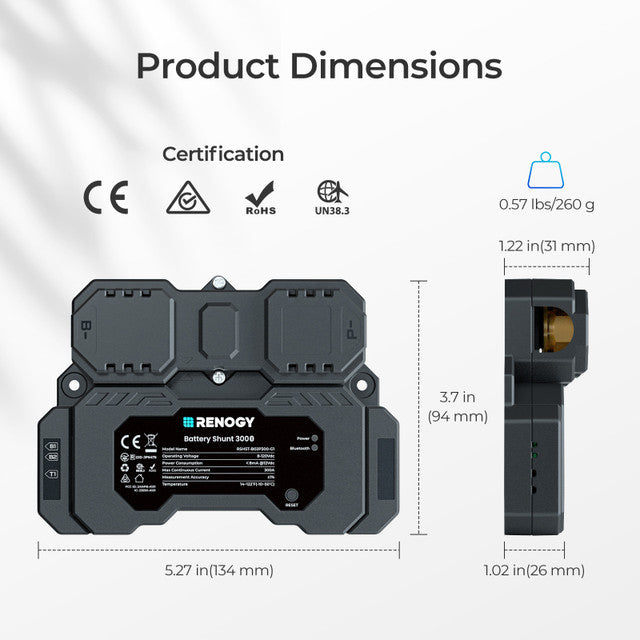

Dimensions: 5.27 x 3.82 x 1.22 inch (134 x 97 x 31 mm)

Warranty: 1 year

Certifications: CE, FCC ID,IC ID,RCM,TSCA, RoHS,UN38.3,TELEC





Renogy 300A Battery Shunt with Bluetooth

Product form
Vendor Renogy

SKU RSHST-B02P300-G1-AU

$190$126 incl. GST

5 in stock

Free local pick up at AutoSpec 4x4

    Get An Install Quote

    We offer installation on all our products! Contact us for an install quote today on 1800 288 649 or through our contact form found here.
