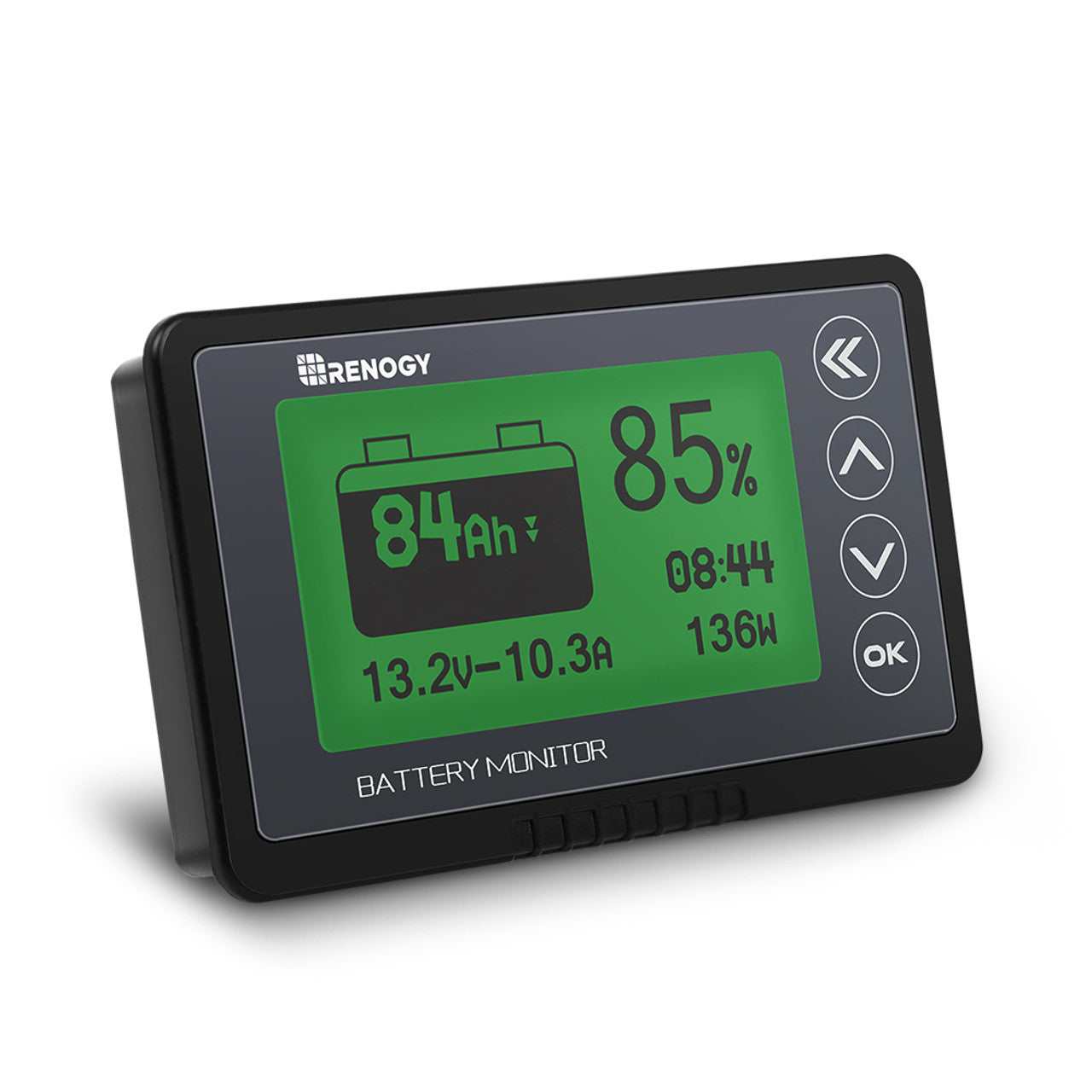

Description
The Renogy 12V Battery Monitor is a valuable asset to any solar system and effectively removes the need for guesswork in battery usage. With the ability to track amperage output and provide precise state of charge readings on the LCD screen, this 12V Battery Monitor enhances both the performance and lifespan of your battery bank. Don't wait, upgrade your system today!
Features
- High precision current detection.
- High and Low Voltage Programmable Alarm - Backlight and voltage value will flash simultaneously.
- Data Storage - Designed to automatically store the last testing data when system shuts off.

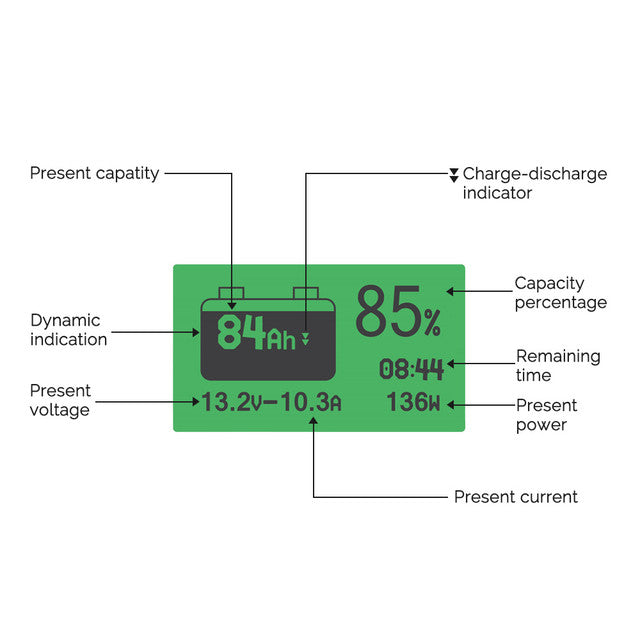

- Displays multiple electronic parameters (Voltage, Current, Consumed Power and Battery Capacity).
- Universal Battery Monitor- Voltage range 10V-120V and up to 500A.

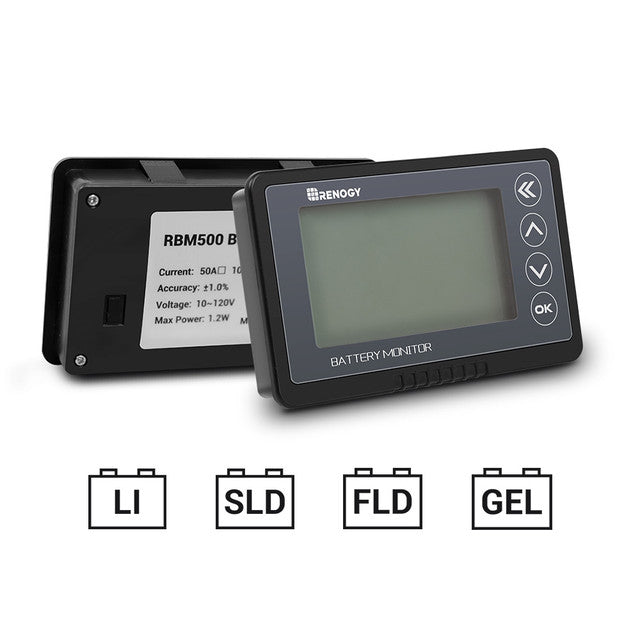

- Compatible with various types of battery: Lead Acid(AGM), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid.
- Accurate Battery SOC%.

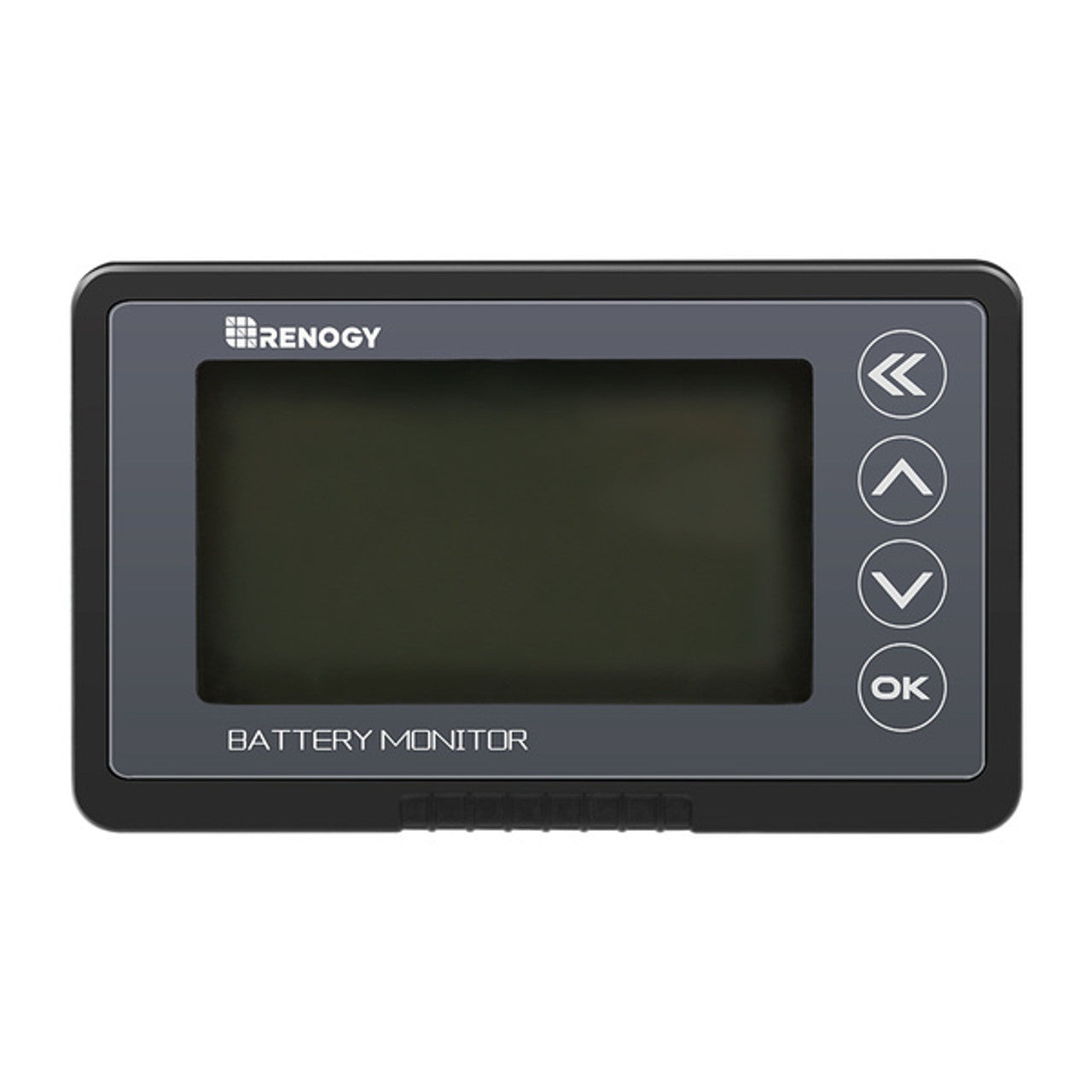

- Large backlit LCD Display

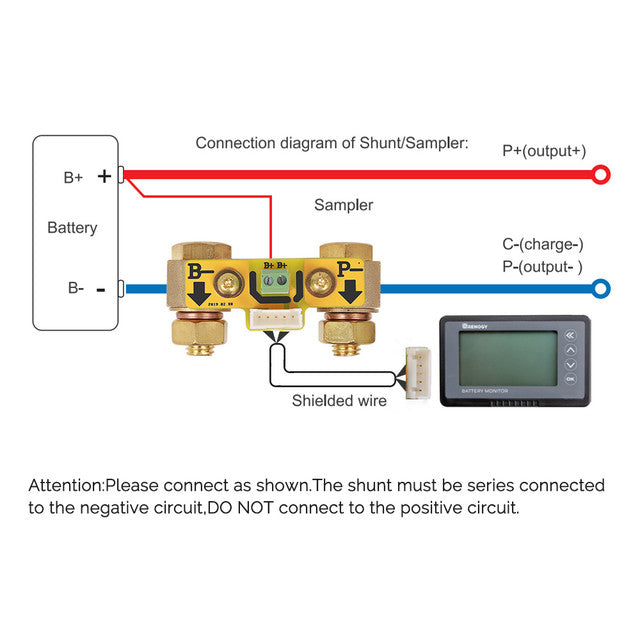

- Transparent shunt holder makes it easier to mount the shunt.

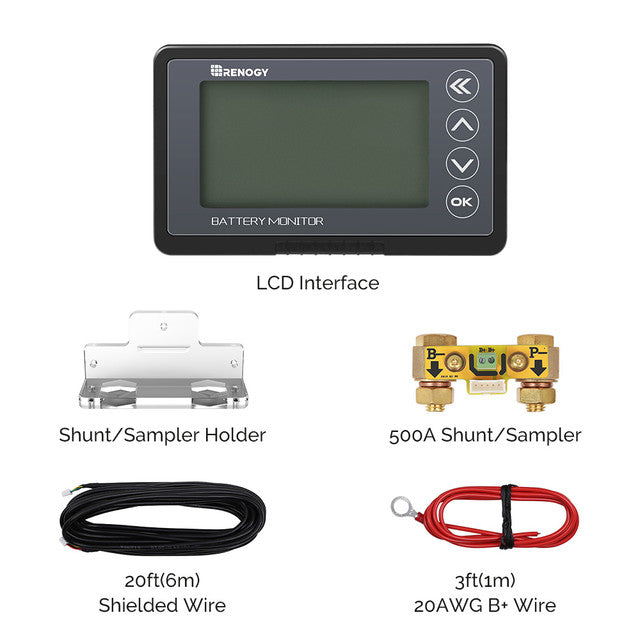

- 20ft Shielded cable allows you to monitor the battery status from distance.
Specifications
| Working Voltage:10-120V |
Working Dissipation:10-15mA |
| Standby Dissipation:1-2mA |
Voltage Accuracy:±1% |
| Current Accuracy:±1% |
Capacity Accuracy:±1% |
| Backlight on current (50A):30-60mA |
Backlight on current (>50A):100mA |
| Preset capacity value:.0.1-9999.0 AH |
Temperature range:0-35 °C |
| Shielded Wire Length:20 ft/6 m |
B+ Wire Length:3 ft/1 m |
| Weight:2.6 oz / 75 g |

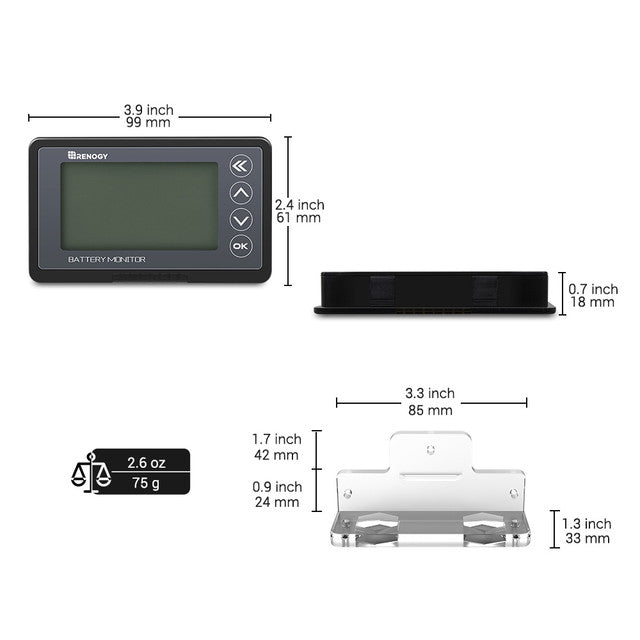

Size:3.9 x 2.4 x 0.7 in / 100 x 61 x 17 mm |
| Certifications? |
|
| ROHS |
YES |
| EMC |
YES |
