Description
Monitor and manage your battery with the Renogy ONE/DC Home App. Compatible with Lead Acid, LFP, Li-ion, and Ni-MH batteries, it displays State of Charge, temperature, and starter battery voltage. Keep track of historical data and receive alerts through the DC Home app.

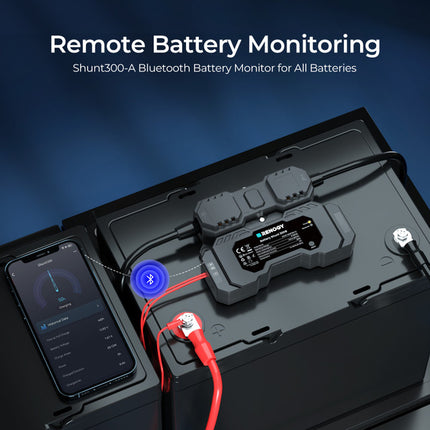

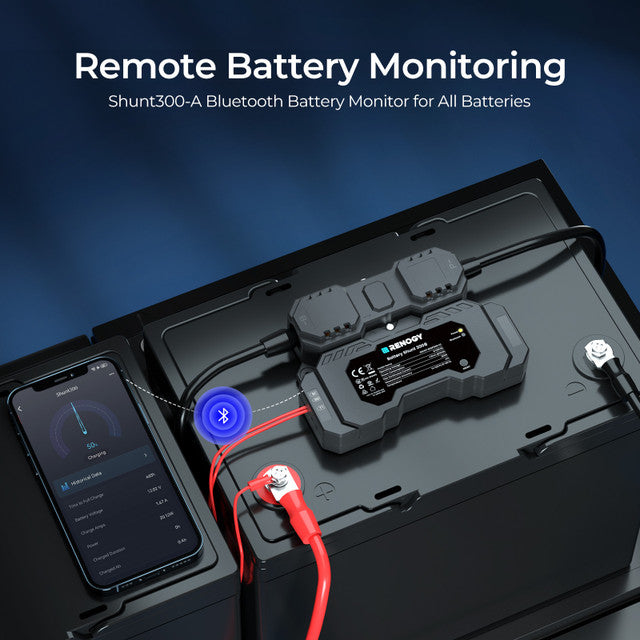

Check Your Battery Charging Level Anytime Anywhere

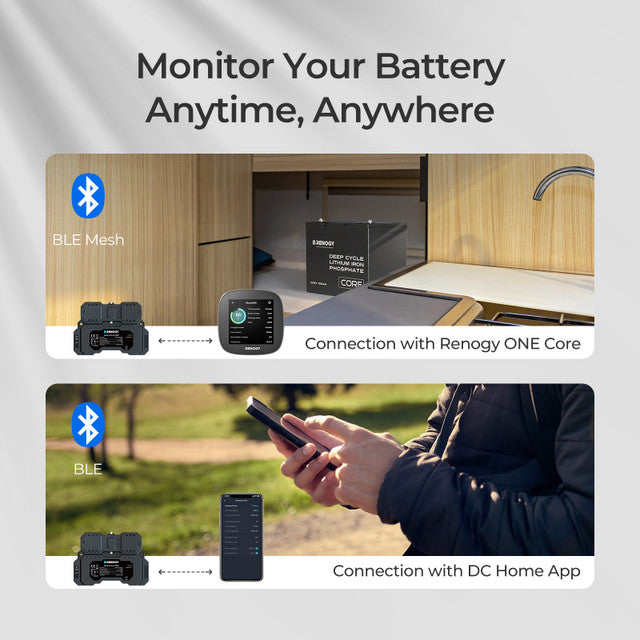

Ensures precise battery monitoring via the Renogy ONE Core and DC Home App.

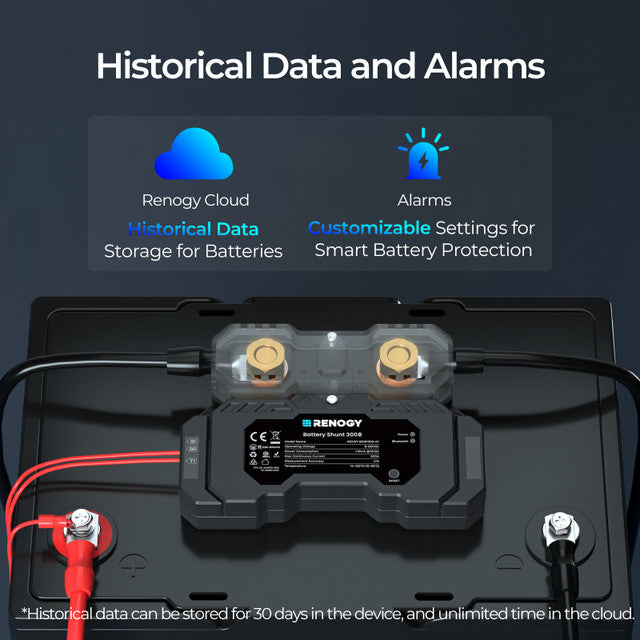

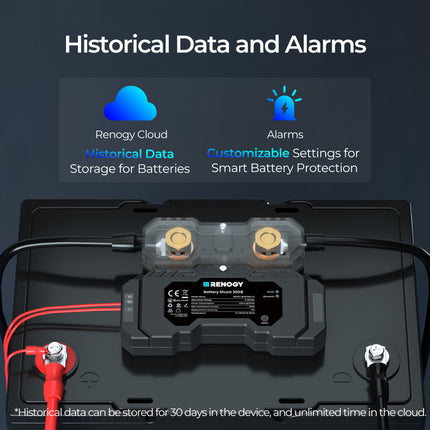

Track Battery Data Performance Over Time.
The Shunt 300 helps record historical data via Renogy ONE Core and DC Home App.

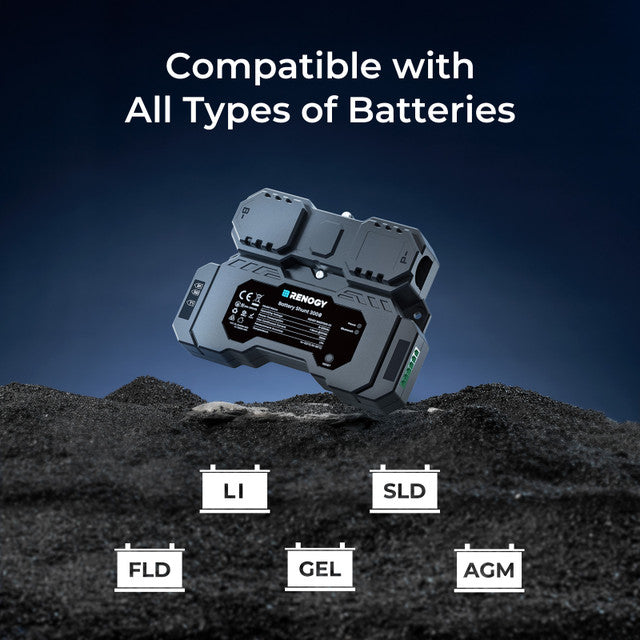

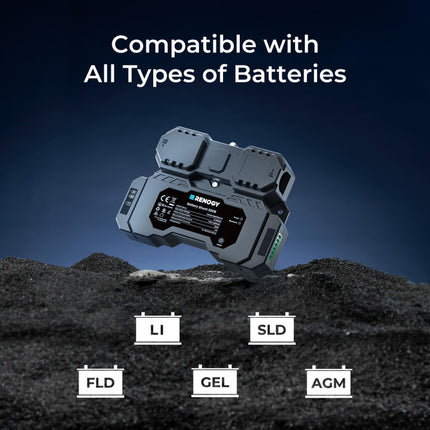

Compatible With All Types of Batteries
The Shunt 300 is compatible with all your starter battery and main batteries.
Certified Performance
The Shunt 300 has undergone comprehensive testing to not only meet but also surpass exceptionally high standards of excellence.
Battery Temperature Sensor

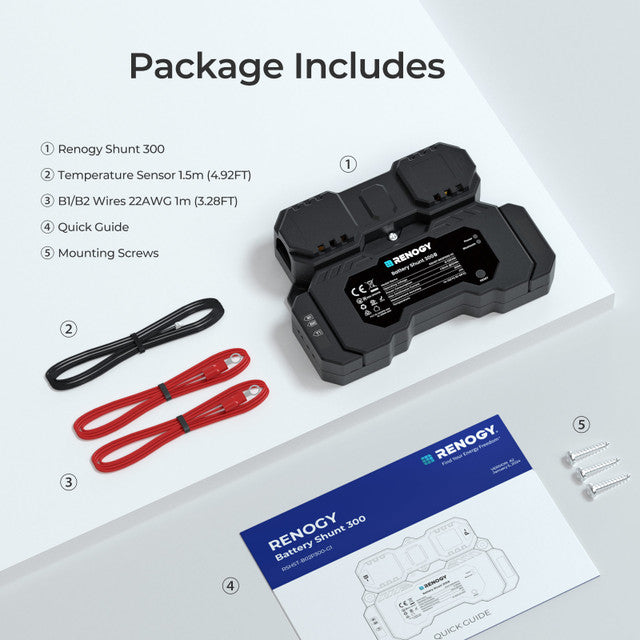

Detection of the battery temperature is possible with the included temperature sensor.
Specifications
-

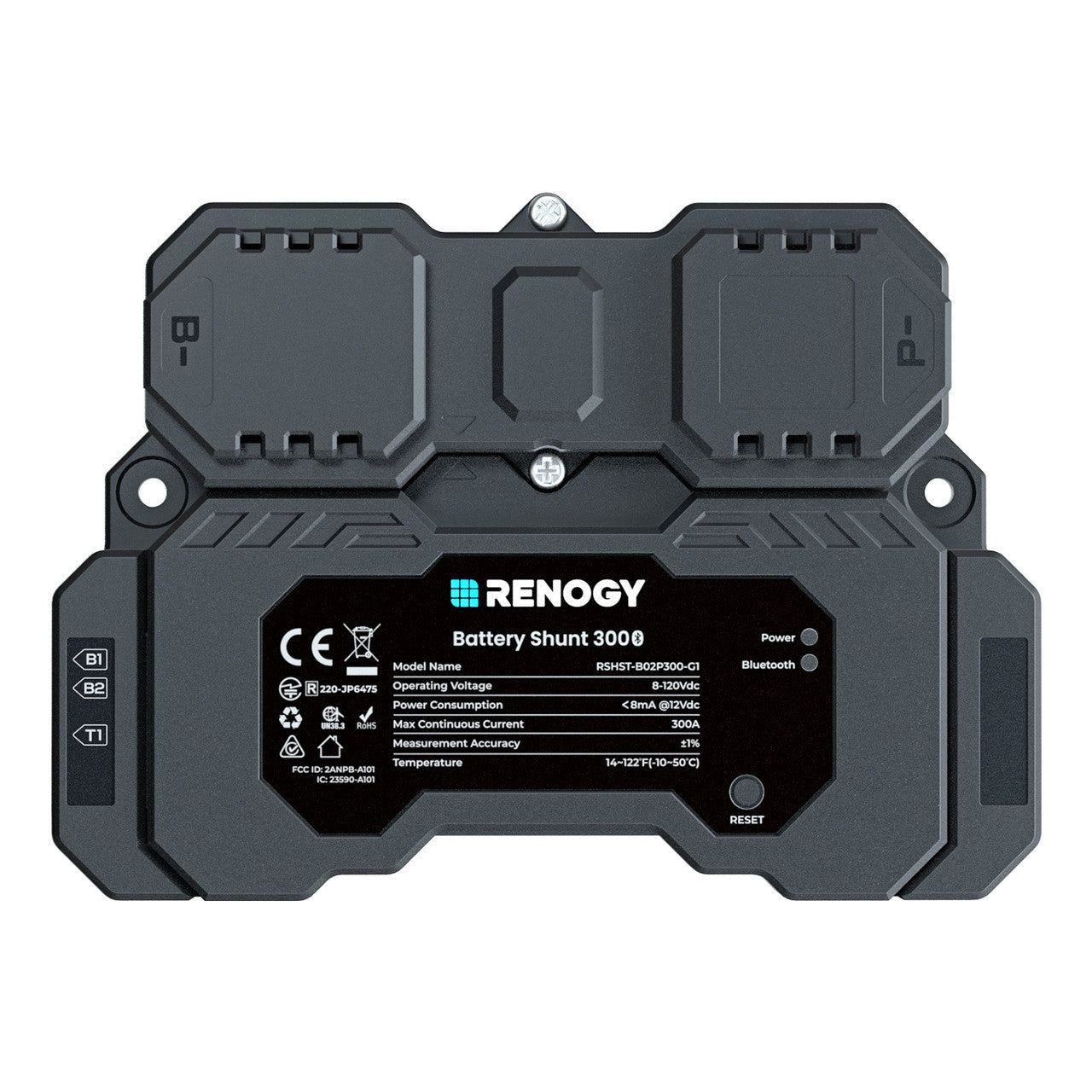

Product Name: Smart Shunt 300
-
Model Name: RSHST-B02P300-G1
-
Power Supply: 8 - 120 VDC
-
Power Consumption: <0.1 W
-
Communication: Bluetooth LE and BLE Mesh
-
Max continuous current: 300A
-
Max peak current: 500A(<10s)
-
Current accuracy: ±1%
-
Current Resolution: 0.01 A
-
Battery Capacity: 1 - 6500Ah
-
Voltage Input Range: 8 - 60V
-
Voltage input resolution: 10 mV
-
Temperature sensor range: -20~80?
-
Temperature sensor accuracy: ±1%
-
Operating Temperature: -4?~122?(-20 ? to 50 ?)
-
Operating Humidity: 0% to 95% RH
-
Operating Altitude: Less than 2000m above sea level
-
Installation: mounted on the wall
-
Battery connection: M10 bolts
-
Weight: 0.57lb (260g )
-

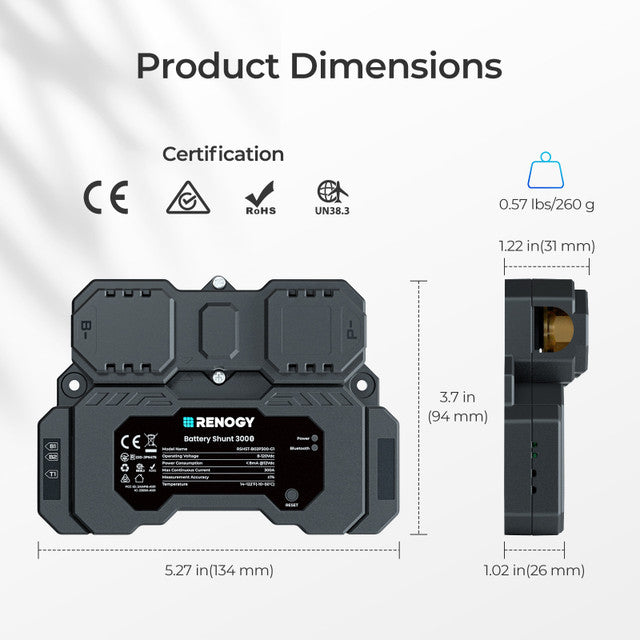

Dimensions: 5.27 x 3.82 x 1.22 inch (134 x 97 x 31 mm)
-
Warranty: 1 year
-
Certifications: CE, FCC ID,IC ID,RCM,TSCA, RoHS,UN38.3,TELEC
