Description

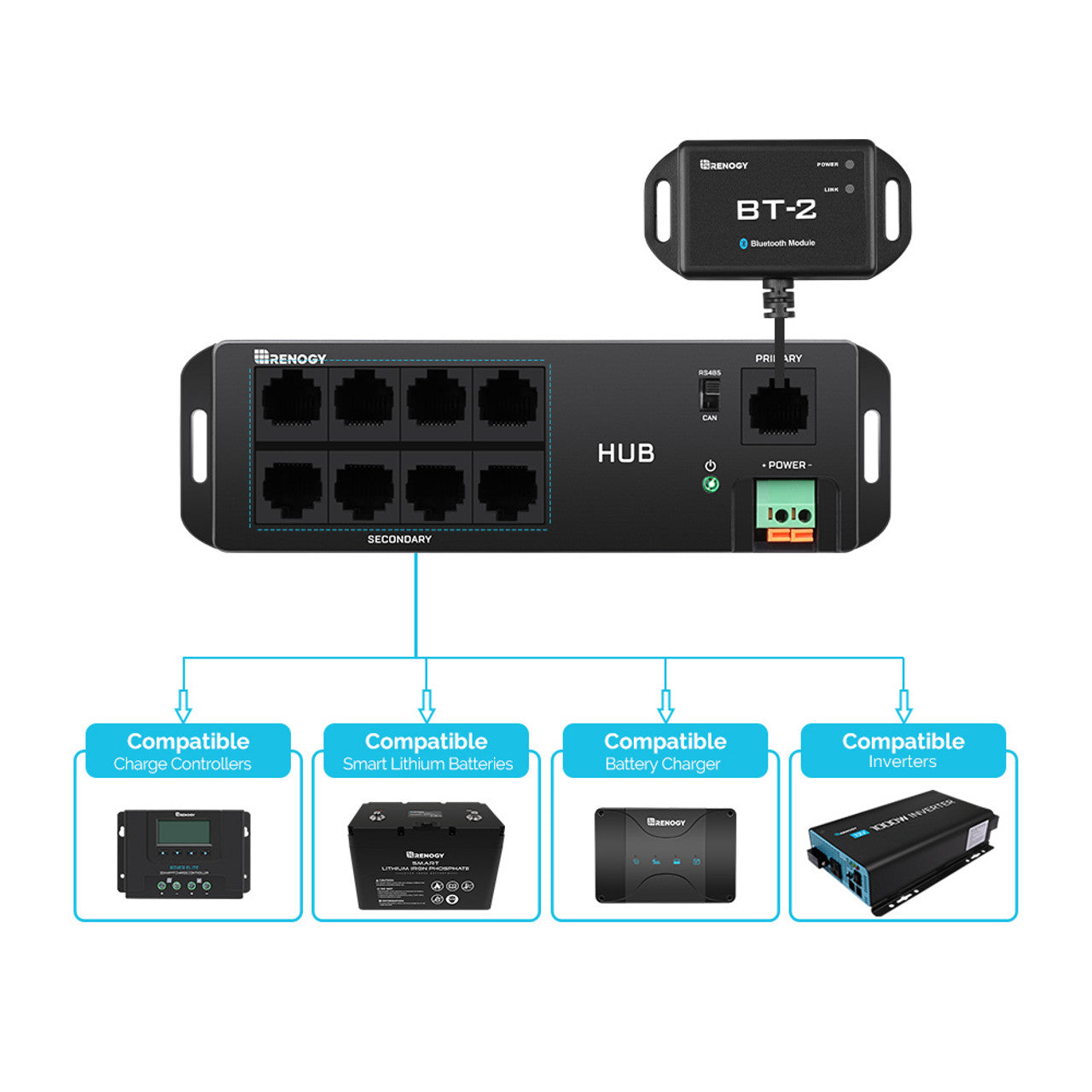

The Renogy Bluetooth Communication Hub enables the connection of multiple Renogy appliances through an RJ45 port and RS485 communication protocol, using just one BT-2 Bluetooth module.
With this hub, you can easily monitor multiple devices simultaneously using your phone. In addition, the hub is compatible with a variety of devices thanks to its support of RS485 and CAN communication protocols. Furthermore, it is fully compatible with all Renogy products featuring an RJ45 port.
Features
- Compatible with all Renogy Products with RJ45 Port.
- Monitor multiple devices at the same time with a single Bluetooth module.
- Connect to our user-friendly smartphone App, Renogy DC Home, to keep track of your system.

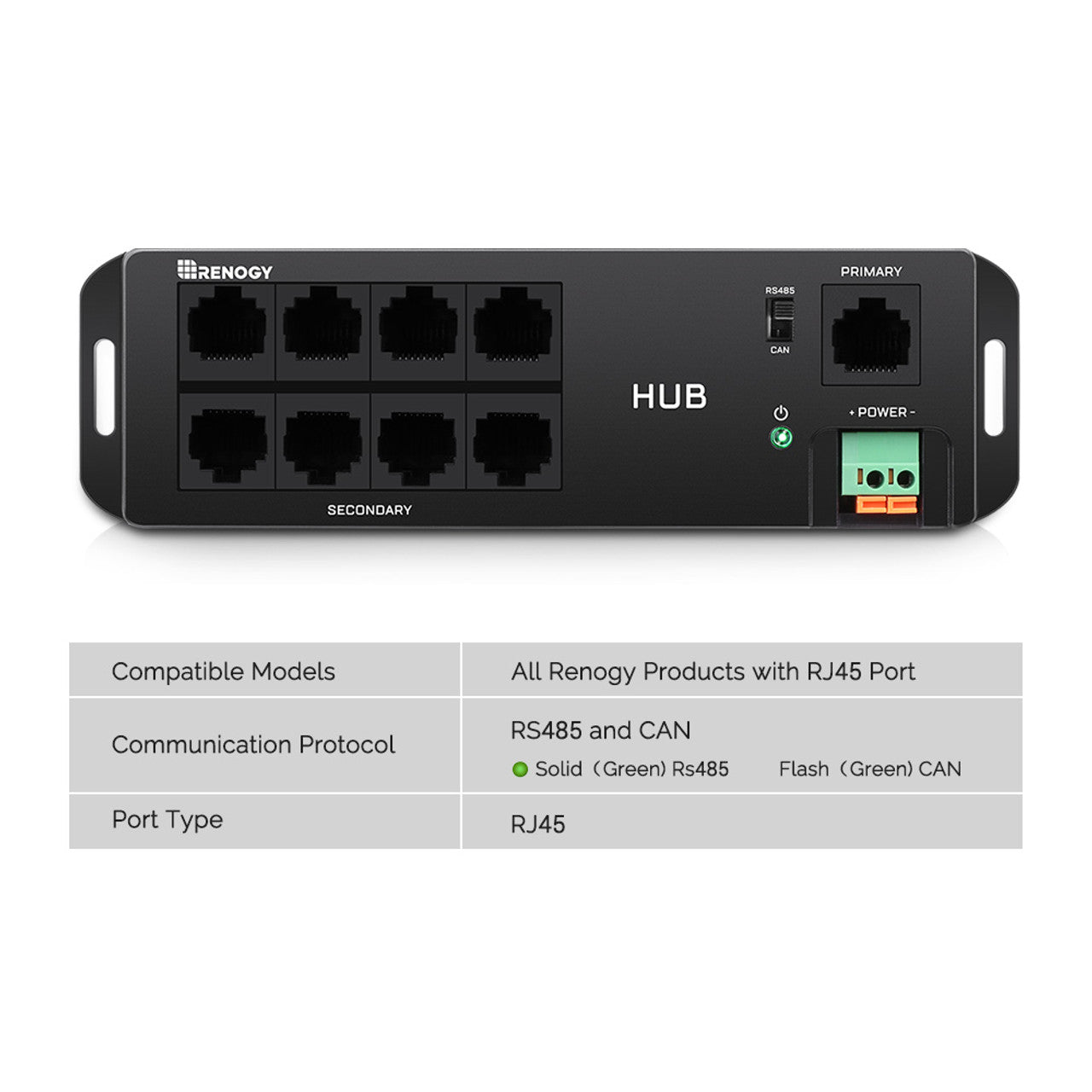

- Supports both RS485 and CAN communication protocol.

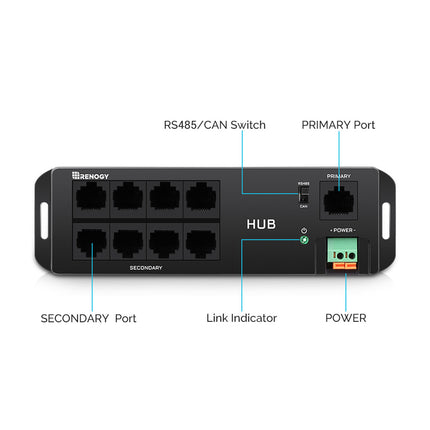

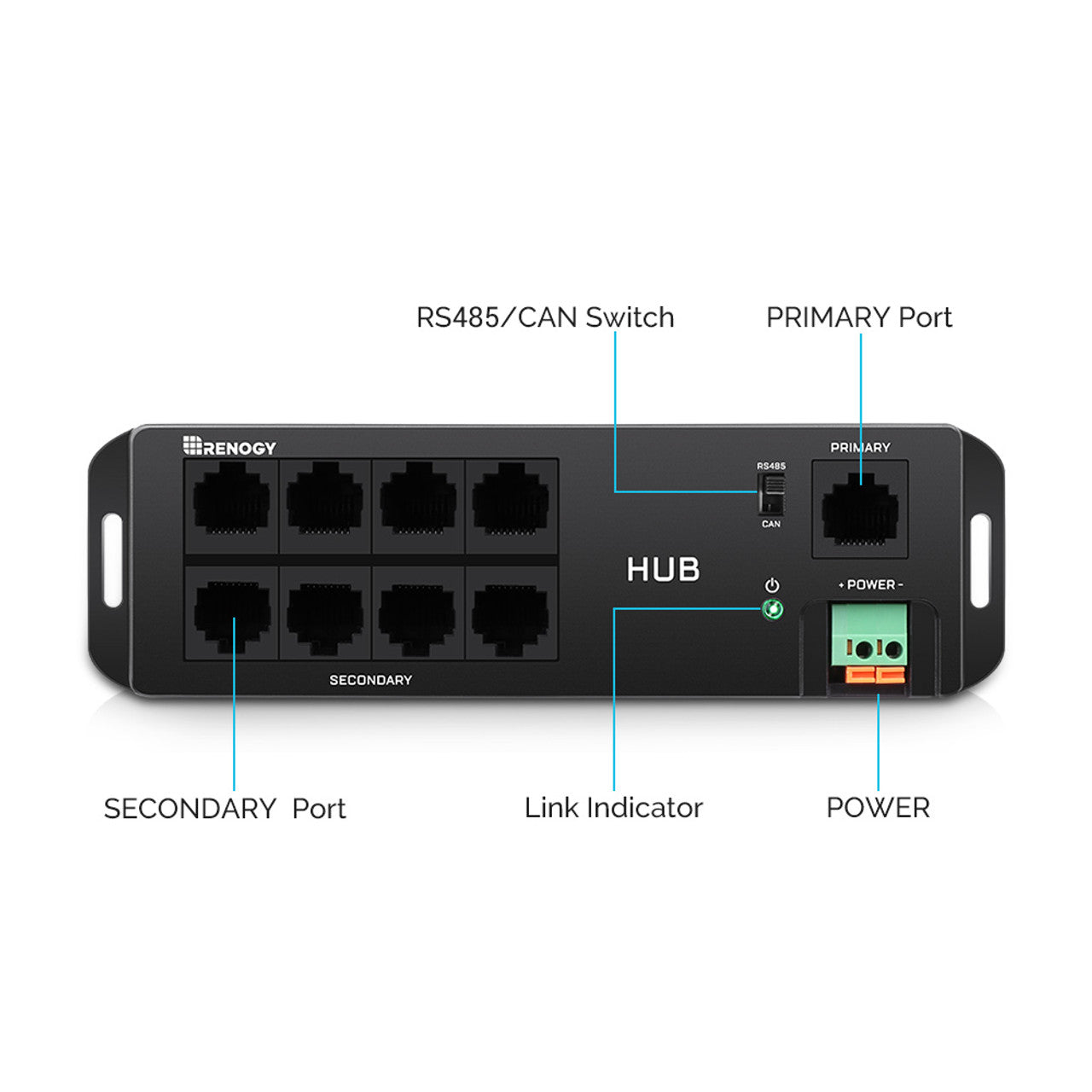

- Green LED lights indicate which communication protocol is currently on.
Specifications
| Input Voltage: 9V - 60V |
Standby Power Consumption: 0.324W |
| Operating Power Consumption: <0.35W |
Communication Range: 82ft |
| Serial Baud Rate: RS485-9600 bps CAN-500 kbps |
Communication Protocol: RS485 CAN |
| Port Type: RJ45 |
Cable Length: 5.00 m (16.4 ft) |

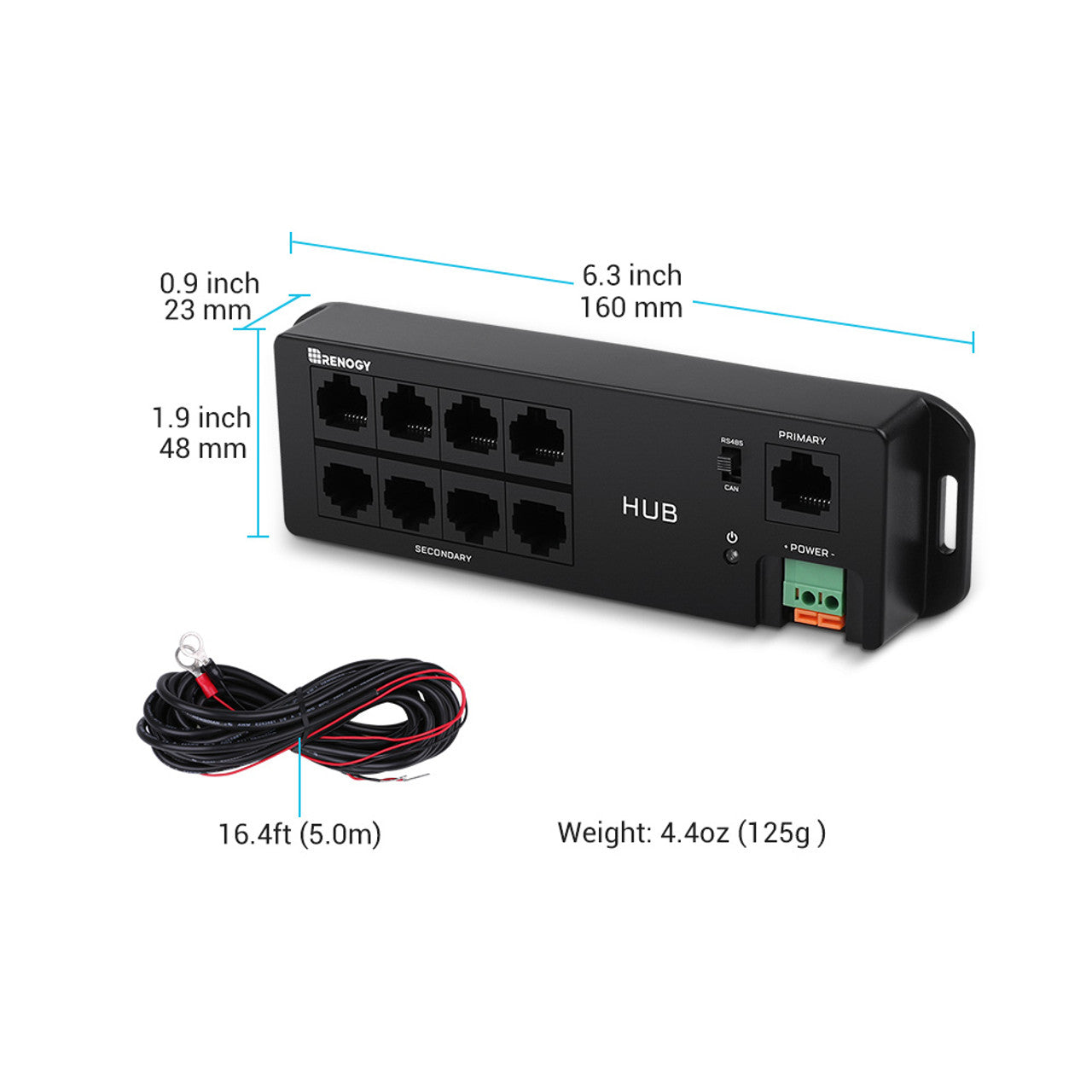

| Dimensions: 6.29 X 1.89 X 0.91in (160 x 48 X 23mm) |
Installation Dimensions: 151.4 3.5mm 5.96 0.14in |
| Operation Temperature: -20°C to 85°C (-4°F to 185°F) |
Weight: 125g (4.41oz) |
