Description

Discover the Renogy CORE Series 12Volt 200Ah Lithium Iron Phosphate Battery, the ultimate solution for upgrading from Lead to Lithium.

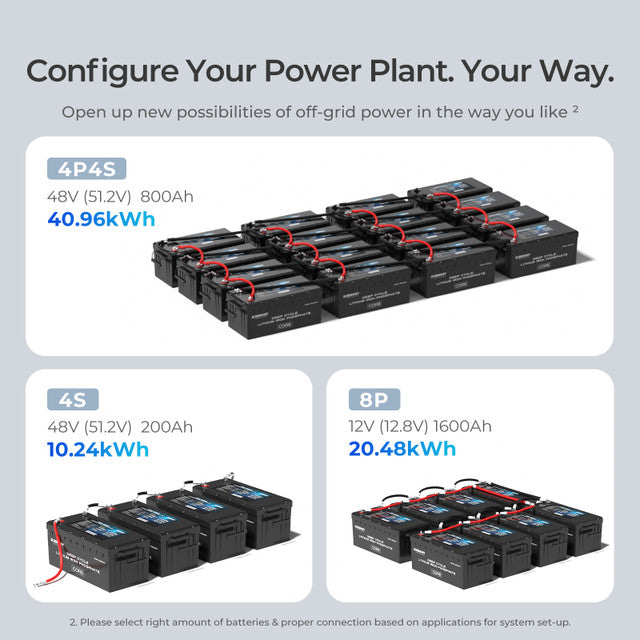

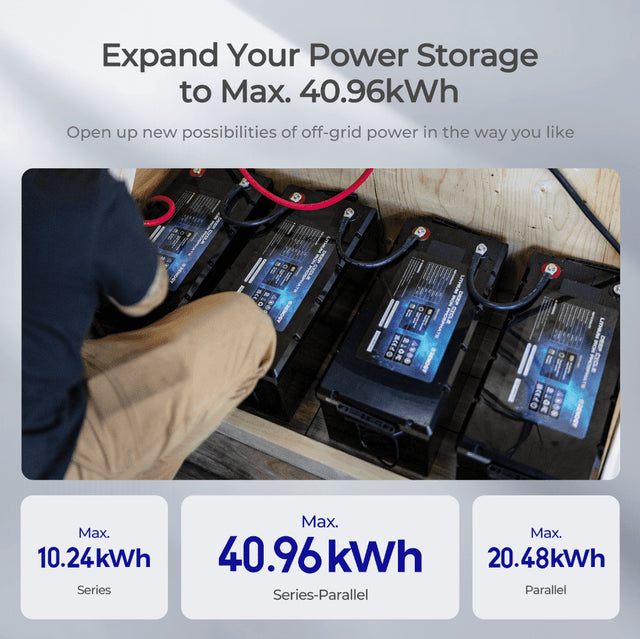

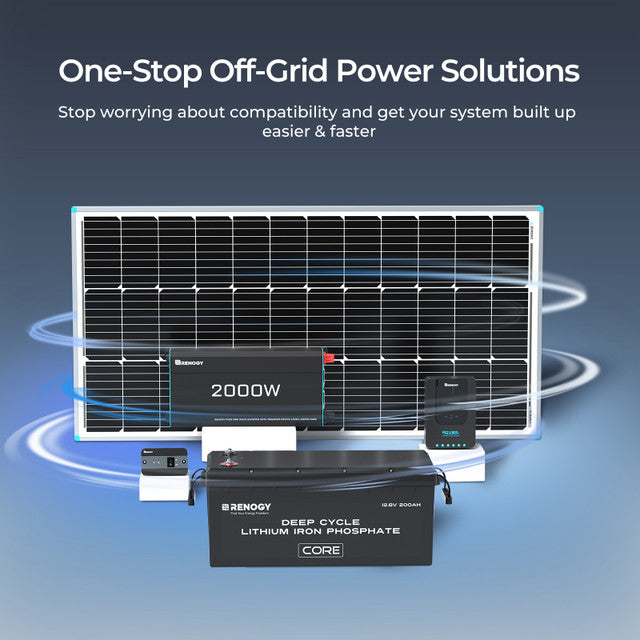

Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery offers a seamless upgrade experience without any compatibility issues. With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring a reliable source of energy during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to extend your system's runtime. Off-grid living can be challenging, but the Renogy 12V 200Ah Core Battery features a comprehensive 200A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to overcome any obstacles.

Whether you are upgrading from old lead-acid batteries or starting to build your first-ever off-grid power system, the Renogy 12V 200Ah Core LiFe

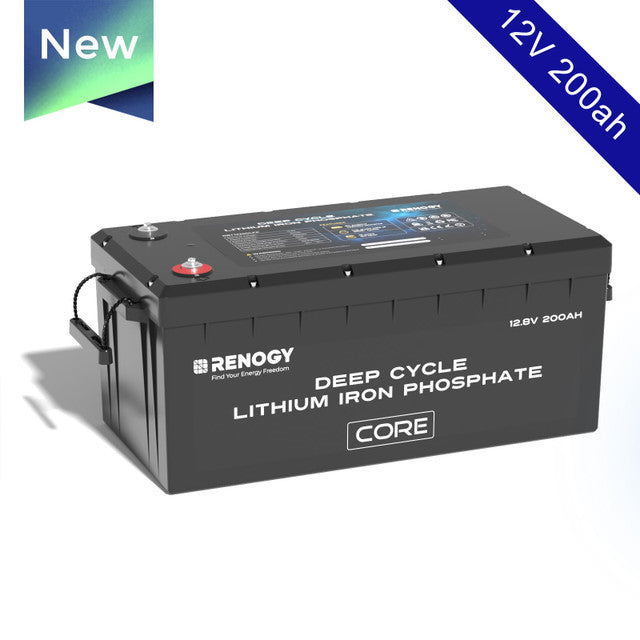

Renogy 12V 200Ah Core Series LiFePO4 Battery

Upgrade your lead-acid battery to a 200Ah lithium battery - the reliable, all-in-one solution.

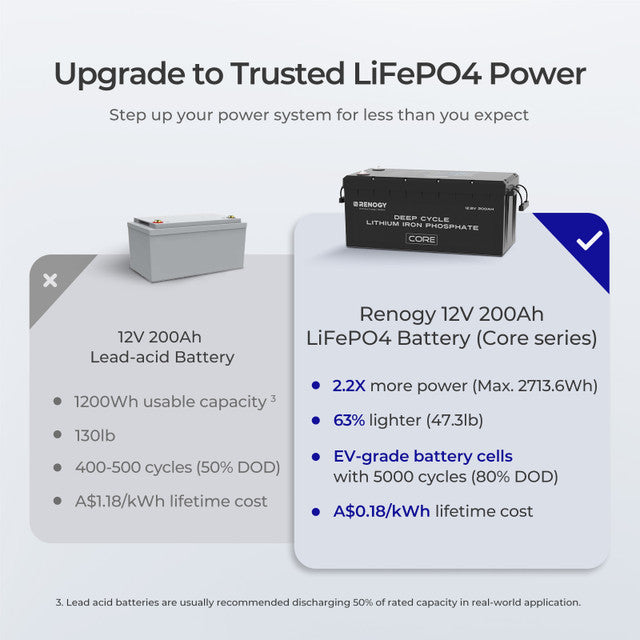

200Ah Core vs. Lead-acid

Enhance your performance to the next level with the use of lithium technology.

200Ah Core vs. Other LiFePO4

Impeccable efficiency for high-energy requirements.

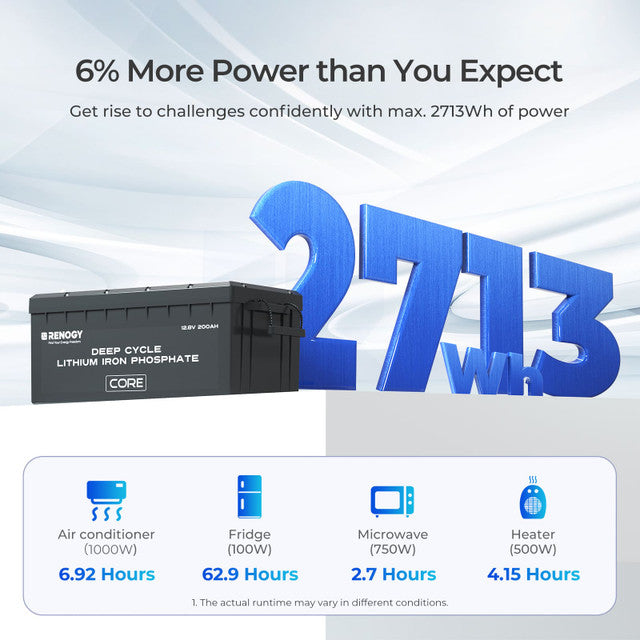

Extra Juice. More Possibilities.

The Renogy CORE Series 12Volt 200Ah Lithium Iron Phosphate Battery offers a remarkable increase in capacity, providing up to 6% more power. This allows you to be prepared for unforeseen events, such as storms, hurricanes, wildfires, and other challenges, with ease and confidence.

Powerful to the Core

The Renogy CORE Series 12Volt 200Ah Lithium Iron Phosphate Battery offers long-lasting, reliable power with battery cells designed for electric vehicles. Its exceptional performance far surpasses an average lead-acid battery by almost 10 times.

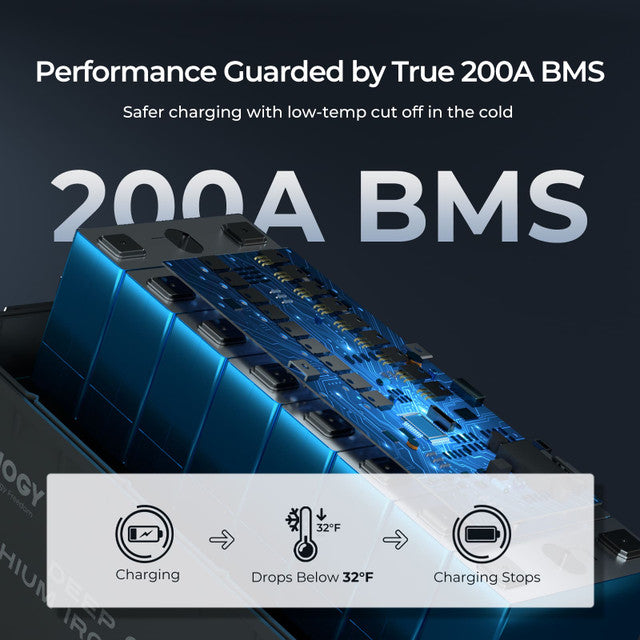

Year-round Protections

Utilizing a 200A battery management system (BMS), this battery ensures all-year-round use and provides peace of mind. The low-temperature cut off feature actively prevents charging when temperatures drop below 32°F, ensuring long-lasting performance.

Protections from Bumps

The battery is equipped with a sturdy structural design to protect components from being damaged while traveling, ensuring a smooth journey to your desired destination.

Dimensional Reference Guide

Prior to installation, be sure to leave a minimum of 5-10 cm (1.97-3.94 in) on the top of the battery. Additionally, the side with the busbars must have a minimum clearance of 20 cm (7.87 in).

Electrical Specifications

Rated Capacity: 200Ah

Nominal Voltage: 12.8V

Energy: 2560Wh

Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Temperature Parameters

Operation Temperature Range: Charge: 0°C to 55°C / 32°F to 131°F

Operation Temperature Range: Discharge: -20°C to 60°C / -4°F to 140°F

Storage Temperature Range: -25°C to 65°C / -13°F to 149°F

Operation Relative Humidity: 10% to 95%

Charging Parameters

Charge Voltage: 14.4V

Maximum Continuous Charge Current: 100A

Discharging Parameters

Maximum Continuous Discharge Current: 200A

Peak Discharge Current: 400A@10s

Mechanical Specifications

Dimension (L x W x H): 522 x 240 x 219 mm / 20.55 x 9.45 x 8.62 in

Weight: 21.45 kg / 47.3 lbs

Terminal Bolt Size: M8 x 1.25 x 15 mm

Protection Rating: IP65

Certifications

MSDS, UN38.3, FCC, PSE, CE, UKCA, IEC62619: YES

Warranty

Material and Workmanship Warranty: 5-year material warranty

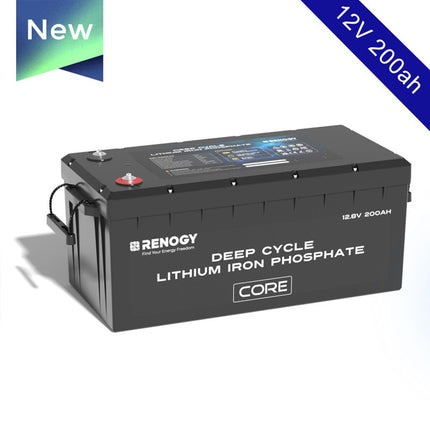

Renogy CORE Series 12Volt 200Ah Lithium Iron Phosphate Battery

Product form
Vendor Renogy

SKU RBT12200LFP-G1-AU

$1,799$1,182 incl. GST

Free local pick up at AutoSpec 4x4

    Get An Install Quote

    We offer installation on all our products! Contact us for an install quote today on 1800 288 649 or through our contact form found here.
