Description

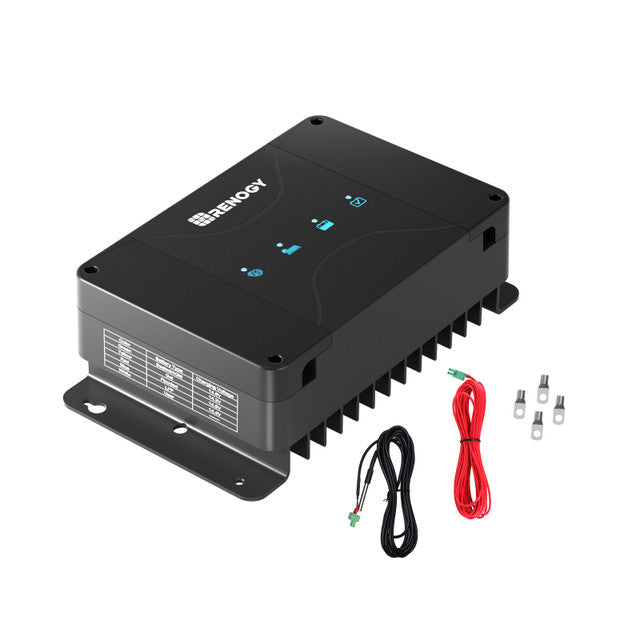

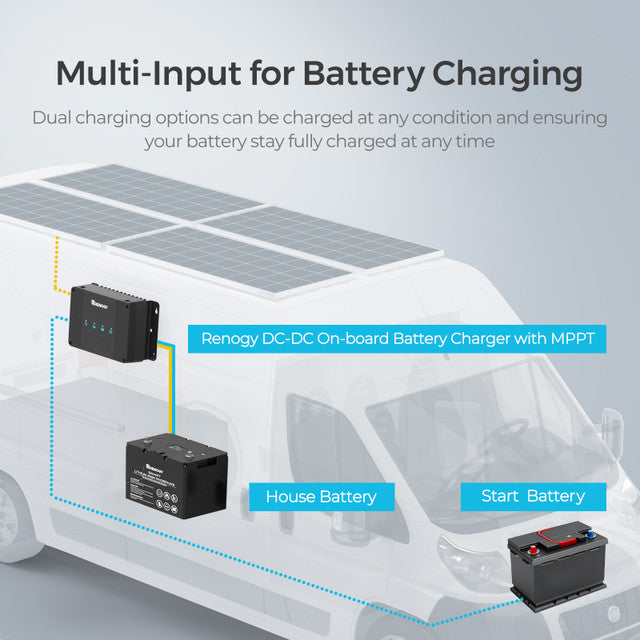

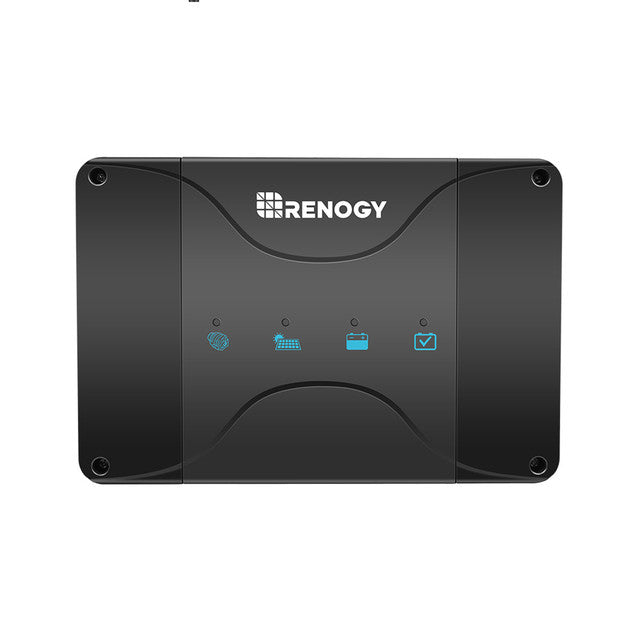

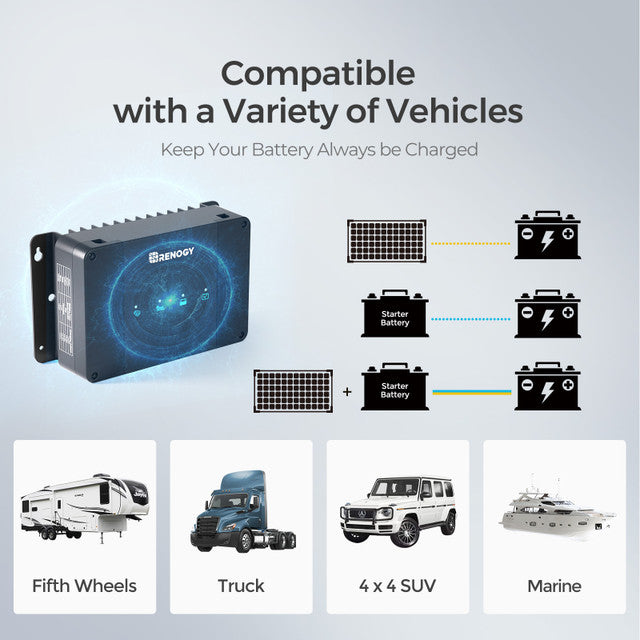

The Renogy DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT offers multiple charging options for your service battery. With its multi-stage and multi-input design, it can charge your battery using your alternator or solar panels connected to the unit. While your starting battery takes priority with your vehicle's alternator, this charger allows your solar system to charge your service battery first.
Efficiently maintain a consistent charge and extend your time off-grid with Renogy's DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT. With advanced charging capabilities and compatibility with various battery types, including Flooded, Gel, AGM, and Lithium, this charger proves to be a versatile choice. Utilize the RJ45 communication port to access monitoring features through the BT-2 Bluetooth Module and Renogy DC Home App, allowing for remote control and real-time monitoring via your phone.
Specifications
-
System Voltage: 12V - 12V
-
Solar Input Voltage: 50 VDC
-
Output Voltage: 9-16 VDC
-
Alternator Input: Traditional Alternator: 13.2-16 VDC;Smart Alternator (Euro 6): 12-16 VDC
-
Maximum Output Current Rating: 50A
-
Output Power: 660W
-
Battery Types: AGM/SLD , GEL ,FLD ,LI,USER
-
Charging Efficiency: 94%
-
Temperature Compensation: -3mV / ? / 2V (Non-Lithium);0mV / ? / 2V (Lithium)
-
Idle Power Consumption: ?30mA
-
Grounding: Common Ground
-
Communication Protocol: RS485
-
Operating Temperature Range: -31? to 149?/-35? to 65?
-
Storage Temperature Range: -40? to 176?/-40? to 80?
-
Humidity: 0%-95%, No Condensation
-
Dimensions: 9.61 x 5.75 x 3.78 inch/244 x 146 x 77mm
-
Weight: 4.10 lb / 1.86 kg
-
Certification: CE;ROHS;FCC Part 15 class B
-
Warranty: 2-year material warranty
