Description

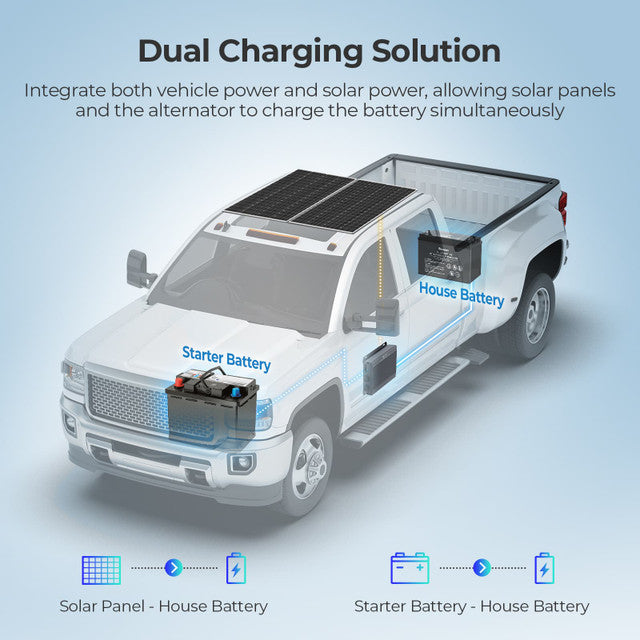

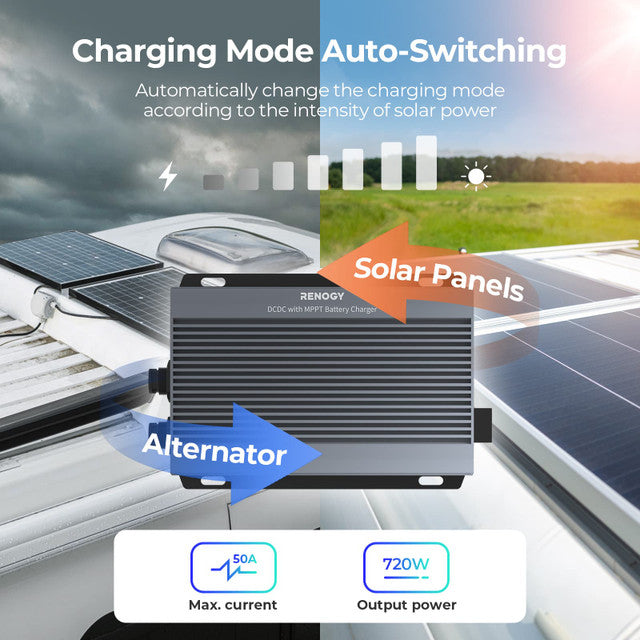

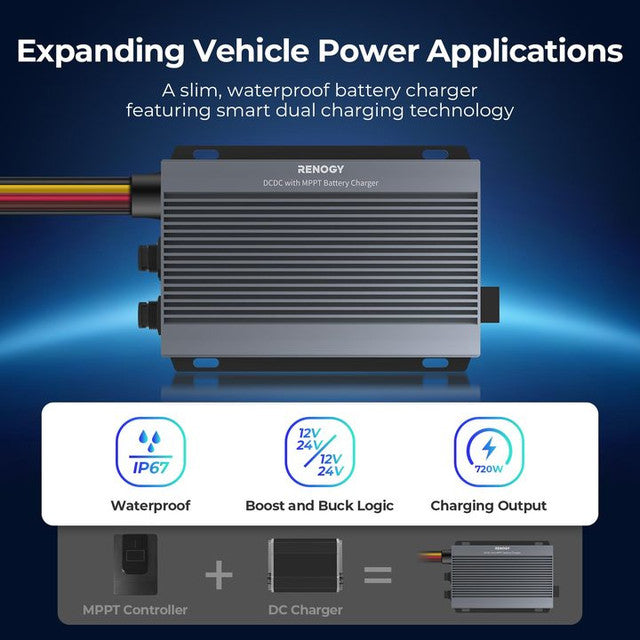

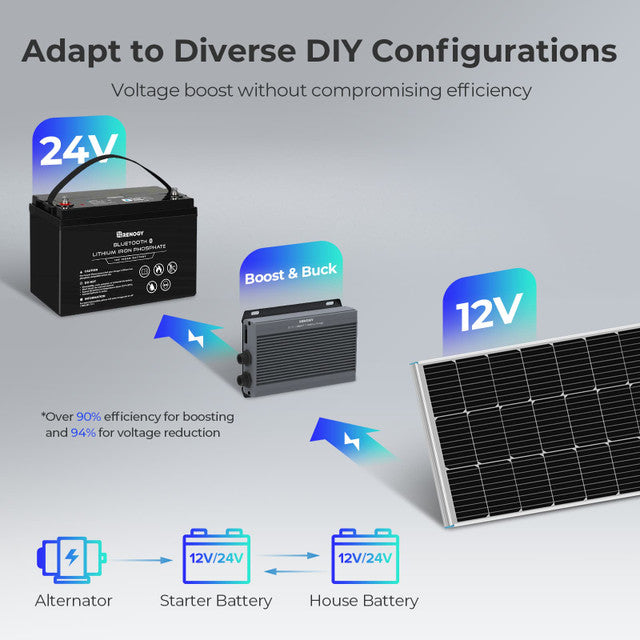

A versatile charging technology equipped with 12V/24V boost and buck logic. Its compact and lightweight design carries an IP67 waterproof rating. Automatically switches between charging modes, prioritizing green power. Certified by CE, FCC, RoHS, and accompanied by comprehensive test reports. Features Bluetooth Energy Monitoring and wired CAN communication for optimal performance.
Slim, Waterproof, Efficient, Eco-friendly.

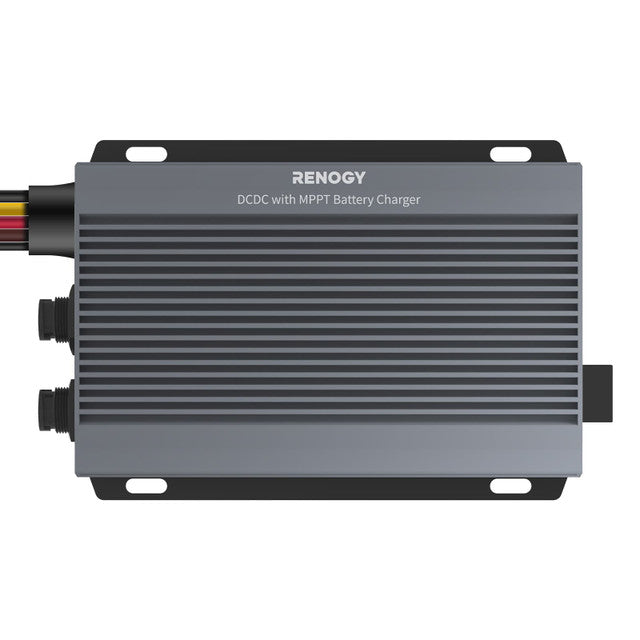

RENOGY 12V/24V IP67 50A DC-DC Battery Charger with MPPT

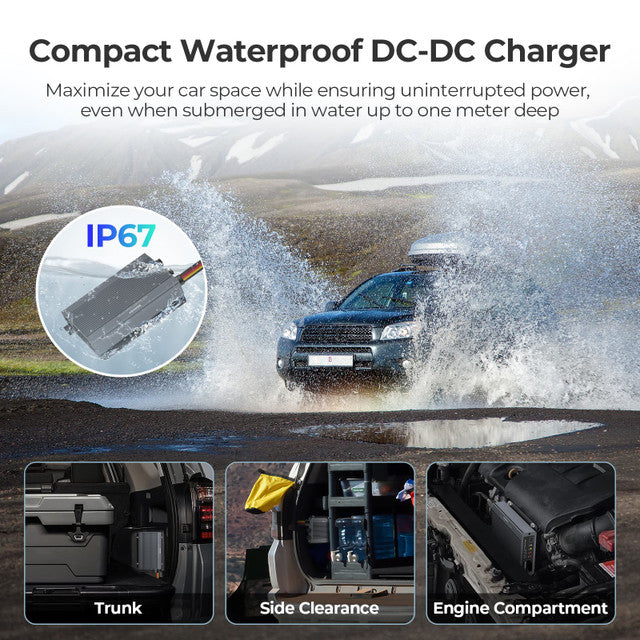

Compact Design for Space Optimization
Mountable in the engine compartment and side storeroom, allowing for a more spacious and comfortable living space, facilitating easier movement.
Specifications
-
System Voltage: 12V/24V - 12V/24V
-
Solar Input Voltage: 50 VDC
-
Output Voltage: 9-32 VDC
-
Alternator Input: 9-32 VDC
-
Maximum Output Current Rating: 50A
-
Output Power: 720W
-

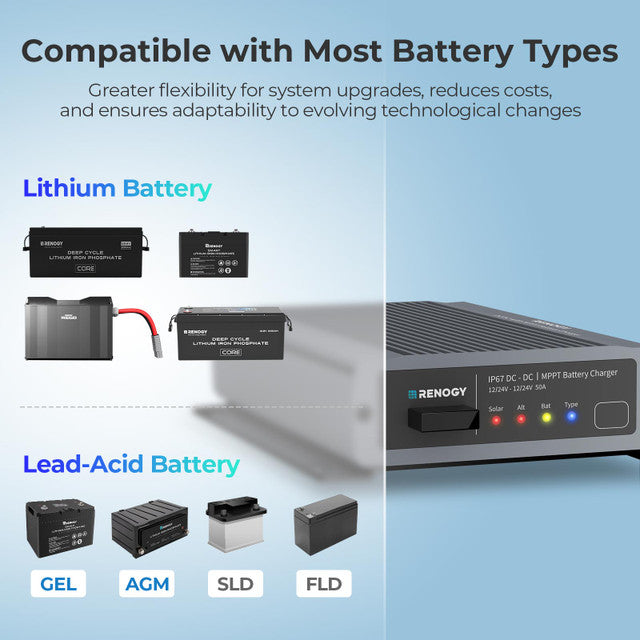

Battery Types: AGM/SLD , GEL ,FLD ,LI,USER
-
Input Fuse Rating: 75A-100A
-
Output Fuse Rating: 75A-100A
-
Charging Efficiency: 0.94
-
Temperature Compensation: -3mV / ? / 2V (Non-Lithium);0mV / ? / 2V; no compensation (Lithium)
-
Model: RBC2125DS
-
Terminal Range: 8AWG-4AWG
-
Communication Protocol: -40? to 176?/-40? to 80?
-
Humidity: Modbus ; RV-C
-
Operating Temperature Range: -31? to 176?/-35? to 80?
-
Storage Temperature Range: -40? to 176?/-40? to 80?
-
Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm
-
Weight: 4.10 lb / 1.86 kg
-
Certification: CE;RoHS;FCC Part 15 class B
-
Warranty: 3-year material warranty
-
Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent
