Description

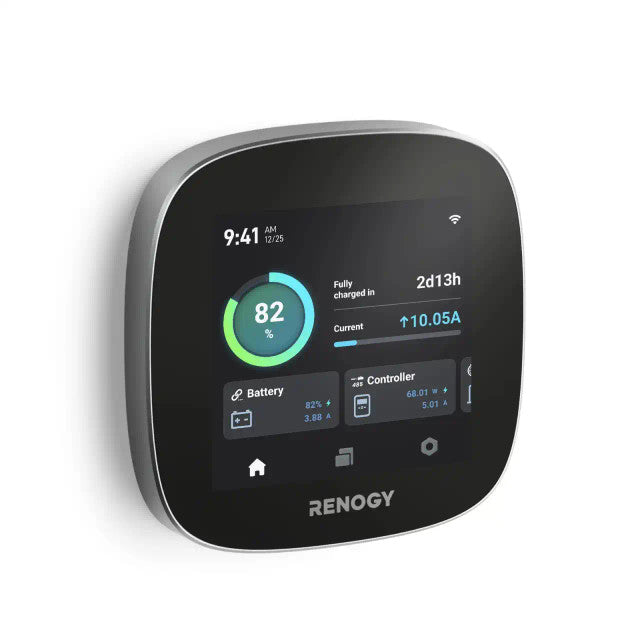

Introducing Renogy ONE Core

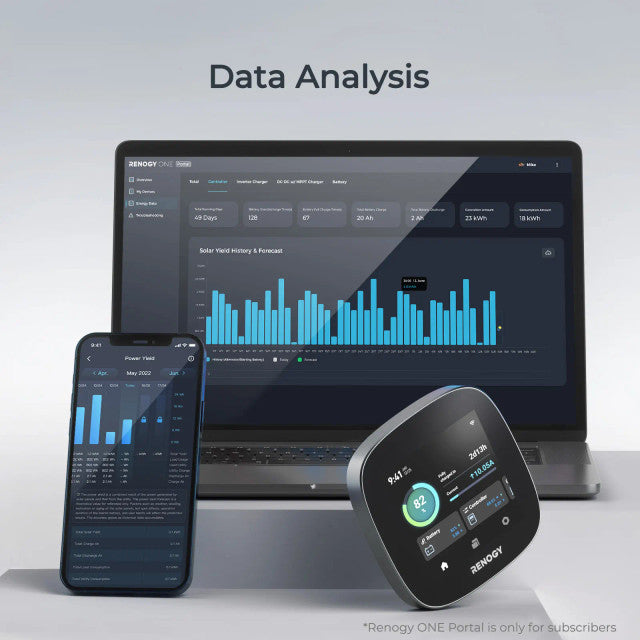

Energy efficiency at your fingertips

Renogy ONE Core is a must-have for off-grid enthusiasts, aiding in cost reduction and sustainable living through precise monitoring of energy production and utilization.

Distance is not a problem

Efficiently monitor energy in different scenarios with Renogy ONE Core, an all-in-one system featuring a 4'' touch screen.

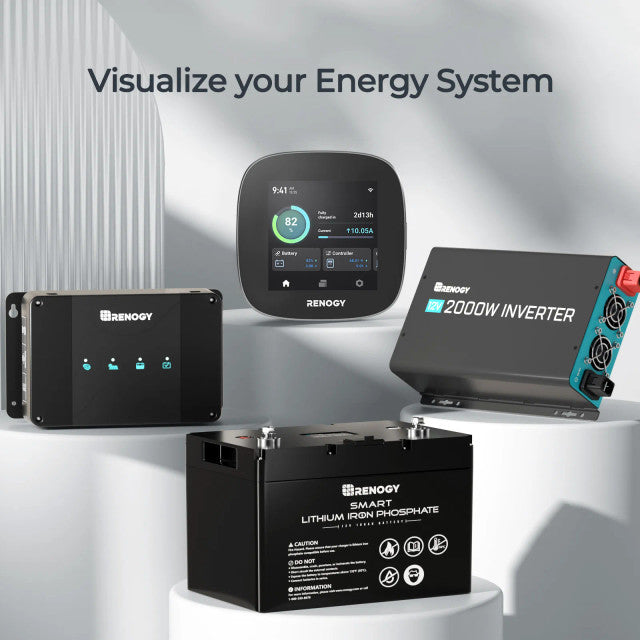

One Command Center for Your Renogy Devices

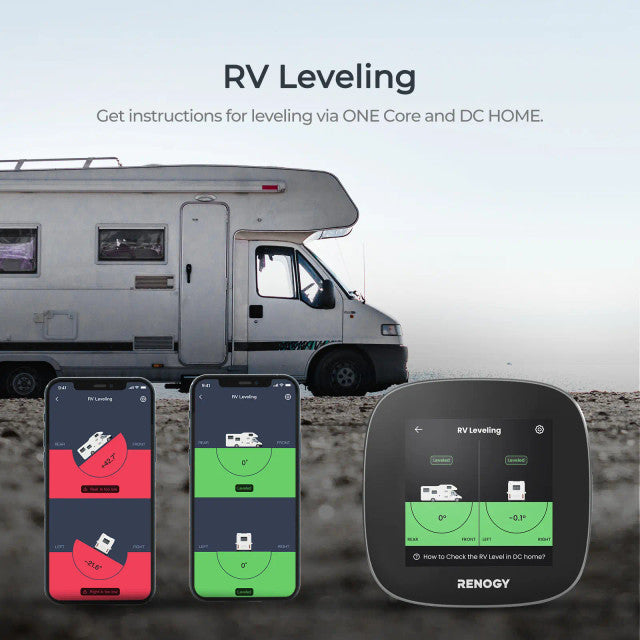

Need leveling for more comfort?

The Renogy ONE Core helps you achieve optimal stability by adjusting your RV's position, ensuring a comfortable and safe experience.

Built-in 6-axis leveling sensor

Accurately and precisely detects alterations in orientation and rotational motion with high responsiveness.

Real-time RV leveling status

Effortlessly receive precise real-time updates on your vehicle's stability through the ONE Core Panel and DC Home App.

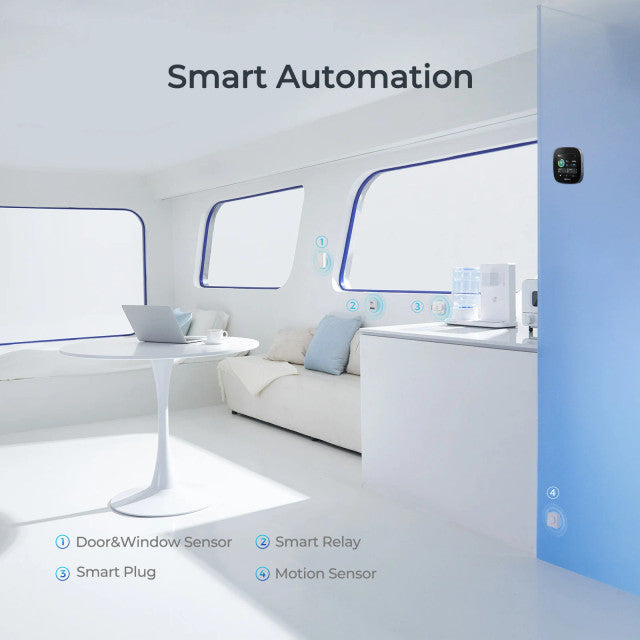

Make it a smart home

The Renogy ONE Core functions as both an energy system monitor and a smart home hub, facilitating connections with other smart home appliances such as door entry alerts and climate sensors. This provides increased convenience and security through home automation.

Peace of mind with 24/7 security

Monitor your RV for unexpected motions to stay alert and informed of any suspicious activity.

Effortless installation

Step 1

Complete a hole using a 55mm diameter punch and get all components of the device stand.

Step 2

With an embedded horizontal bubble, it's easy to achieve the horizontality of the device and avoid repeated leveling.

Step 3

Rotate, click clack, it's done.

Installation on Table

Step 1

Pull out the holder layer of the box.

Step 2

Raise up the support layer.

Step 3

Push back the holder layer and place One Core on it.
Renogy ONE M1 vs Renogy ONE Core

Specification

ELECTRICAL DATA


Operating Voltage 8-60 VDC (5 VDC for USB Type-C)
Power Consumption at 12V Operating, WiFi On, 100% illumination: 3.2 W
Operating, WiFi On, 50% illumination: 2.4 W
Operating, WiFi On, 0% illumination: 1.9 W
Off, logger still active: 1.5 W

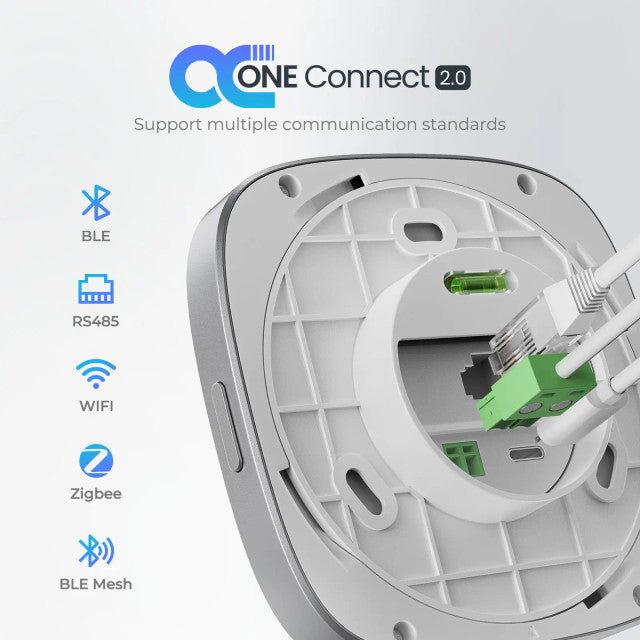

Communication Wi-Fi (IEEE 802.11b/g/n 2.4 GHz)
Bluetooth LE and Bluetooth Mesh
Zigbee 3.0 (IEEE 802.15.4)
RS-485
Touch Screen 4 inches (480 x 480p)
Leveling Range and Accuracy ±89°, 0.1°
GENERAL DATA
Model RSHGWSN-W02W-G1
Operating Temperature -4℉ to 158℉ (-20℃ to 70℃)
Operating Humidity 0% to 95% RH
Operating Altitude Less than 5000m above sea level
Installation Flush mount or place on a table

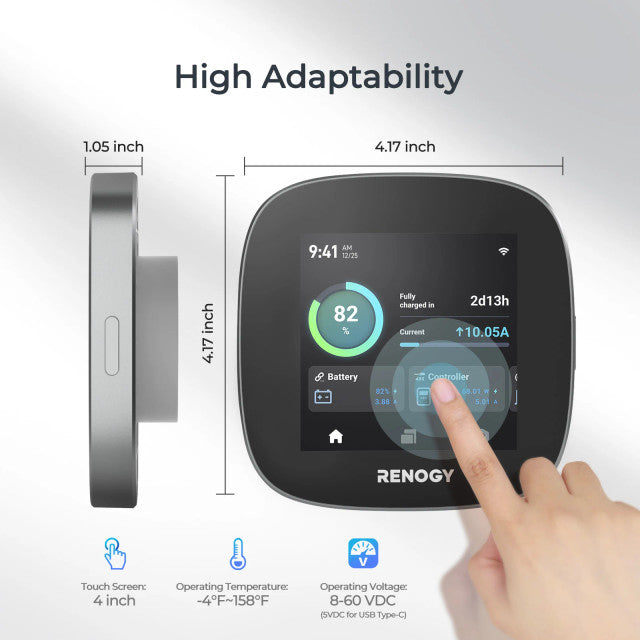

Dimensions 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm)
Weight 0.28 lb (128g)
Certification CE, FCC, RoHS, TSCA, BQB, IC-ID
Warranty 2 years



Renogy ONE Core, All-in-one System Monitoring with 4'' Touch Screen

Product form
Vendor Renogy

SKU RSHGWSN-W02W-G1-AU

$310$299 incl. GST

Free local pick up at AutoSpec 4x4

    Get An Install Quote

    We offer installation on all our products! Contact us for an install quote today on 1800 288 649 or through our contact form found here.
