Description

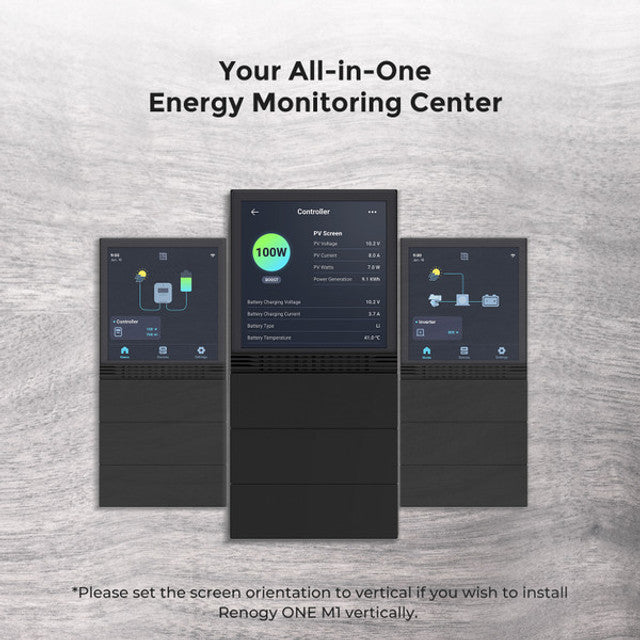

Enhance your off-grid living experience with Renogy ONE M1, the all-in-one energy monitoring and smart living center. As the heart of your off-grid system, this sleek, flush-mount touchscreen allows you to easily monitor all Renogy devices on a single 4'' HD display.
With the DC Home app, you can even monitor your system from your smartphone while on the go. Control up to 3 devices at once with direct connections to panel relays, creating personalized modes such as "Evening" or "Sleep". Plus, enjoy added peace of mind with enhanced security features compatible with Door and Window Sensors, Motion Sensors, and instant alerts sent to your DC Home app in case of a breach.
Don't compromise on comfort when living off-grid with Renogy ONE M1.
Features

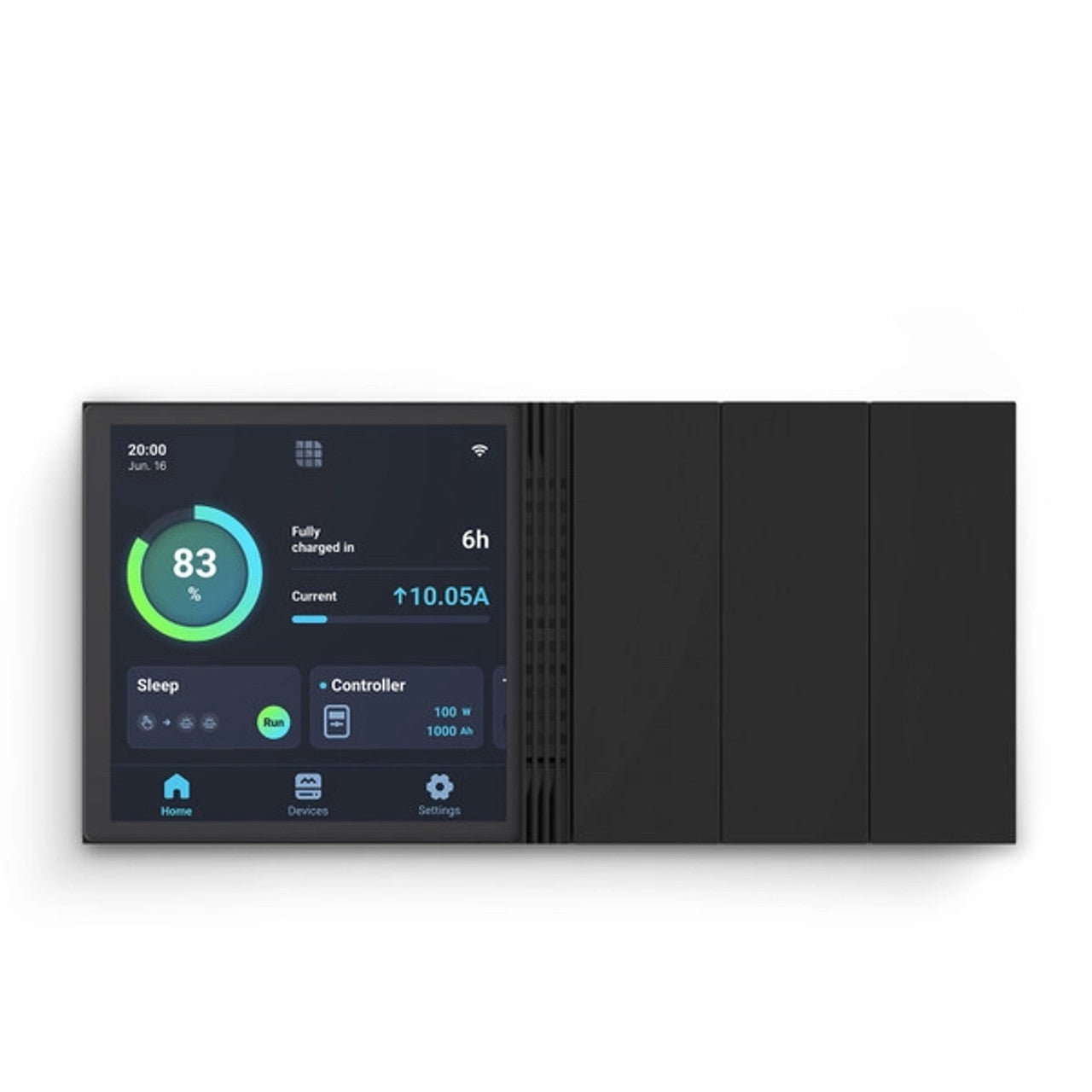

Quick View Energy Dashboard
Get rid of cumbersome cables and multiple monitors with the flush-mount Renogy ONE M1. Its 4? HD touchscreen lets you monitor and control compatible Renogy devices in your home from one screen.

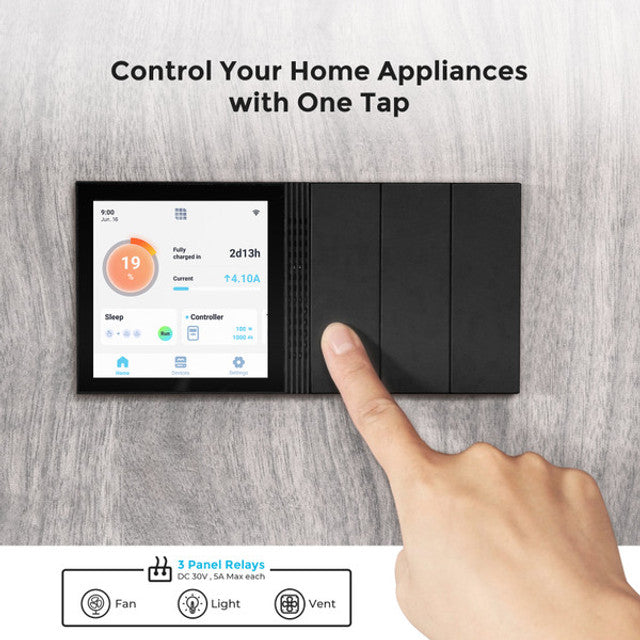

Control All Your Connected Devices
Panel relays of Renogy ONE M1 allow you to switch on/off up to 3 DC appliances at a time through the panel switches or the DC Home app. You can even set up different smart scenes to control devices together, depending on how you live. For instance, you can create an "Evening" mode that automatically turns on lights, or a "Sleep" mode that turns off home appliances for you.

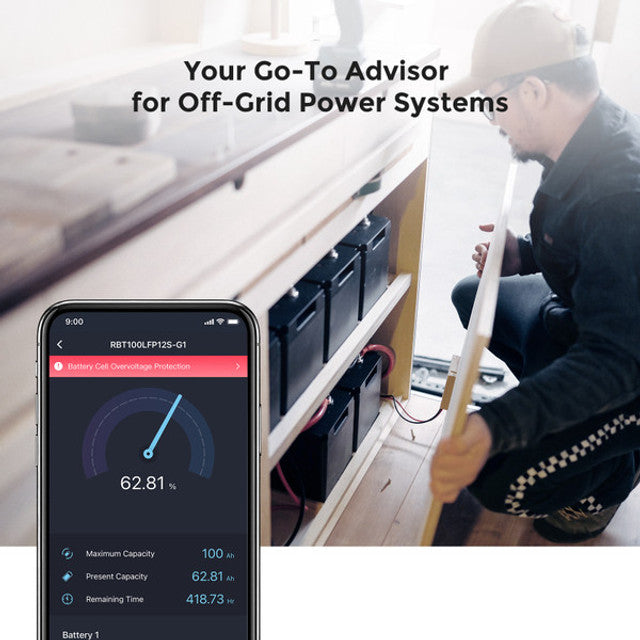

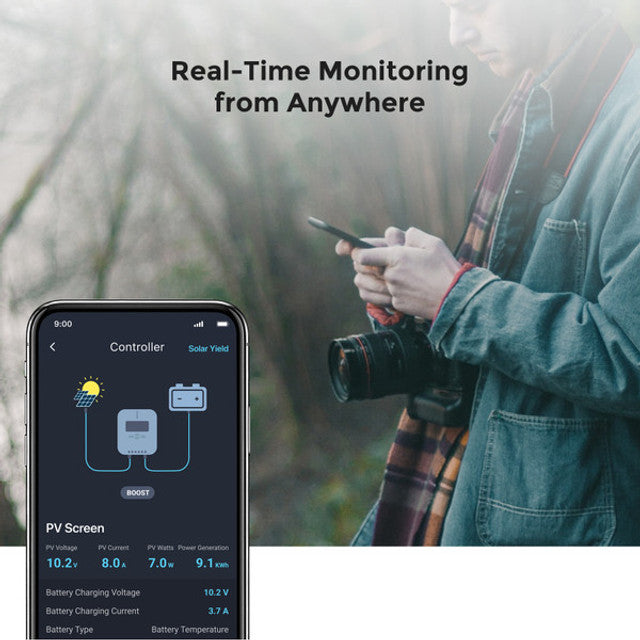

Remote Energy Monitoring

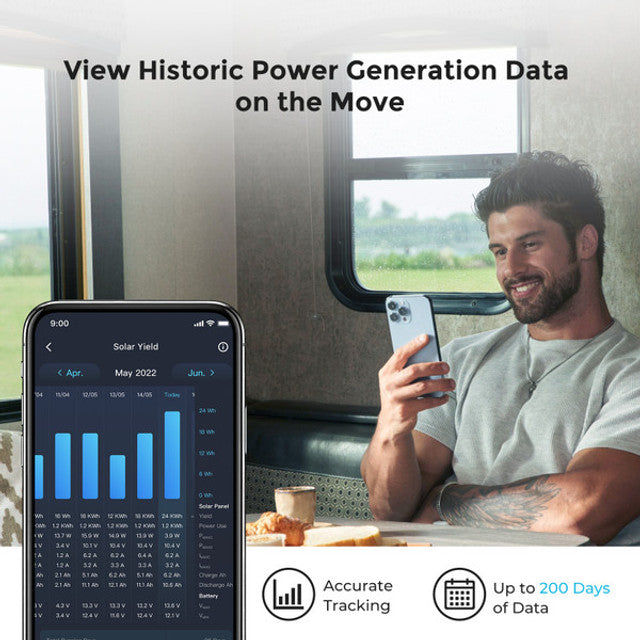

Wi-Fi connectivity uploads energy data while you're off the grid so that you can monitor your system in real time, wherever you are, with the DC Home app. You can monitor the status of batteries, charge controllers, and other connected energy devices. *You can view historic power generation data for the past 200 days.
Specifications
| Power Supply: |
Rated Power 3.5W
? Power Port: 8V DC-16V DC
? Type-C Port: 5V DC |
| Load: ?30V DC, 5A Max |
Power Consumption: < 2.5W (standby) |
| Ports: |
? USB Type-C (5V DC)
? RJ45 (CAN & RS485)
? 2-pin 2.54 mm pluggable terminal block (12V DC) |
| Wireless Communication |
? Wi-Fi (IEEE 802.11b/g/n 2.4 GHz)
? Bluetooth 2.1/4.2 and Bluetooth LE
? Zigbee (IEEE 802.15.4) |
| Zigbee: IEEE 802.15.4 |
Protocols: RV-C/Modbus/Zigbee 3.0 |
Touch Screen: 4 inches (480 x 480p)
White backlight with adjustable brightness |
Dimension: 181.8 x 86.8 x 42.2 mm (7.16 x 3.42 x 1.66 in) |
| Installation: Flush mounting |
Weight: 286 g/0.83 lbs |
| Color: Black |
Casing Material: PC+ABS V0 |
| Applicable Place: Indoor |
Operating Altitude: Less than 2000 m above sea level |
| Operating Temperature: -20?~50? (-4?~122?) |
Operating Humidity: 0%~95%RH |
