Description

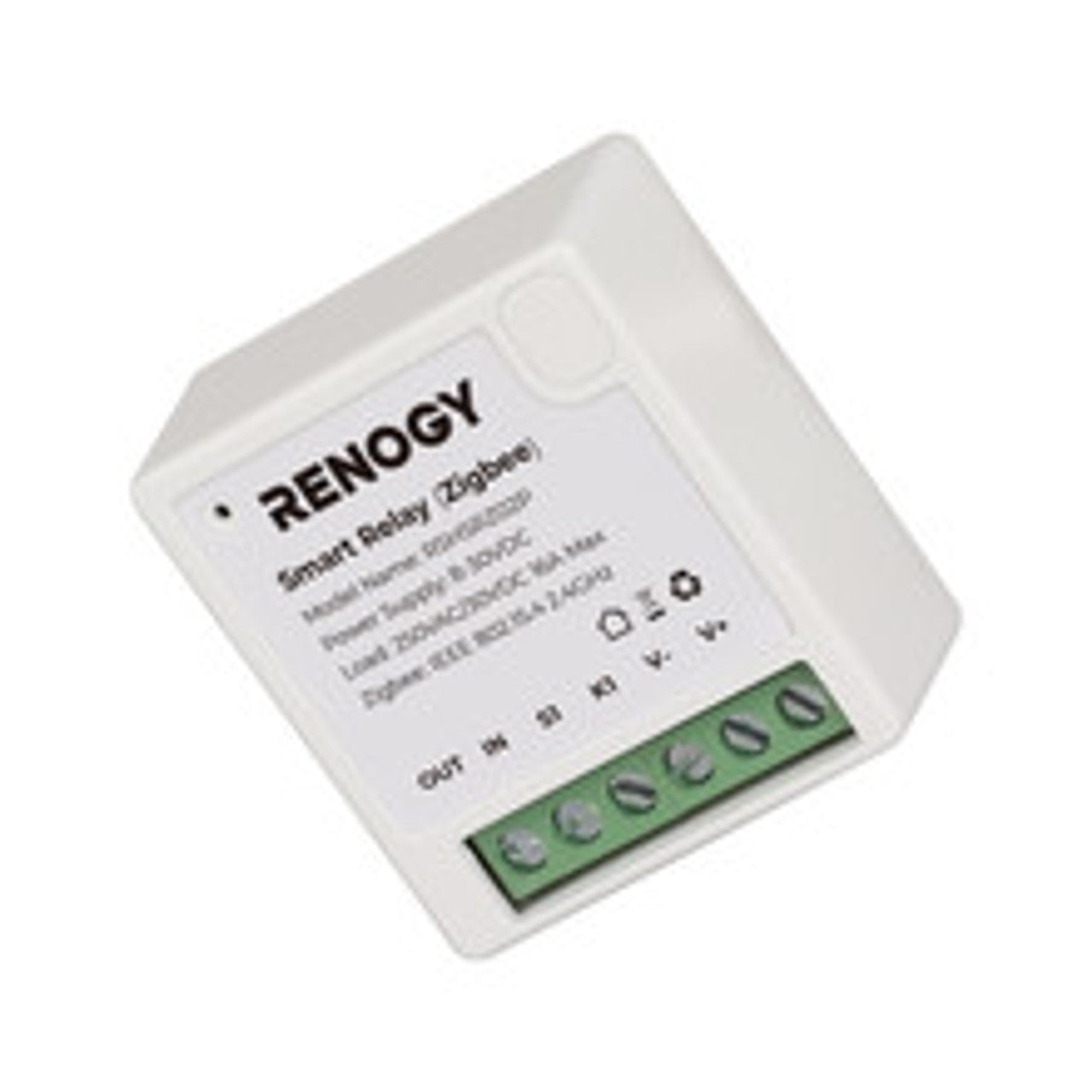

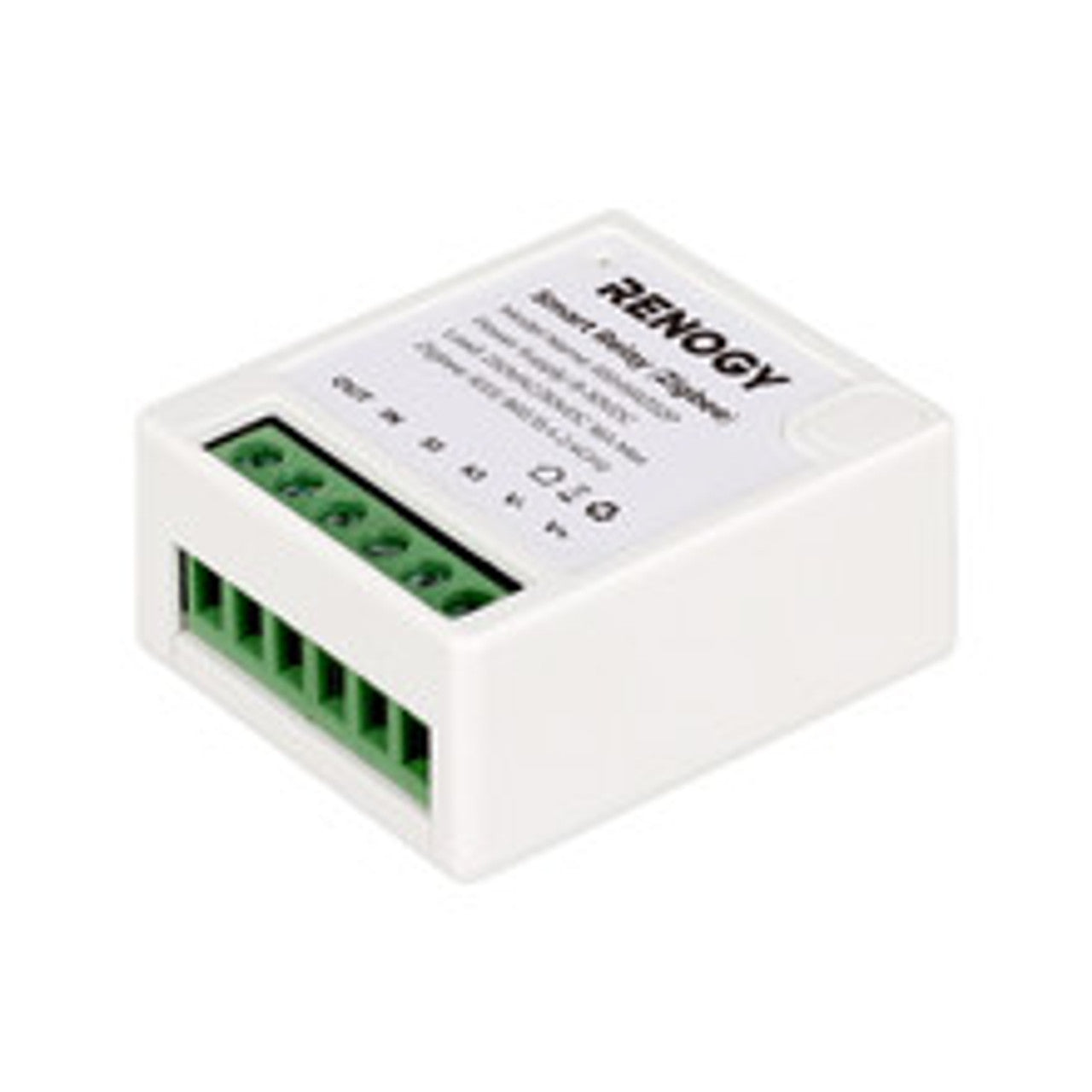

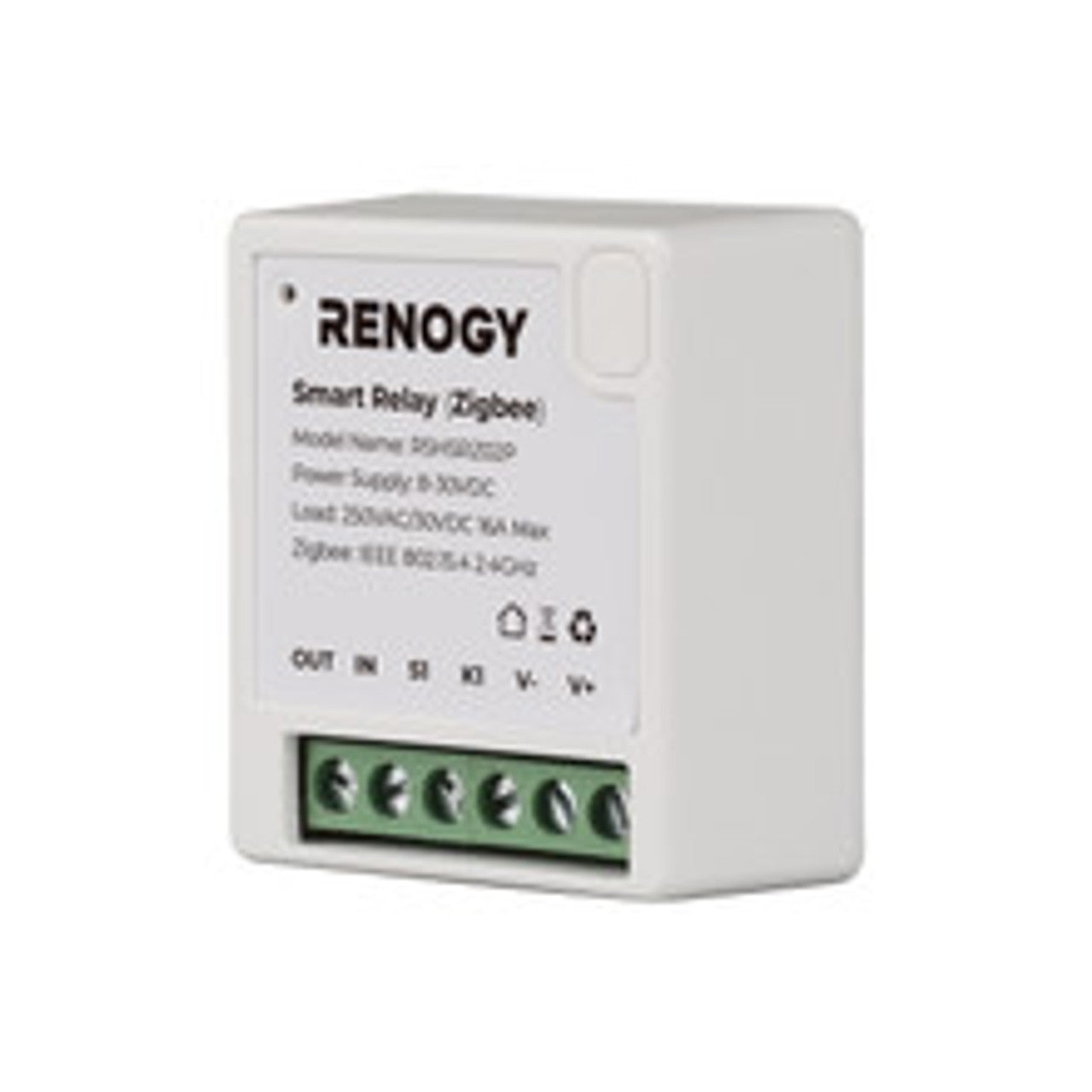

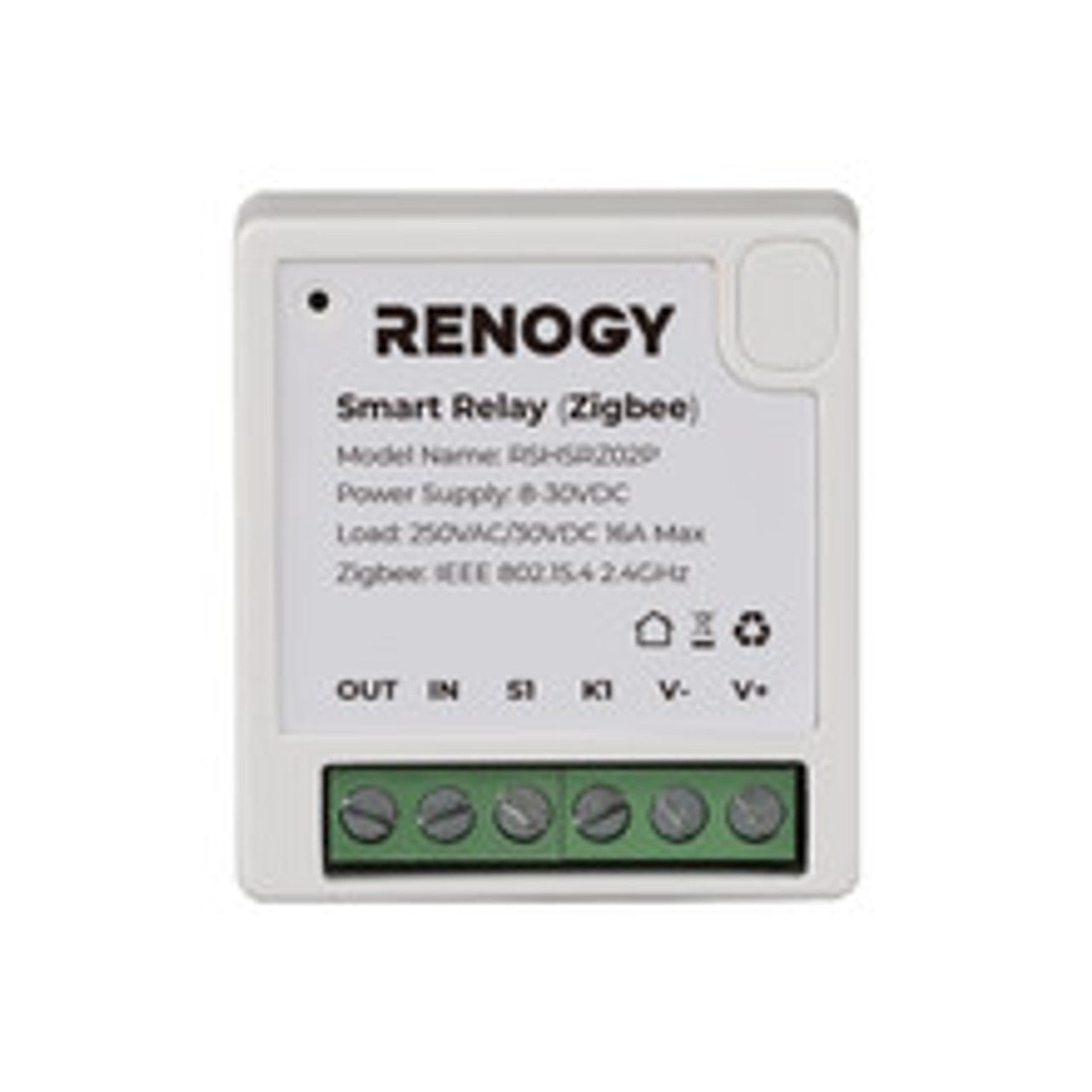

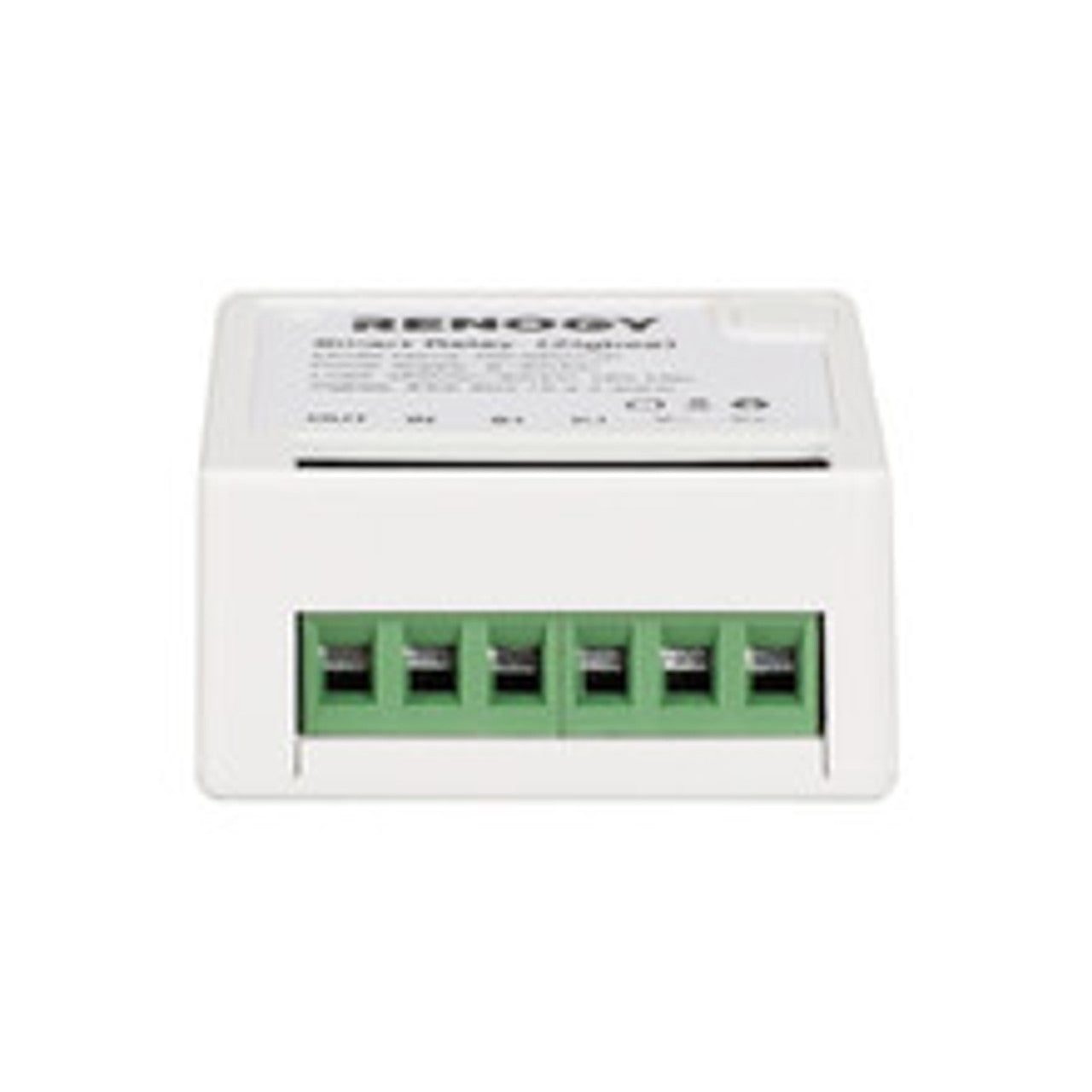

Renogy ONE Smart Relay is a Zigbee 3.0 power relay, with a 16A maximum load capacity and compatibility with 8-30V DC power supply.
It can connect to either AC or DC loads and allows for multi-scene linkage with other accessories through a unique smart scene on the Renogy ONE M1 app. Streamline your energy management with the Renogy ONE Smart Relay. This innovative device allows you to easily control and monitor both AC and DC loads using the convenient Renogy ONE M1 app.
With a maximum load capacity of 16A and compatibility with 8-30V DC power supply, this Zigbee 3.0 power relay is a versatile and essential tool for any energy management system. Plus, its multi-scene linkage capability with other accessories enables seamless automation, making energy management a breeze.
Key Features
Stable Wireless Connection with Zigbee 3.0
- The Zigbee 3.0 allows long-distance communication with a stable and reliable wireless connection.
Safe and Fire Resistant
- Equipped with premium material that provides complete protection for you and the application environment, the flame-retardant V0 PC shell can also minimize fire hazards.
Compact Design
- Thinner than your palm! The Smart Relay is the perfect size for any small space to fit and saves tremendous installation space.
Smart Scene Linkage
- Customize a variety of scenarios to meet your personalized needs of smart off-grid life.
Specification
| Specifications |
|
| Power Supply: 8-30V DC |
Casing Material: PC V0 |
| Load: 250V AC / 30V DC, 16A Max |
Applicable Place: Indoor |
| Zigbee: Zigbee 3.0 (IEEE 802.15.4) |
Operating Temperature: -4℉~104℉/ -20℃~40℃ |
| Antenna: PCB board with antenna |
Operating Humidity: 0%-90%RH, No Condensation |
| Security Mode: WPA/WPA2 |
Operating Altitude: Less than 2,000m above sea level |
| Encryption Tpye: AES-128 |
Color: White |
| Dimension: 0.79 x 1.57 x 1.73 in / 20 x 40 x 44 mm |
Weight: 0.04 lbs / 40 g |
| Certifications |
|
| CB |
No |
| FCC |
Yes |
| CE |
No |
| UKCA |
No |
| MIC |
No |
| ROHS |
Yes |
Warranty Information
