Description

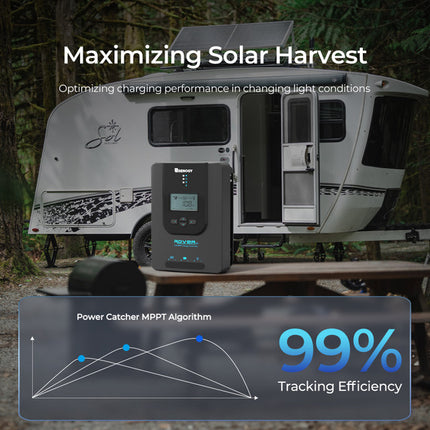

Maximize your system's efficiency with advanced tracking, conversion, and heat dissipation technology. Enjoy the added safety of low-temperature charging protection and multiple electronic safeguards. Benefit from intelligent 4-stage charging and automatic 12V/24V voltage detection. Stay updated and in control with remote monitoring, thanks to the RS485 communication port.
The high-quality casing materials and the addition of a rubber strip make this charge controller more effective in preventing rust, corrosion, and contamination while safeguarding wiring for optimal functionality. Internally, the controller boasts multiple protection mechanisms, ensuring the safety and longevity of your system.
Rover charge controller stands out with its rapid heat dissipation capabilities, ensuring efficient performance even in the most demanding environments. With the ability to quickly dissipate heat, this controller maintains peak performance, safeguarding your batteries and system components.
Experience unparalleled charging efficiency with our MPPT charge controller. By harnessing every bit of sunlight, this controller ensures optimal charging for your batteries. In just 4.9 hours, it can fully charge a 12V 100Ah battery, making it the perfect companion for your off-grid adventures.

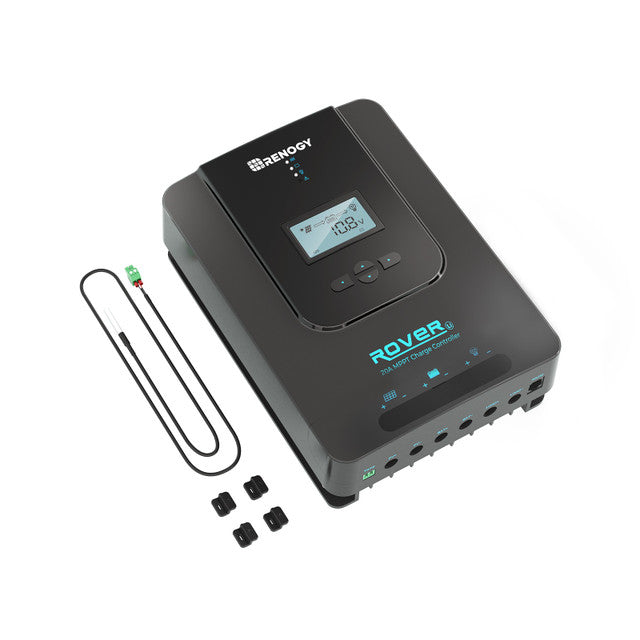

What's in the box
Specifications
- Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium Batteries)
- Rated Charge Current: 20A
- Max. PV Input Voltage: 95VDC
- Max. PV Input Power: 12V/260W, 24V/520W
- Power Consumption: ?100mA/12V; ?58mA/24V
- Max Battery Voltage: 32V
- Ground Type: Negative
- Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
- Protection Level: IP32
- Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
- Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
- Operating / Storage Humidity: ? 90%, No Condensation
- Temperature Compensation: -3mV/°C/2V
- Dimensions: 210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in
- Weight: 3.1 lbs / 1.4 kg
- Max. Terminals Size: 8 AWG 10mm2
