Description

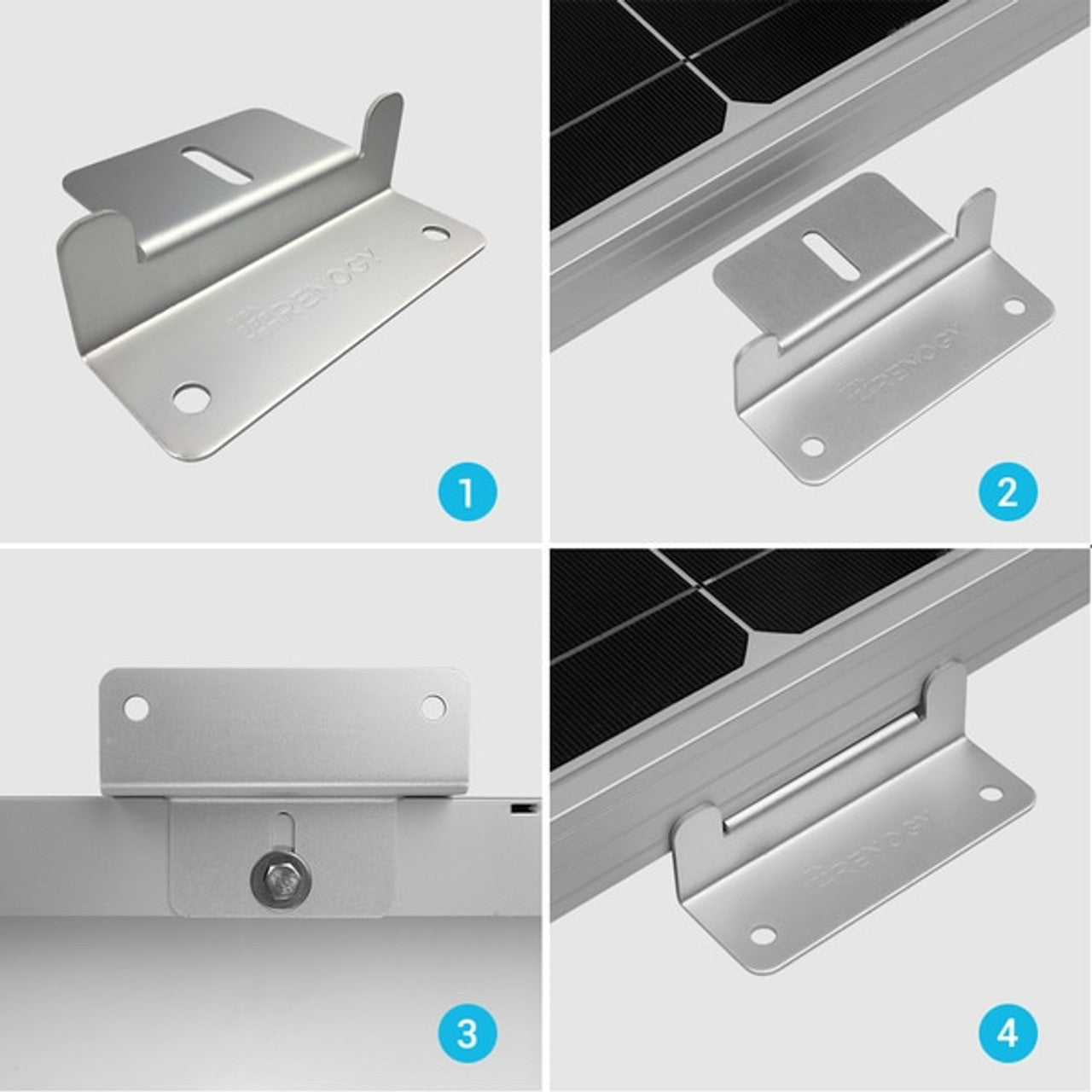

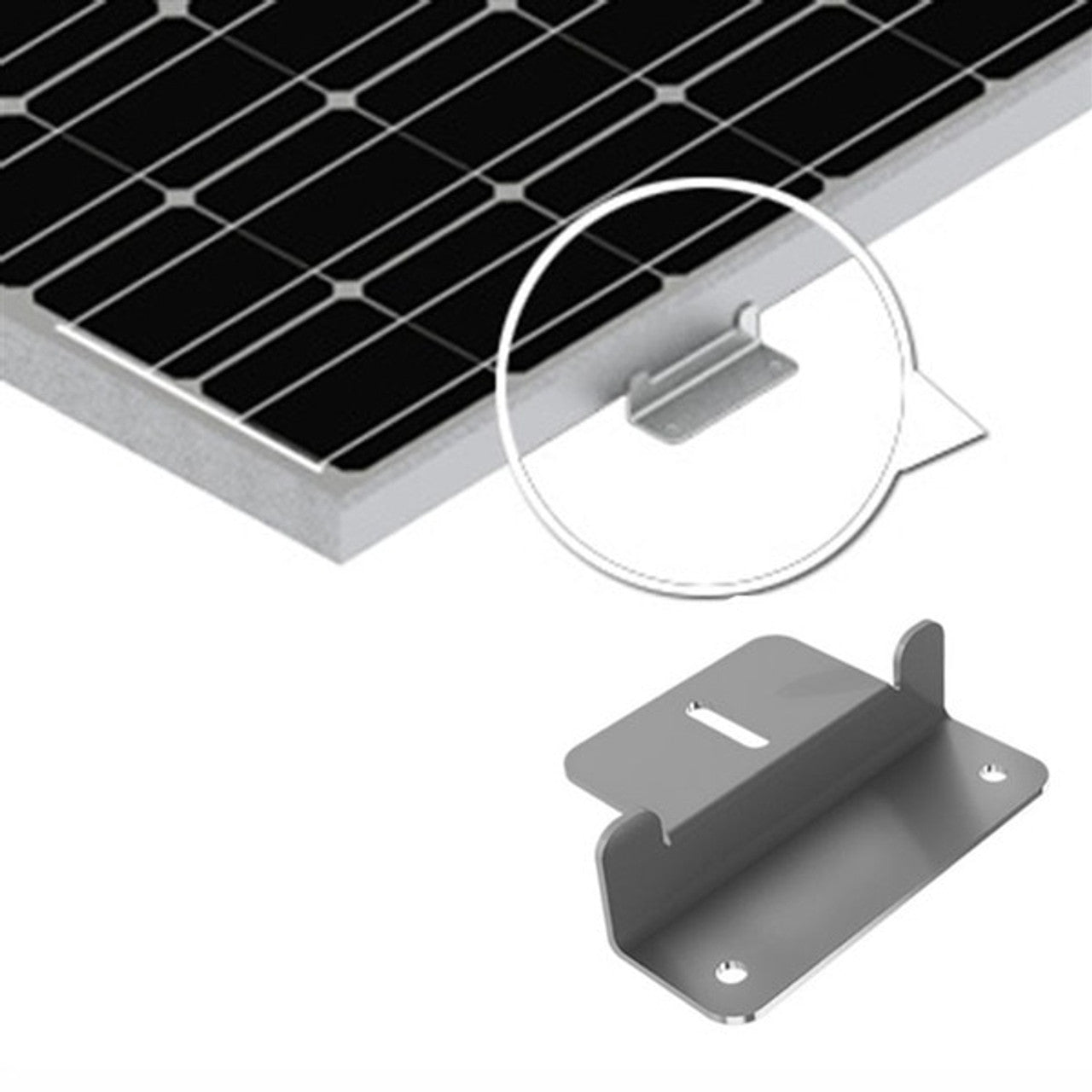

The Renogy Z-Bracket Mount System is specifically designed to assist in the installation of individual solar panel units, typically used in off-grid setups.

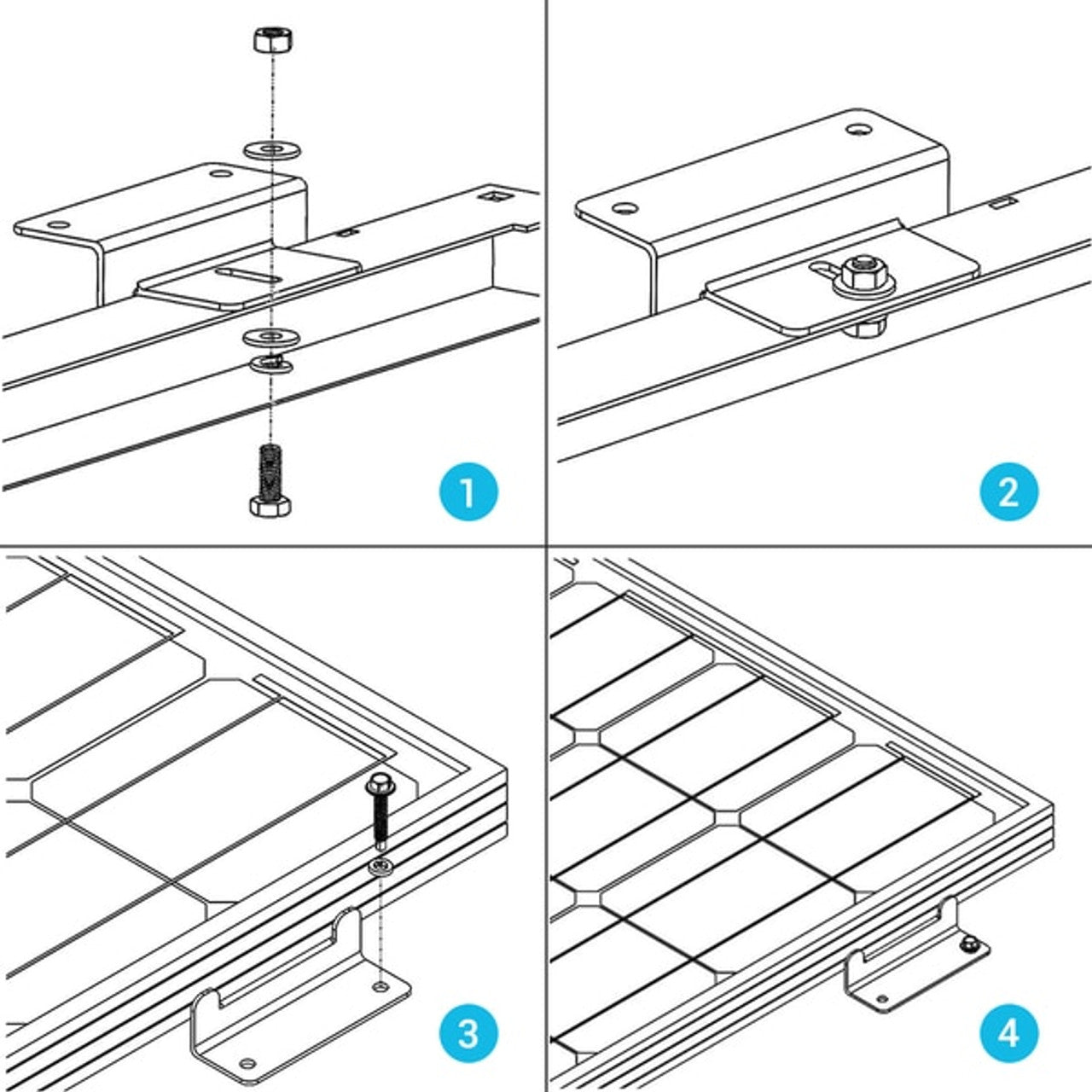

These units are perfect for mounting on RV roofs and unoccupied buildings like sheds or garages. They can also be attached to custom-made structures, such as a wooden frame. The system includes all necessary fasteners for securing it to the surface. This system simplifies the installation process for small solar systems, making it cost-effective and efficient.
Please note: This product is not recommended for panels exceeding 150 watts. For panels over 150 watts, two sets of Z brackets per panel would be required for proper installation.
Key Features:
- Lightweight
- Aluminum corrosion-free construction.
- Ease of installation
- Ideal for mounting small solar panels.
- Mounts panels to RVs, trailers, boats or yachts.
- Perfect for irregular surfaces
- Pre-assembled with bolts and washers

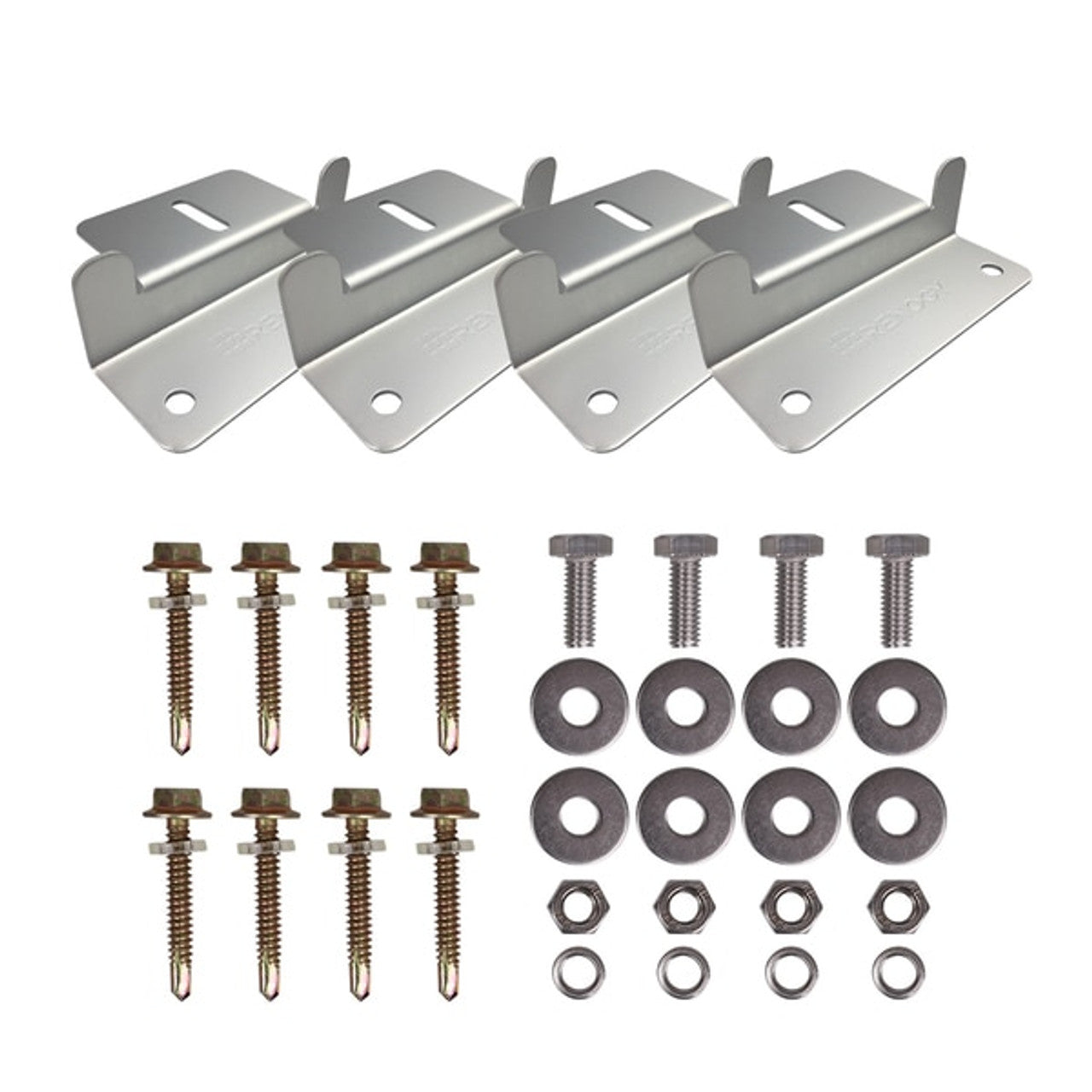

Package Includes
Renogy Solar Panel Mounting Z Bracket -- Set of 4
1 x
|
Specification

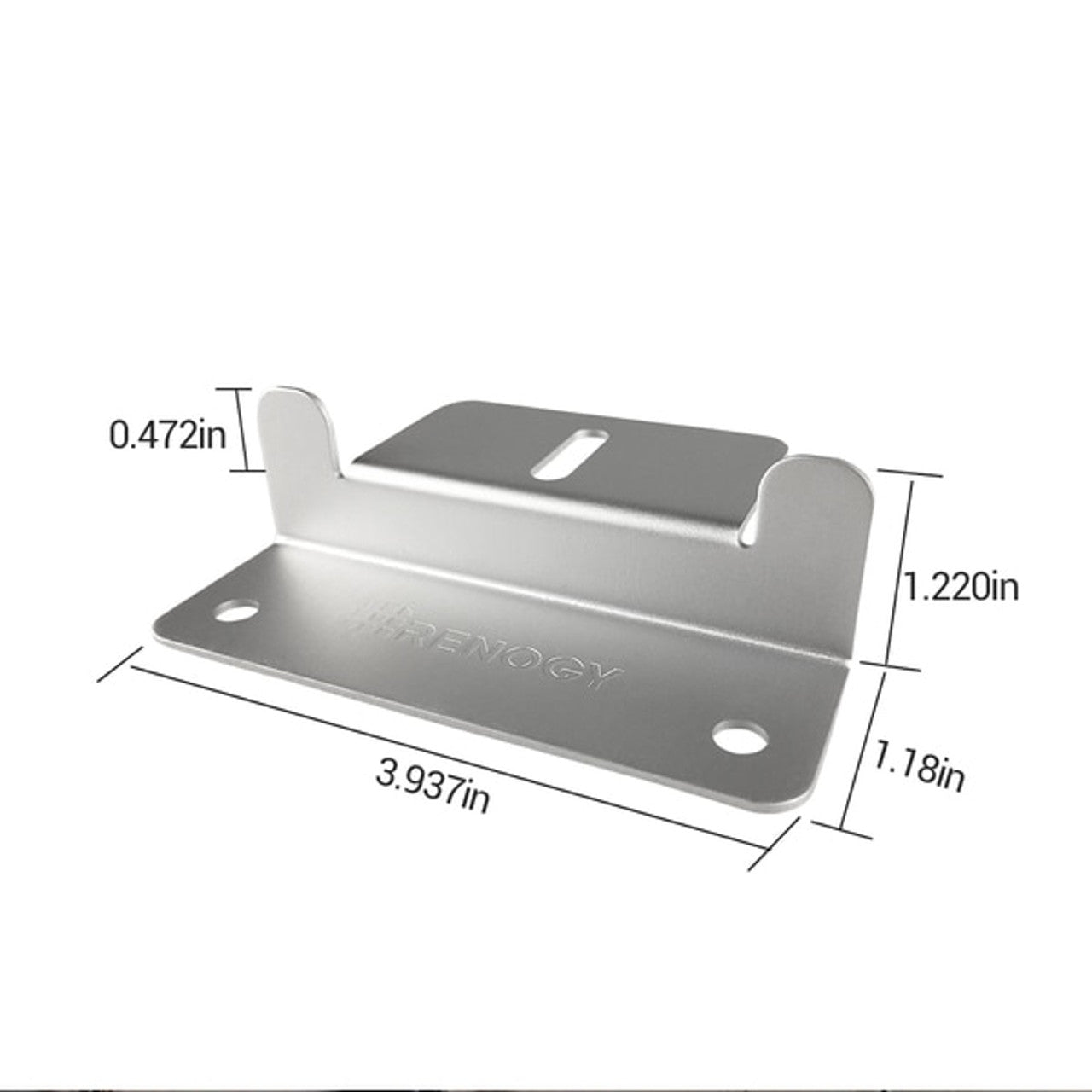

| Renogy Solar Panel Mounting Z Brackets (Set of 4) |
|
| Four Z Shape Solar Panel Brackets |
Four M6-16 Hex Cap Bolt |
| Four M6 Split Lock Washer |
Eight M6 Flat Washer |
| Four M6 Hexagonal Nut |
Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring |
Warranty Information
| Accessories |
1-year material warranty |
