Description

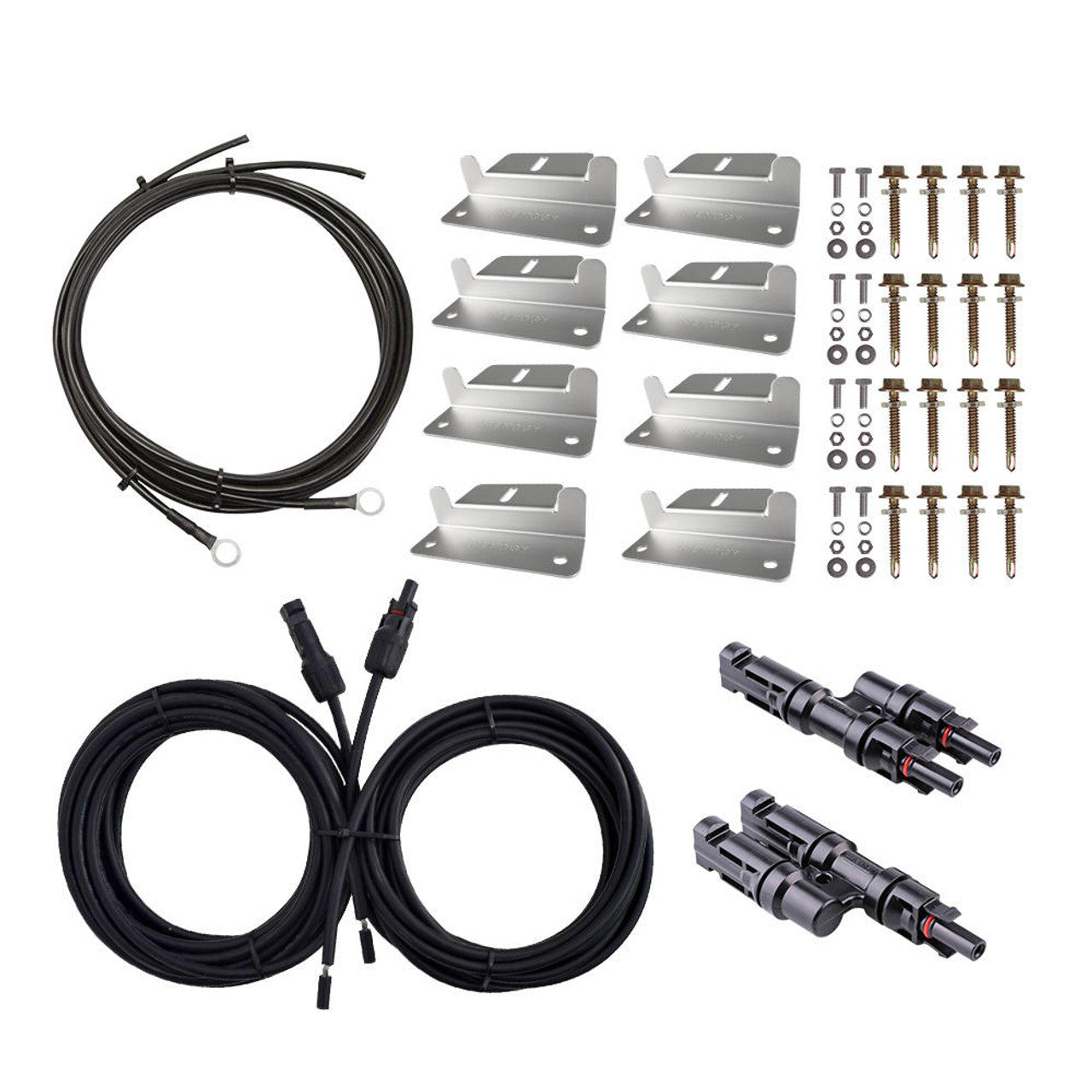

The Renogy Solar Wiring and Mounting Kit for 200Watt Solar includes everything necessary to connect a 100W panel and controller to a battery bank.

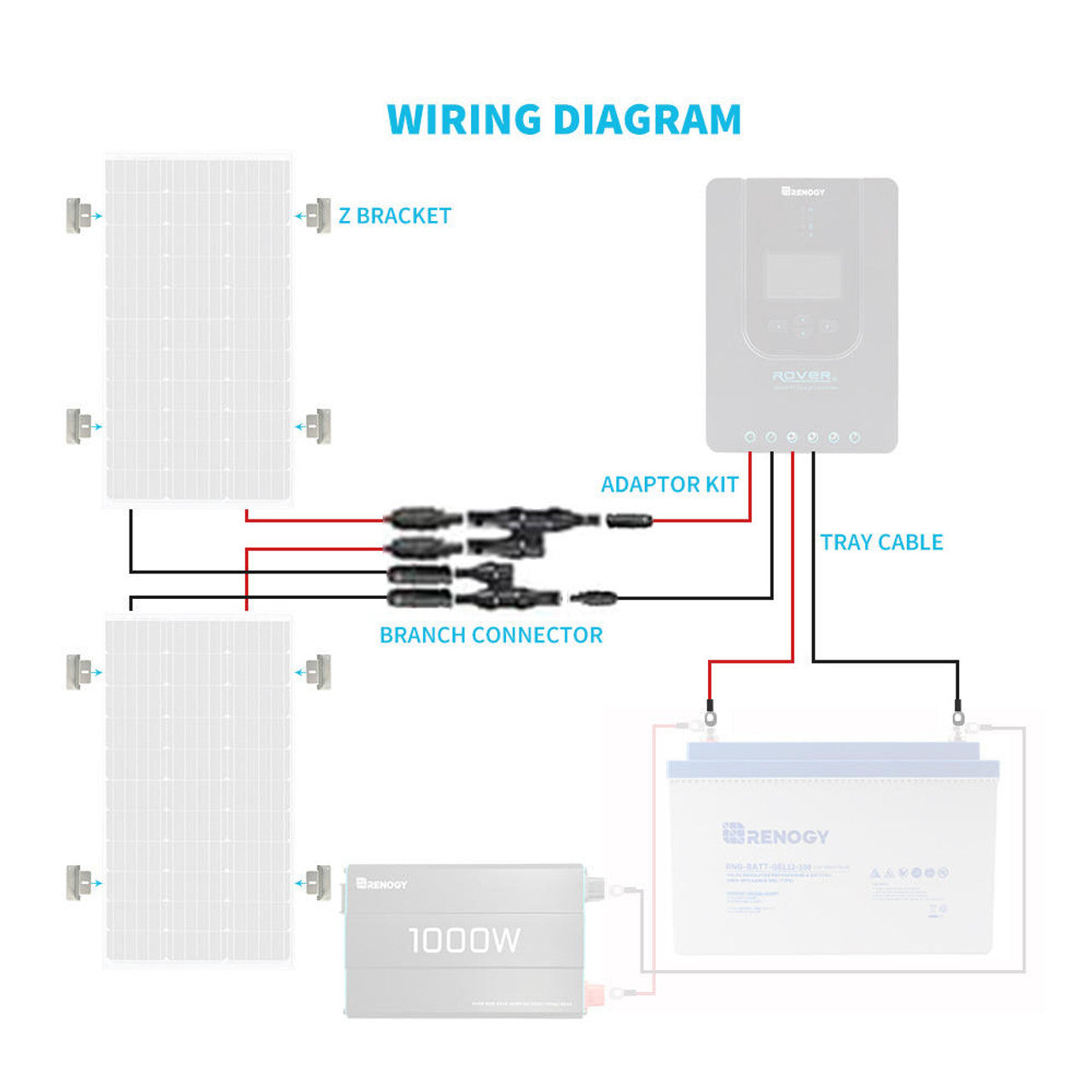

This kit features specialized terminal rings for battery connection and exposed wire ends for fast and easy connection to a charge controller. It also includes adapter cables for connecting solar panels to charge controllers, with waterproof solar connectors on one end and exposed wire for terminal connection on the other.

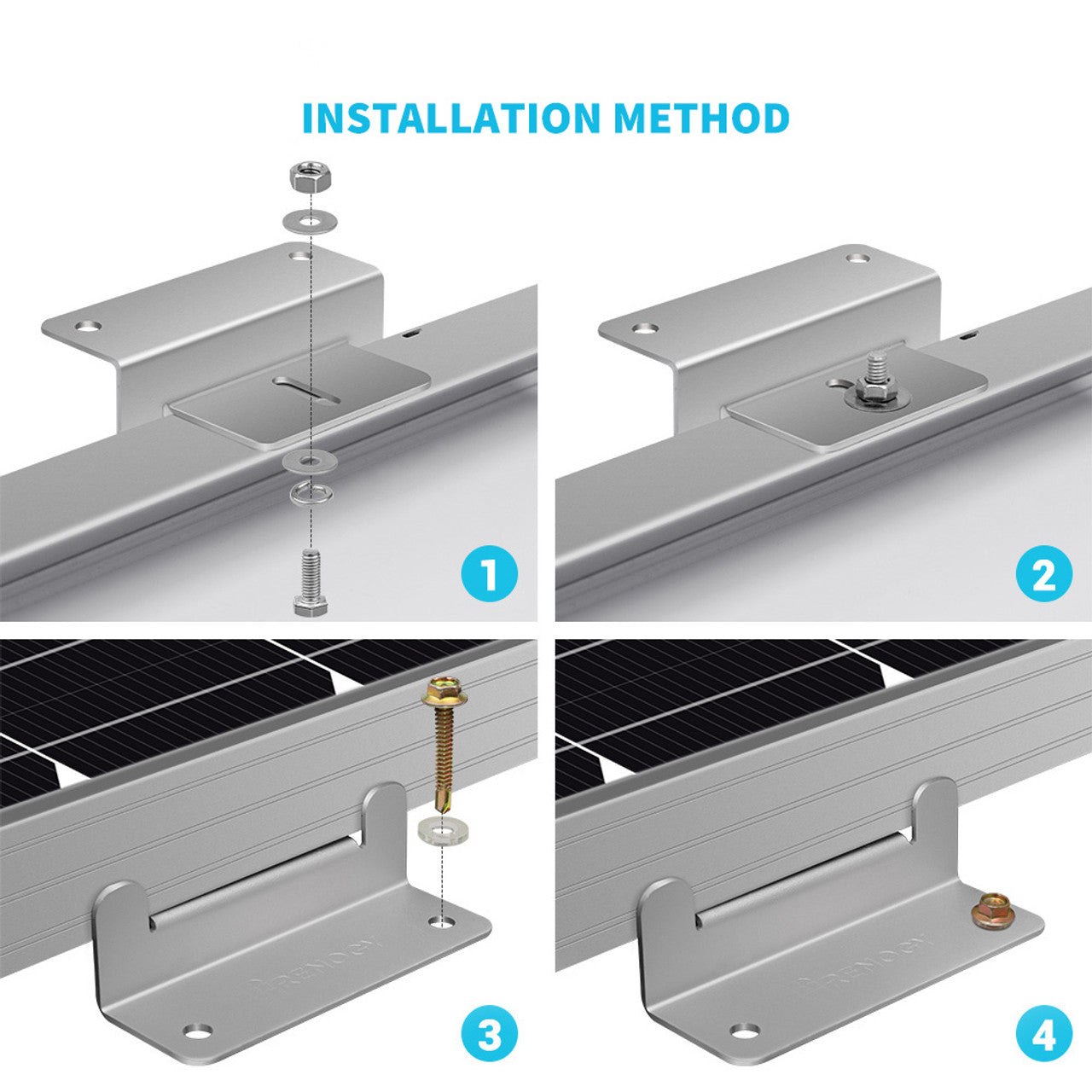

Additionally, the kit includes the Renogy Z-Bracket Mount System for easy installation of a single solar panel.
Key Features
Durable Design
- Renogy's cables are TUV tested, UV light resistant and waterproof.
- Light weight aluminum brackets
Scalable Kit
- Expand system by installing more modules and /or wiring.
Flexible and Effortless PV
- Ready to connect any Renogy accessory to a 200W module or PV system.
- Easily expand your system using additional wiring or mounting brackets.
Perfect for DIY Off Grid Installation:
- Easy installation and DIY friendly.
- The kit offers all components required for Renogy’s small scale photovoltaic system installation.
- This kit allows the customer the flexibility to expand their system as needed and is built for 200W systems.
Specification

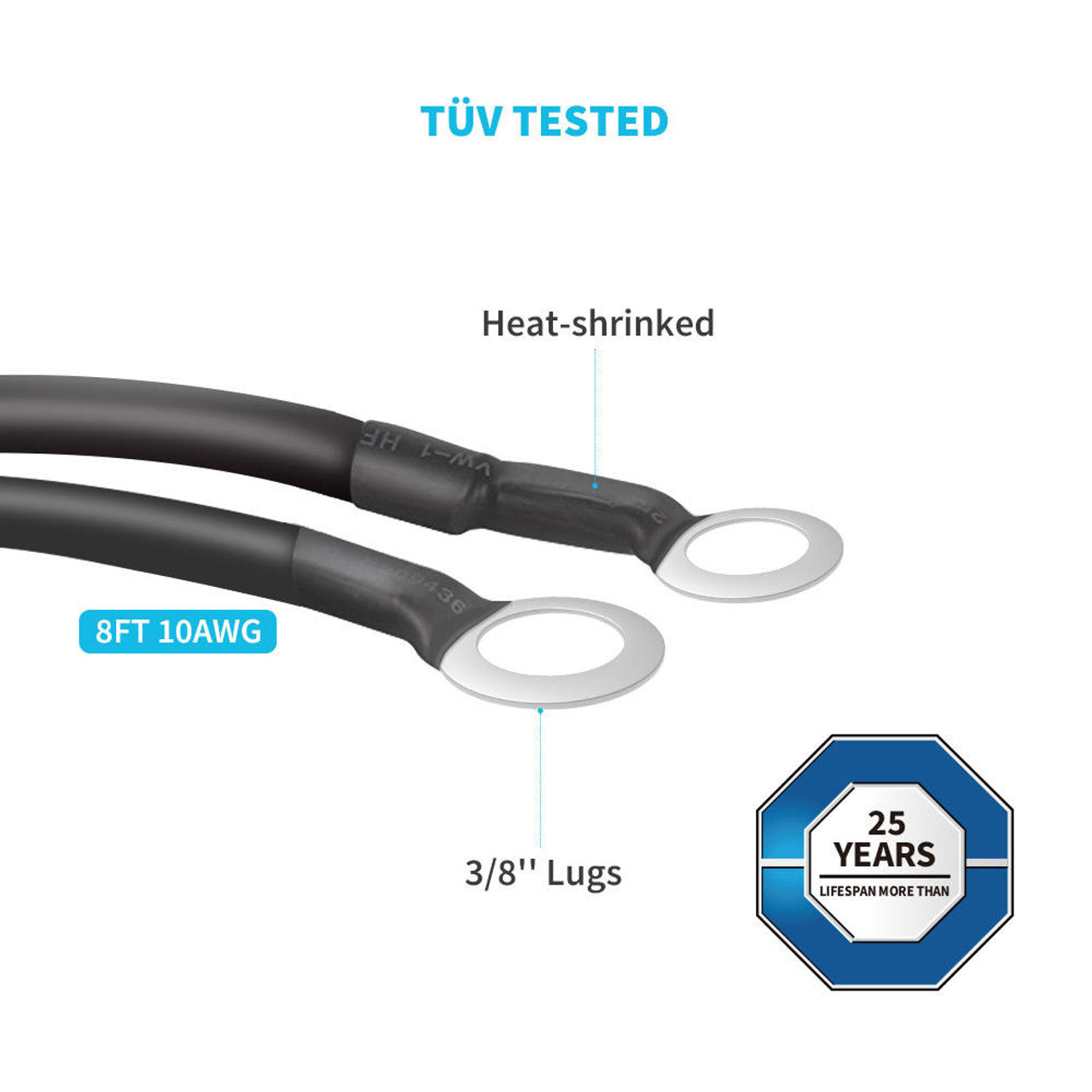

| Renogy 8FT 10AWG Solar Tray Cables |
|
| Length: 8ft |
AWG: 10 |
| Temperature: -40°F to +185°F |
Rating Voltage: 600/1000V |
| Renogy 20FT 10AWG Solar Adaptor Kit |
|
| Length: 20ft
|
AWG: 10 |
| Temperature: -40°F to +185°F |
Rating Voltage: 600/1000V |
| Normal Cross Sectional Area of the Conductor (mm2): 6.0 |
Diameter of Wires in Conductor (mm): 3.02±0.08 |
| Min. Wall Thickness of Insulation (mm): 0.85 |
Min. Wall Thickness of Sheath (mm): 1.08 |
| Number of Wires in Conductor: 84 |
IP 65 Protection |

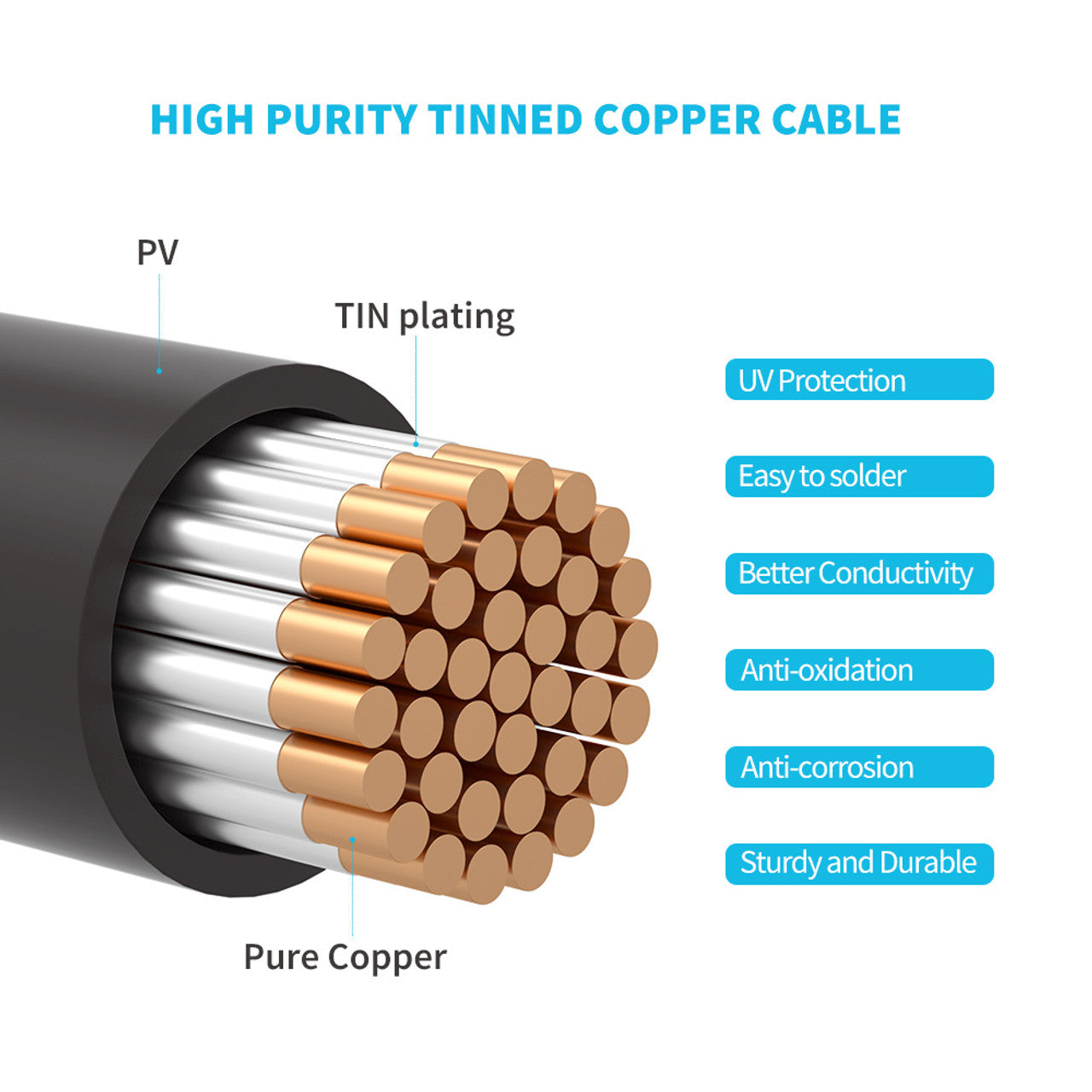

| Conductor: Tinned copper wire |
|

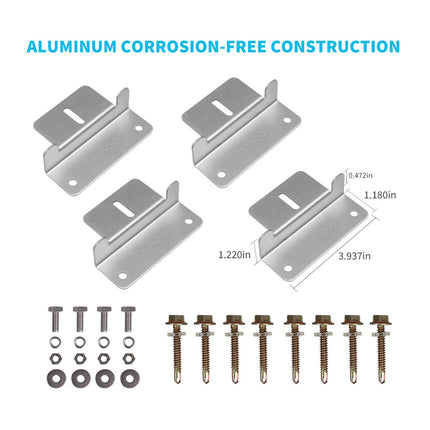

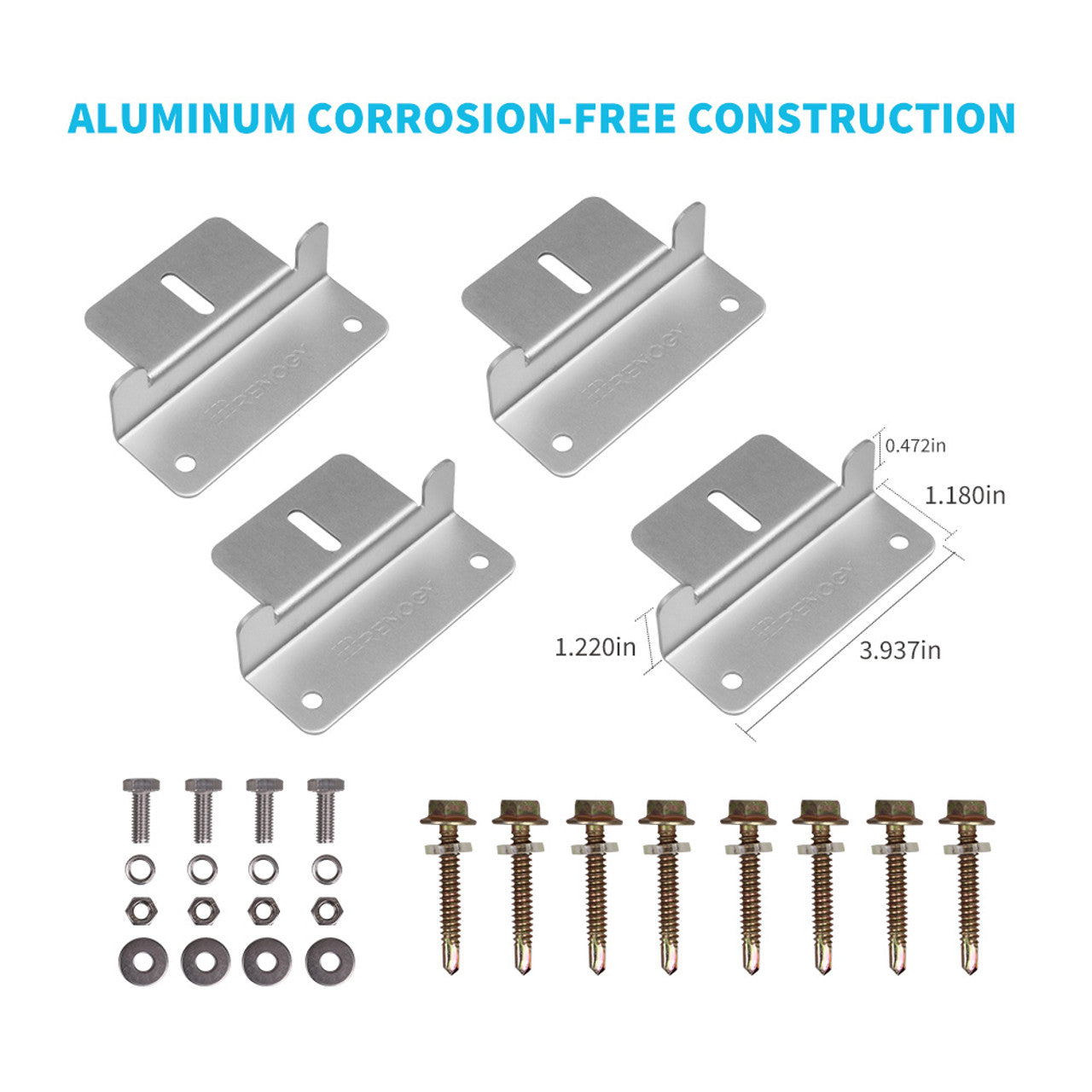

| Renogy Solar Panel Mounting Z Bracket |
|
| Four Z Shape Solar Panel Brackets |
Four M6-16 Hex Cap Bolt |
| Four M6 Split Lock Washer |
Eight M6 Flat Washer |
| Four M6 Hexagonal Nut |
Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring |

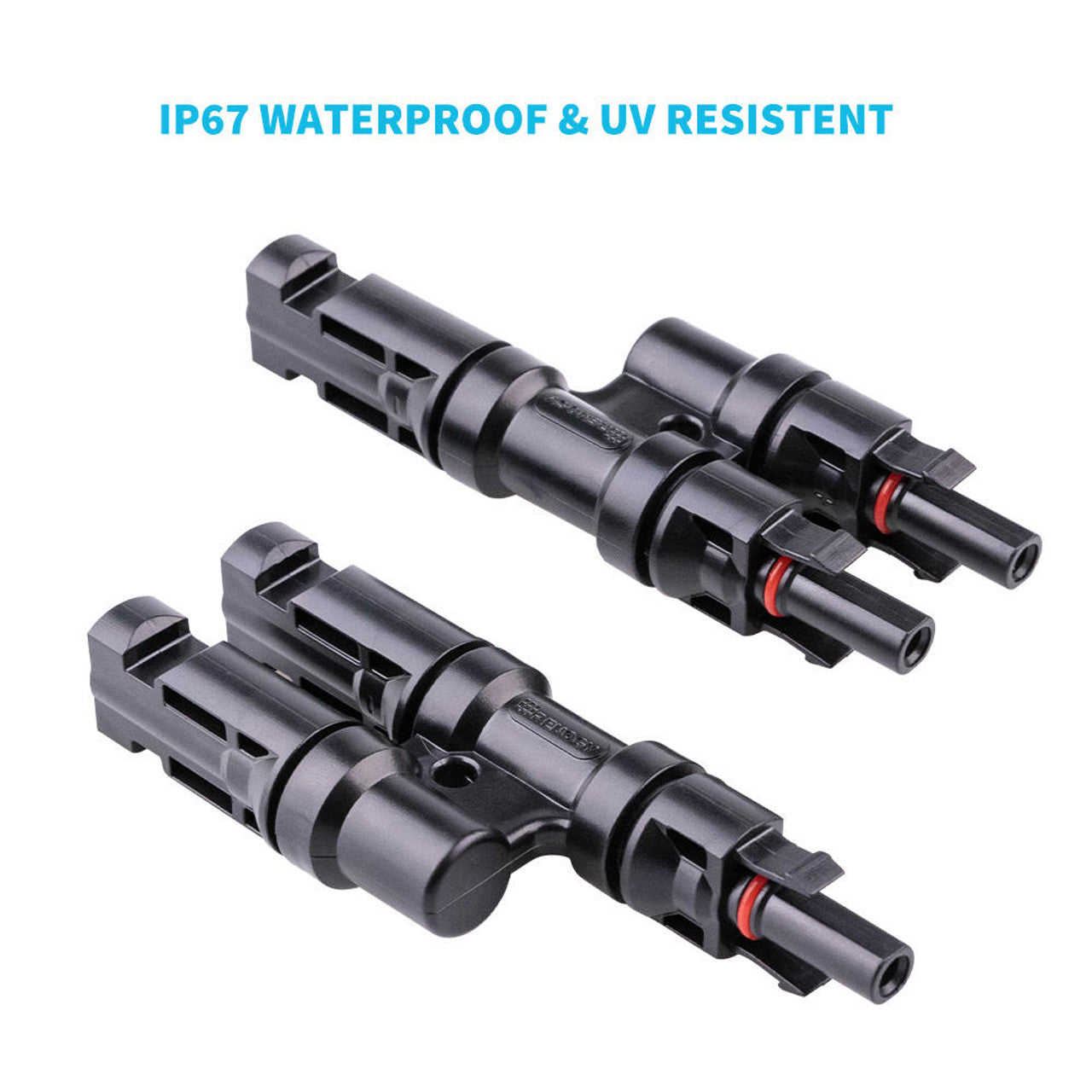

| Solar Y Branch Connectors MMF+FFM Pair |
|
| Withstanding voltage: 1000V DC(TUV), 600V(UL) |
Contact Resistance: 1m |
| Protection Class: Class II |
Temperature: -40°F to +194°F |
| Protection Degree: IP67, mated |
Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring |
