Description

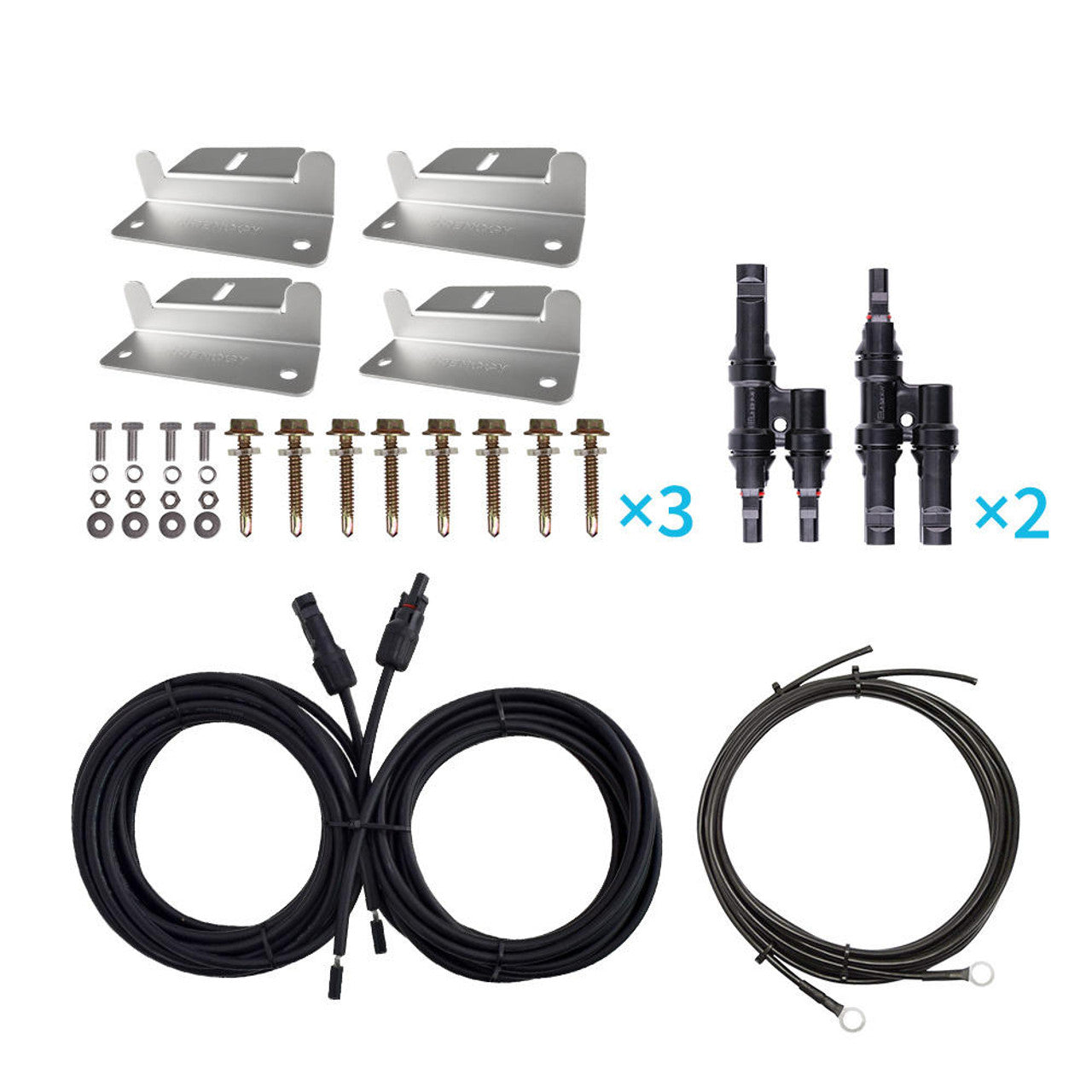

The Renogy Solar Wiring and Mounting Kit for 300Watt Solar includes all necessary accessories and cables to connect a single Renogy panel and controller to the battery bank.

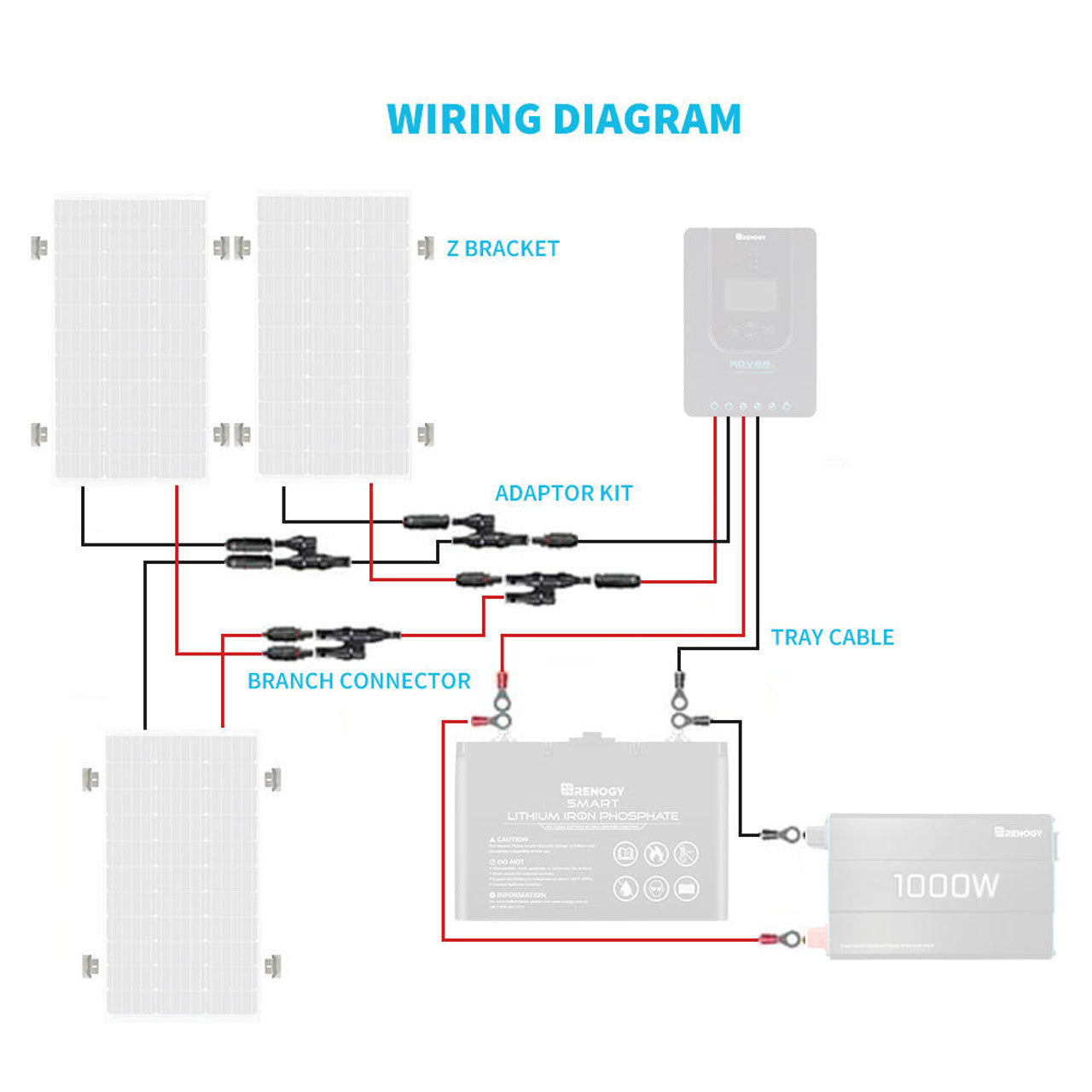

Renogy tray cables have specialized terminal rings for battery connection and exposed wires for easy and fast connection to a charge controller. Adapter kit cables allow for connection between solar panels and charge controllers, featuring waterproof solar connectors on module ends and exposed wires for charge controller terminal connection.

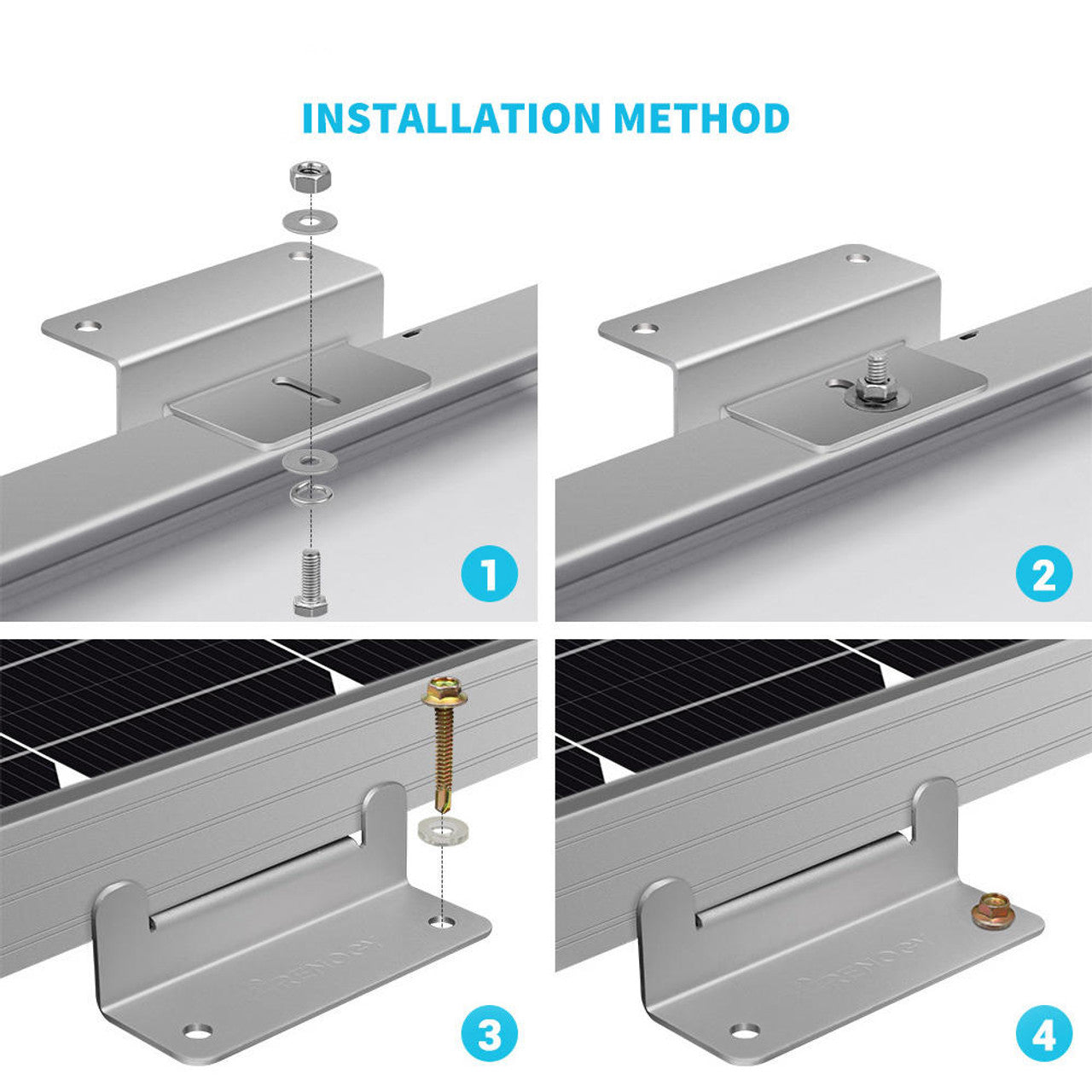

The Renogy Z-Bracket Mount System allows for simple installation and mounting of a single solar panel.
Key Features
Durable Design
- Renogy's cables are TUV tested, UV light resistant and waterproof.
- Light weight aluminum brackets
Scalable Kit
- Expand system by installing more modules and /or wiring.
Flexible and Effortless PV
- Ready to connect any Renogy accessory to a 300W module or PV system.
- Easily expand your system using additional wiring or mounting brackets.
Perfect for DIY Off Grid Installation:
- Easy installation and DIY friendly.
- The kit offers all components required for Renogy’s small scale photovoltaic system installation.
- This kit allows the customer the flexibility to expand their system as needed and is built for 300W systems.
Specification

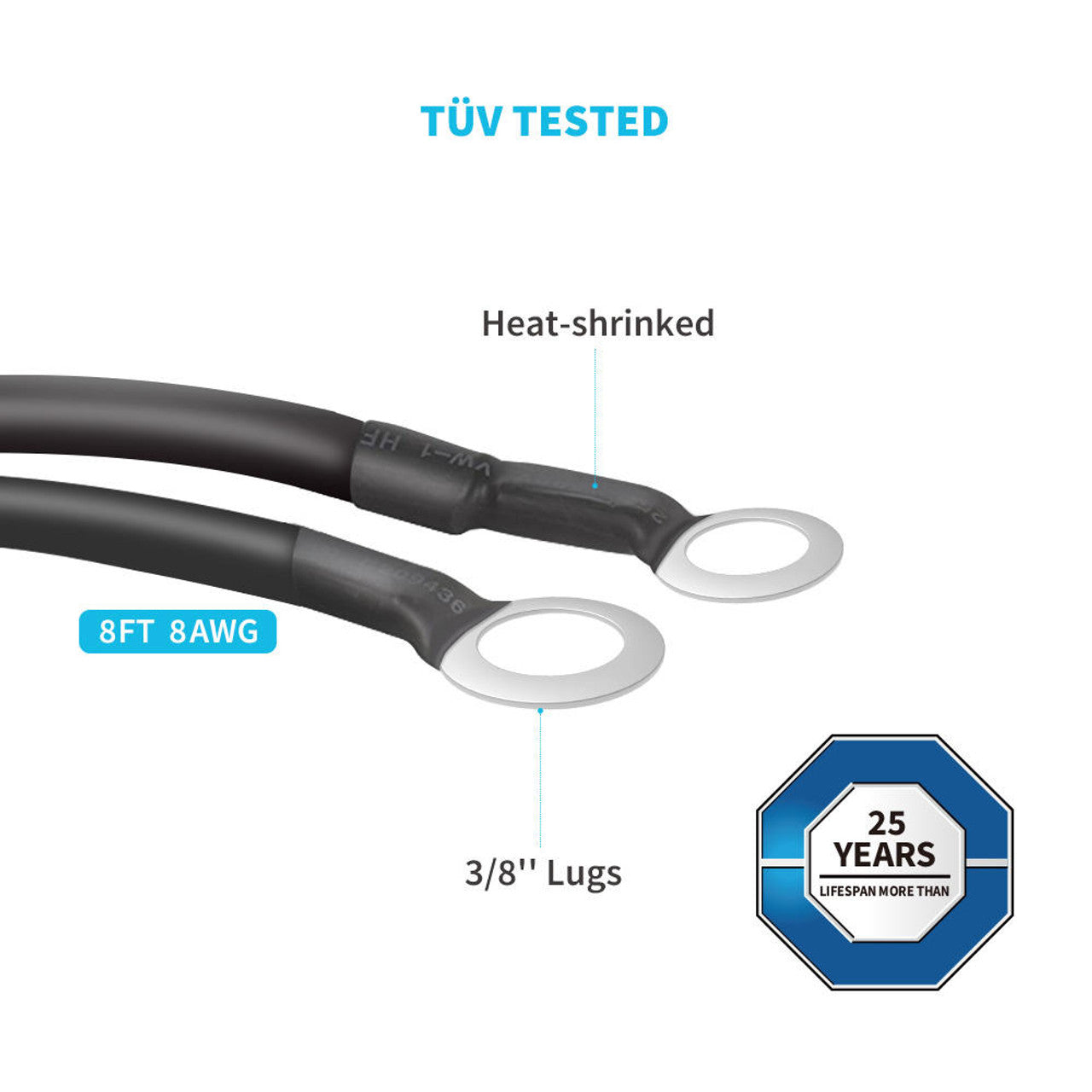

| Renogy 8FT 8AWG Solar Tray Cables |
|
| Length: 8ft |
AWG: 8 |
| Temperature: -40°F to +185°F |
Rating Voltage: 600/1000V |

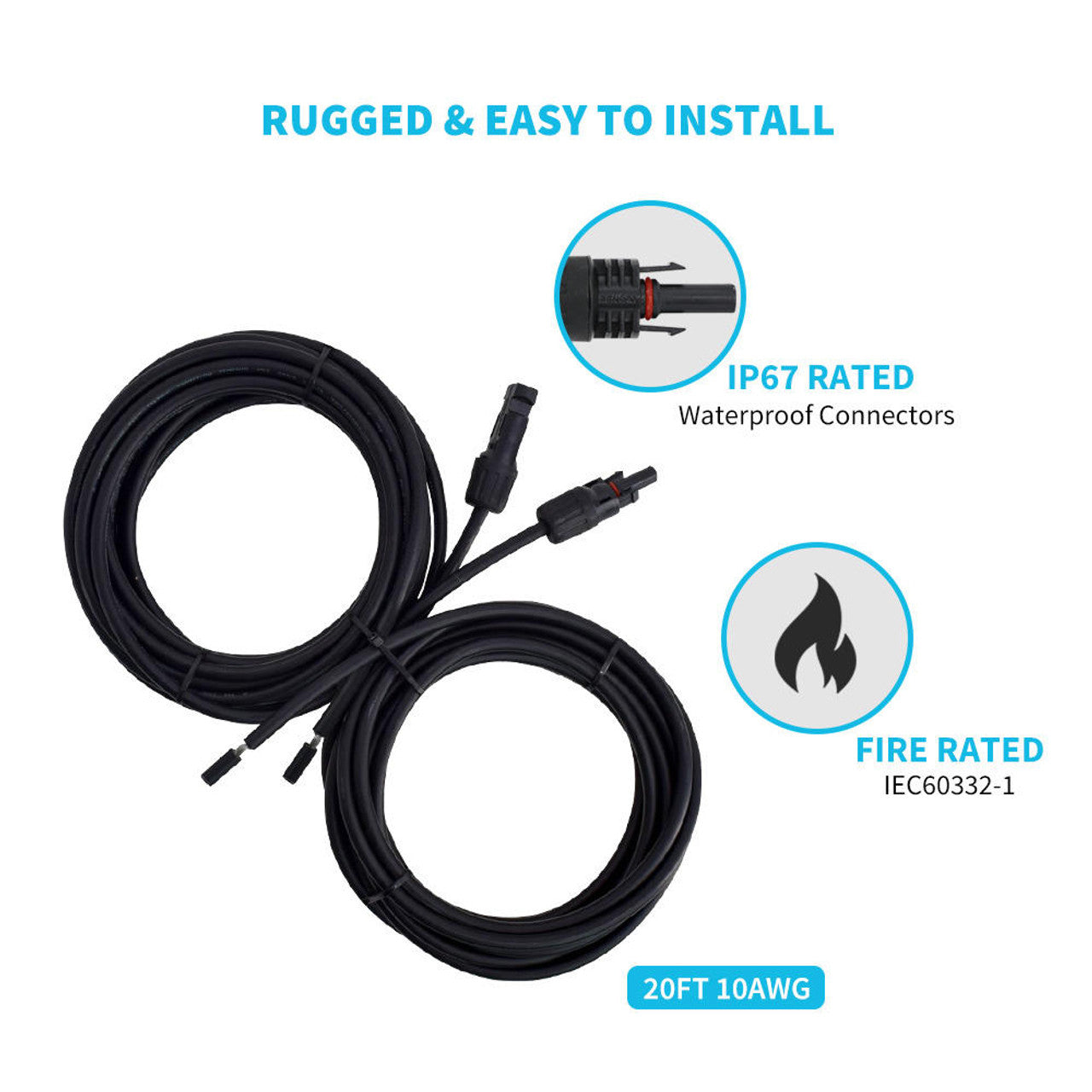

| Renogy 20FT 10AWG Solar Adaptor Kit |
|
| Length: 20ft
|
AWG: 10 |
| Temperature: -40°F to +185°F |
Rating Voltage: 600/1000V |
| Normal Cross Sectional Area of the Conductor (mm2): 6.0 |
Diameter of Wires in Conductor (mm): 3.02±0.08 |
| Min. Wall Thickness of Insulation (mm): 0.85 |
Min. Wall Thickness of Sheath (mm): 1.08 |
| Number of Wires in Conductor: 84 |
IP 65 Protection |

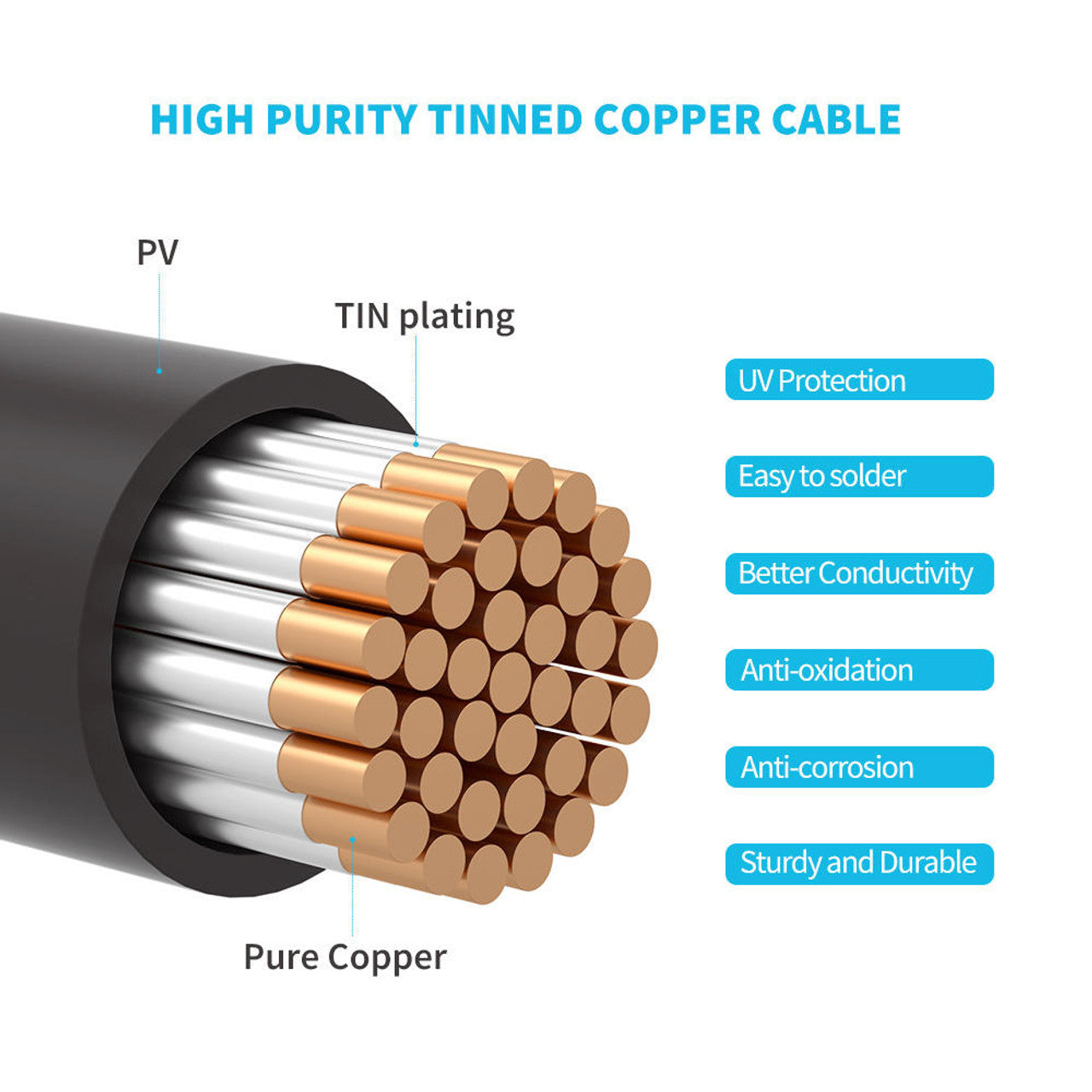

| Conductor: Tinned copper wire |
|

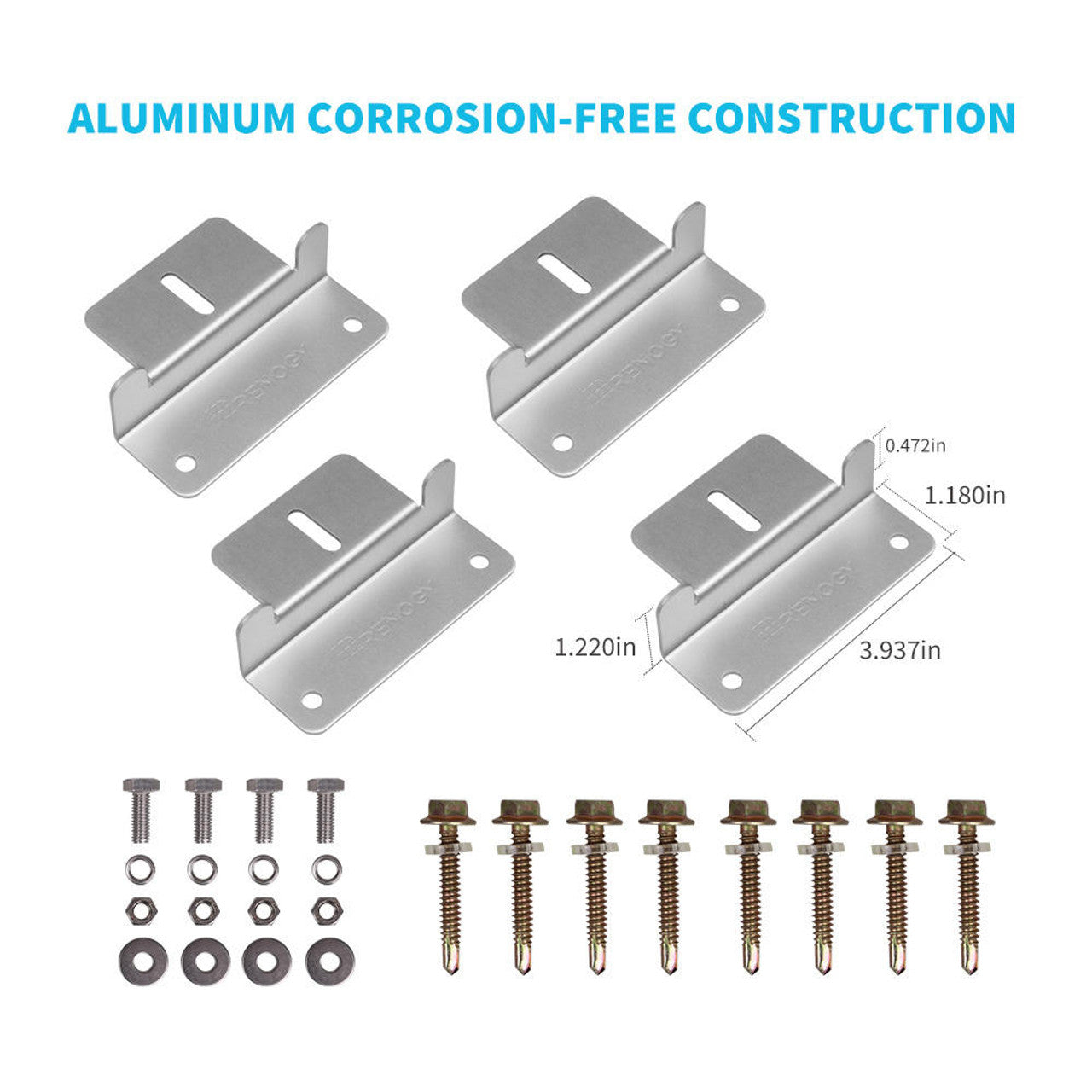

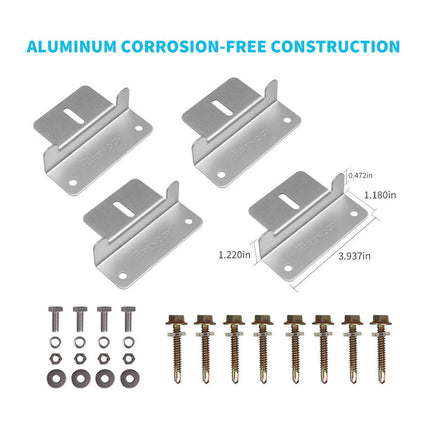

| Renogy Solar Panel Mounting Z Bracket |
|
| Four Z Shape Solar Panel Brackets |
Four M6-16 Hex Cap Bolt |
| Four M6 Split Lock Washer |
Eight M6 Flat Washer |
| Four M6 Hexagonal Nut |
Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring |

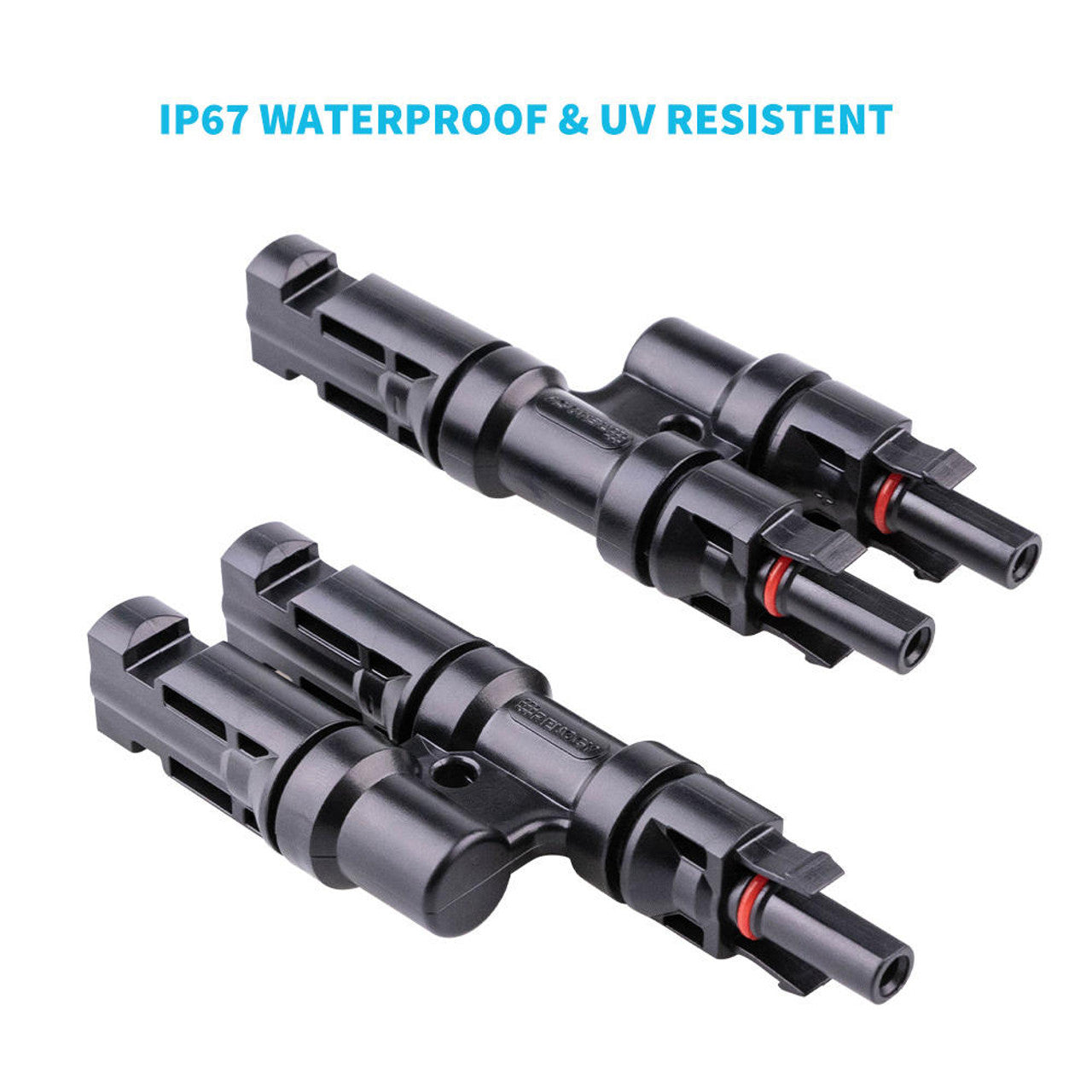

| Solar Y Branch Connectors MMF+FFM Pair |
|
| Withstanding voltage: 1000V DC(TUV), 600V(UL) |
Contact Resistance: 1m |
| Protection Class: Class II |
Temperature: -40°F to +194°F |
| Protection Degree: IP67, mated |
Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring |
