Description

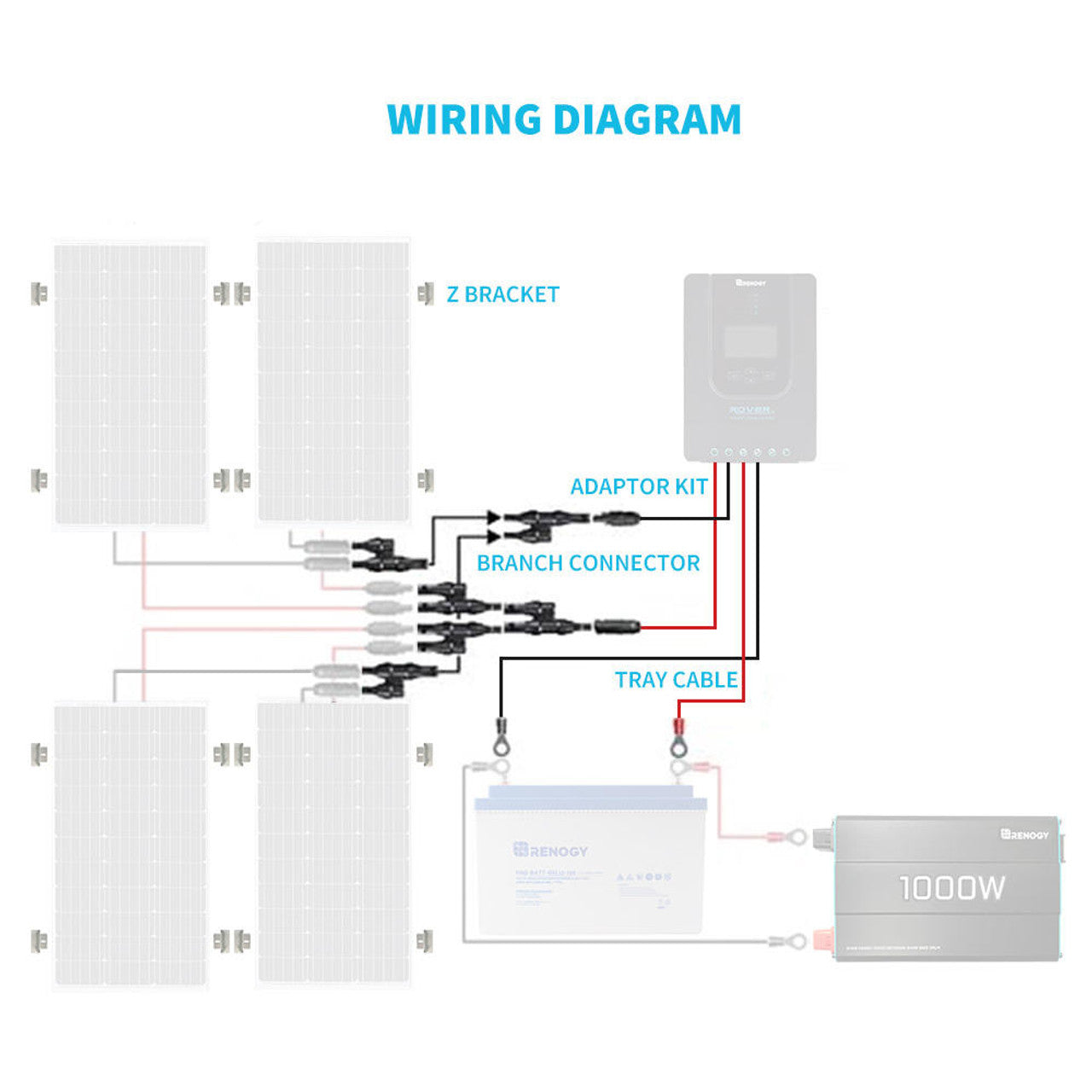

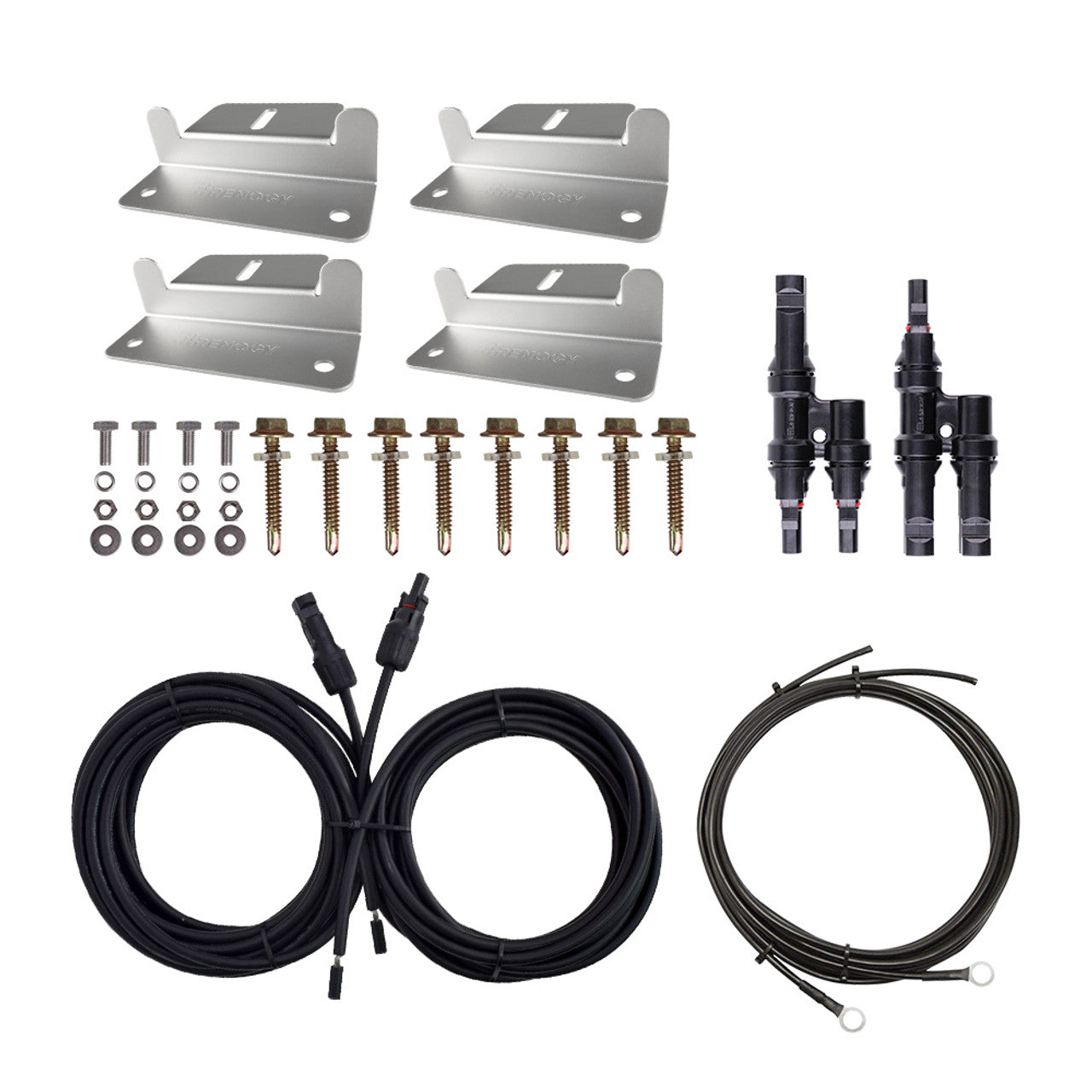

This accessory and cable kit includes all necessary cables and accessories for connecting a 400W Renogy panel and controller to a battery bank.
Renogy's tray cables are specifically designed for battery connection and feature exposed wire ends for fast connection to a charge controller. Use the adapter kit cables to connect solar panels to charge controllers, with waterproof connectors on the panel end and exposed wire for the controller end.

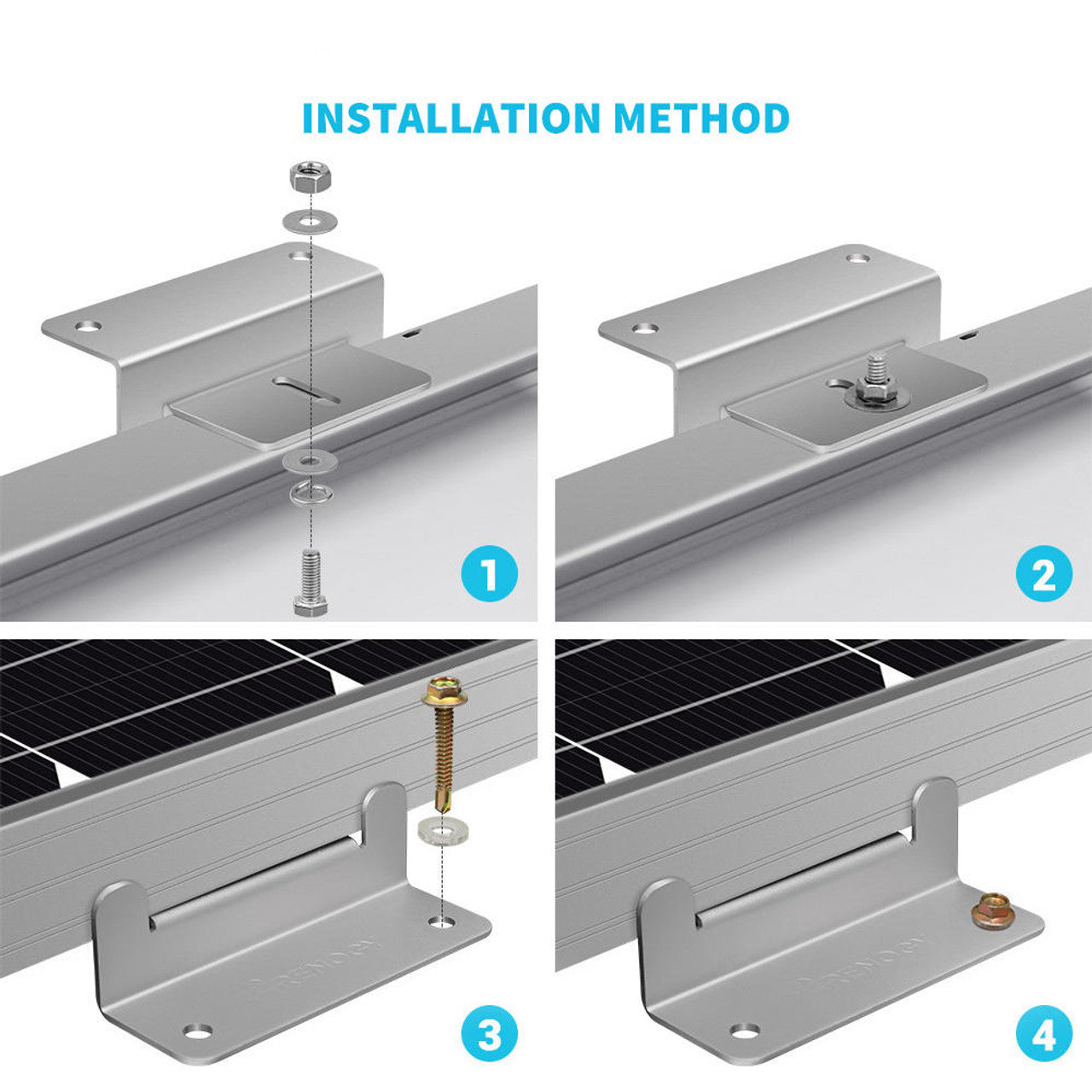

The Renogy Z-Bracket Mount System is an easy and efficient way to install and mount a single solar panel.
Key Features
Durable Design
- Renogy's cables are TUV tested, UV light resistant and waterproof.
- Light weight aluminum brackets
Scalable Kit
- Expand system by installing more modules and /or wiring.
Flexible and Effortless PV
- Ready to connect any Renogy accessory to a 400W module or PV system.
- Easily expand your system using additional wiring or mounting brackets.
Perfect for DIY Off Grid Installation:
- Easy installation and DIY friendly.
- The kit offers all components required for Renogy’s small scale photovoltaic system installation.
- This kit allows the customer the flexibility to expand their system as needed and is built for 400W systems.
Specification

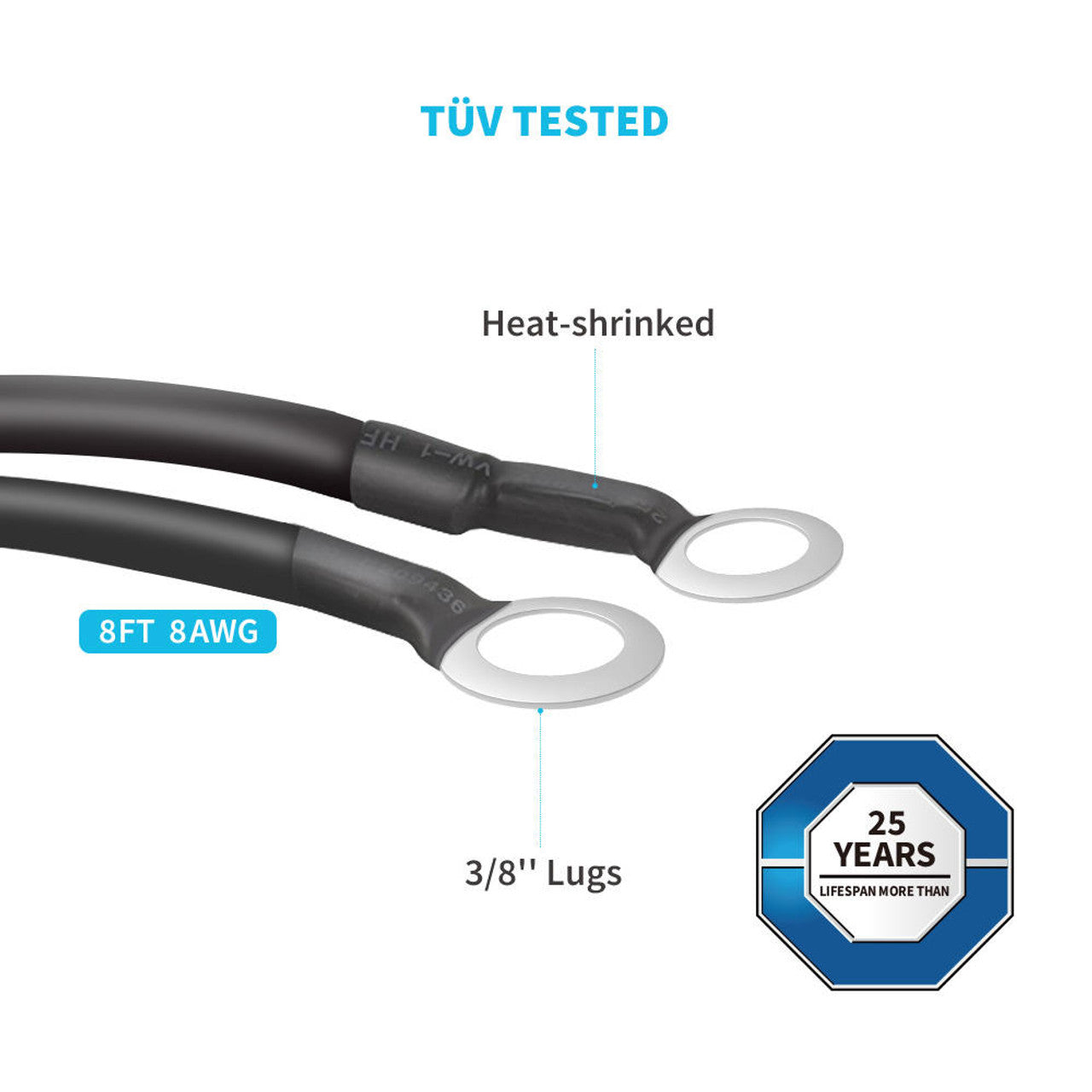

| Renogy 8FT 8AWG Solar Tray Cables |
|
| Length: 8ft |
AWG: 8 |
| Temperature: -40°F to +185°F |
Rating Voltage: 600/1000V |

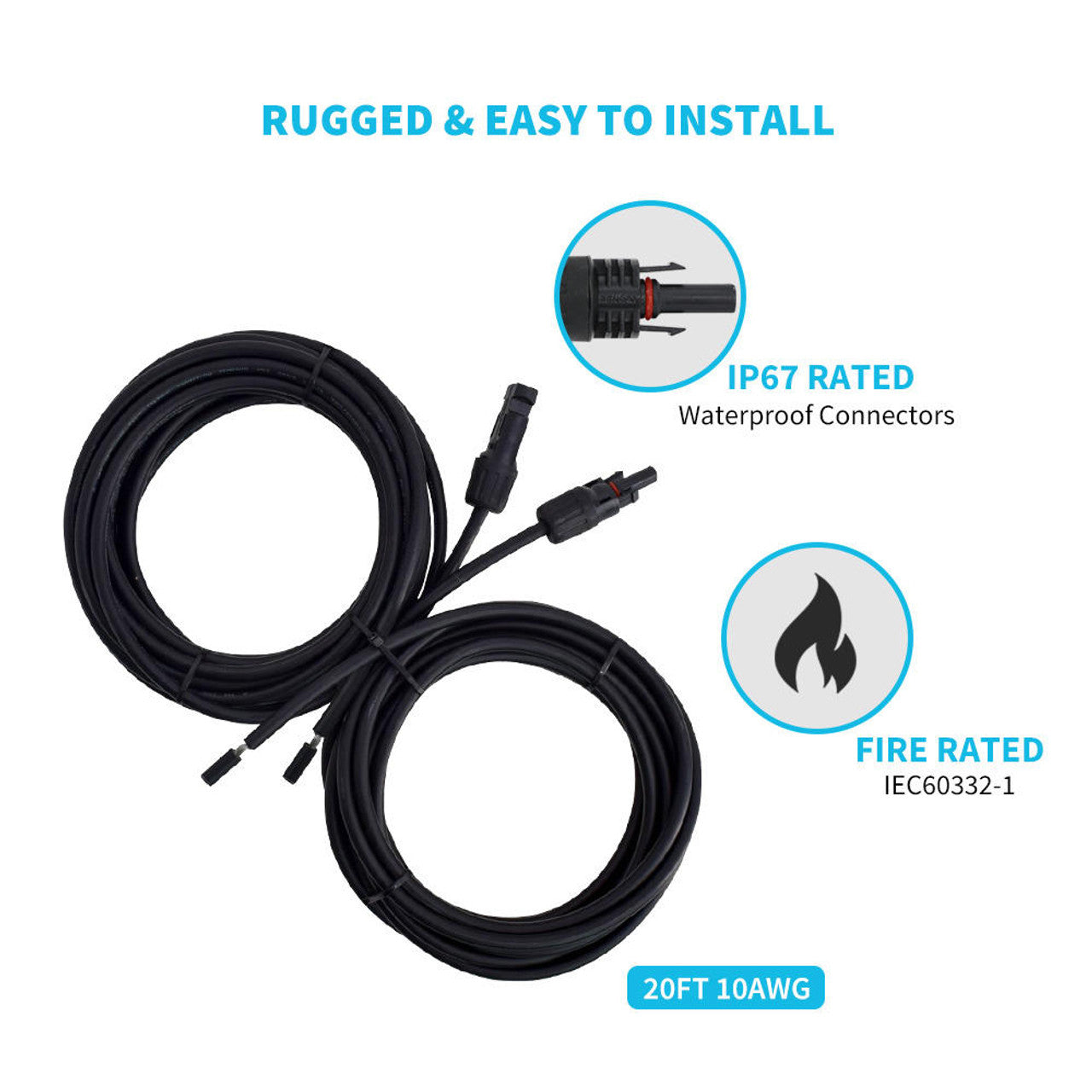

| Renogy 20FT 10AWG Solar Adaptor Kit |
|
| Length: 20ft
|
AWG: 10 |
| Temperature: -40°F to +185°F |
Rating Voltage: 600/1000V |
| Normal Cross Sectional Area of the Conductor (mm2): 6.0 |
Diameter of Wires in Conductor (mm): 3.02±0.08 |
| Min. Wall Thickness of Insulation (mm): 0.85 |
Min. Wall Thickness of Sheath (mm): 1.08 |
| Number of Wires in Conductor: 84 |
IP 65 Protection |

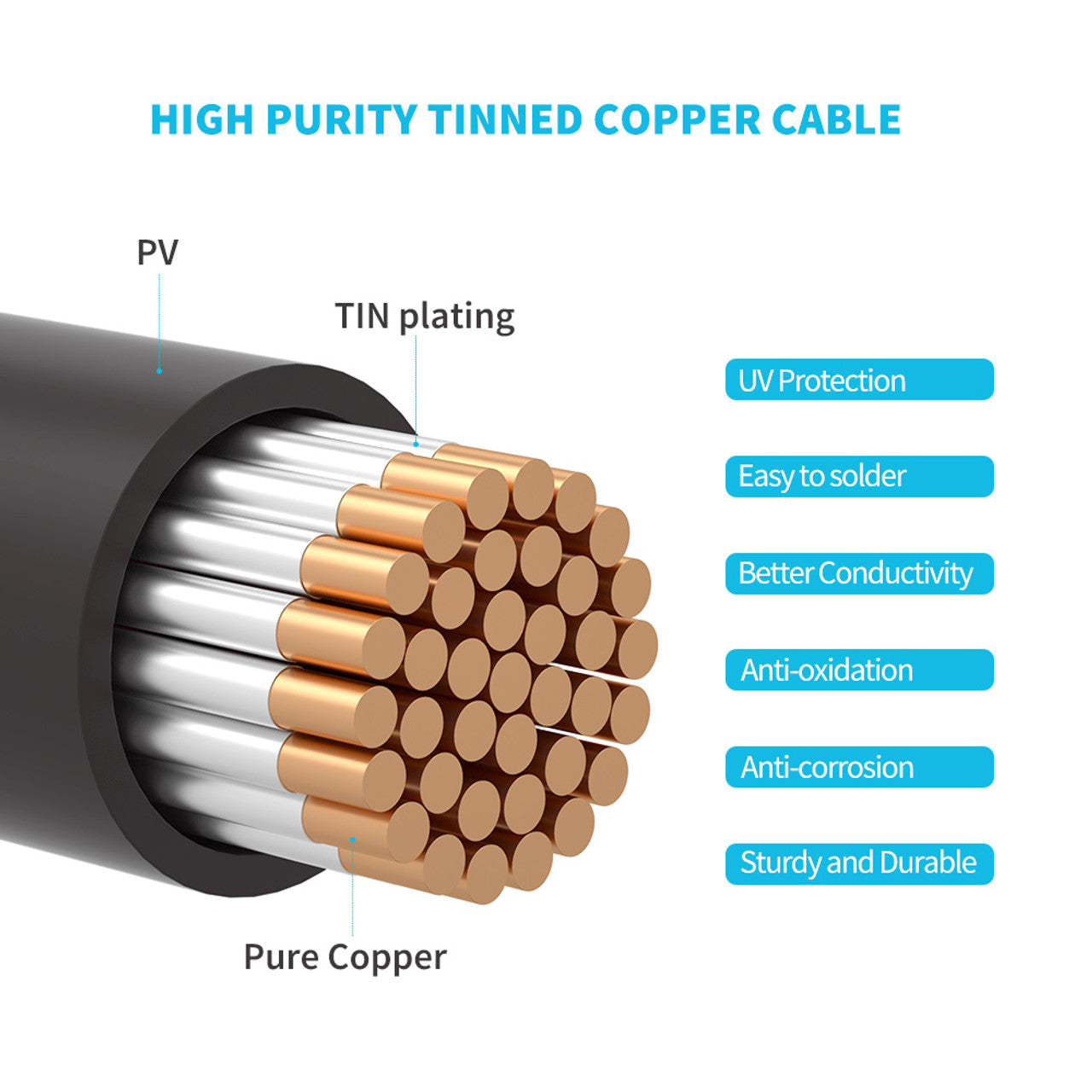

| Conductor: Tinned copper wire |
|

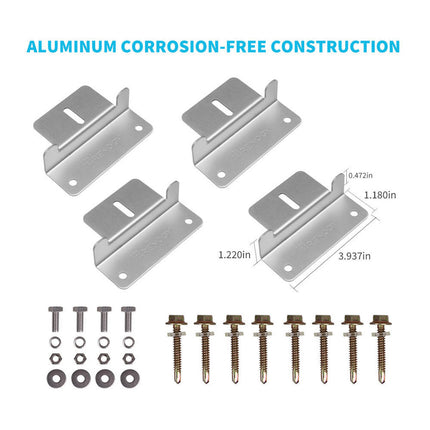

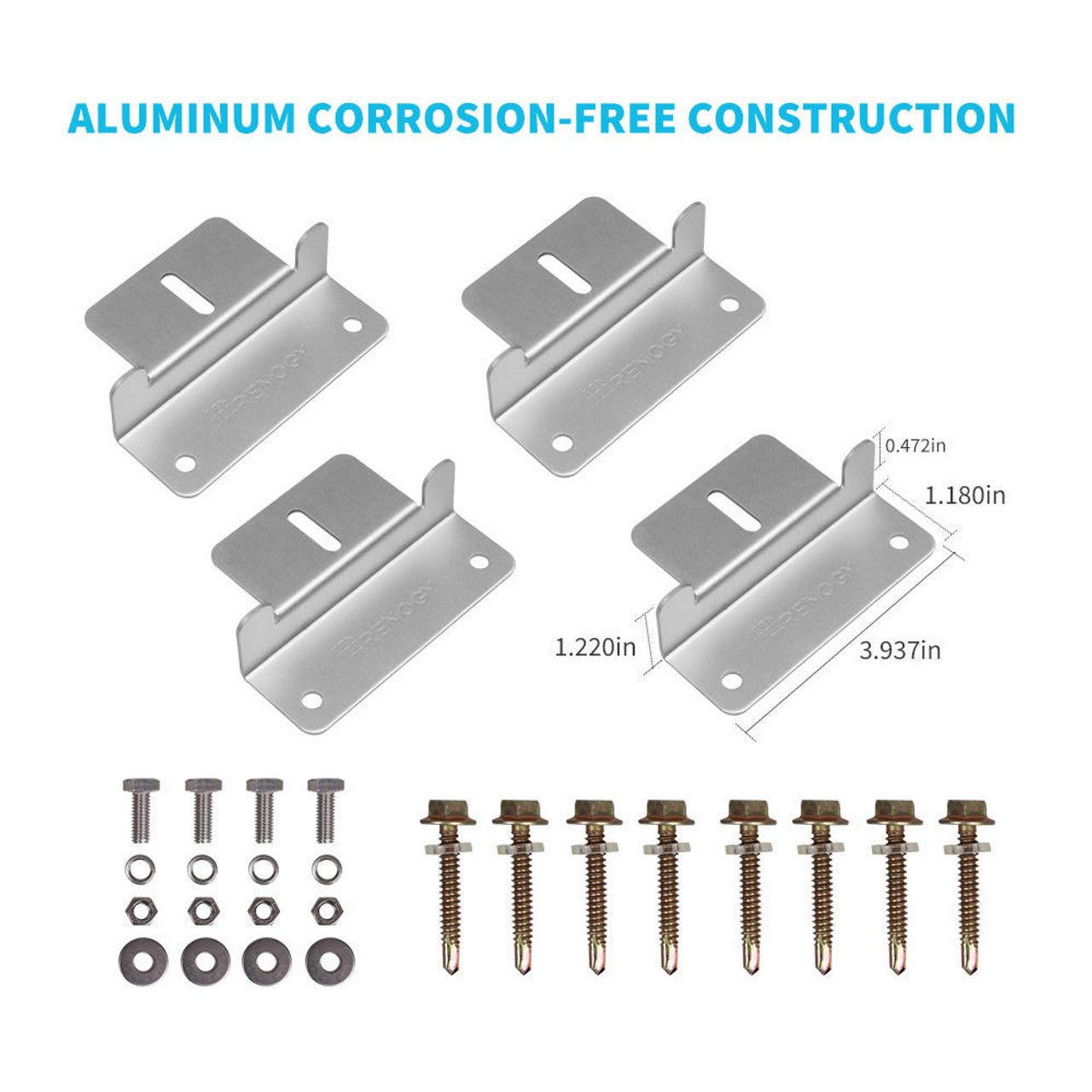

| Renogy Solar Panel Mounting Z Bracket |
|
| Four Z Shape Solar Panel Brackets |
Four M6-16 Hex Cap Bolt |
| Four M6 Split Lock Washer |
Eight M6 Flat Washer |
| Four M6 Hexagonal Nut |
Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring |

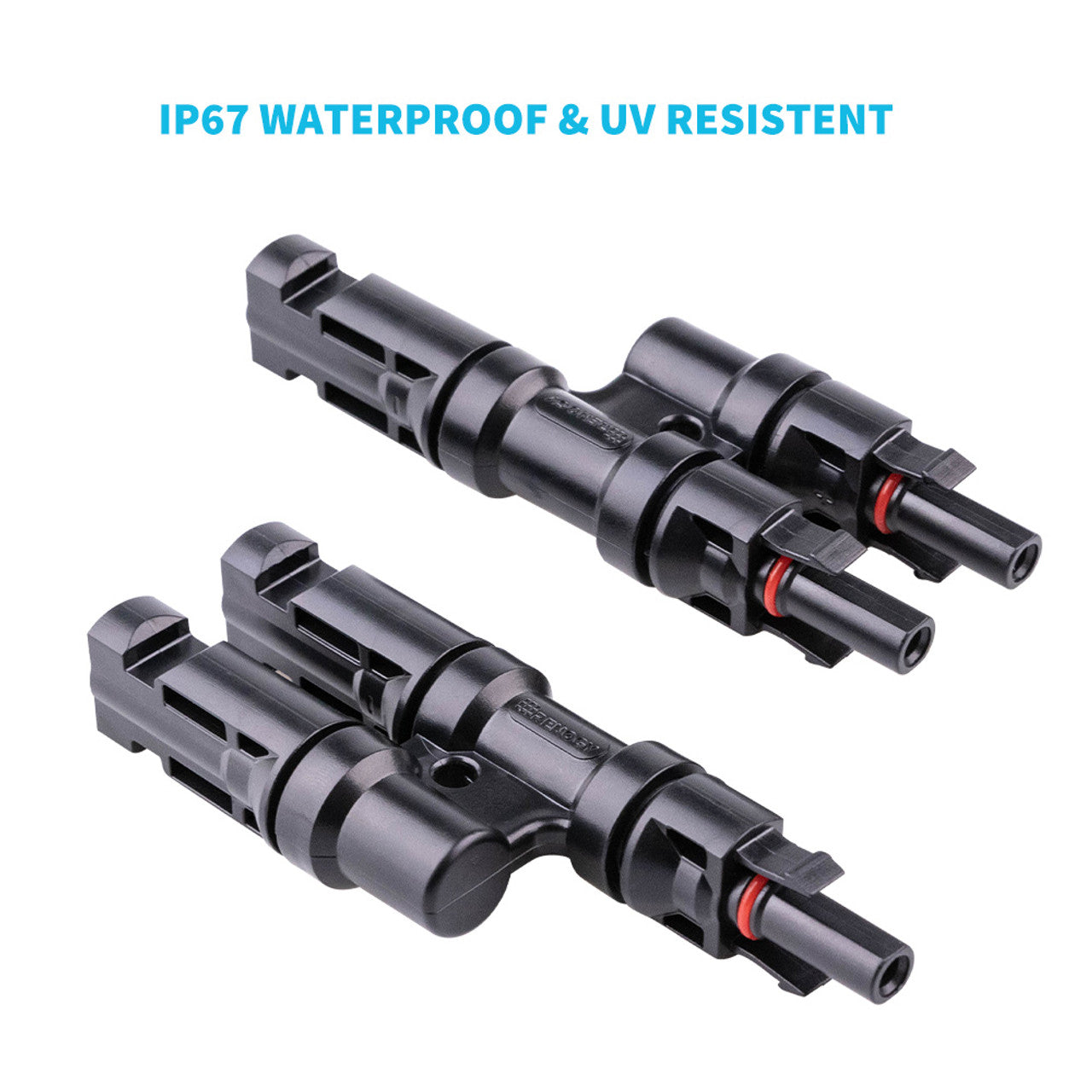

| Solar Y Branch Connectors MMF+FFM Pair |
|
| Withstanding voltage: 1000V DC(TUV), 600V(UL) |
Contact Resistance: 1m |
| Protection Class: Class II |
Temperature: -40°F to +194°F |
| Protection Degree: IP67, mated |
Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring |
