Description

The Renogy Voyager 12V 10A Waterproof PWM Charge Controller boasts a superior 10-amp rating and a robust IP67 certification. It is specifically designed for outdoor use and can withstand water spray, rain, and condensation. Utilizing advanced PWM technology, it is suitable for both 12V and 24V off-grid installations and is compatible with a variety of battery types, including Lithium Iron Phosphate. With built-in protections for your solar panel, battery, and controller, the Voyager 10A guarantees the longevity of your system.

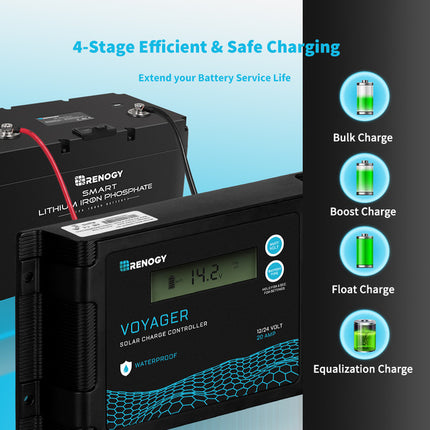

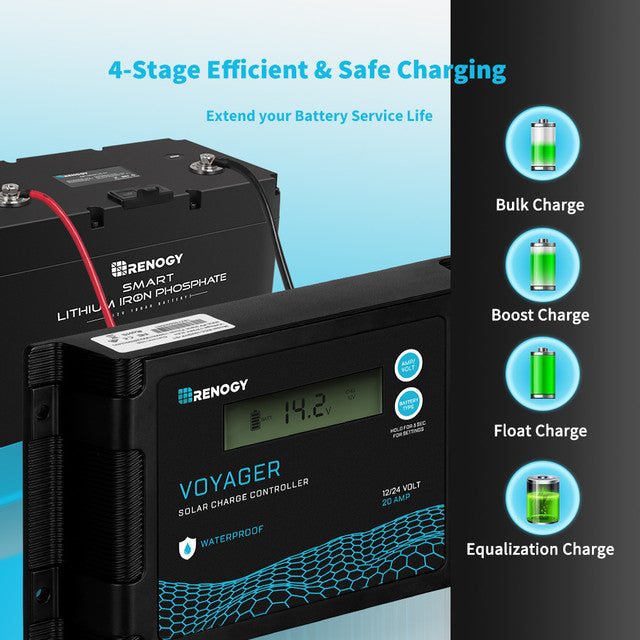

4-STAGE PWM Technology
  • The Voyager controller is equipped with advanced smart PWM technology with high charging efficiency. It provides 4-stage charging (Bulk, Absorption, Float and Equalization) in order to protect the battery.

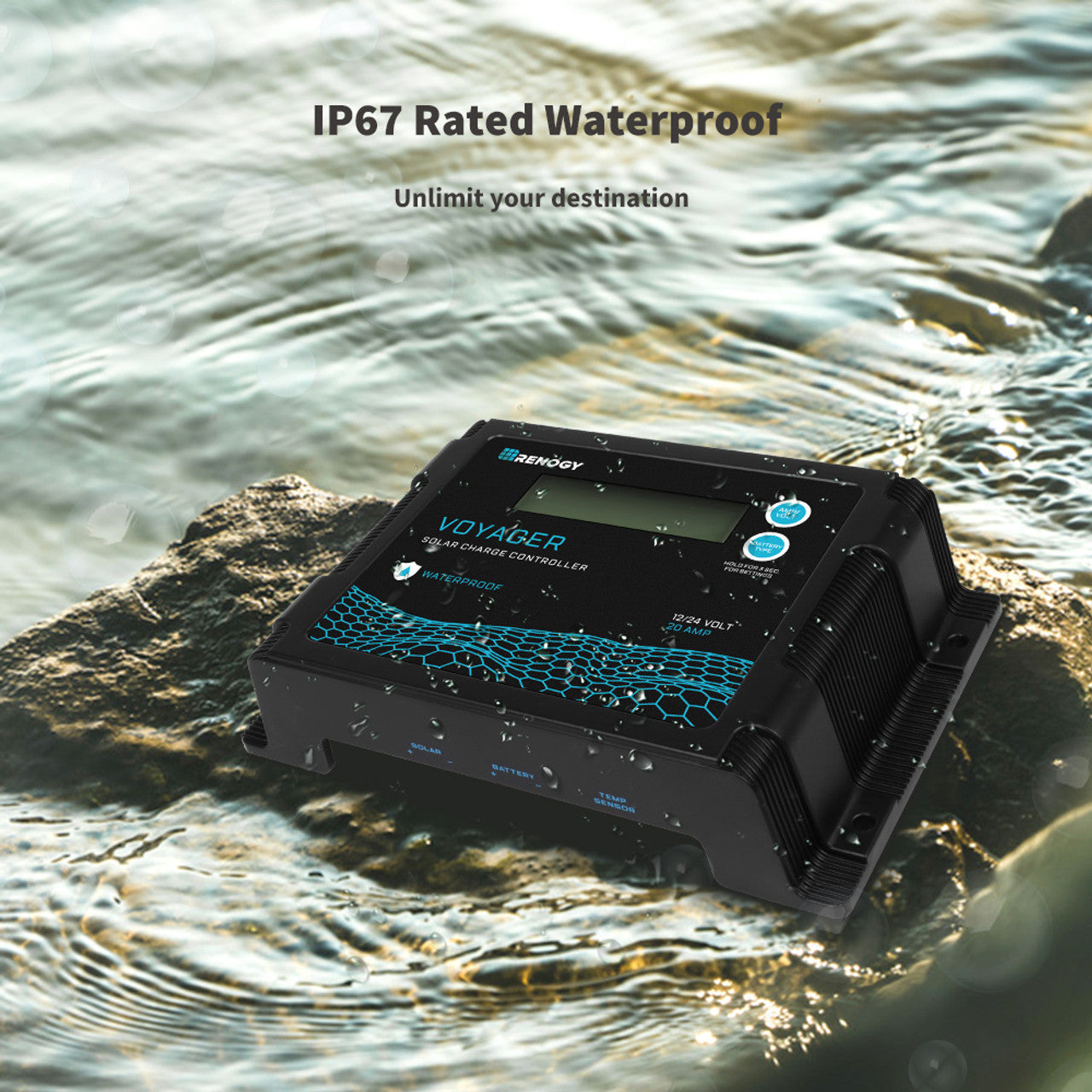

IP67 Rated Waterproof
  • With an IP67 rated waterproof design, the Voyager controller is suitable for outdoor use and will remain fully operational when exposed to water spray, rain, or condensation.

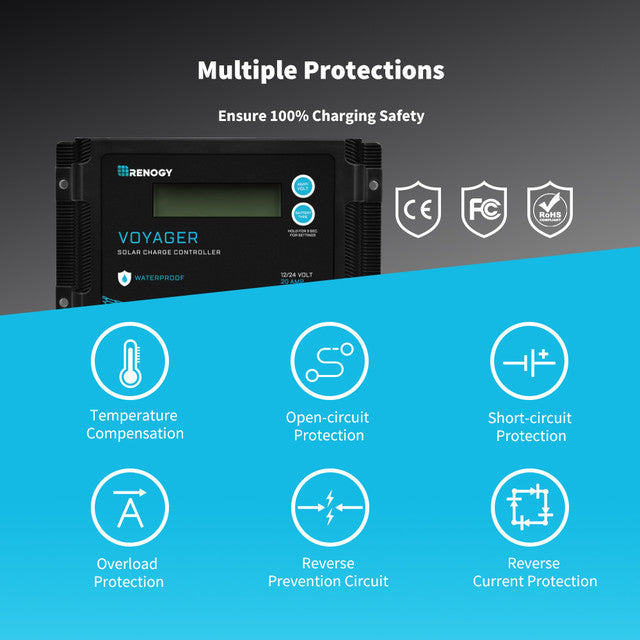

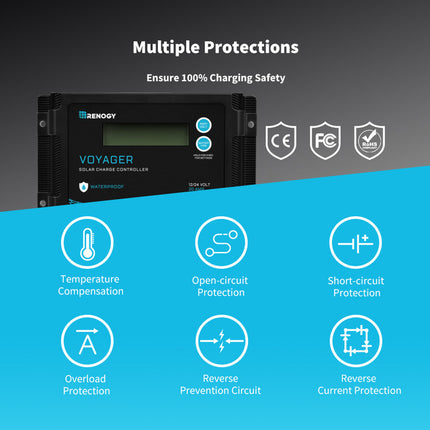

Multiple Protections
  • The Voyager controller has multiple intelligent protections against reverse polarity, overcharge, short-circuit, reverse current, overload, and over discharge, keeping your battery fully protected.

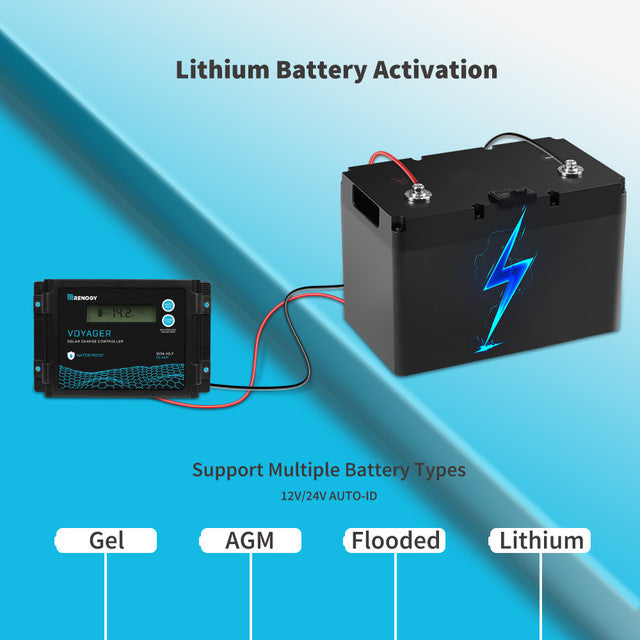

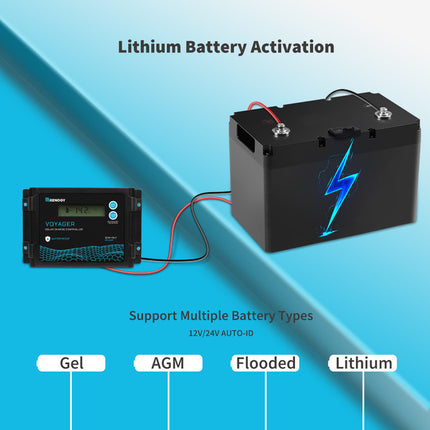

Support Multiple Battery Types
  • The Voyager controller can automatically sense 12V or 24V system voltage when paired with a Gel, AGM, or Flooded batteries. It also comes with a Lithium activation feature.

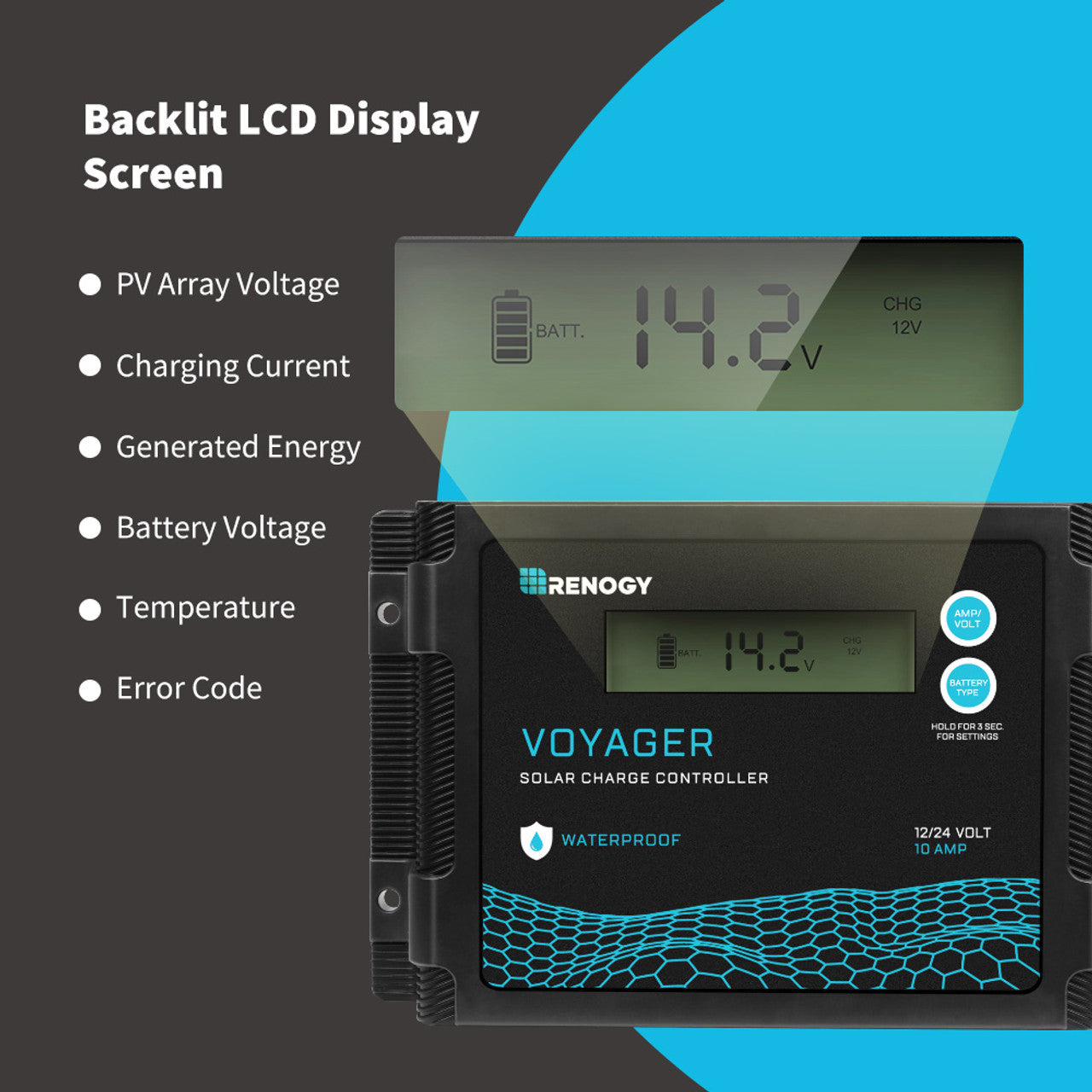

Backlit LCD displaying system
  • The Voyager comes with an LCD display showing accurate and timely information including charging current, generated energy, temperature, battery voltage, and error codes that allows users to monitor and control charging.

Specifications

Nominal System Voltage: 12V/24V Auto-Detect Rated Charge Current: 10A
PV Input Voltage Range?15V-55V Max. PV Open Circuit Voltage?12V@25V 24V@55V
Max. PV Input Power?12V @ 130W / 24V@260W Max Battery Voltage?32V
Power Consumption?12V @ 0.22W / 24V@0.72W Battery Types?SLD/AGM, GEL, FLD, LI
Ground Type?Positive Electrical Protection?Battery/Controller over-temperature protection,
PV/Battery reverse polarity, Over-voltage, Over-current protection
Communication Port?N/A

Renogy Voyager 12V 10A Waterproof PWM Charge Controller

Product form
Vendor Renogy

SKU RCC10VOYP-G1-AU

$80 incl. GST

Free local pick up at AutoSpec 4x4

    Get An Install Quote

    We offer installation on all our products! Contact us for an install quote today on 1800 288 649 or through our contact form found here.
