Description

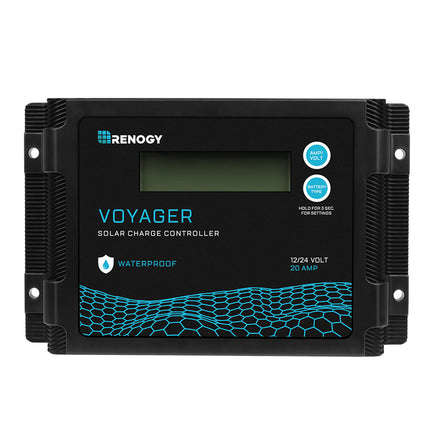

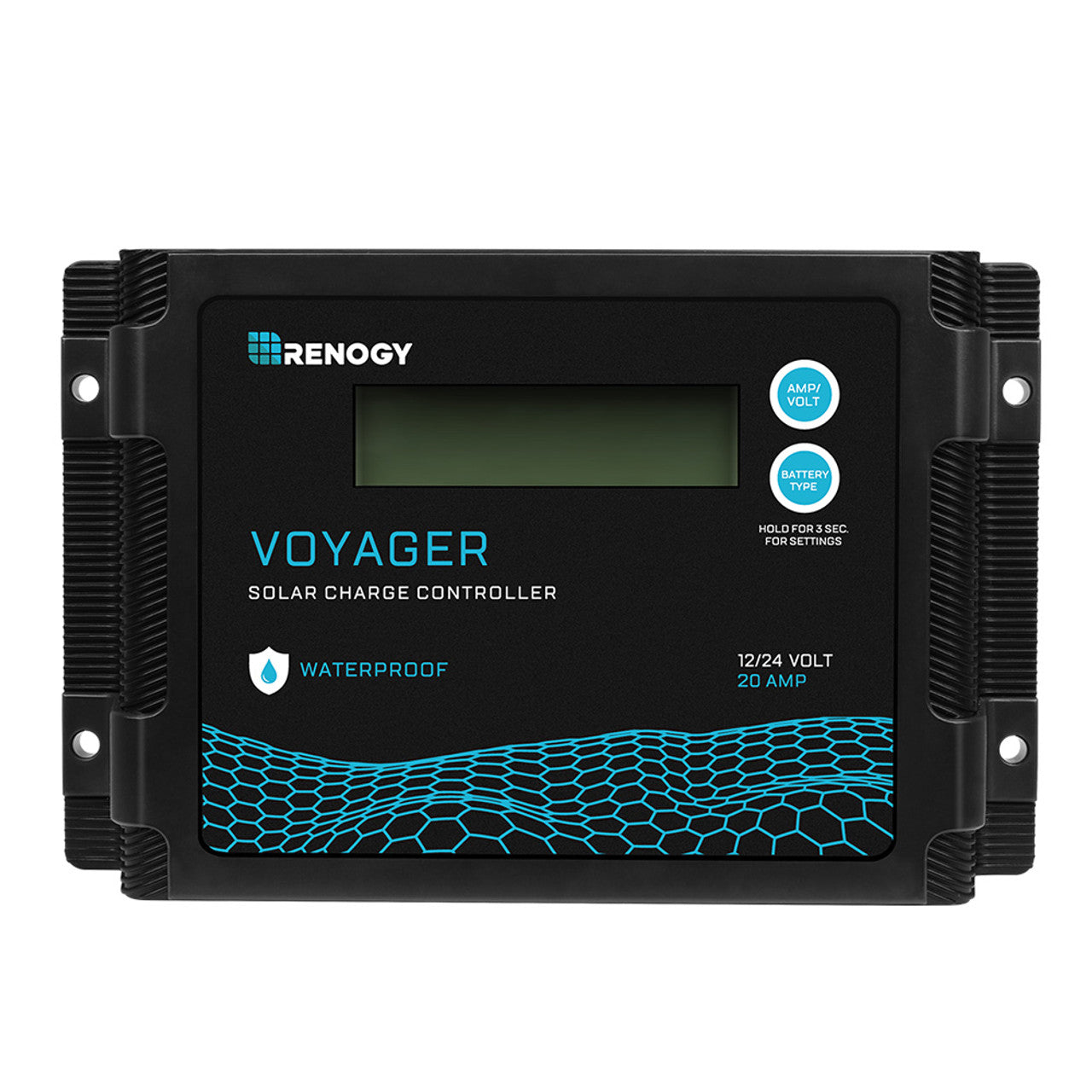

The IP67-rated Voyager 20A is a top-of-the-line 20-amp charge controller. Durable enough for outdoor use, it can withstand water spray, rain, and condensation. Utilizing advanced PWM technology, it caters to 12V and 24V off-grid systems and accommodates 4 battery types, including Lithium Iron Phosphate. Additionally, the Voyager 20A offers extensive protection for solar panels, batteries, and controllers, ensuring the longevity of your system.

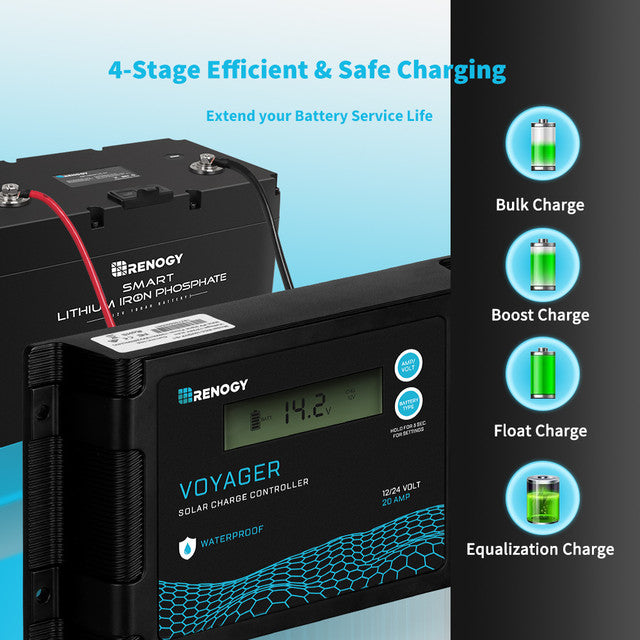

4-STAGE PWM Technology
- The Voyager controller is equipped with advanced smart PWM technology with high charging efficiency. It provides 4-stage charging (Bulk, Absorption, Float and Equalization) in order to protect the battery.
IP67 Rated Waterproof
- With an IP67 rated waterproof design, the Voyager controller is suitable for outdoor use and will remain fully operational when exposed to water spray, rain, or condensation.
Multiple Protections
- The Voyager controller has multiple intelligent protections against reverse polarity, over charge, short-circuit, reverse current, overload, and over discharge, keeping your battery fully protected.

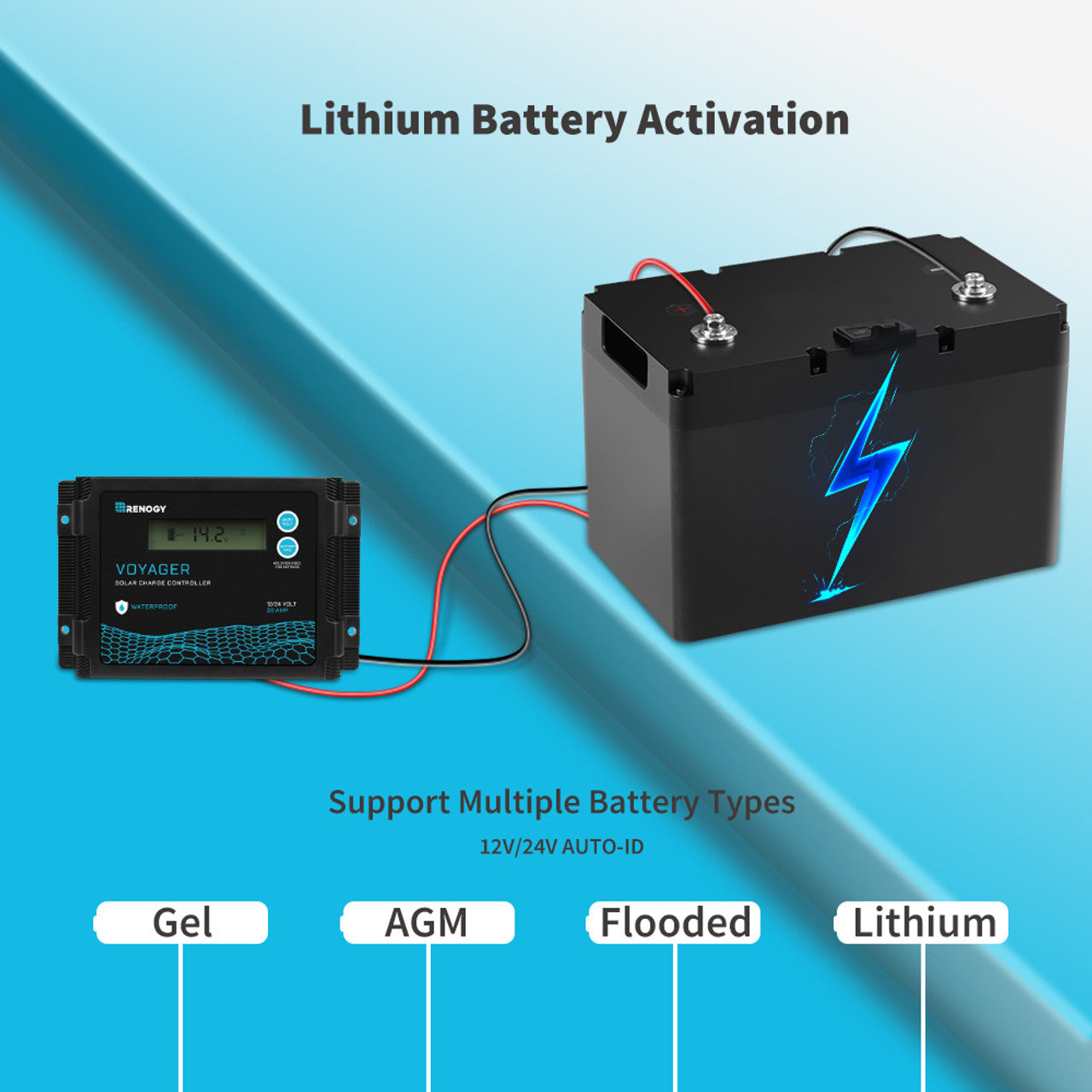

Support Multiple Battery Types
- The Voyager controller can automatically sense 12V or 24V system voltage when paired with a Gel, AGM, or Flooded batteries. It also comes with a Lithium activation feature.

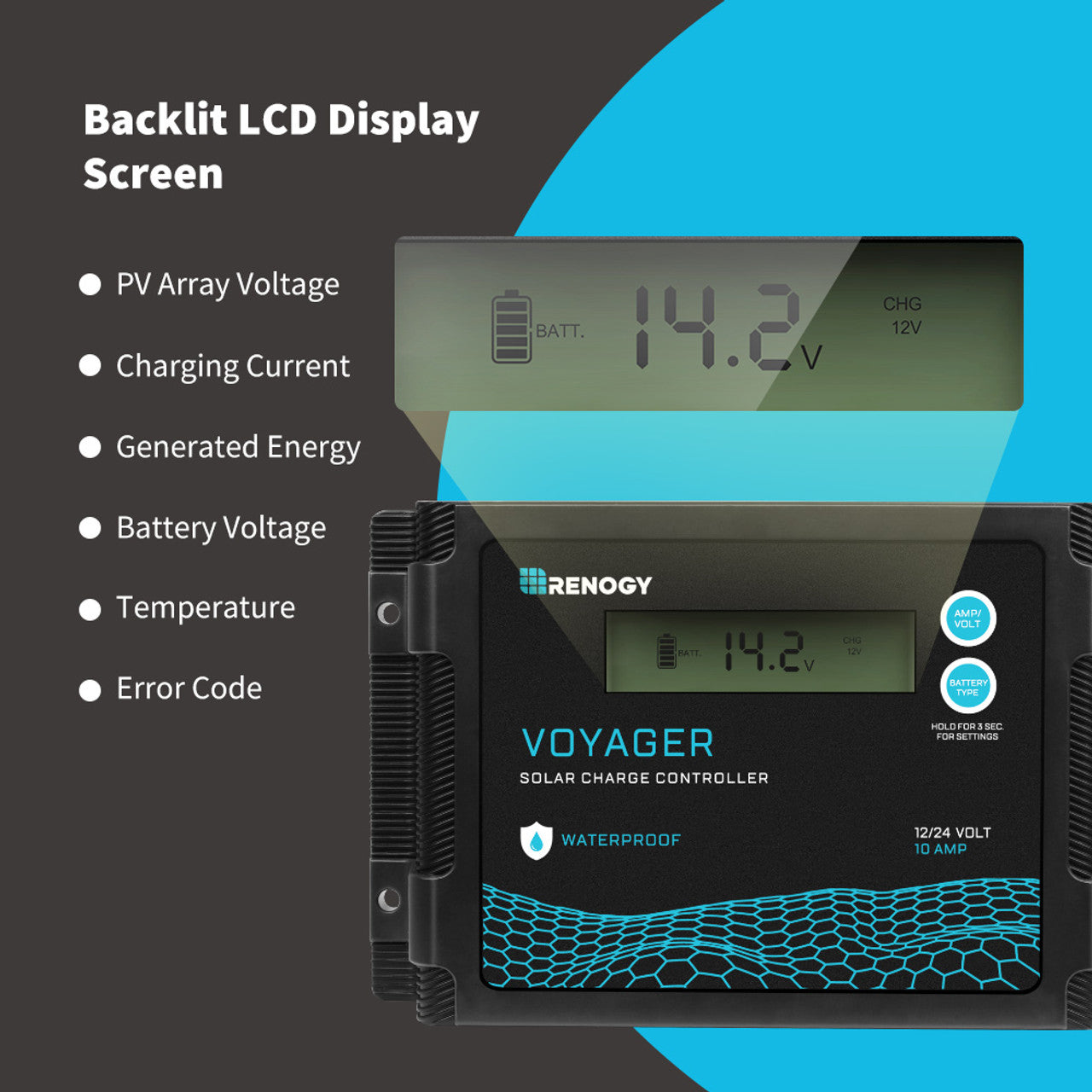

Backlit LCD displaying system
- The Voyager comes with an LCD display showing accurate and timely information including charging current, generated energy, temperature, battery voltage, and error codes that allows users to monitor and control charging.
Specifications
| Nominal System Voltage: 12/24V Auto-Detect |
Power Consumption: 12V @ 0.24W / 24V@0.74W |
| Rated Charge Current: 20A |
Max Battery Voltage: 32V |
| PV Input Voltage Range: 15V-55V |
Ground Type: Positive |
| Max. Pv Open Circuit Voltage: 12V@25V 24V@55V |
Communication Port: N/A |
| Max. PV Input Power : 12V @ 260W / 24V@520W |
Battery Types: SLD/AGM, GEL, FLD. LI |
Electrical Protection: Battery/Controller over-temperature protection,
PV/Battery reverse polarity, Over-voltage, Over-current protection |
