Description

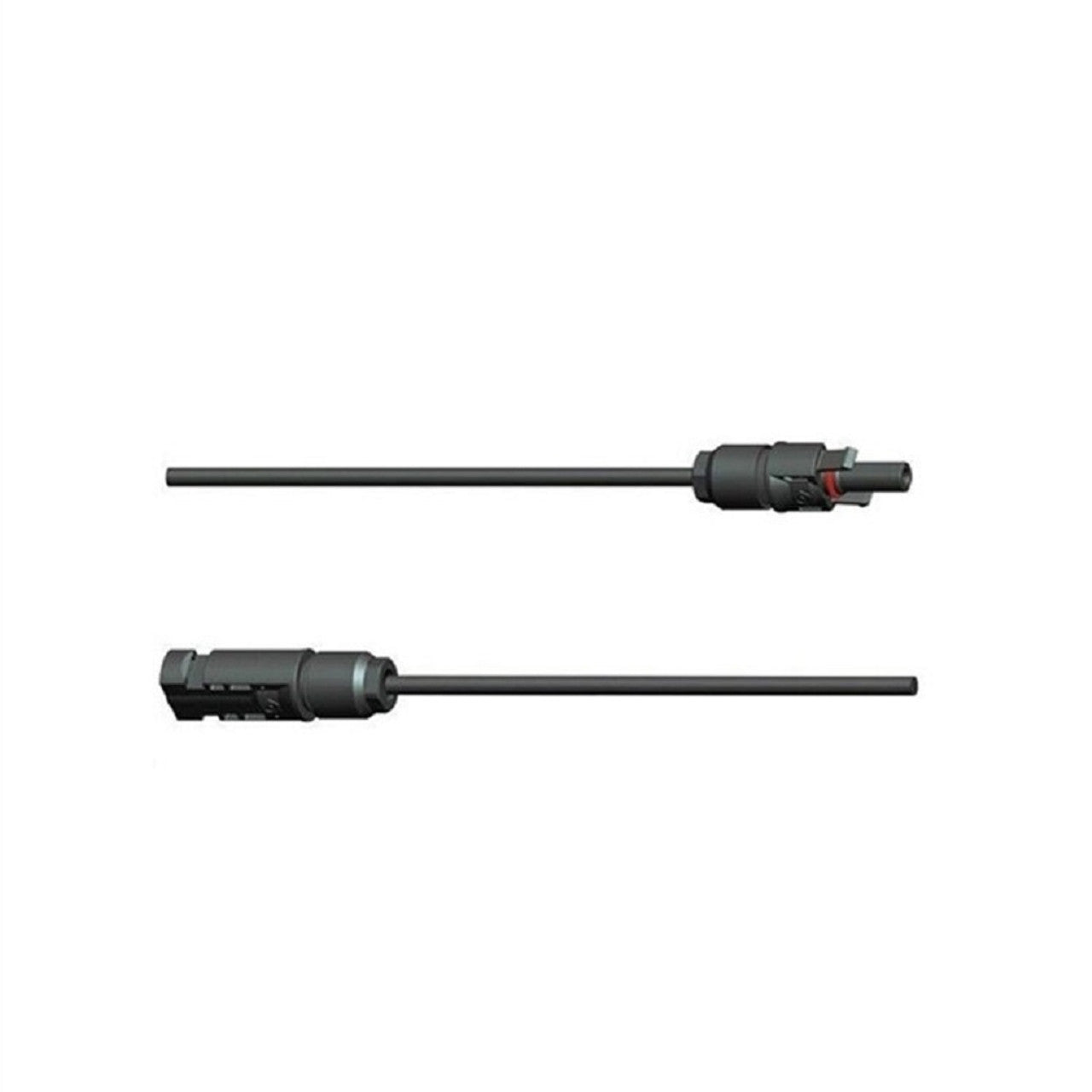

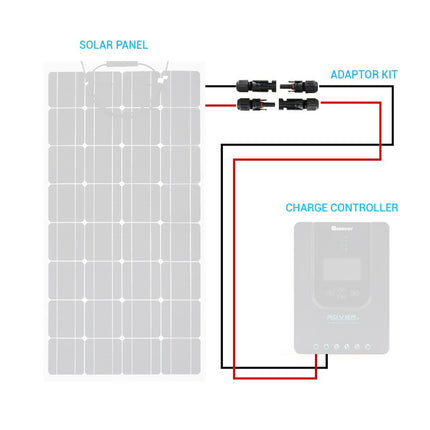

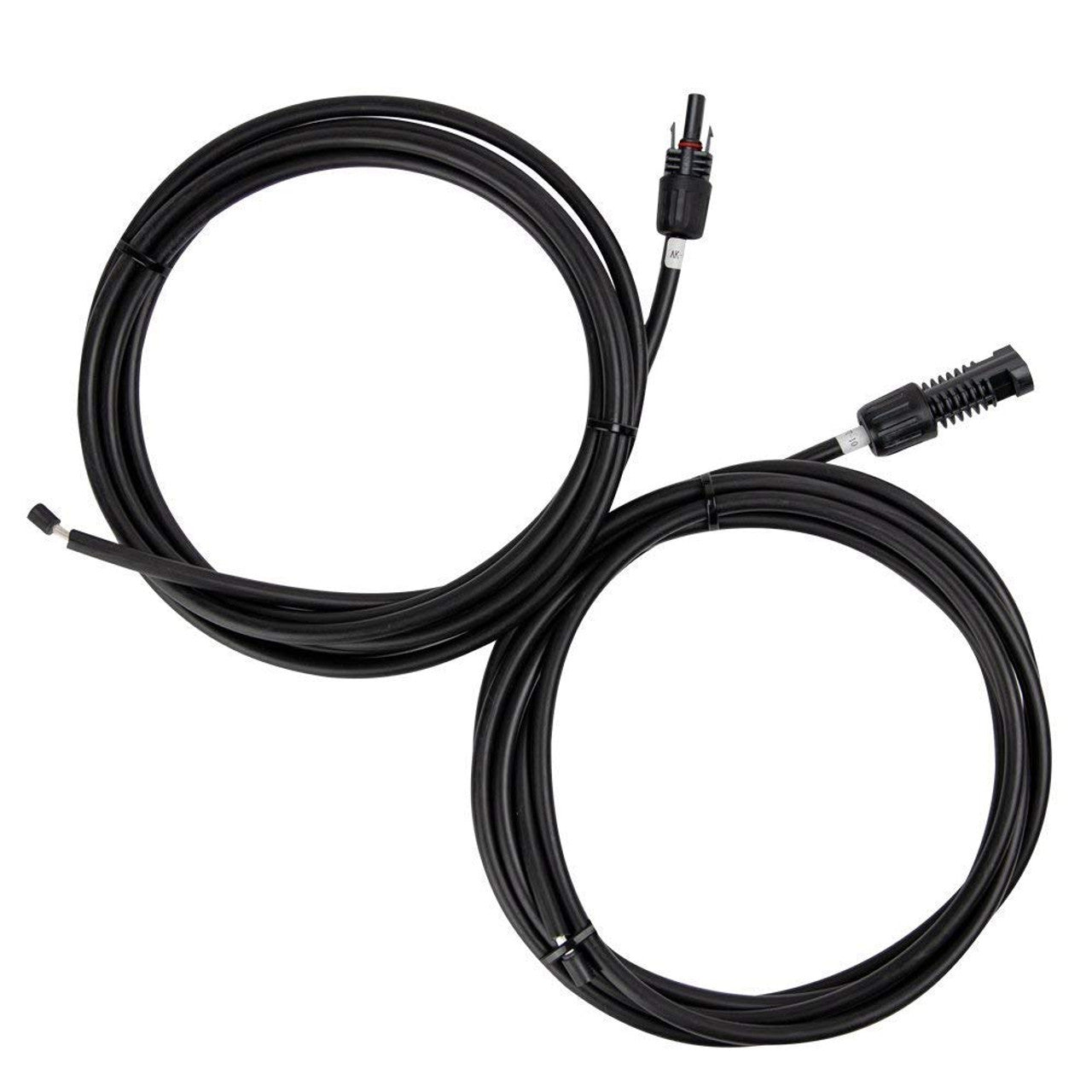

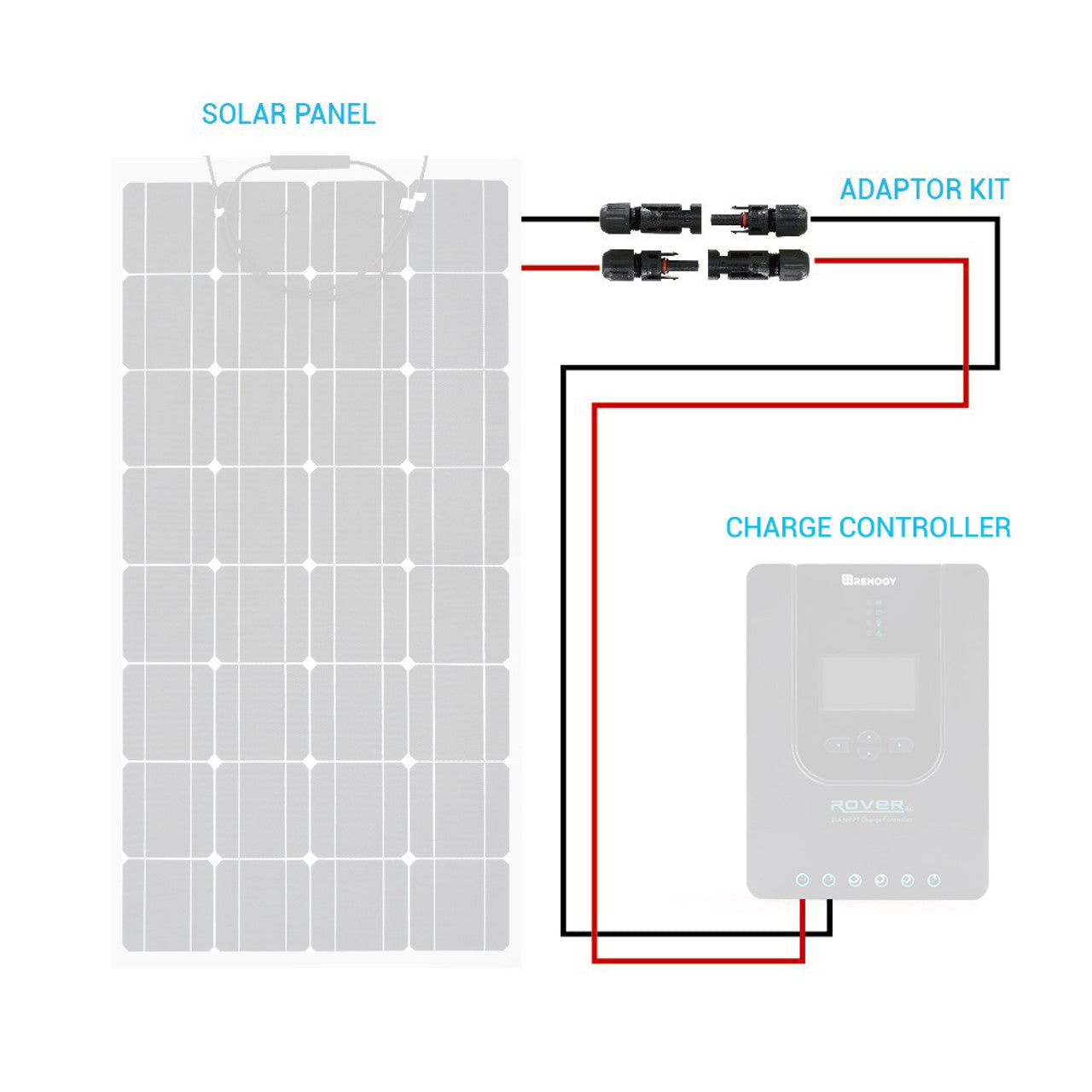

The Renogy Adaptor Kit consists of two specialized wires intended for linking a Renogy solar panel to a charge controller.

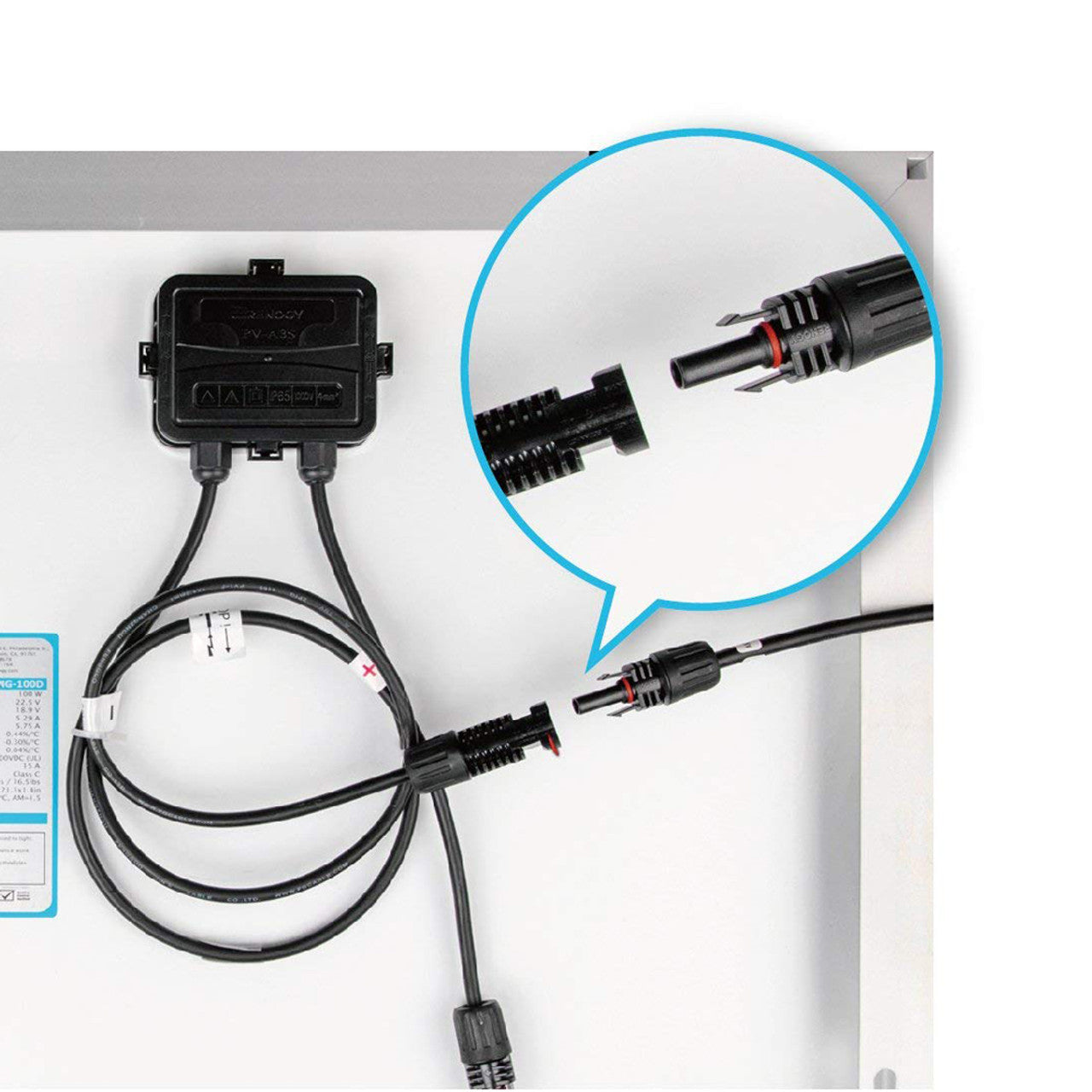

This kit includes solar connectors on one end for effortless connection to the panel, and exposed wire on the other end for direct connection to the controller. It is an essential component for off-grid solar systems, whether installed on a rooftop or at ground level, and is available in multiple sizes. The wiring is designed to withstand harsh weather conditions and extreme temperatures. This wiring kit is compatible with Renogy Off-Grid Kits ranging from 100W to 400W.
Renogy offers a variety of lengths and two different gauge sizes for customized use. The 10ft 10AWG Adaptor Kit allows for a 10-foot distance between the solar panel and charge controller.
Key Features

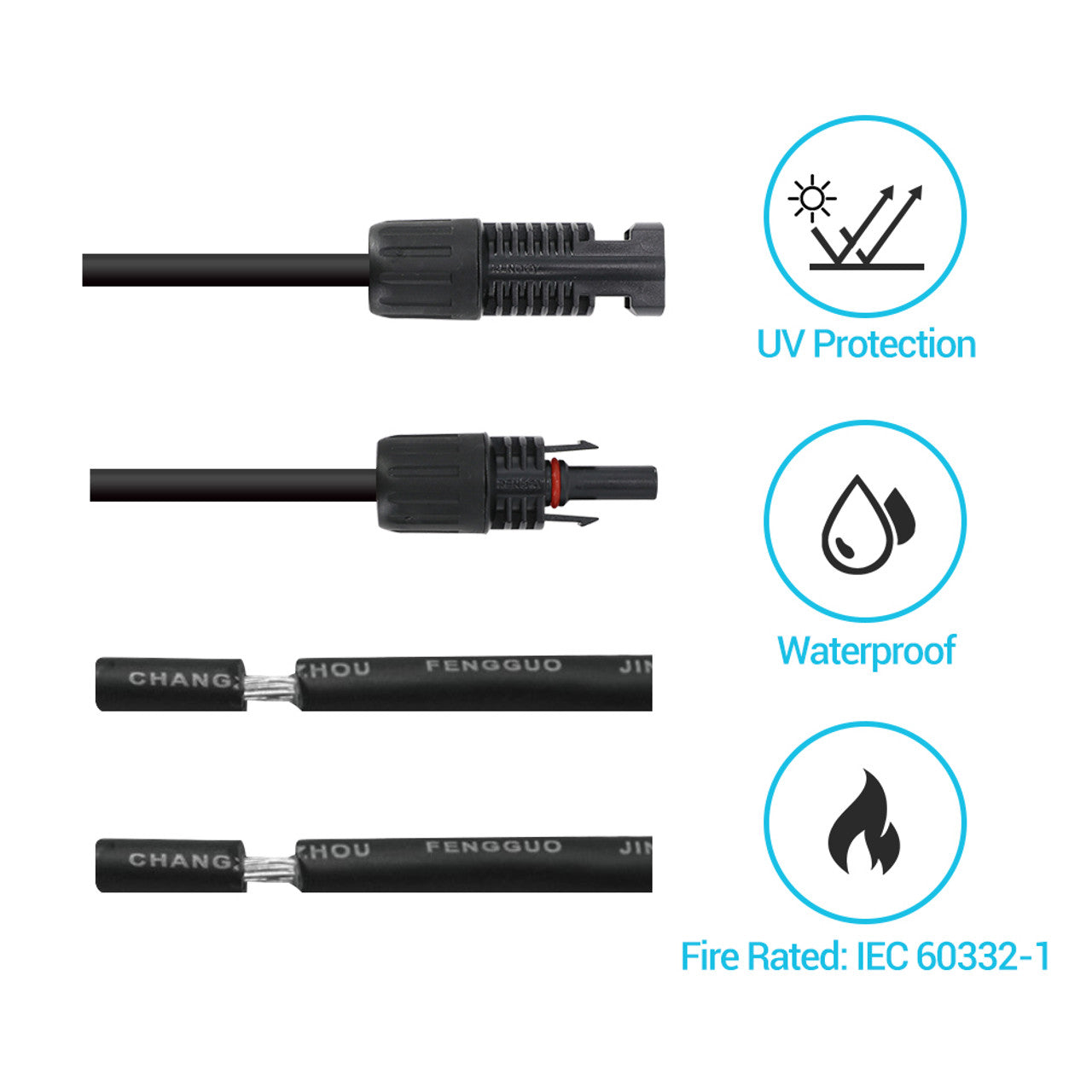

- Hard plastic connectors at each end.
- Female and male connectors for an unbreakable connection.
- Weatherproof, insullated wiring.

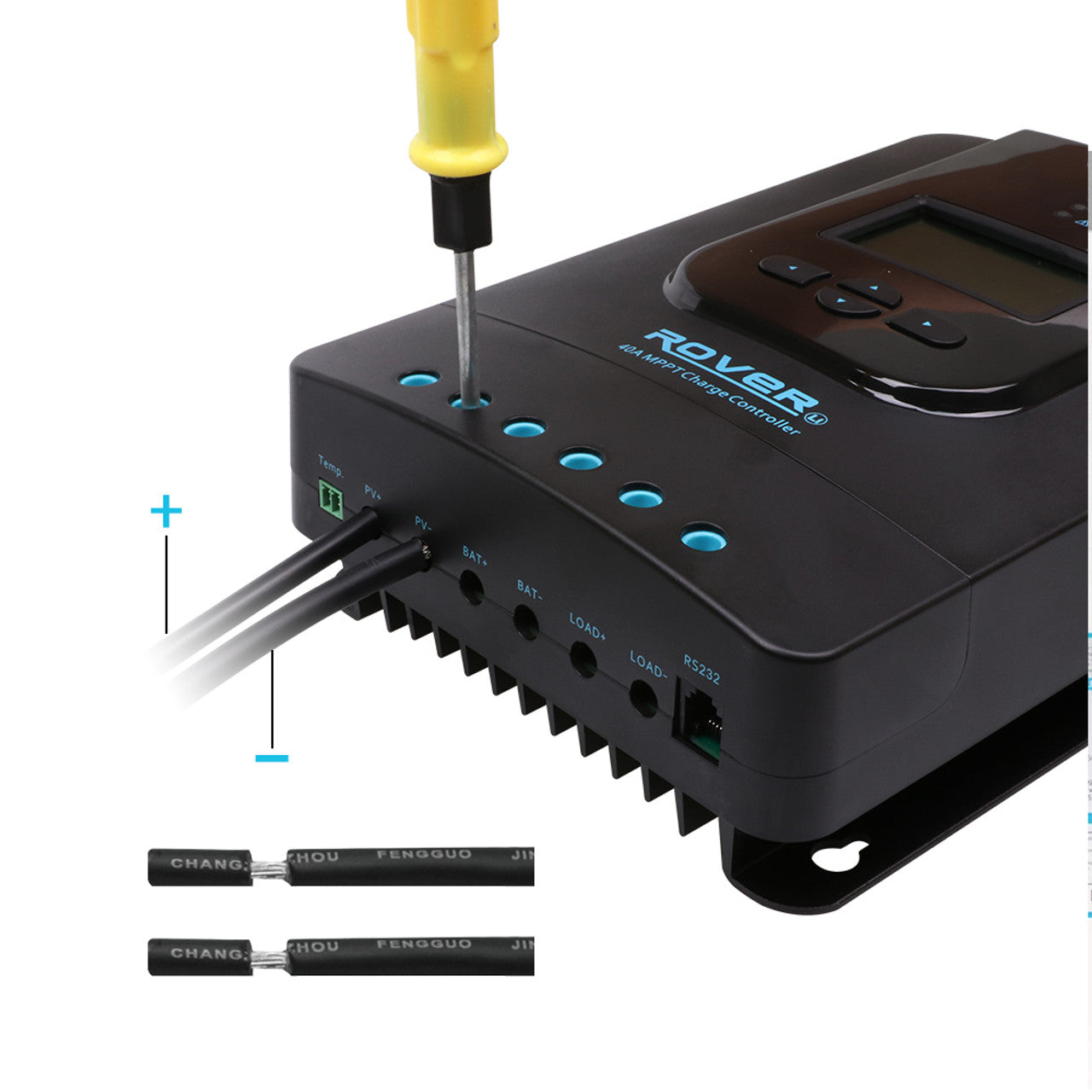

- Exposed ends for connection to the solar charge controller.
- Essential for off-grid solar power system setup.
- Black sunlight resistant cable.
- Extends and locks built-in cables.
Package Includes
|
Renogy Solar Adaptor Kit
1 x
|
Specification

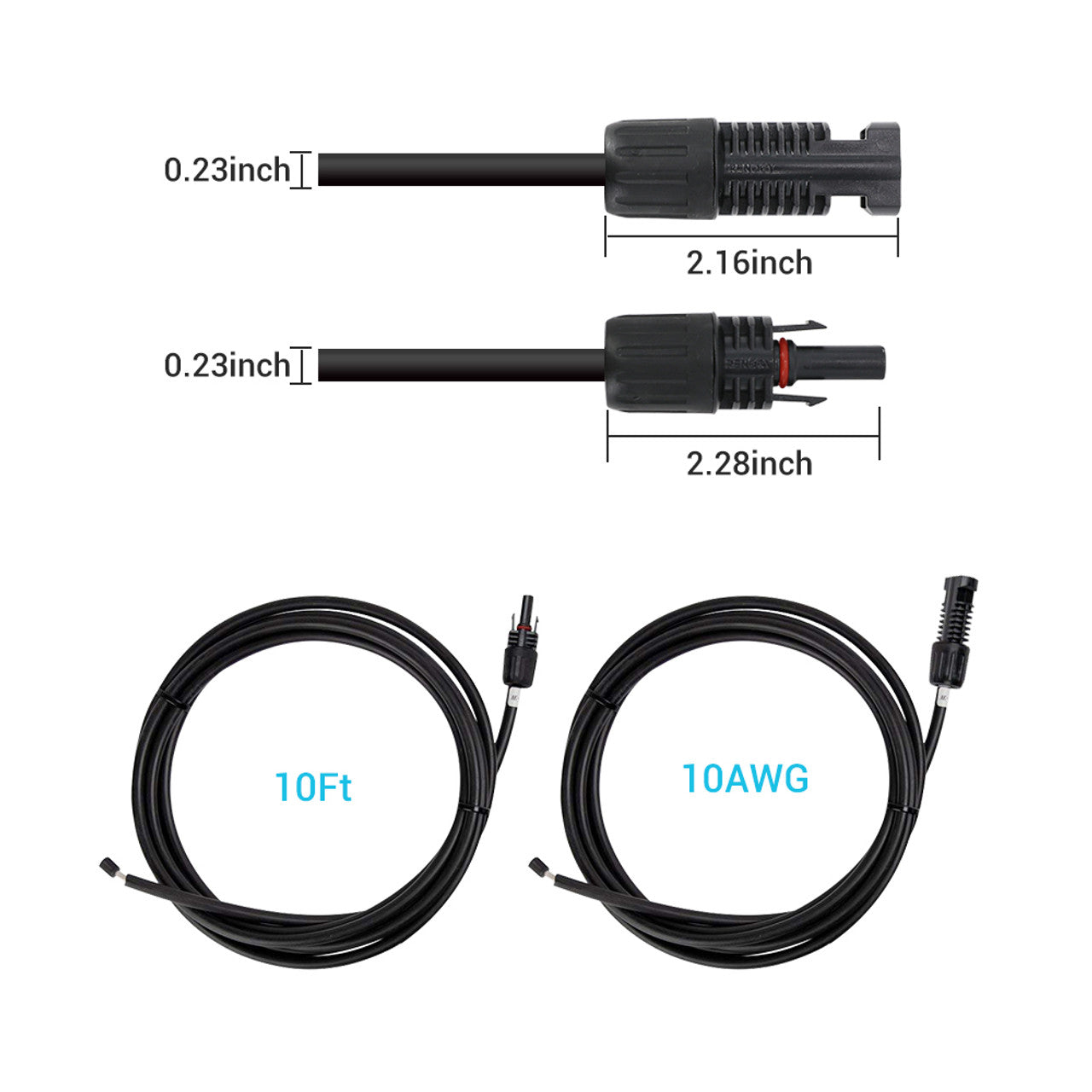

| Renogy 10ft 10AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair) |
|
| Length: 10ft |
AWG: 10 |
| Rating Voltage: 600/1000V |
Temperature: -40°F to +185°F |
| Normal Cross Sectional Area of the Conductor (mm2): 6.0 |
Diameter of Wires in Conductor (mm): 3.02±0.08 |
| Min. Wall Thickness of Insulation (mm): 0.85 |
Min. Wall Thickness of Sheath (mm): 1.08 |
| Number of Wires in Conductor: 84 |
IP 65 Protection |
| Conductor: Tinned copper wire |
|
Warranty Information
| Accessories |
1-year material warranty |
