Description

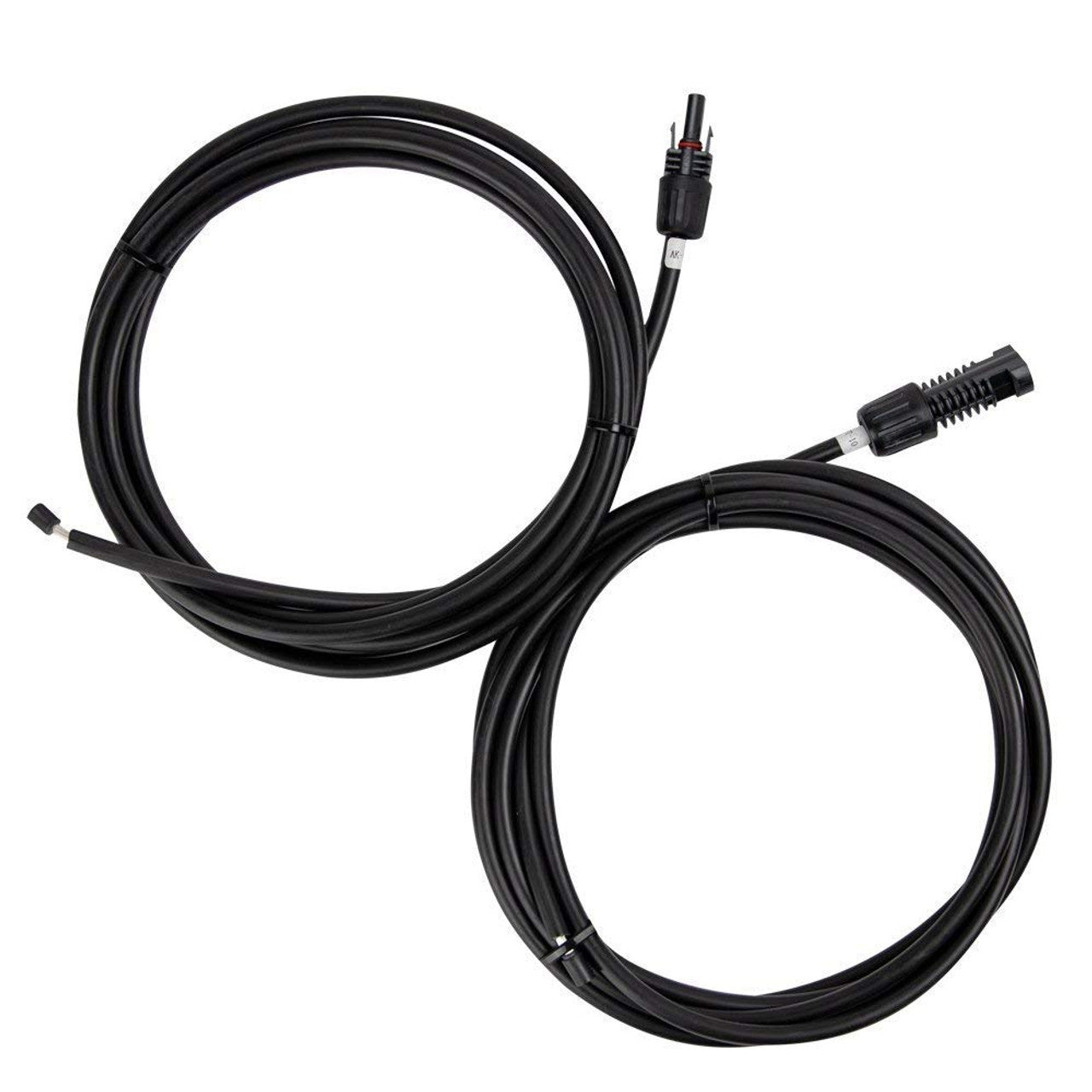

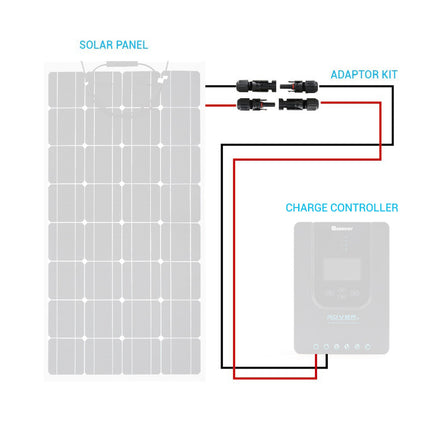

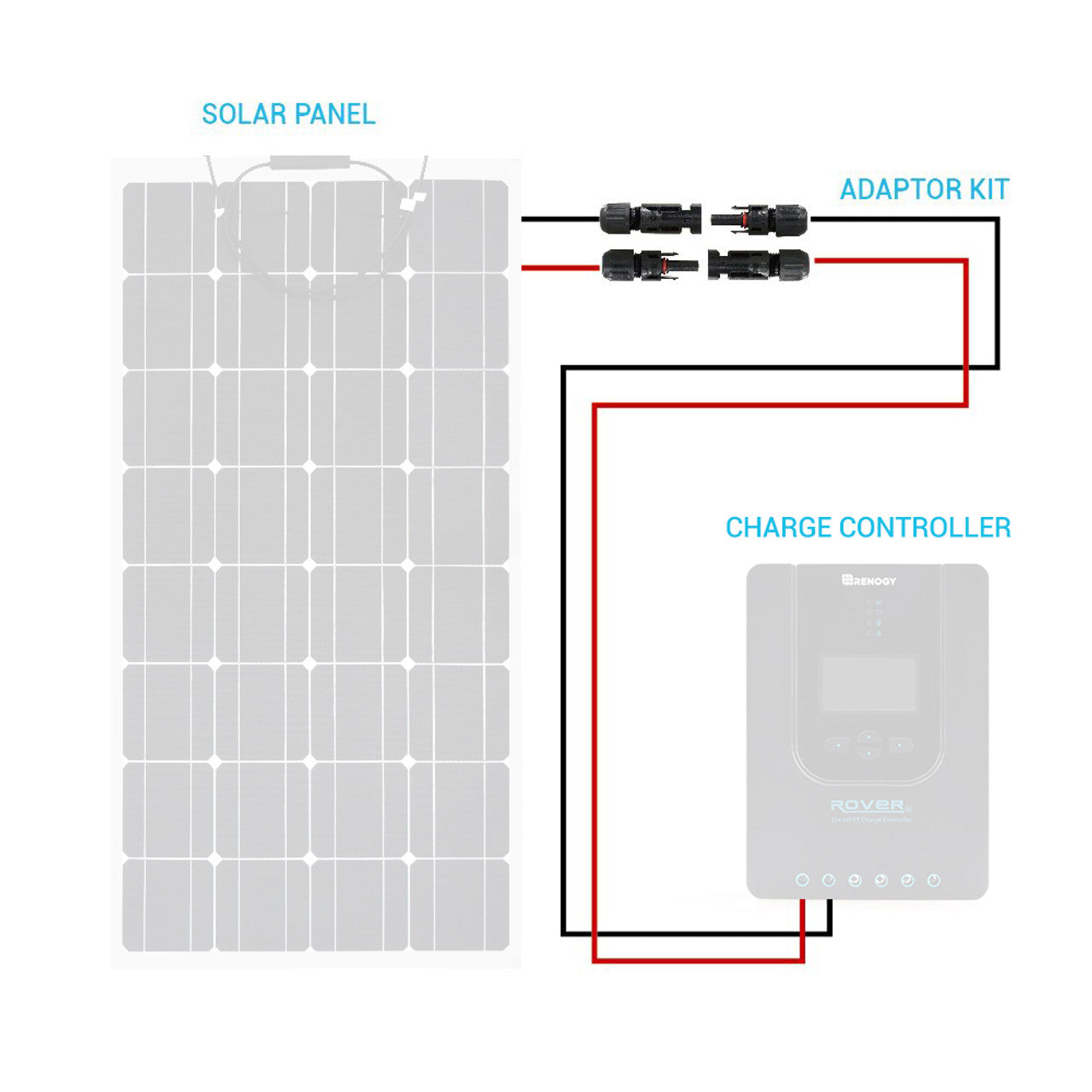

The Renogy Adaptor Kit is a set of two wires specifically designed for connecting a Renogy solar panel to a charge controller.

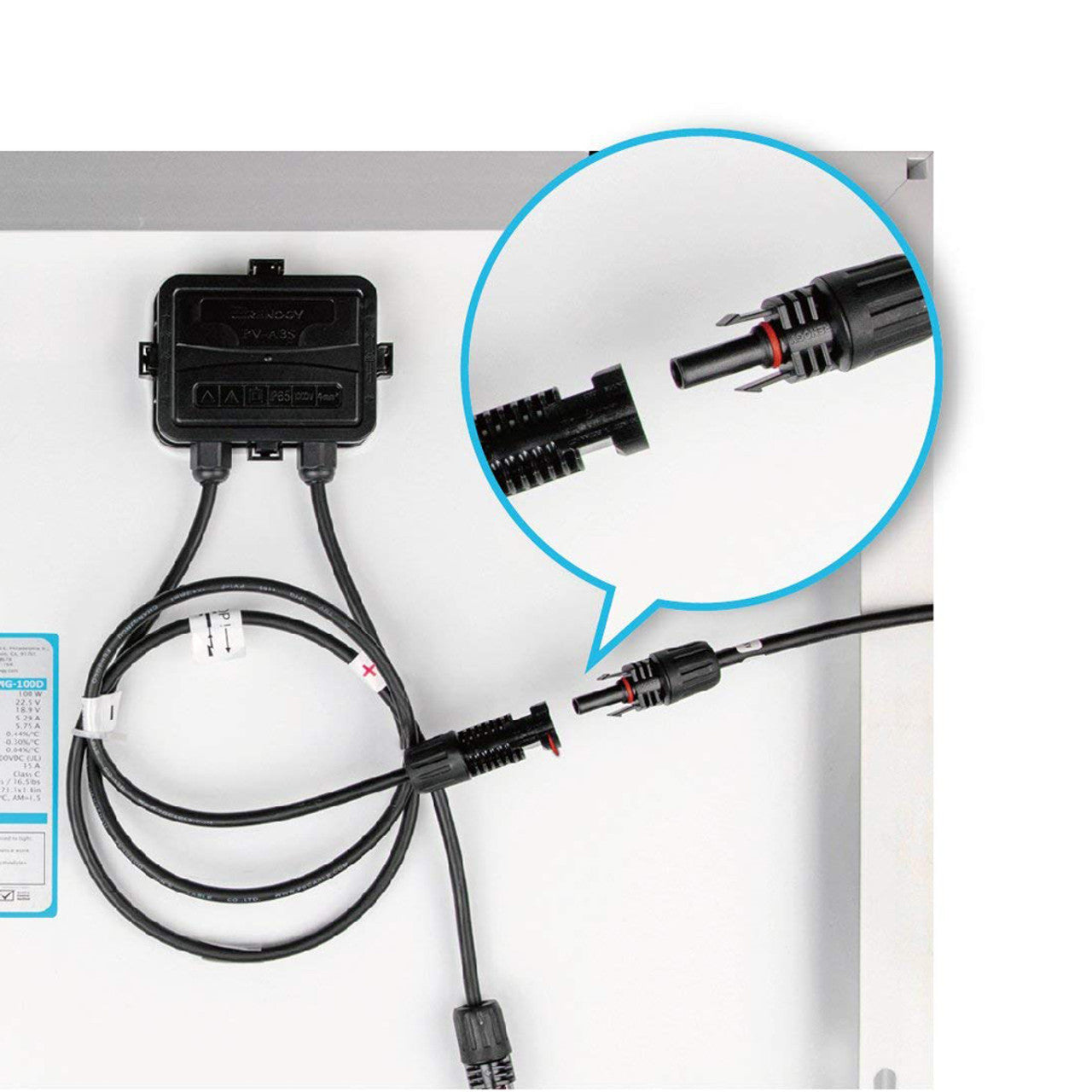

This kit features solar connectors on one end for easy connection to the panel, and exposed wire on the other end for direct connection to the controller. It is a necessary component for off-grid solar setups, whether on a roof or at ground level, and comes in various sizes. The wiring is weather-resistant and built to withstand extreme temperatures. This wiring kit is suitable for Renogy Off-Grid Kits from 100W to 400W.
Renogy offers a variety of lengths and two different gauge sizes for customized use. The 10ft 12AWG Adaptor Kit allows for a 10-foot distance between the solar panel and charge controller.
Key Features

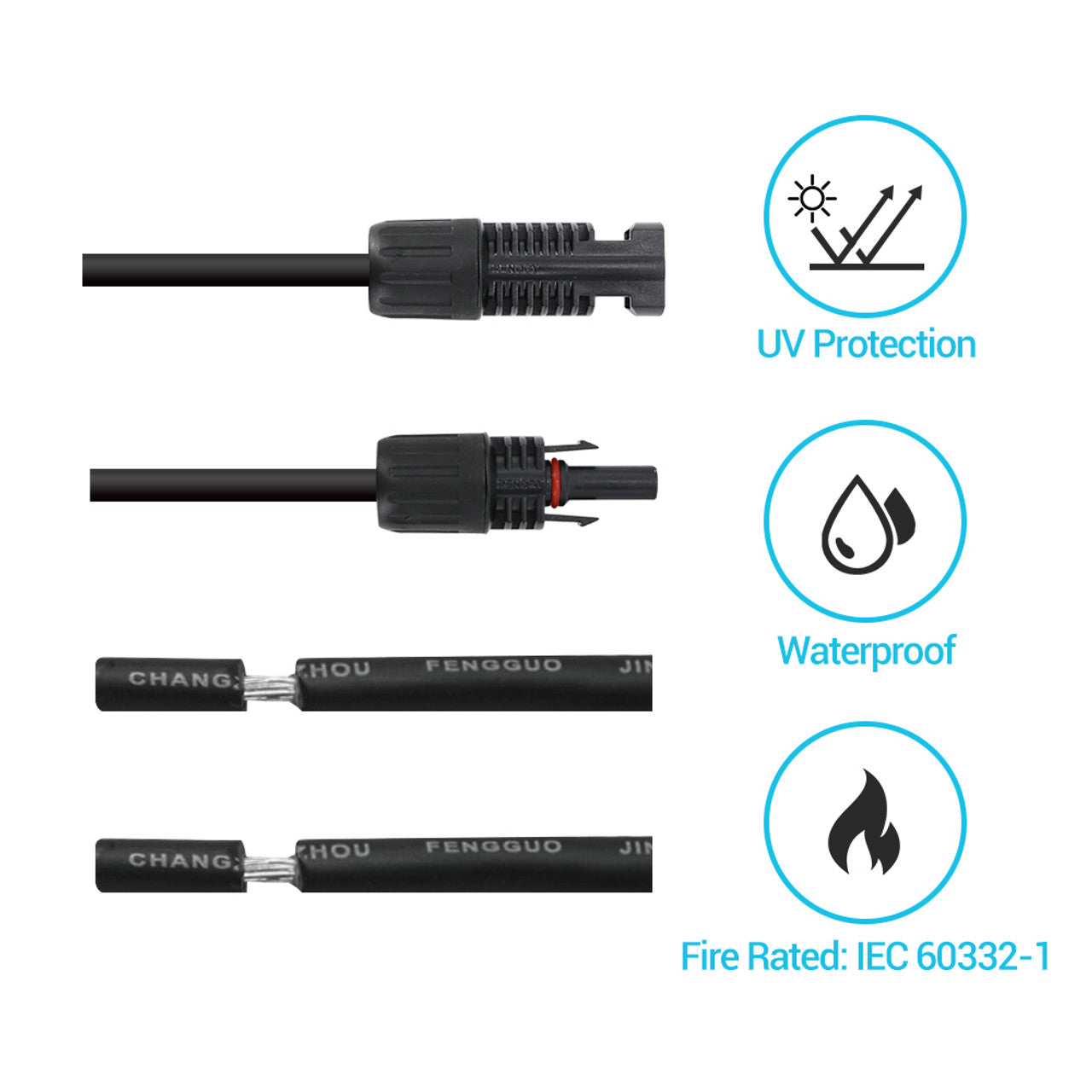

- Hard plastic connectors at each end.

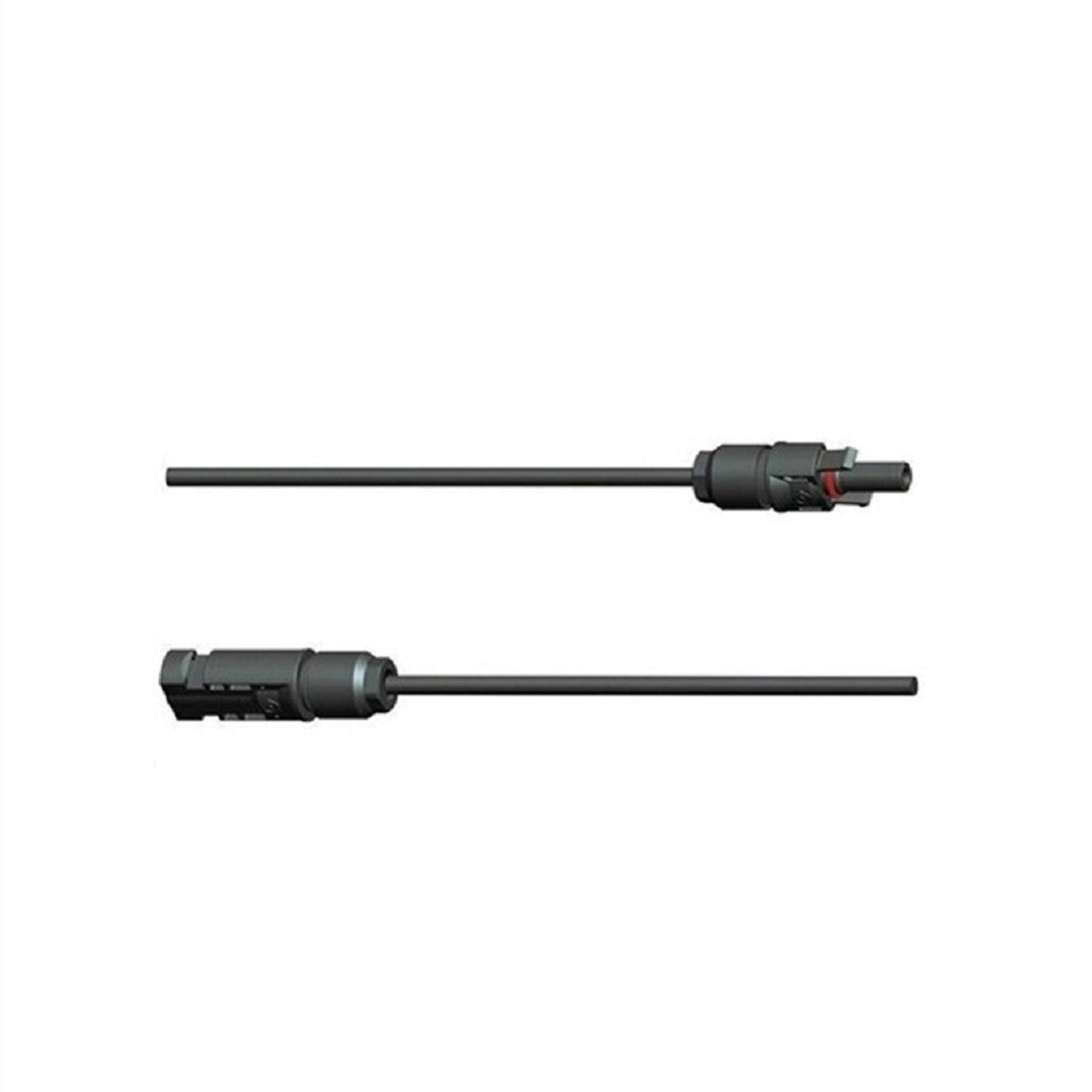

- Female and male connectors for an unbreakable connection.
- Weatherproof, insullated wiring.

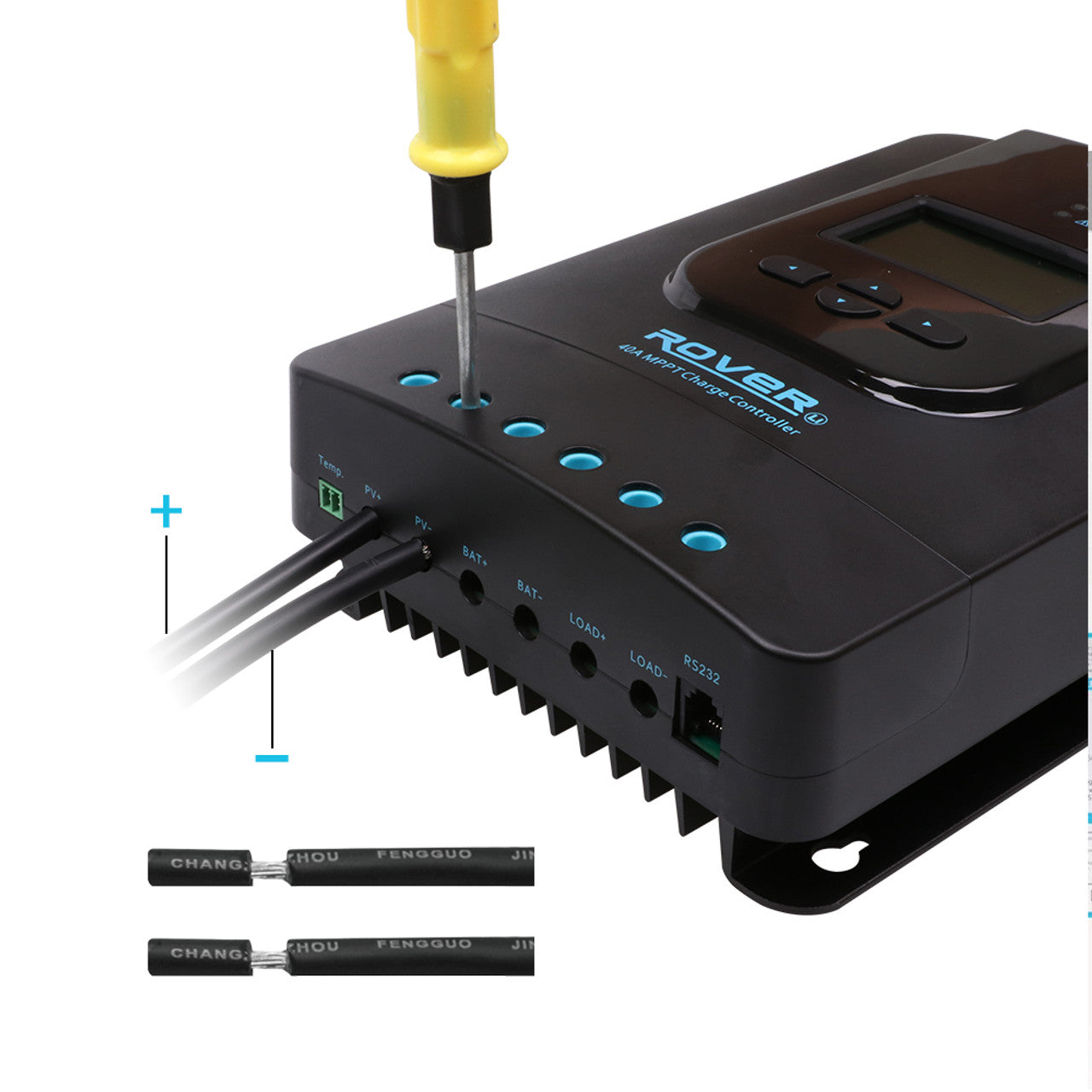

- Exposed ends for connection to the solar charge controller.
- Essential for off-grid solar power system setup.
- Black sunlight resistant cable.
- Extends and locks built-in cables.
Package Includes
|
Renogy Solar Adaptor Kit
1 x
|
Specification

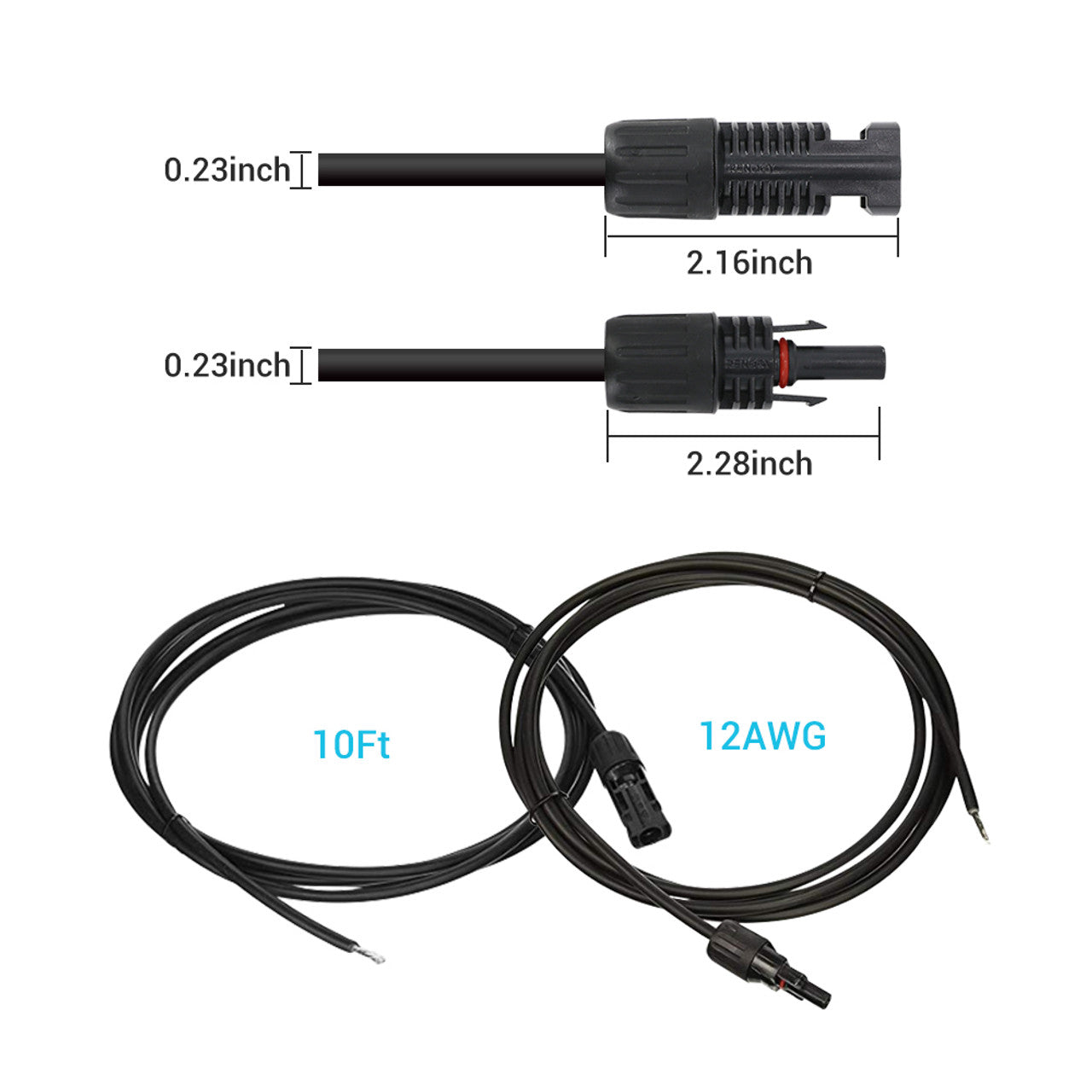

| Renogy 10ft 12AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair) |
|
| Length: 10ft |
AWG: 12 |
| Rating Voltage: 600/1000V |
Temperature: -40°F to +185°F |
| Normal Cross Sectional Area of the Conductor (mm2): 4.0 |
Diameter of Wires in Conductor (mm): 3.02±0.08 |
| Min. Wall Thickness of Insulation (mm): 0.78 |
Min. Wall Thickness of Sheath (mm): 0.97 |
| Number of Wires in Conductor: 56 |
IP 65 Protection |
| Conductor: Tinned copper wire |
|
Warranty Information
| Accessories |
1-year material warranty |
