Description

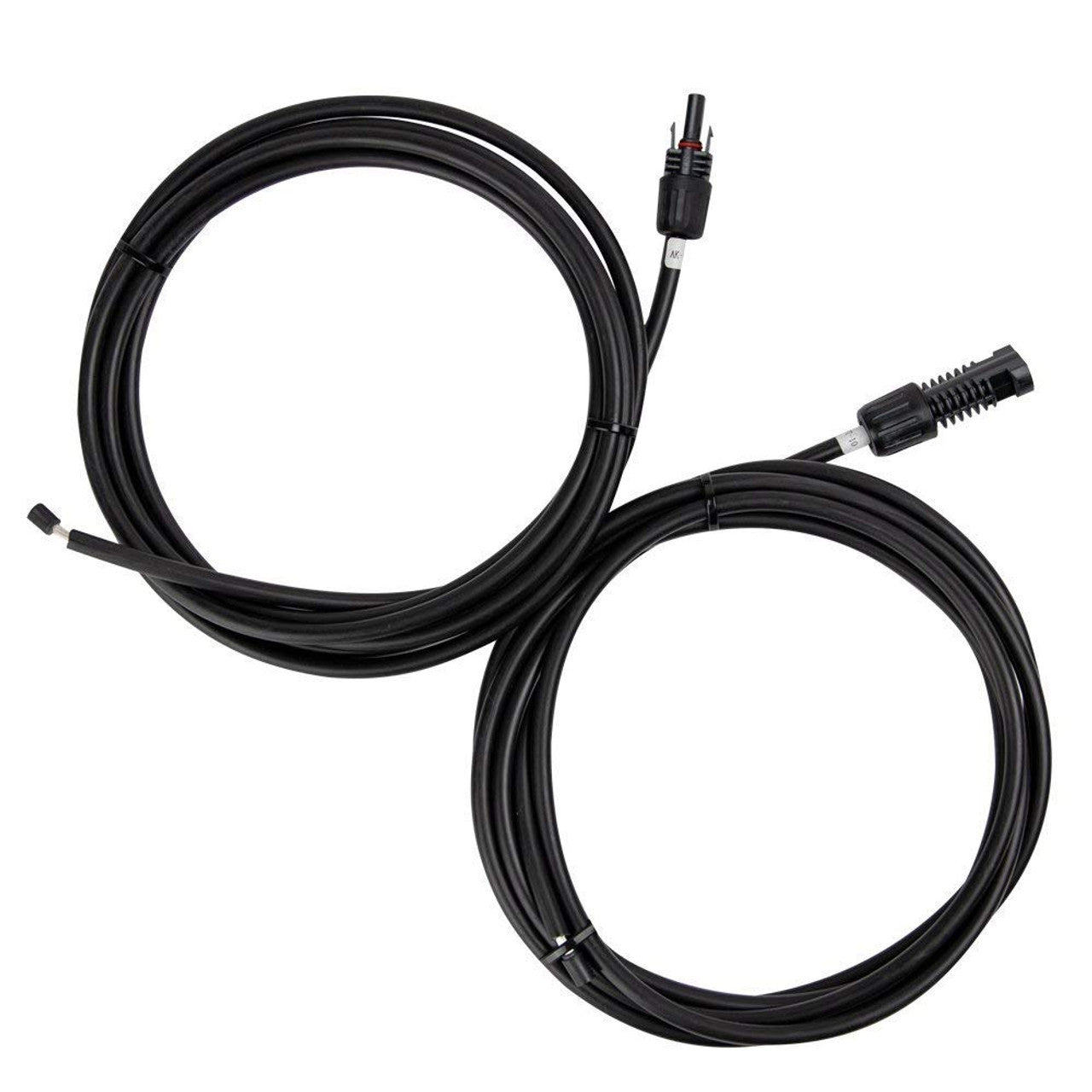

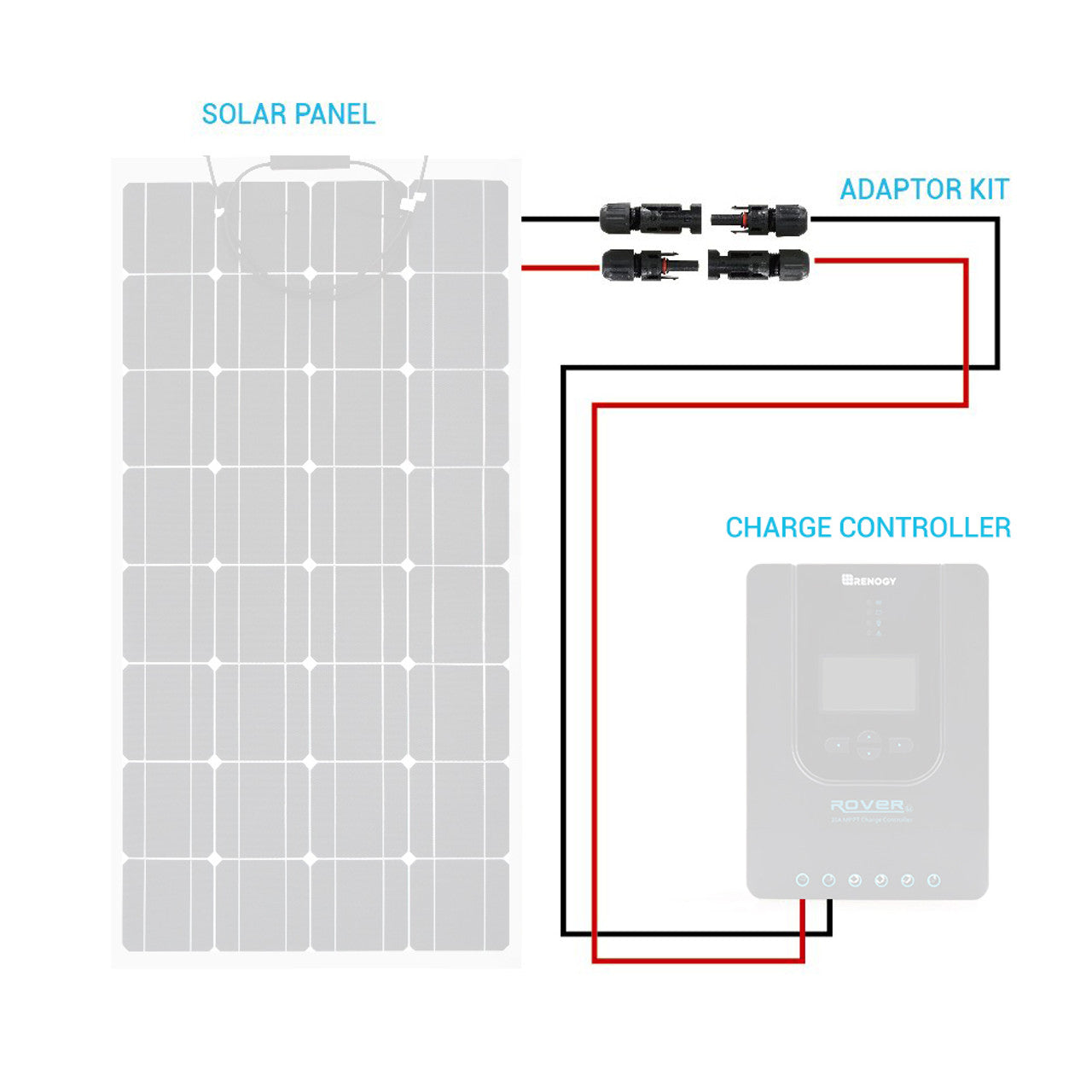

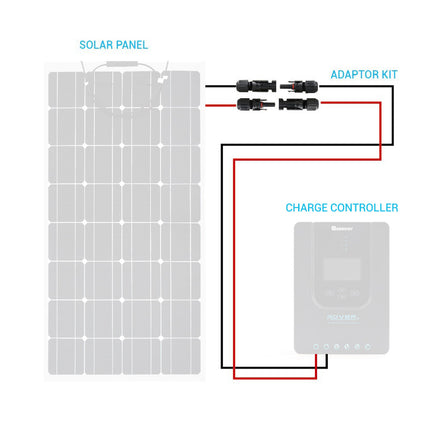

The Renogy Solar Panel to Charge Controller Adaptor Kit 20 Ft 10 AWG includes two specialized wires, making it easy to link a Renogy solar panel to a charge controller.

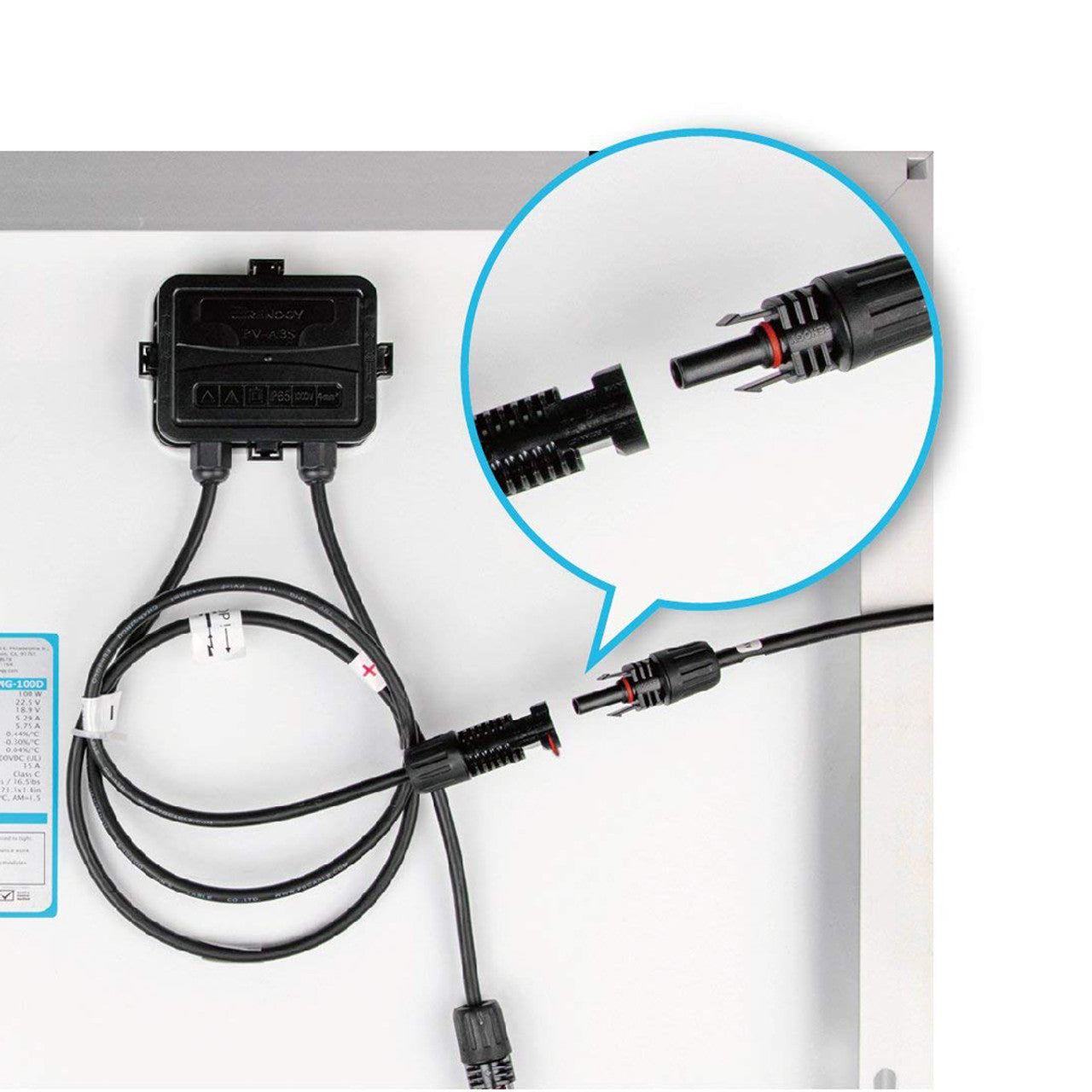

On one end, the kit features solar connectors for effortless panel connection, and on the other end, exposed wire for direct controller connection. Ideal for off-grid solar systems, this kit is suitable for both rooftop and ground-level installations and comes in various sizes. The wiring is built to withstand harsh weather and extreme temperatures, while the kit is compatible with Renogy's Off-Grid Kits ranging from 100W to 400W.
Renogy offers a range of lengths and two gauge sizes for customized use. With the 20ft 10AWG Adaptor Kit, the solar panel and charge controller can be placed up to 10 feet apart.
Key Features

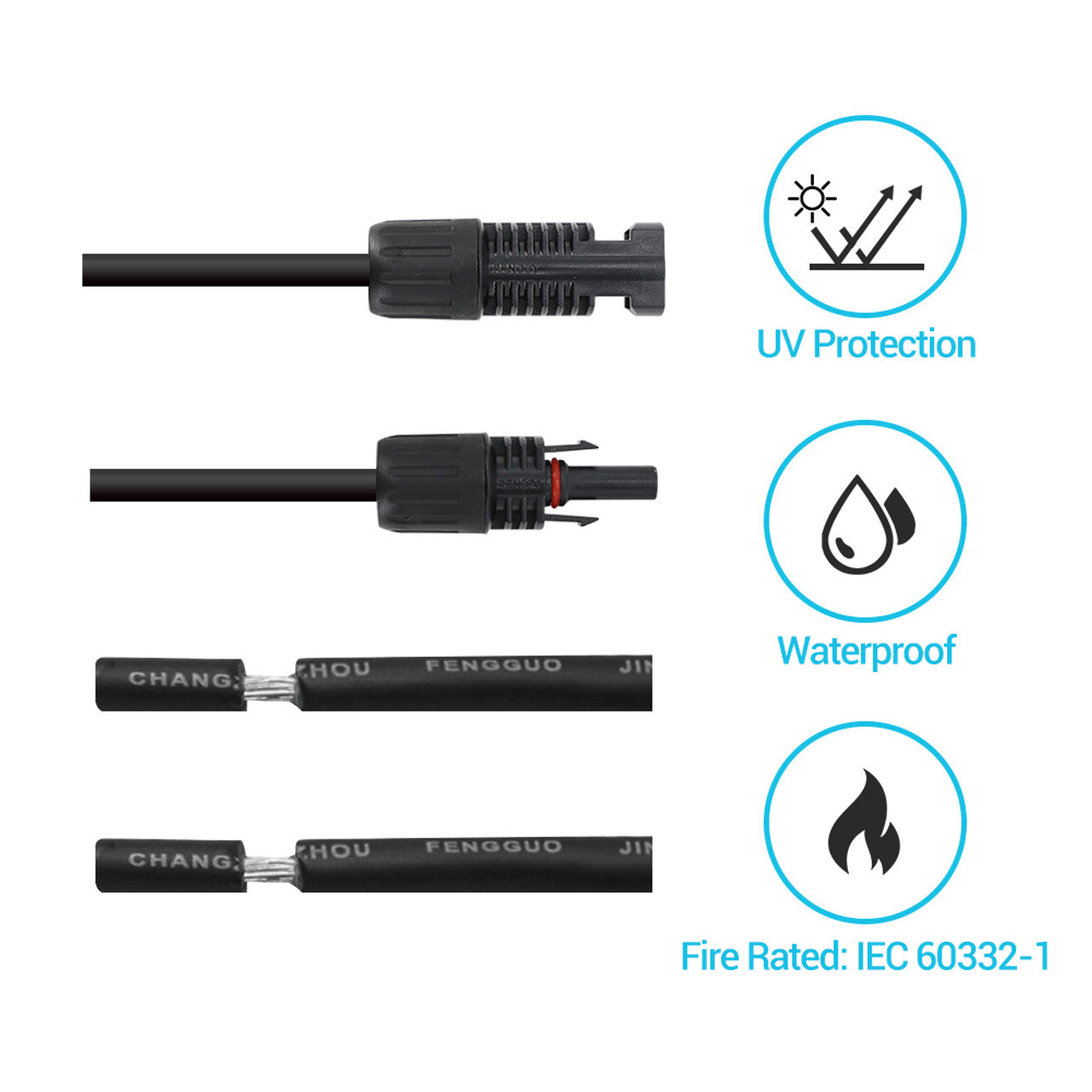

- Hard plastic connectors at each end.

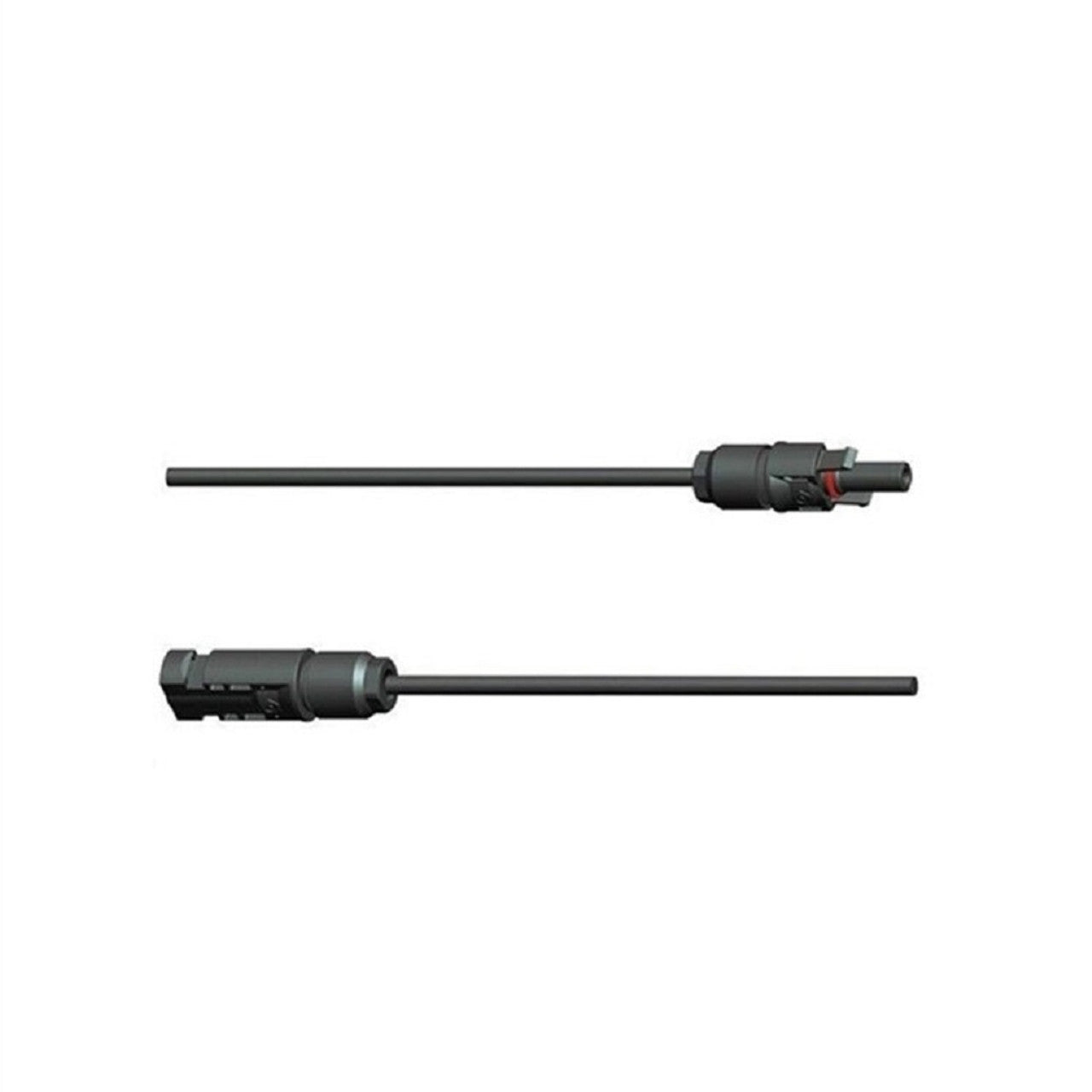

- Female and male connectors for an unbreakable connection.
- Weatherproof, insullated wiring.

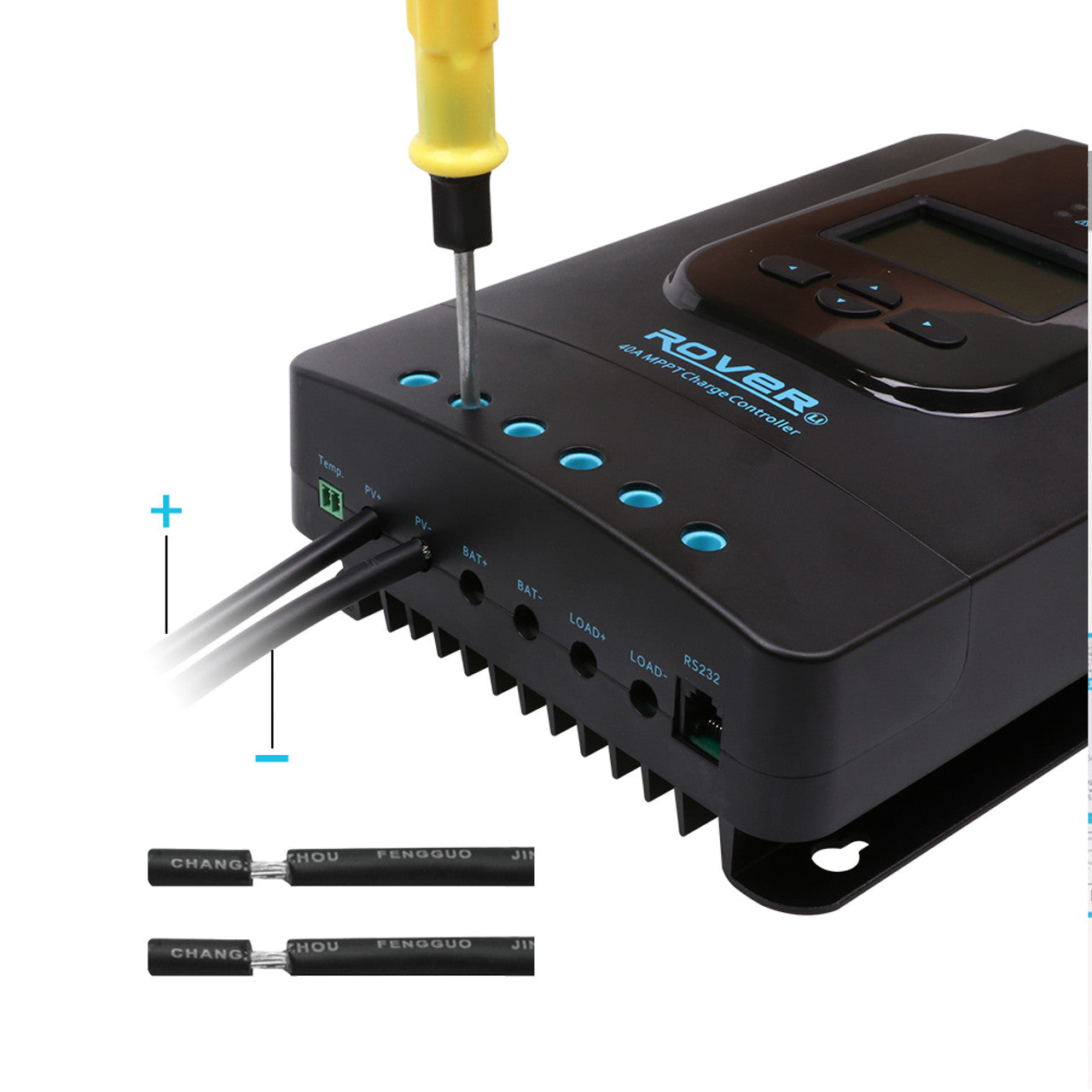

- Exposed ends for connection to the solar charge controller.
- Essential for off-grid solar power system setup.
- Black sunlight resistant cable.
- Extends and locks built-in cables.
Package Includes
|
Renogy Solar Adaptor Kit
1 x
|
Specification
| Renogy 20ft 10AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair) |
|
| Length: 20ft |
AWG: 10 |
| Rating Voltage: 600/1000V |
Temperature: -40°F to +185°F |
| Normal Cross Sectional Area of the Conductor (mm2): 6.0 |
Diameter of Wires in Conductor (mm): 3.02±0.08 |
| Min. Wall Thickness of Insulation (mm): 0.85 |
Min. Wall Thickness of Sheath (mm): 1.08 |
| Number of Wires in Conductor: 84 |
IP 65 Protection |
| Conductor: Tinned copper wire |
|
Warranty Information
| Accessories |
1-year material warranty |
