Description

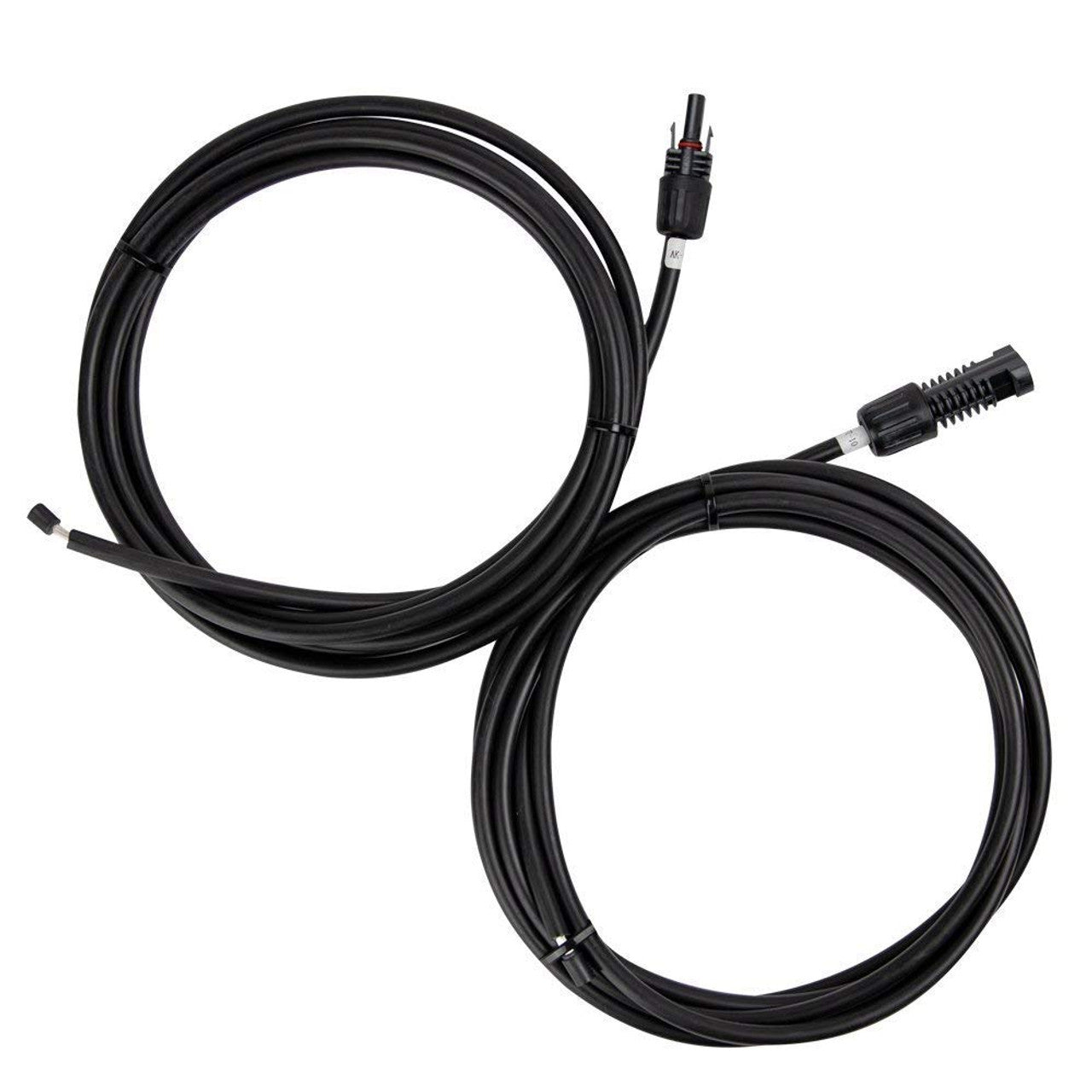

The Renogy Solar Panel to Charge Controller Adaptor Kit includes two specialized wires, allowing for easy connection between a Renogy solar panel and charge controller.
One end features solar connectors, while the other has exposed wire for direct controller connection. This kit is suitable for both rooftop and ground-level installations and comes in various sizes, making it ideal for off-grid solar systems. The wiring is designed to withstand extreme weather and temperatures, and it is compatible with Renogy's Off-Grid Kits ranging from 100W to 400W.
Renogy offers a range of lengths and gauge sizes, allowing for customized use. With the 30ft 10AWG Adaptor Kit, the solar panel and charge controller can be placed up to 30 feet apart.
Key Features

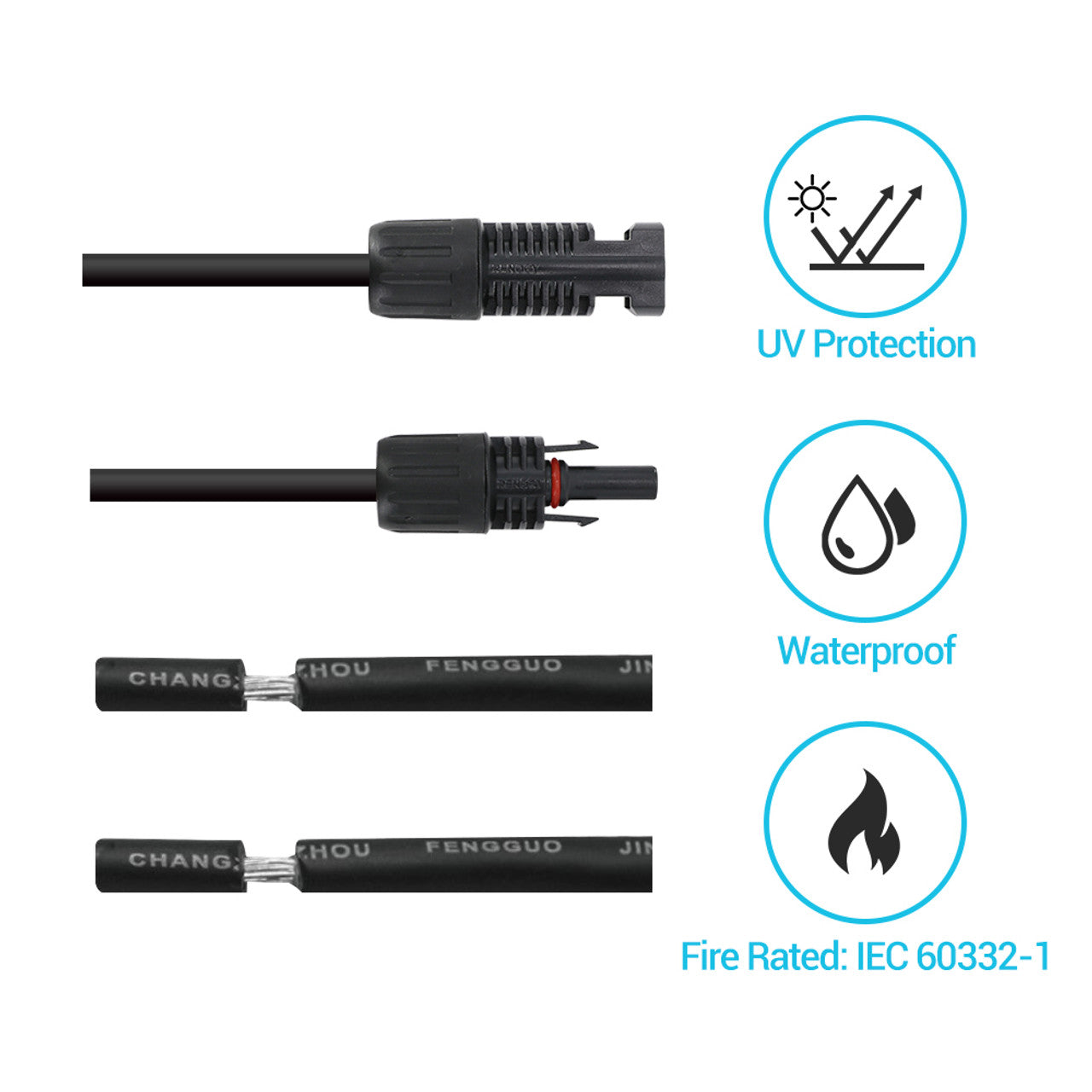

- Hard plastic connectors at each end.

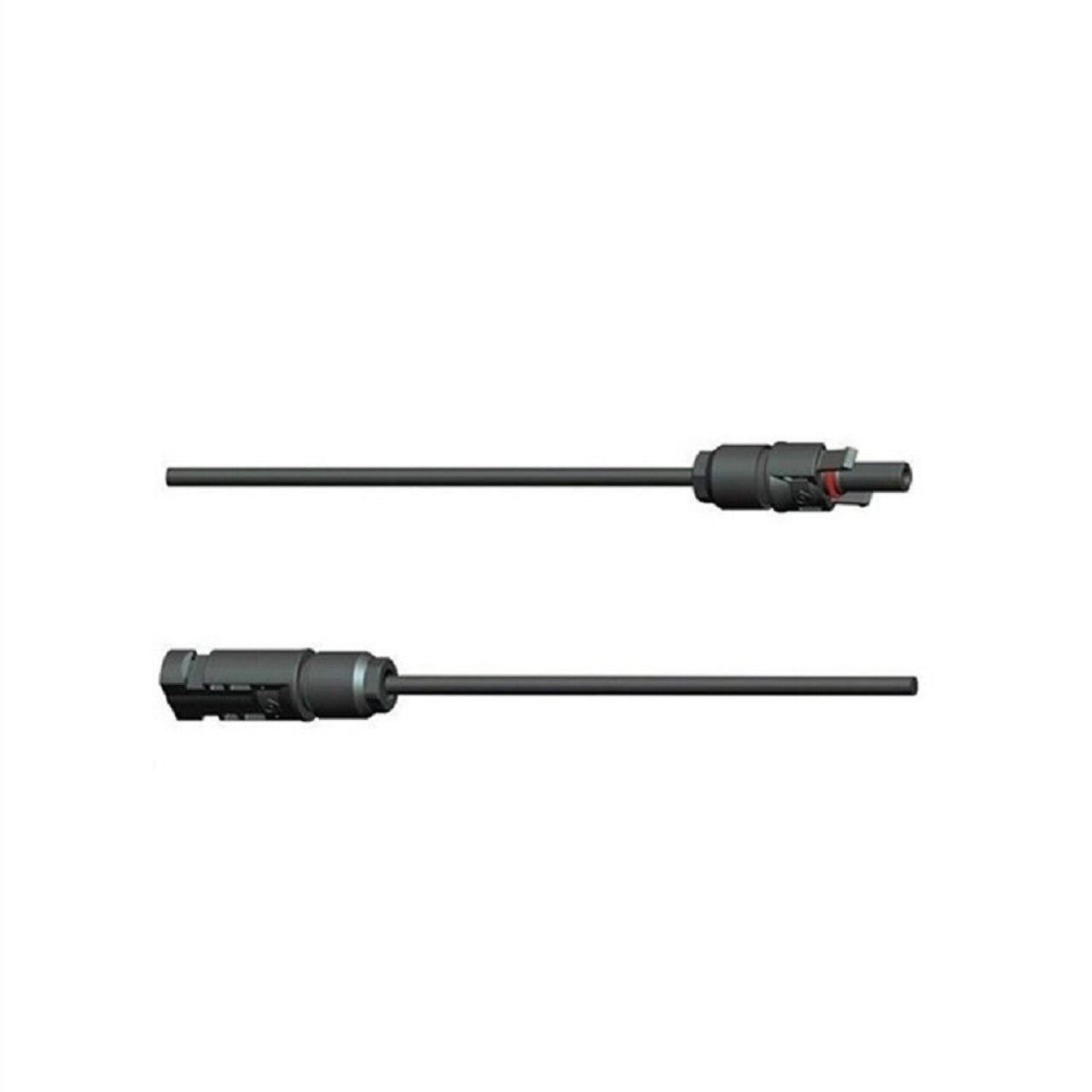

- Female and male connectors for an unbreakable connection.
- Weatherproof, insullated wiring.

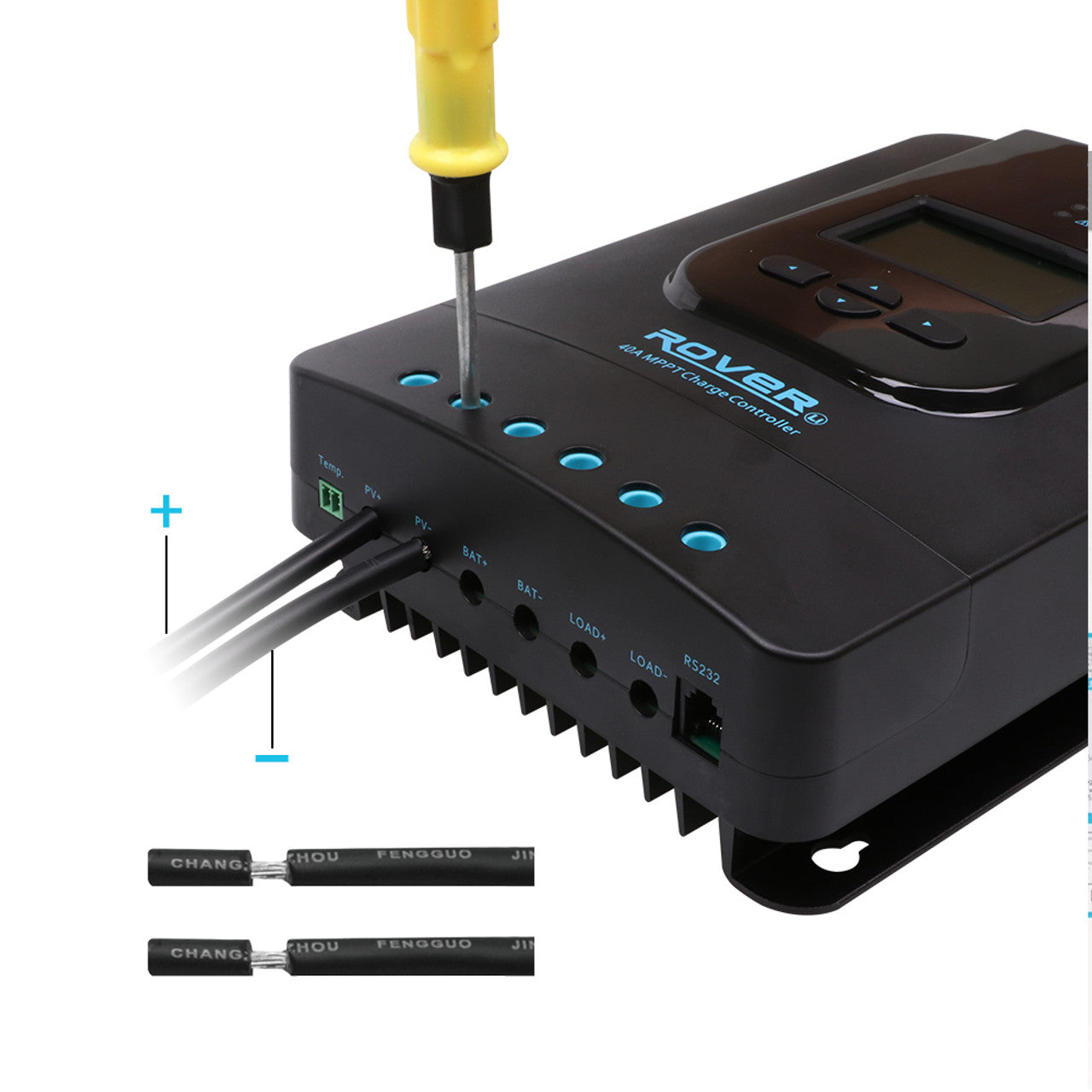

- Exposed ends for connection to the solar charge controller.
- Essential for off-grid solar power system setup.
- Black sunlight resistant cable.
- Extends and locks built-in cables.
Package Includes
|
Renogy Solar Adaptor Kit
1 x
|
Specification

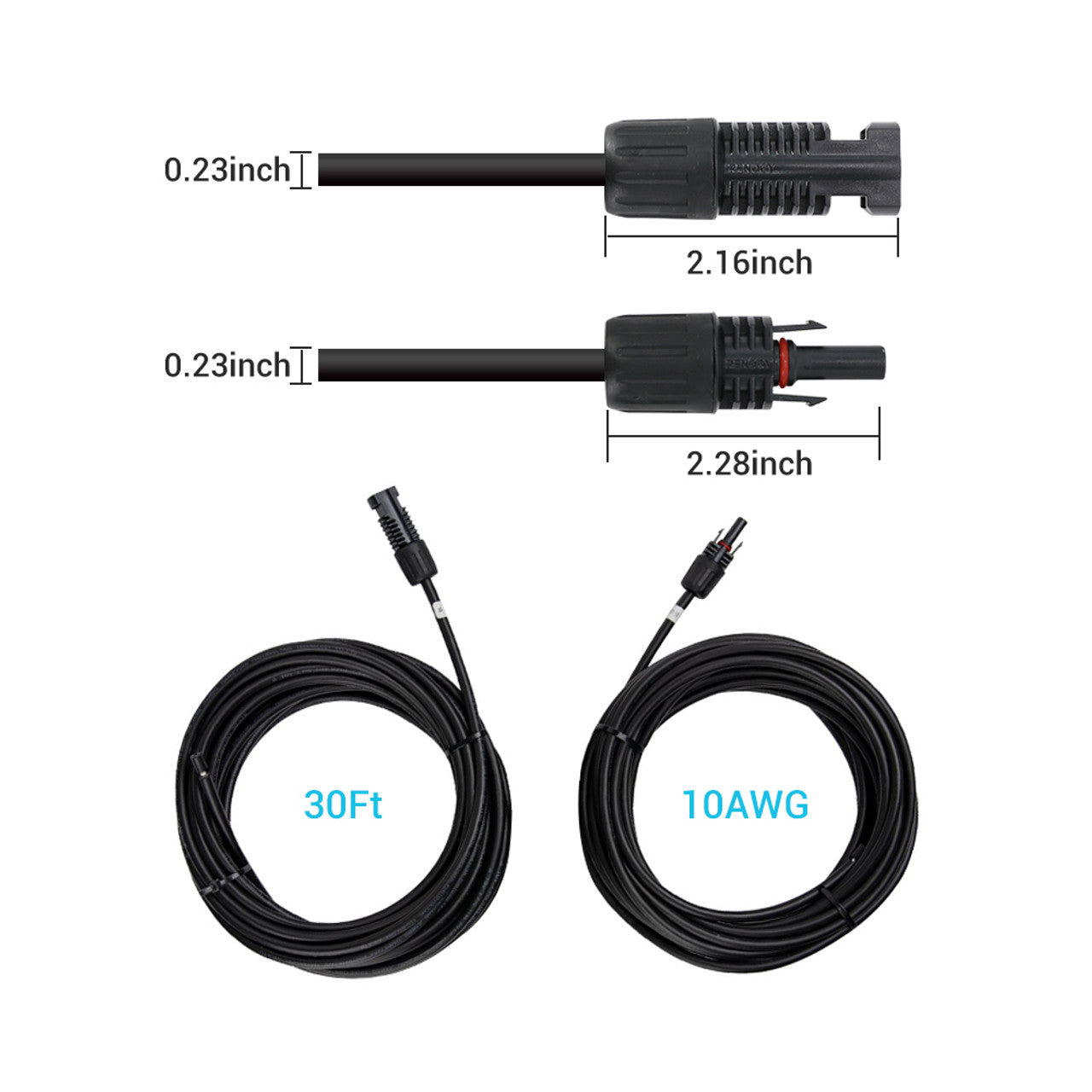

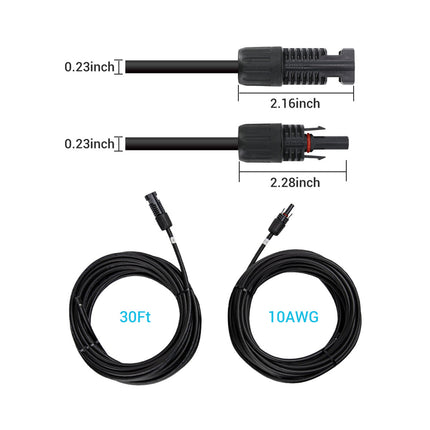

| Renogy 30ft 10AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair) |
|
| Length: 30ft |
AWG: 10 |
| Rating Voltage: 600/1000V |
Temperature: -40°F to +185°F |
| Normal Cross Sectional Area of the Conductor (mm2): 6.0 |
Diameter of Wires in Conductor (mm): 3.02±0.08 |
| Min. Wall Thickness of Insulation (mm): 0.85 |
Min. Wall Thickness of Sheath (mm): 1.08 |
| Number of Wires in Conductor: 84 |
IP 65 Protection |
| Conductor: Tinned copper wire |
|
Warranty Information
| Accessories |
1-year material warranty |
