Description

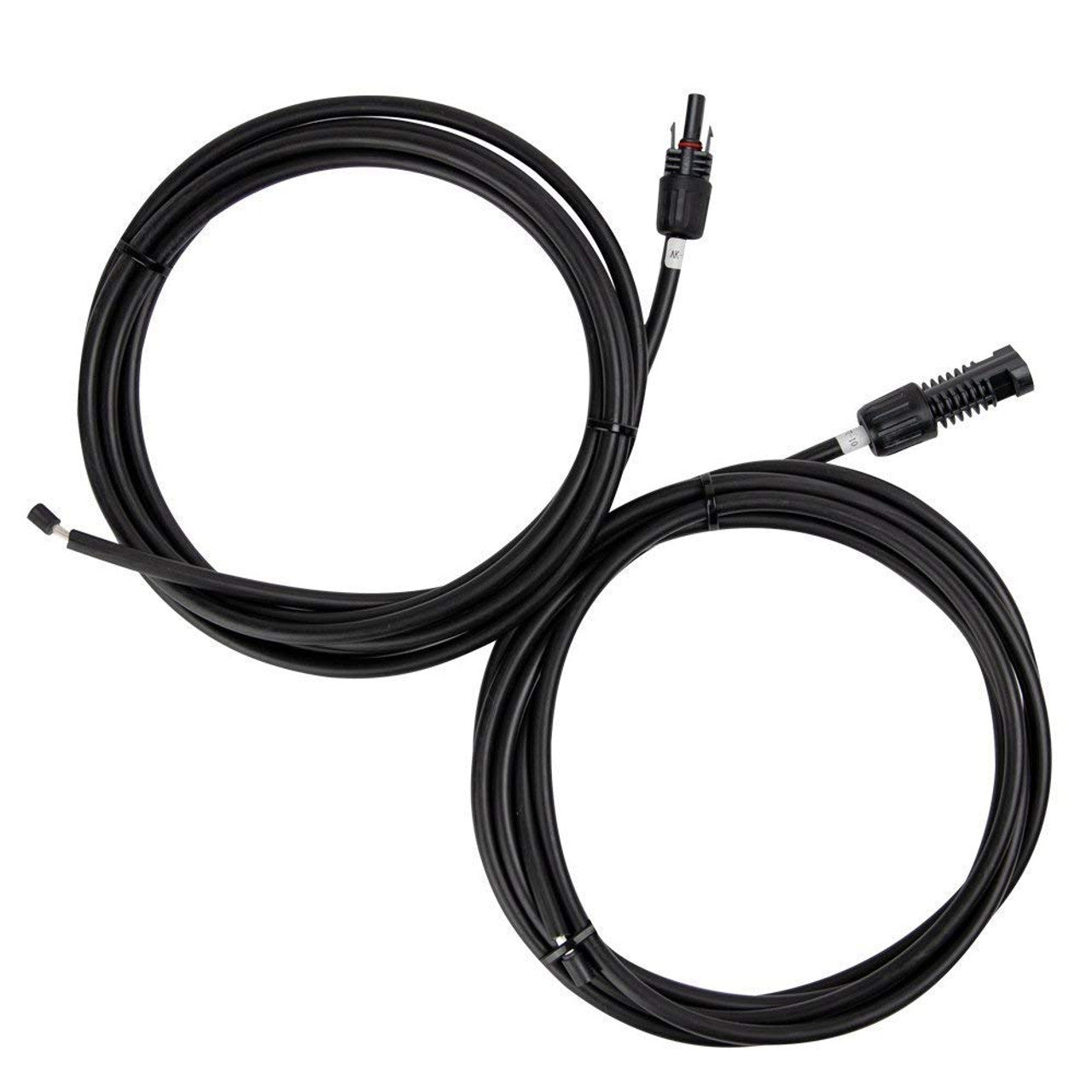

Expertly designed for off-grid solar systems, the Renogy Solar Panel to Charge Controller Adaptor Kit is a reliable and convenient choice.

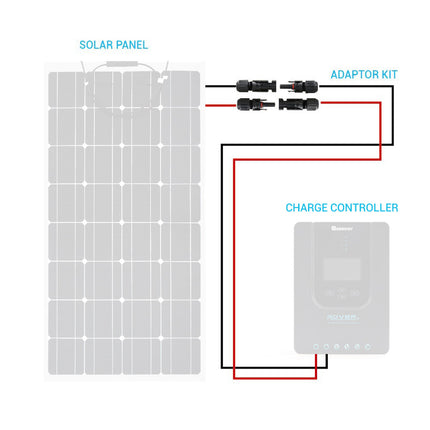

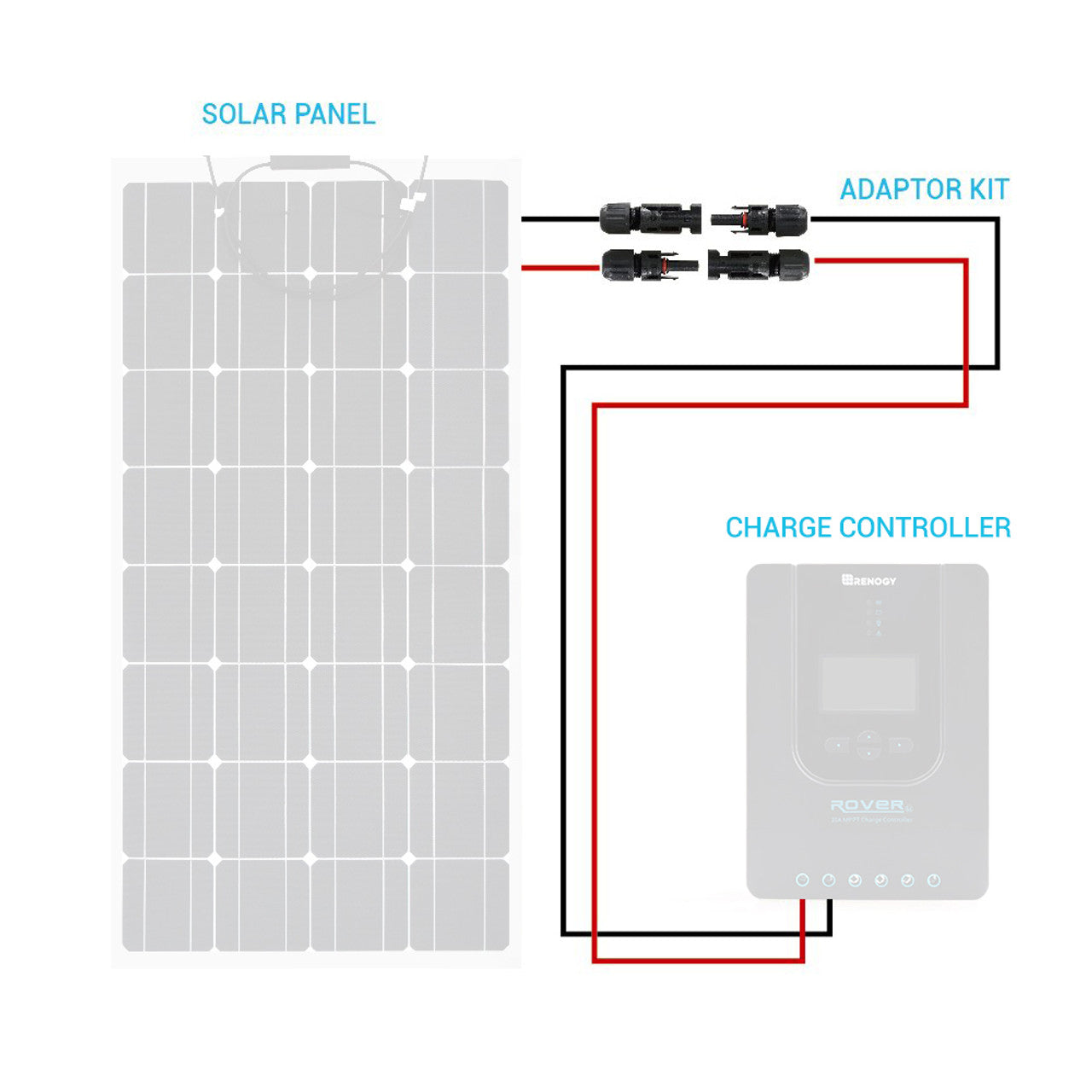

With solar connectors on one end and exposed wire on the other, this versatile kit allows for simple and secure connection between a solar panel and charge controller. Available in various sizes and suitable for rooftop or ground-level installations, the wiring is built to withstand tough weather conditions and extreme temperatures.
It can be easily customized with a range of options and the 40ft 10AWG Adaptor Kit provides a maximum distance of 40 feet between the solar panel and charge controller.
Key Features

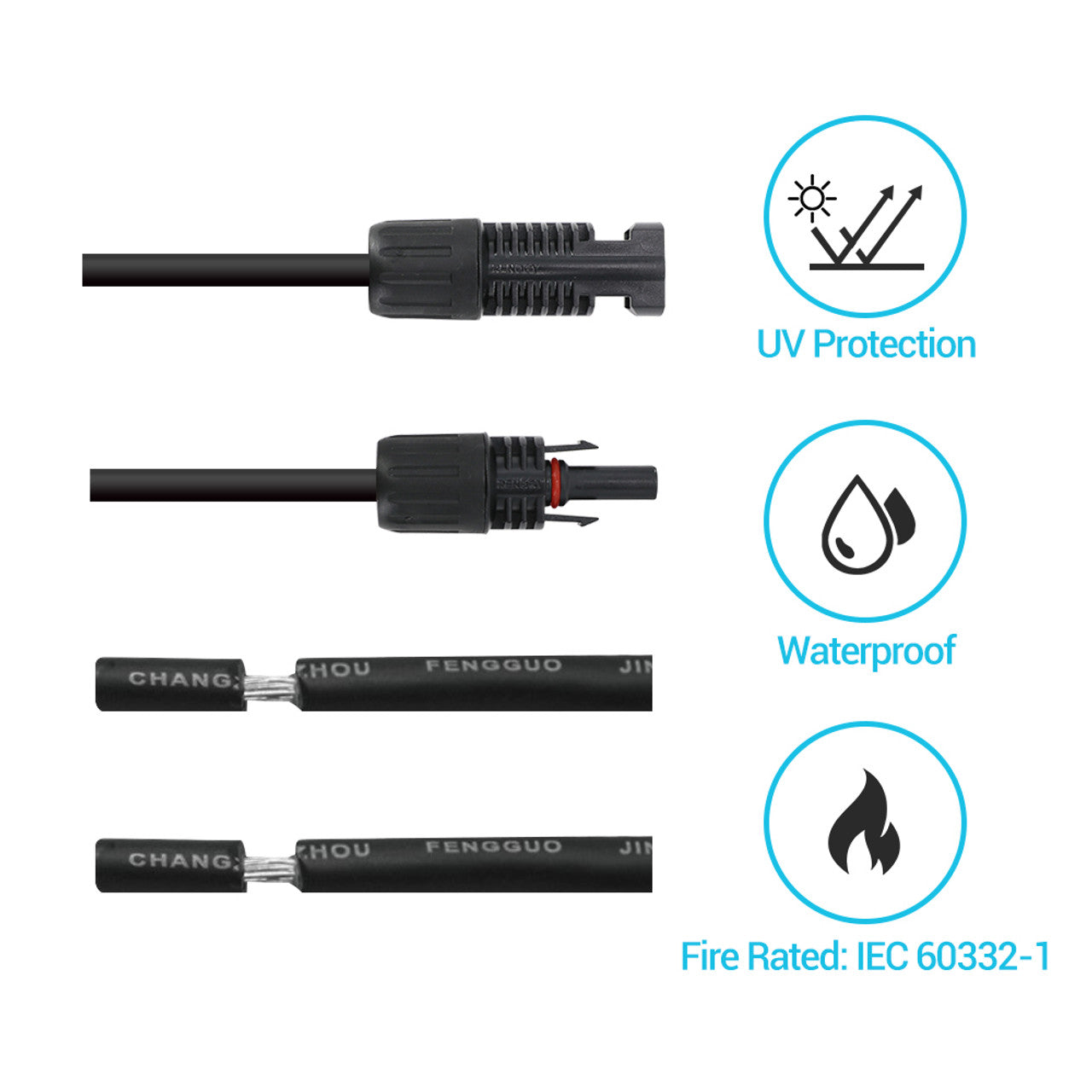

- Hard plastic connectors at each end.

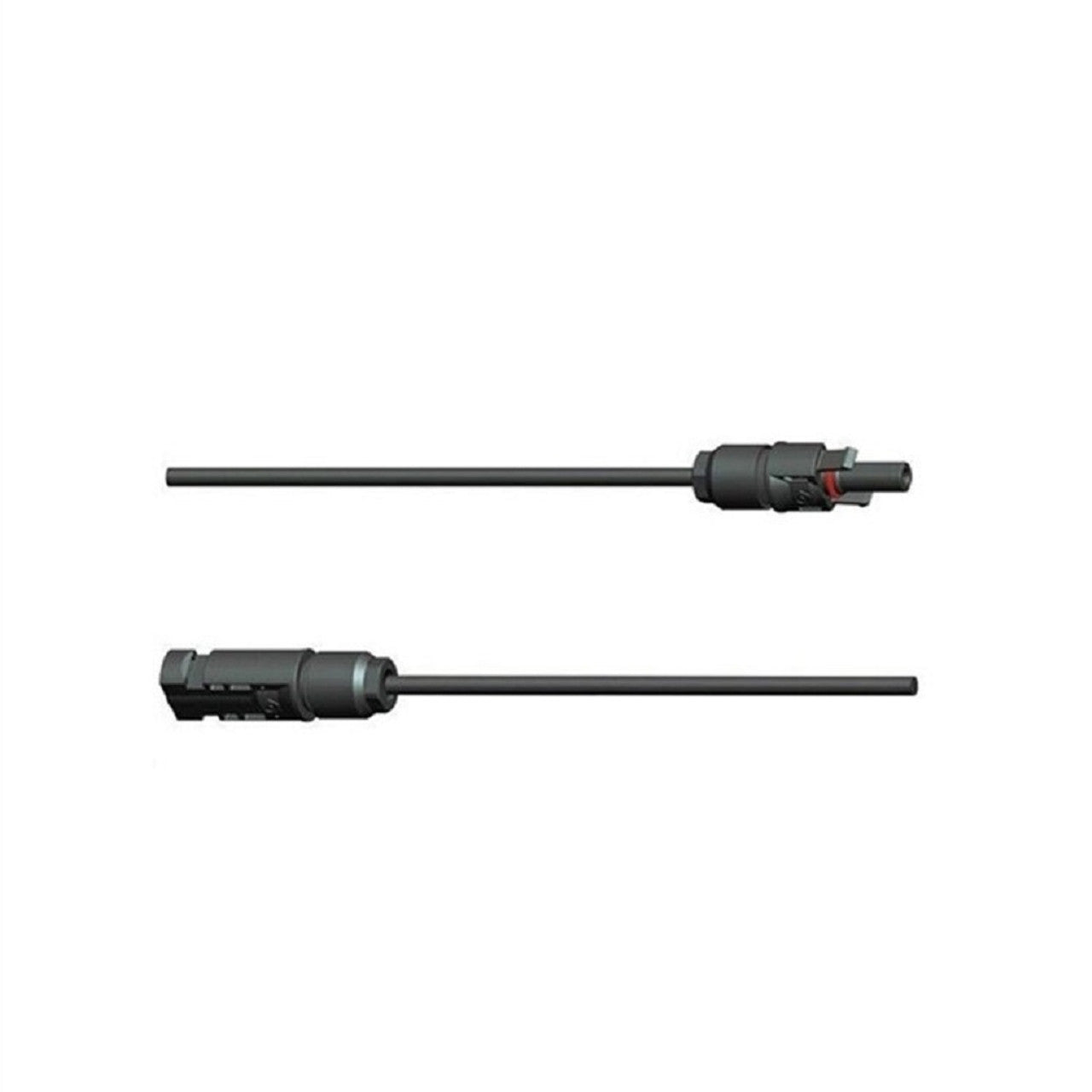

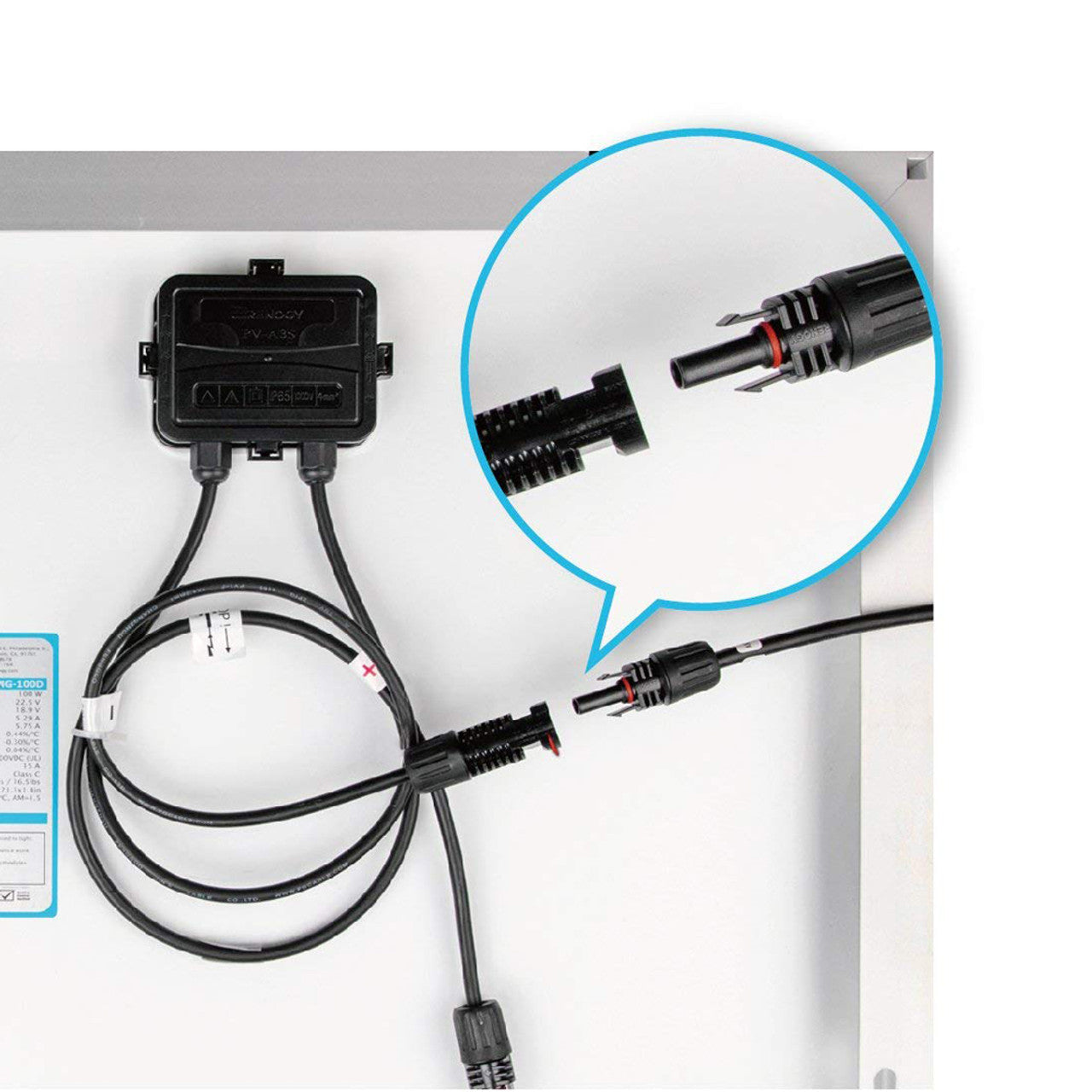

- Female and male connectors for an unbreakable connection.
- Weatherproof, insullated wiring.

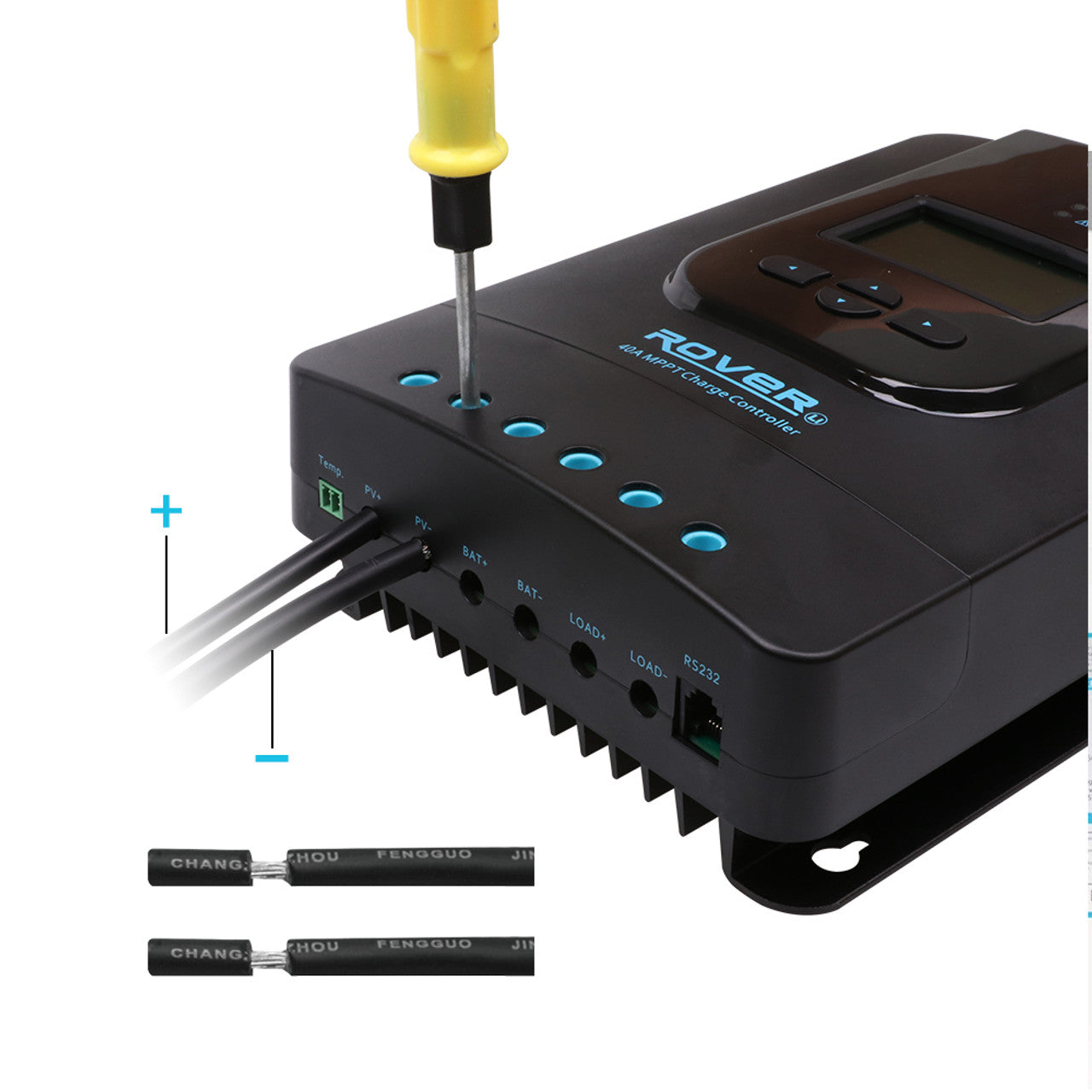

- Exposed ends for connection to the solar charge controller.
- Essential for off-grid solar power system setup.
- Black sunlight resistant cable.
- Extends and locks built-in cables.
Package Includes
|
Renogy Solar Adaptor Kit
1 x
|
Specification
| Renogy 40ft 10AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers(A Pair) |
|
| Length: 40ft |
AWG: 10 |
| Rating Voltage: 600/1000V |
Temperature: -40°F to +185°F |
| Normal Cross Sectional Area of the Conductor (mm2): 6.0 |
Diameter of Wires in Conductor (mm): 3.02±0.08 |
| Min. Wall Thickness of Insulation (mm): 0.85 |
Min. Wall Thickness of Sheath (mm): 1.08 |
| Number of Wires in Conductor: 84 |
IP 65 Protection |
| Conductor: Tinned copper wire |
|
Warranty Information
| Accessories |
1-year material warranty |
