Description
MARKET LEADING PERFORMANCE.

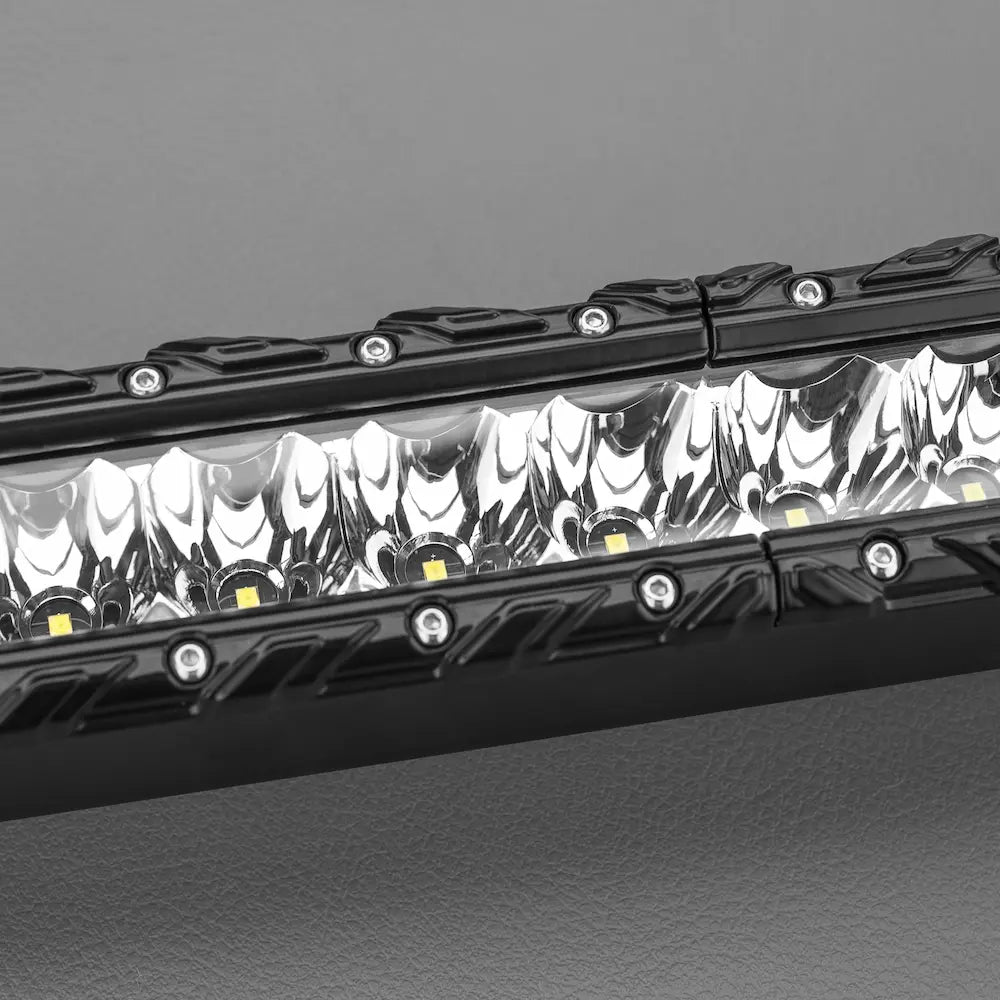

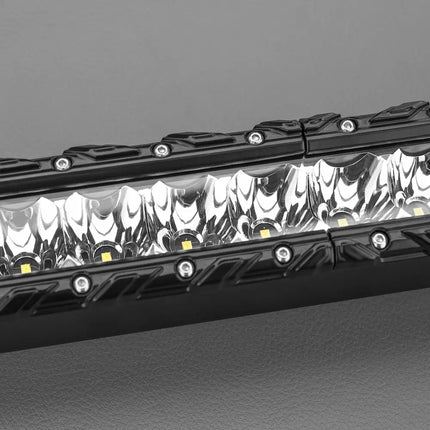

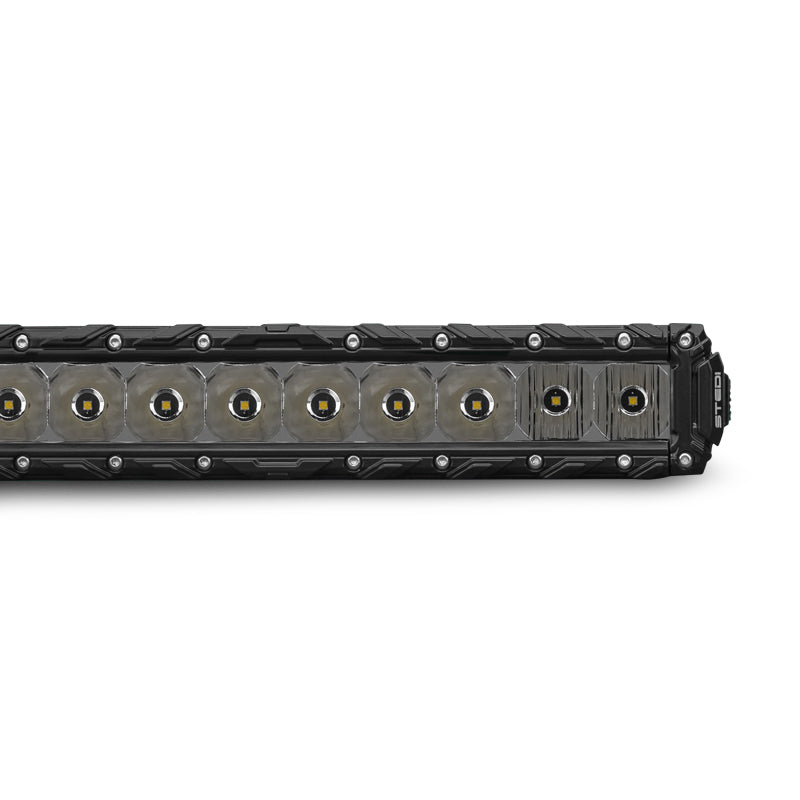

The ST3K-50L has a total of 50 OSRAM's® OSLON® LEDs, carefully chosen for unparalleled efficiency. Its distribution of 10 flood + 30 spot + 10 flood reflectors creates an incredible beam that expands to 50° for wide coverage and 5.8° for a focused spot, with an astonishing 1 lux @ 778m distance. Its True White 5700K color temperature provides exceptional clarity and definition. Thanks to our Pure-Drive™ circuit design, 97% of input power is utilized by the LEDs.
BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.

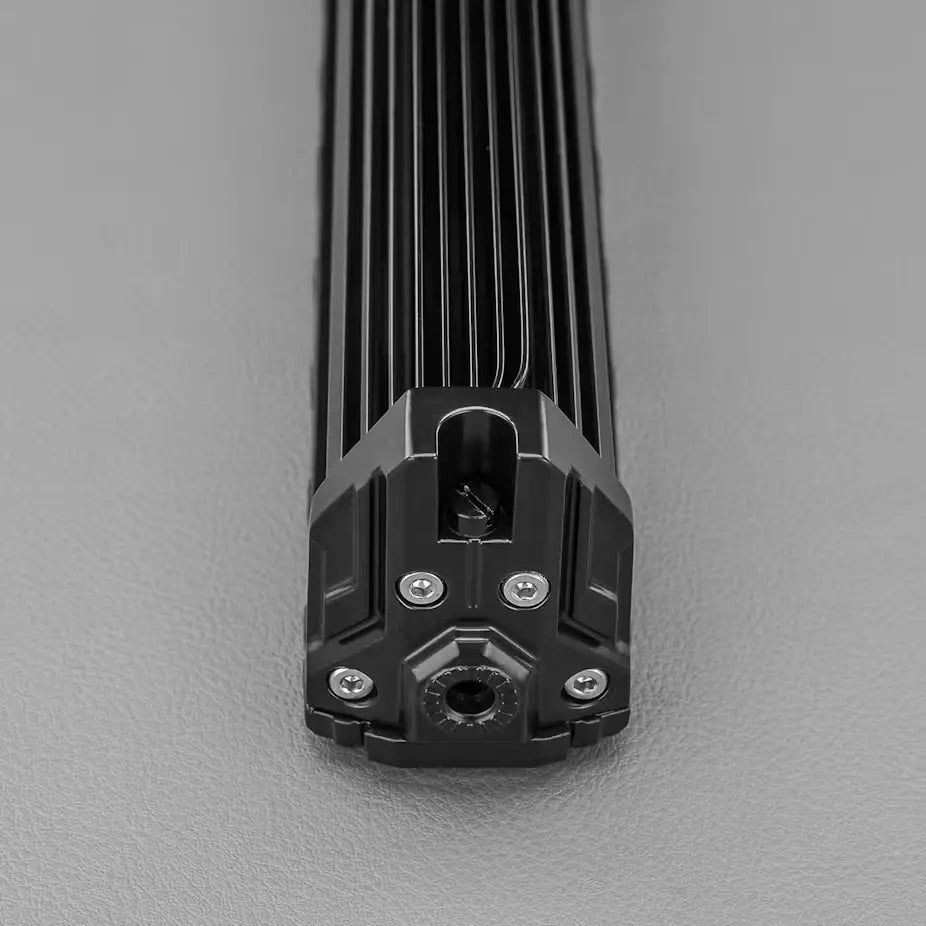

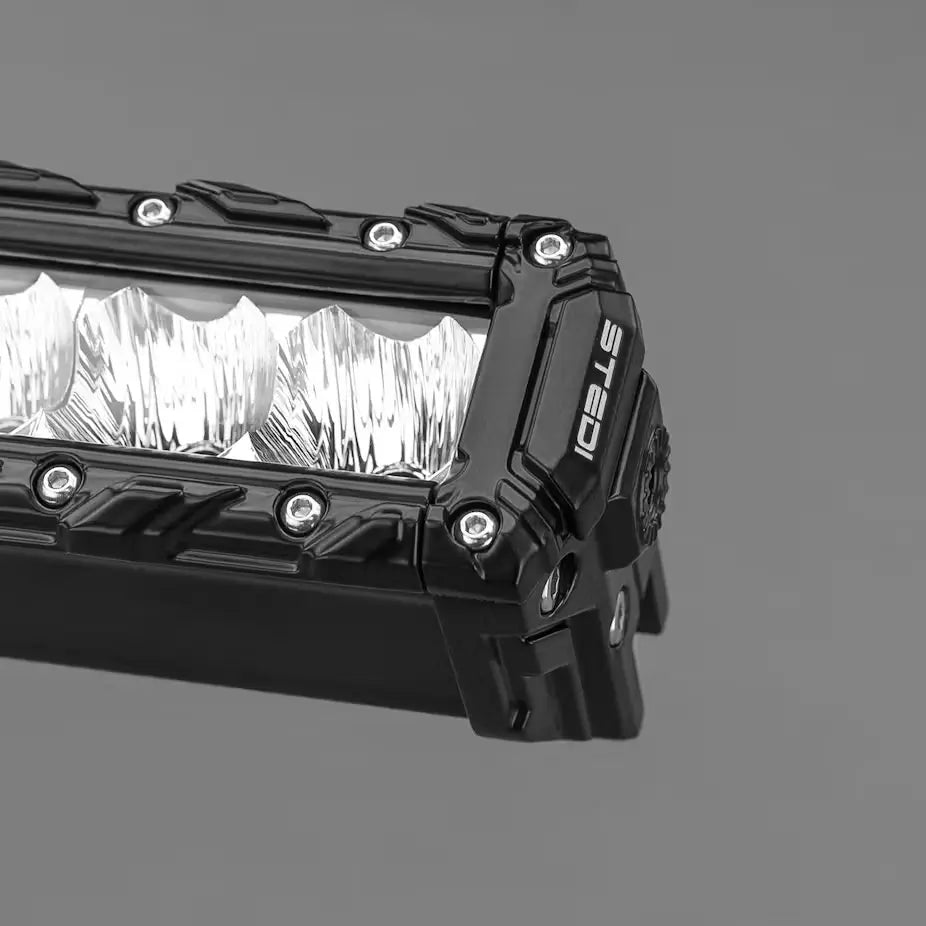

Constructed with 100% Polyester material and coated with UV and abrasion resistant powder, our bars are guaranteed to maintain their color. Equipped with a Pressure Equalization vent, our bars are safeguarded against water, dust, and contaminants. With an IP68 rating, our bars are both dust and waterproof up to 3 meters. Our environmentally sealed Deutsch DT-2 connector provides additional protection against EMC and RFI. With an ultra-low profile of 51mm without side brackets and 63mm with side brackets, our bar offers a compact and versatile design.

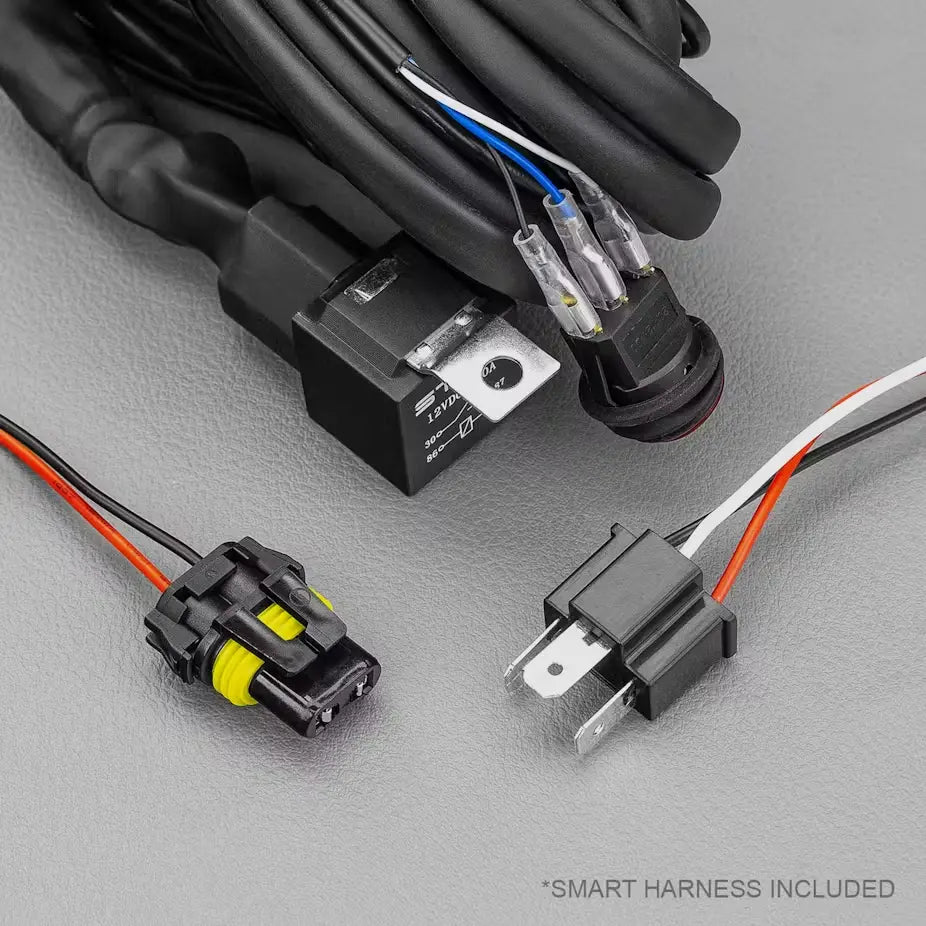

Includes our Easy Fit High Beam Plug and Play Wiring Harness which include H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market ours has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems
Backed by a 5 Year Replacement Warranty.
Specifications
| LED |
50 x Osram Oslon White |
| Effective Lumen |
10,250Lm |
| Peak Intensity (Candela) |
608,000cd |
| Operating Voltage |
10-30V DC |
| IP Rating |
IP68 |
| Current Draw |
11.2A @ 13.6v
|
| Colour Temperature (CCT) |
5700 Kelvin |
| Housing Material |
Aluminium Extrusion & Cast |
| Lens |
GE™ Lexan |
| Mounting Bracket |
Powder Coated 3mm Stainless Steel |
| Bolts and FIttings |
3 Series Stainless Steel |
| Beam Type |
Flood Spot Combo |
| Life Span |
50,000 Hours |
| Weight |
4.250 |
| Operating Environment |
-40 - +50° Celsius |
| PHOTOMETRIC DATA |
|
| 10 M |
6,052 Lx |
| 50 M |
242 Lx |
| 100 M |
60 Lx |
| 200 M |
15 Lx |
| 778 M |
1 Lx |
