Description

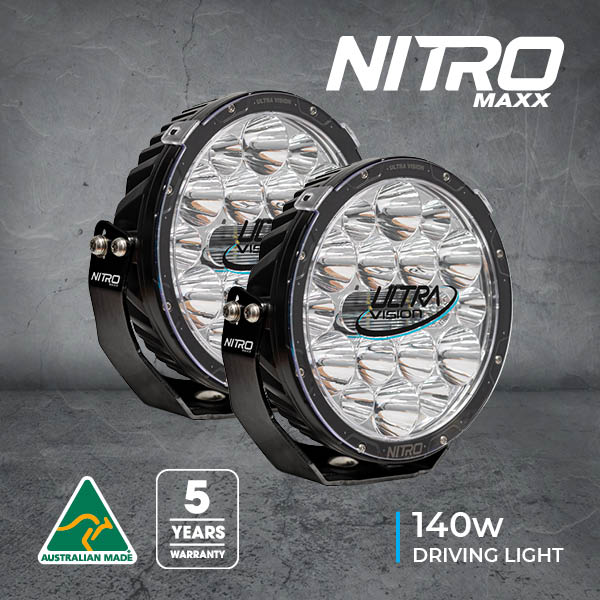

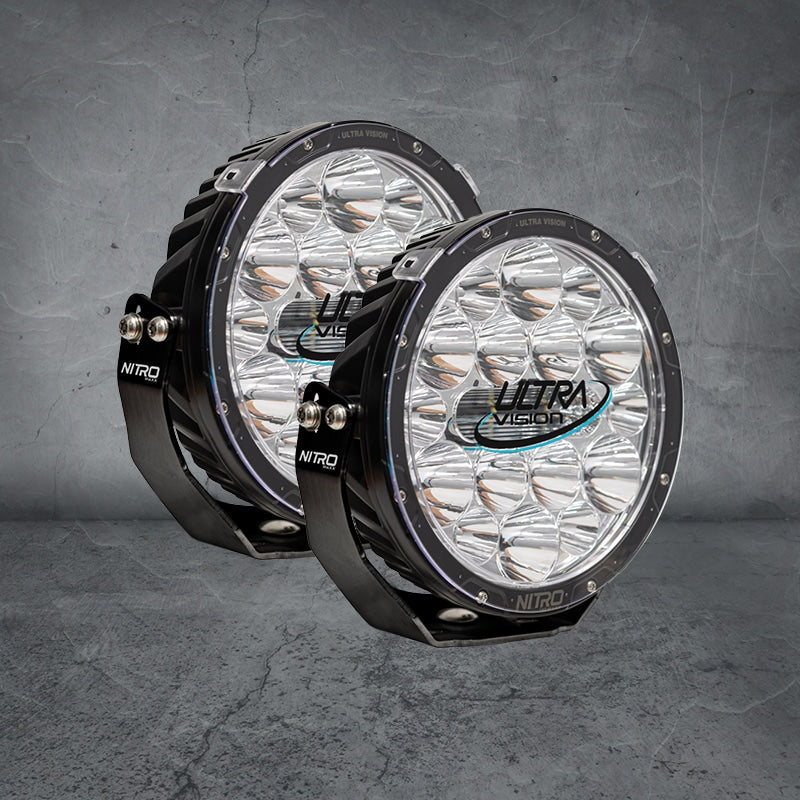

Experience enhanced performance with the latest generation of high performance LED lighting - the Ultra Vision Nitro 140 Maxx 9" LED Driving Light (Pair). Featuring a sophisticated Contrl® optic, this light offers optimized light usage for both width and distance from just one reflector.
For even more width, the Widr® option provides over 1 lux at 1.6kms. Its slim body design allows for easy fitment on most vehicles, and the reduced weight adds to its versatility. Trust in the stainless steel mounting bracket for years of reliable use. Each unit comes with clear polycarbonate lens covers, a wiring harness, and anti-theft nuts.

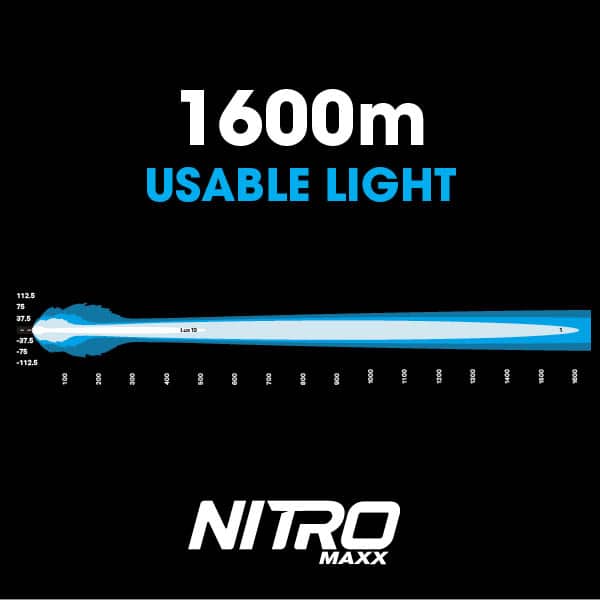

Driving Light Beam Patterns
Specifications
| Wattage |
140W (per lamp) |
| Light Source |
19 x High Power LED’s (per lamp) |
| Light Output – Raw |
28,328 Lumens (per pair) |
| Light Output – Effective |
22,520 Lumens (per pair) |
| Voltage |
9V-36V |
| Current Draw |
20A @ 13.5V (per pair) |
| Operating Temperature |
-40°C to +80°C |
| Waterproof rating |
IP68 |
| Connector Type Plugs |
2 Pin standard Deutsch |
| Housing |
Die-Cast Alloy |
| Outer Lens Construction |
Polycarbonate |
| Brackets |
4mm Stainless Steel |
| Colour Temperature |
4500K or 5700K |
| Lifespan |
50,000 Hours |

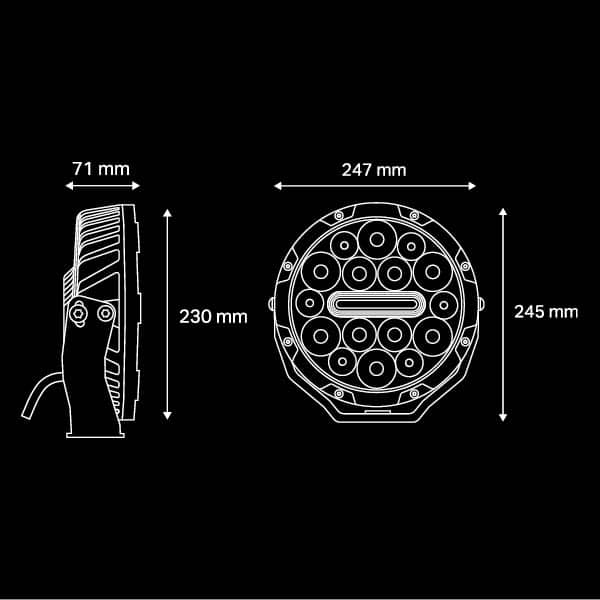

| Diameter |
230mm |
| Net Weight |
2.95kg (per lamp) |
| Mounting Suitable |
All types |
| Beam Type |
Widr® |
| Warranty |
5 Years |
| Harness and anti-theft nuts included |
Yes |
