Description

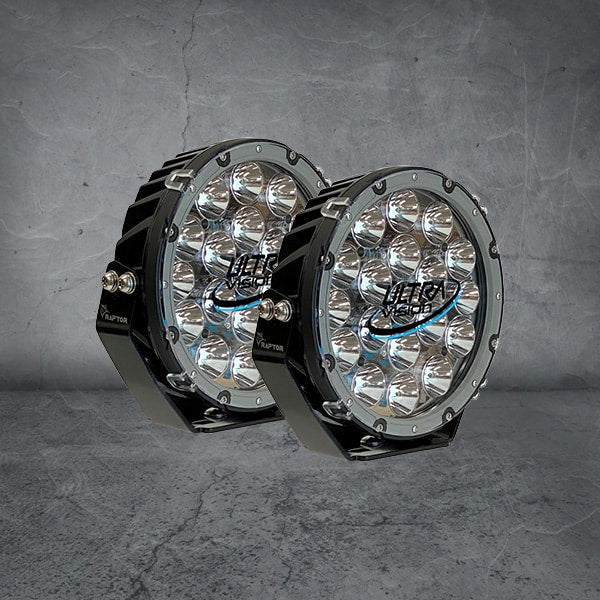

The Ultra Vision Raptor 120 LED 9" Driving Light (Pair) is a top performer that combines superior functionality with sleek style, all at an unbeatable value. These 9" driving lights pack a powerful punch, producing 1 Lux at 1km with an impressive beam width, ensuring visibility on both roads and trails.

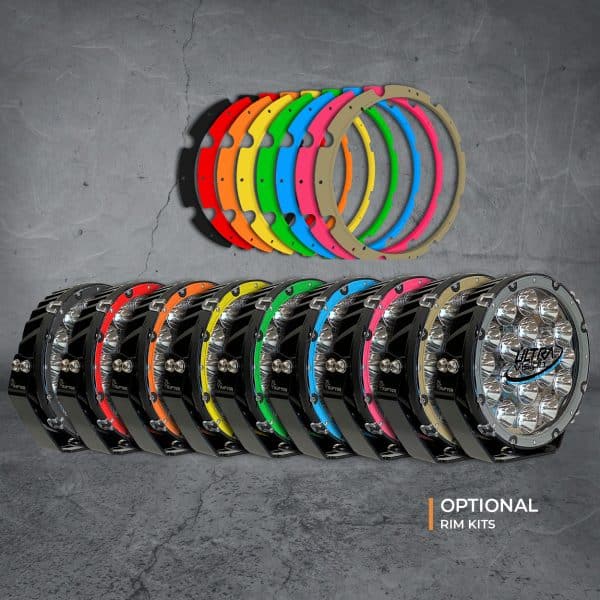

You can choose between 4000k or 5700k colour temperatures to suit your driving needs. Enhance the look of your vehicle with the customizable Raptor Rim Kits, offering 8 different rim colours in addition to the standard grey. Made to last with die-cast aluminium housing, tough polycarbonate lenses, and stainless steel brackets (with a lifetime warranty), this light comes with a wiring harness and is backed by a 3-year warranty.
Don't let the time of day limit your exploration, the Raptor 120 LED 9" Driving Light is ready for any adventure ahead.
Features

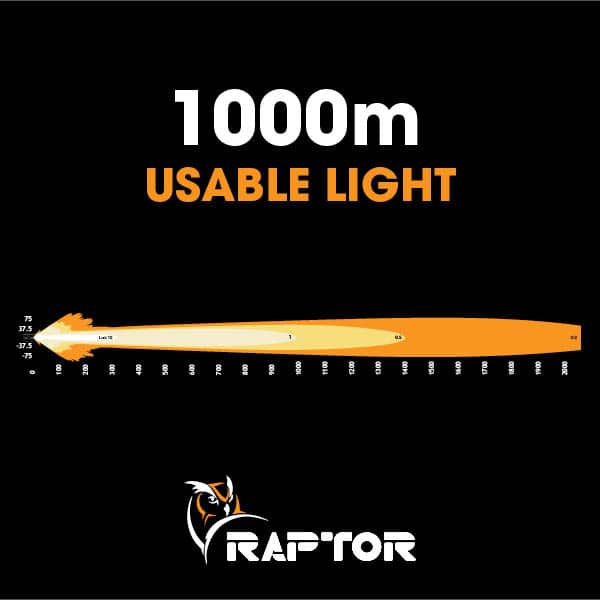

Beam Pattern
| SPECIFICATIONS |
RAPTOR 120W |
| Wattage |
120W (per lamp) |
| Light Source |
19 x 6W LED’s (per lamp) |
| Light Output – Raw |
29,400 Lumens (per pair) |
| Light Output – Effective |
24,818 Lumens (per pair) |
| Voltage |
9-36V |
| Current Draw |
17.6A @ 13.5V (per pair) |
| Operating Temperature |
-40°C to +80°C |
| Waterproof rating |
IP68 |
| Connector Type |
2 Pin Heavy Duty Deutsch |
| Housing |
Die-Cast aluminium |
| Lens Construction |
Polycarbonate |
| Bracket |
Stainless Steel |
| Colour Temperature |
4000K or 5700K |
| Lifespan |
50,000 Hours |
| Diameter |
220mm |
| Net Weight |
2.7kg (per lamp) |
| Mounting Suitable |
Stainless Steel Bracket |
| Beams Available |
Combo |
| Warranty |
3 Years |
| Wiring Harness included |
Yes |
| PART NUMBERS |
| Raptor 120W 4000K |
RAP120DL4V2/PR |
| Raptor 120W 5700K |
RAP120DLV2/PR |
