Description

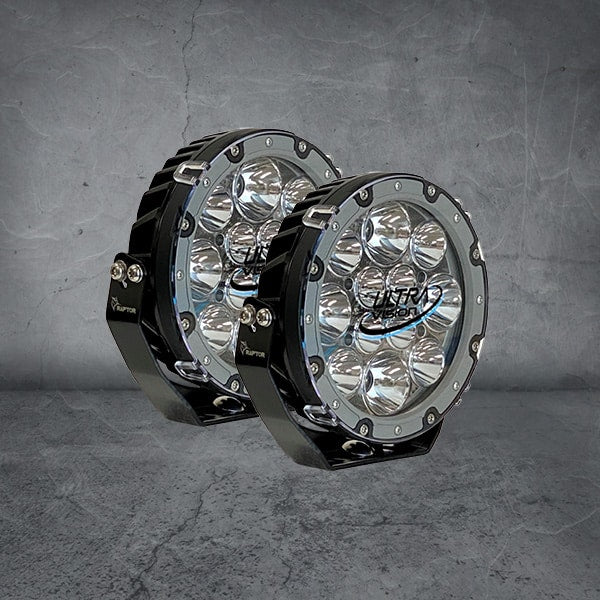

The Ultra Vision Raptor 70 LED 7" Driving Lights come equipped with a sturdy high pressure die-cast aluminum housing and a durable high impact polycarbonate lens, along with standard grey rims. These lights feature advanced optic designs that provide a combination beam with exceptional distance and width.

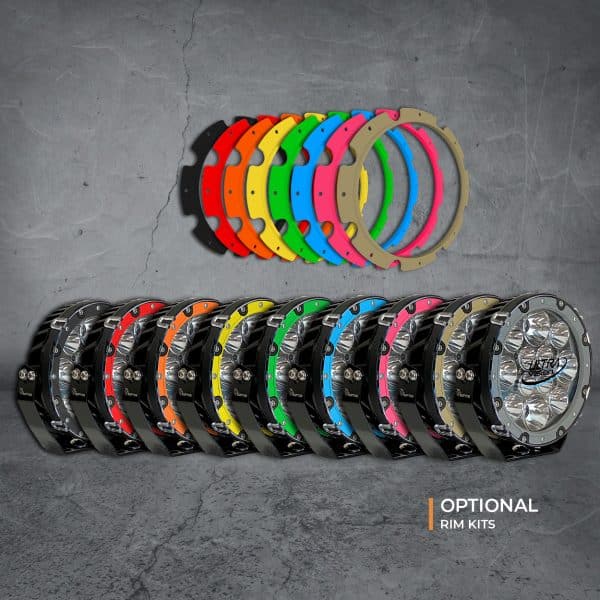

For added style, optional Raptor Rim Kits are available in 8 different colors to give your vehicle a unique look. Each set of lights also includes a protective lens cover, easy-adjust mounting bracket, wiring harness, and stainless steel brackets.
Furthermore, you have the option to choose between 4000k or 5700k Colour Temperature to suit your individual driving needs. Proudly made in Australia, all Raptor products are backed by a 3-year warranty for your peace of mind.
Features
| SPECIFICATIONS |
RAPTOR 70W |
| Wattage |
70W (per lamp) |
| Light Source |
12 x 6W LED’s (per lamp) |
| Light Output – Raw |
16,400 Lumens (per pair) |
| Light Output – Effective |
13,284 Lumens (per pair) |
| Voltage |
9-36V |
| Current Draw |
10A @ 13.5V (per pair) |
| Operating Temperature |
-40°C to +80°C |
| Waterproof rating |
IP68 |
| Connector Type |
2 Pin Heavy Duty Deutsch |
| Housing |
Die-Cast aluminium |
| Lens Construction |
Polycarbonate |
| Bracket |
Stainless Steel |
| Colour Temperature |
4000K or 5700K |
| Lifespan |
50,000 Hours |

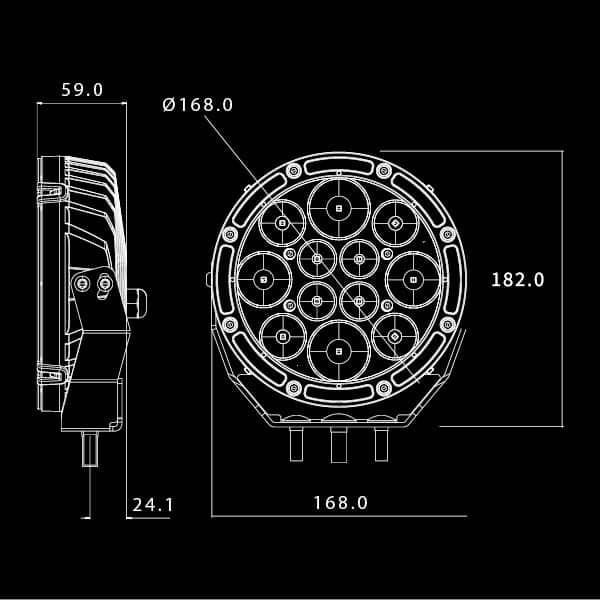

| Diameter |
170mm |
| Net Weight |
1.3kg (per lamp) |
| Mounting Suitable |
Stainless Steel Bracket |
| Beams Available |
Combo |
| Warranty |
3 Years |
| Hi/Lo Wiring Harness included |
Yes |
| PART NUMBERS |
|
| Raptor 70 4000K |
RAP070DL4V2/PR |
| Raptor 70 5700K |
RAP070DLV2/PR |

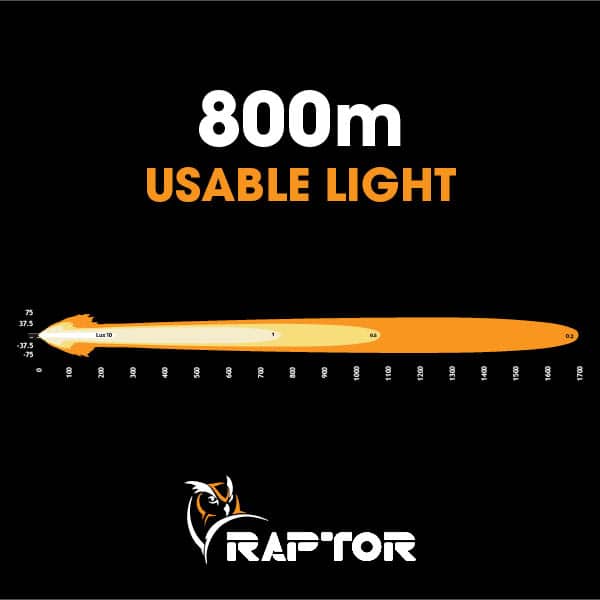

Beam Pattern
