Description

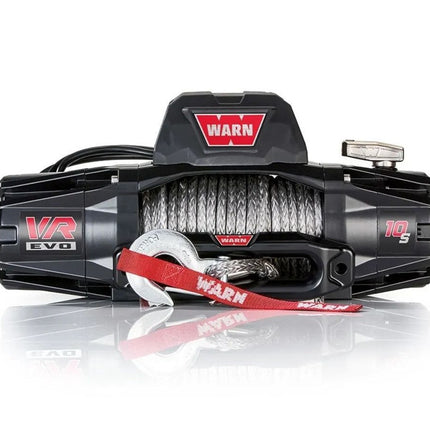

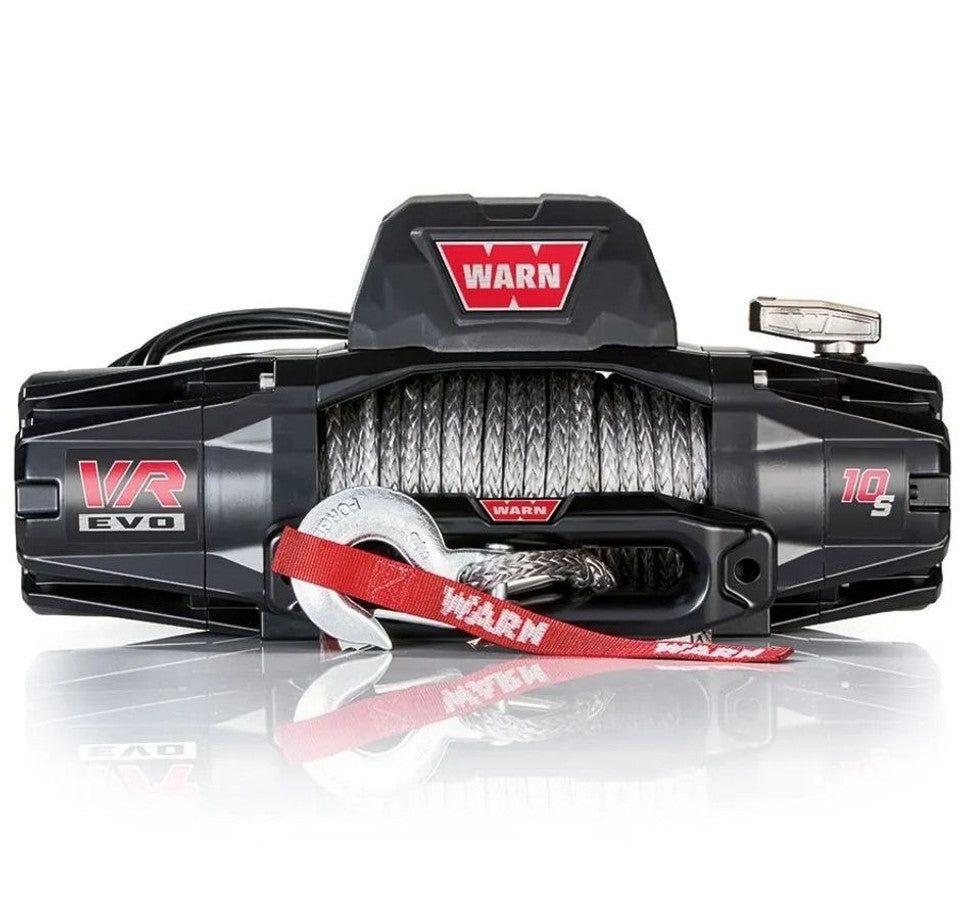

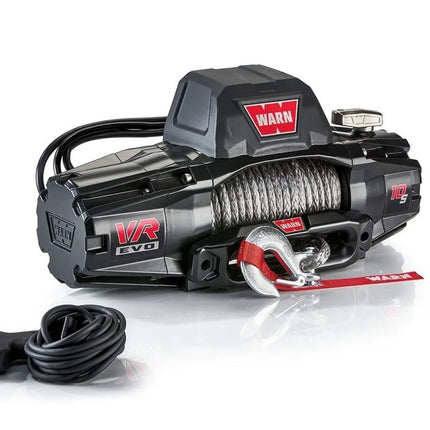

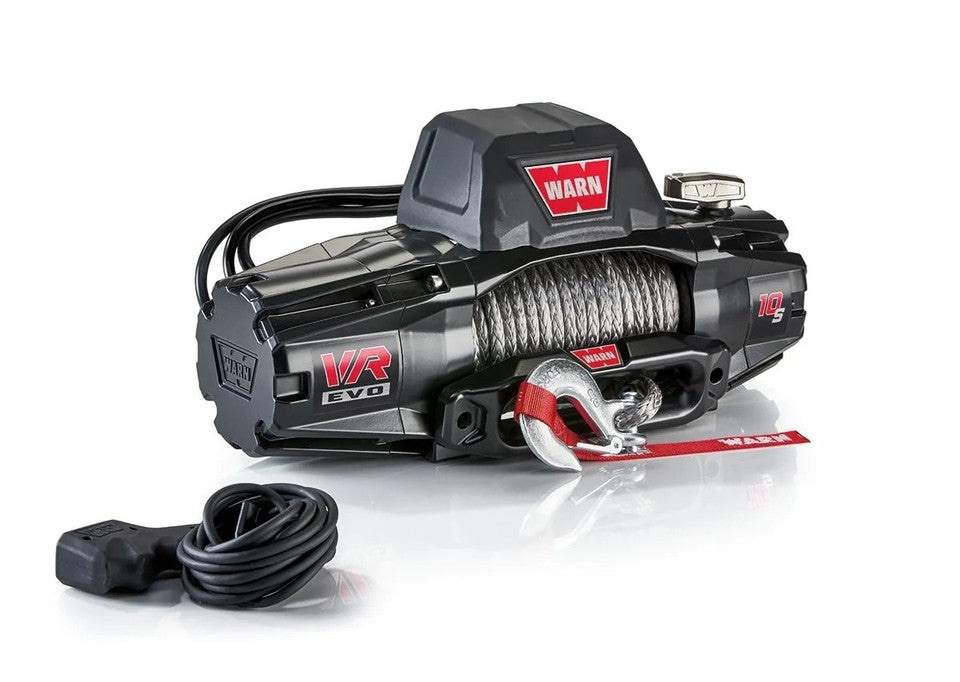

Designed for 1/2-ton pickups, Jeeps, and larger SUVs, the WARN VR EVO 10 offers optimal weight capacity and line speed. Its IP68-rated waterproof construction, reliable Albright® contactor, and versatile two-in-one remote make it the ideal choice for any off-road recovery. Please note: a compatible bumper or mounting plate is required for proper installation on your vehicle. With a fast line-speed and lower amp draw, the VR EVO winches are the most efficient standard-duty winches on the market, boasting a tactical design at an affordable price.
Features
- A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
- IP68-rated waterproof winch construction keeps the elements out
- High-performance Albright contactor delivers maximum reliability
- Control packs can be relocated for low-profile installations
- Durable, one-piece cast-aluminum tie-plate for added strength and durability
- Two-in-one remote with wired AND wireless options for ease of use and versatility
Specifications
| TYPE |
Electric |
| RECOMMENDED USE |
Vehicle Recovery |
| MOUNT TYPE |
Vehicle Mount |
| VOLTAGE |
12 Volt DC |
| ELECTRICAL CONTROL TYPE |
Albright Contactor |
| MOTOR TYPE |
Series Wound |
| DRIVE GEAR TYPE |
3-Stage Planetary |
| GEAR REDUCTION RATIO |
218:1 |
| FREE SPOOLING |
Yes |
| BRAKE TYPE |
Spring |
| LINE DIAMETER (IN) |
3/8 Inch |
| LINE LENGTH (FT) |
90 |
| LINE MATERIAL |
Synthetic |
| FAIRLEAD TYPE |
Hawse |
| REMOTE TYPE |
2 in 1 plug in remote with wireless capability |
| MOUNTING HOLE QUANTITY |
4 |

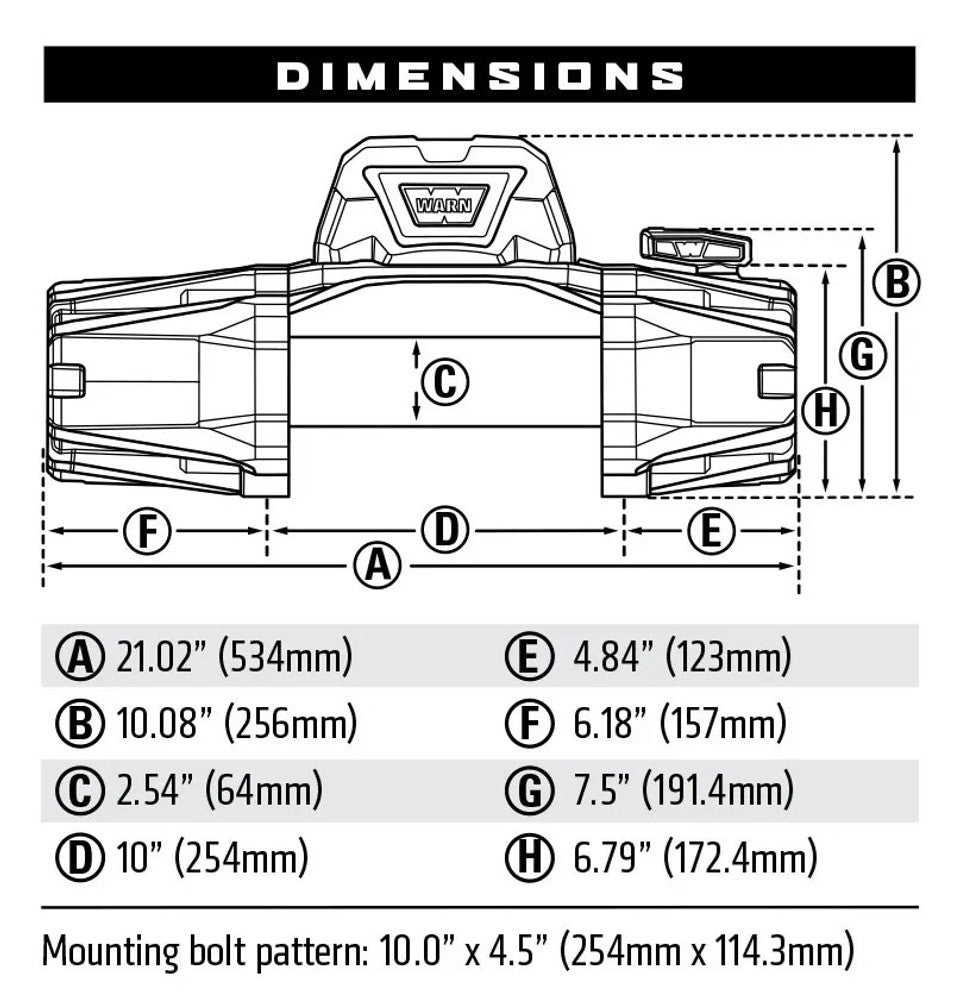

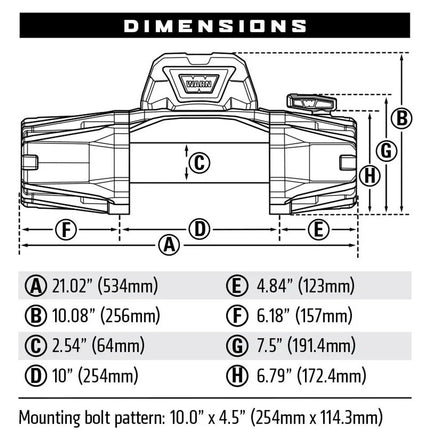

| MOUNTING PATTERN LENGTH (IN) |
10 Inch |
| MOUNTING PATTERN WIDTH (IN) |
4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE |
Yes |
| COLOR |
Black |
| MAX LINE PULL/ LINE SPEED |
1000 pound / 5.2 feet per minute |
| MAX AMP DRAW/ LINE PULL |
358 Amps / 1000 pounds |
| DRUM MATERIAL |
Steel |
